Description

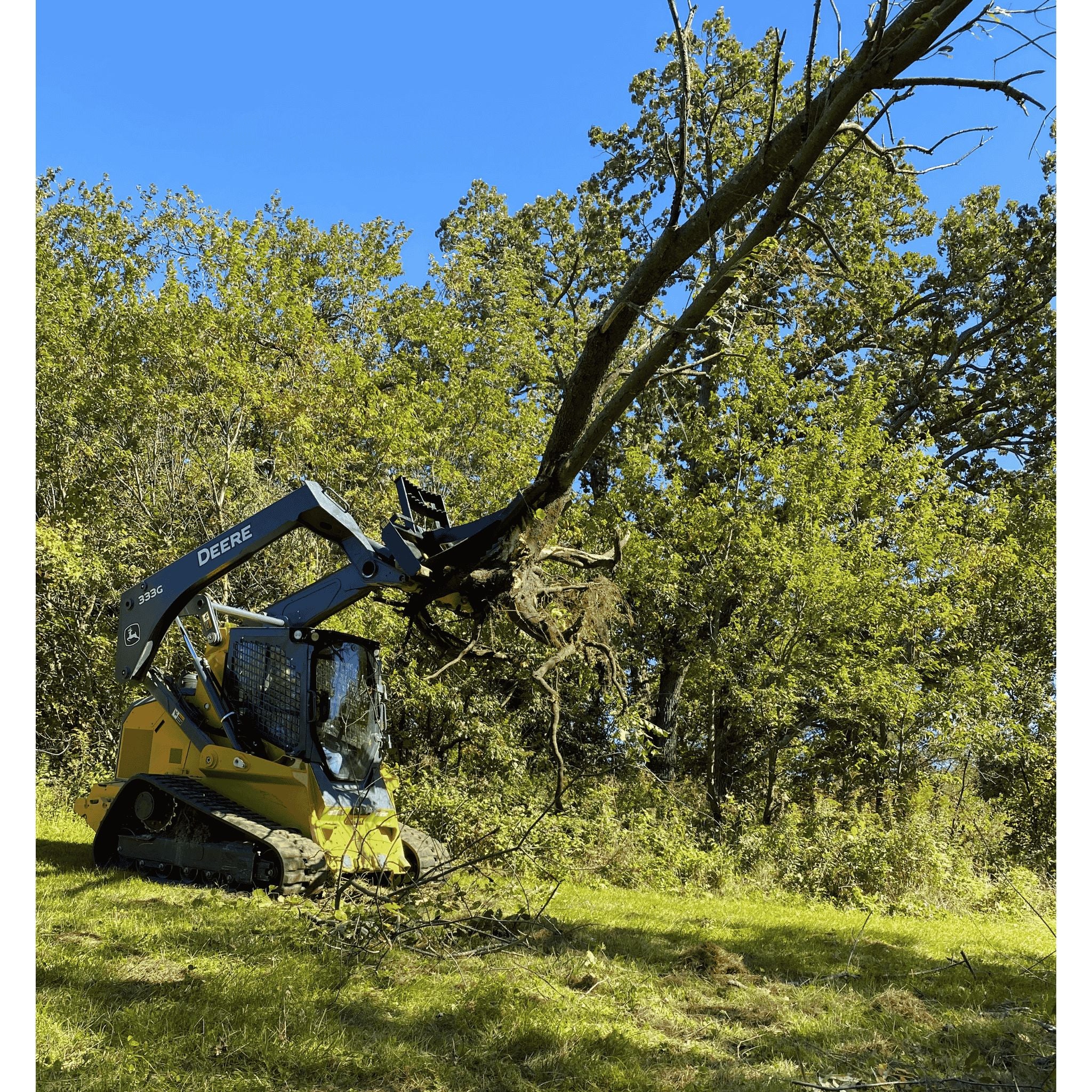

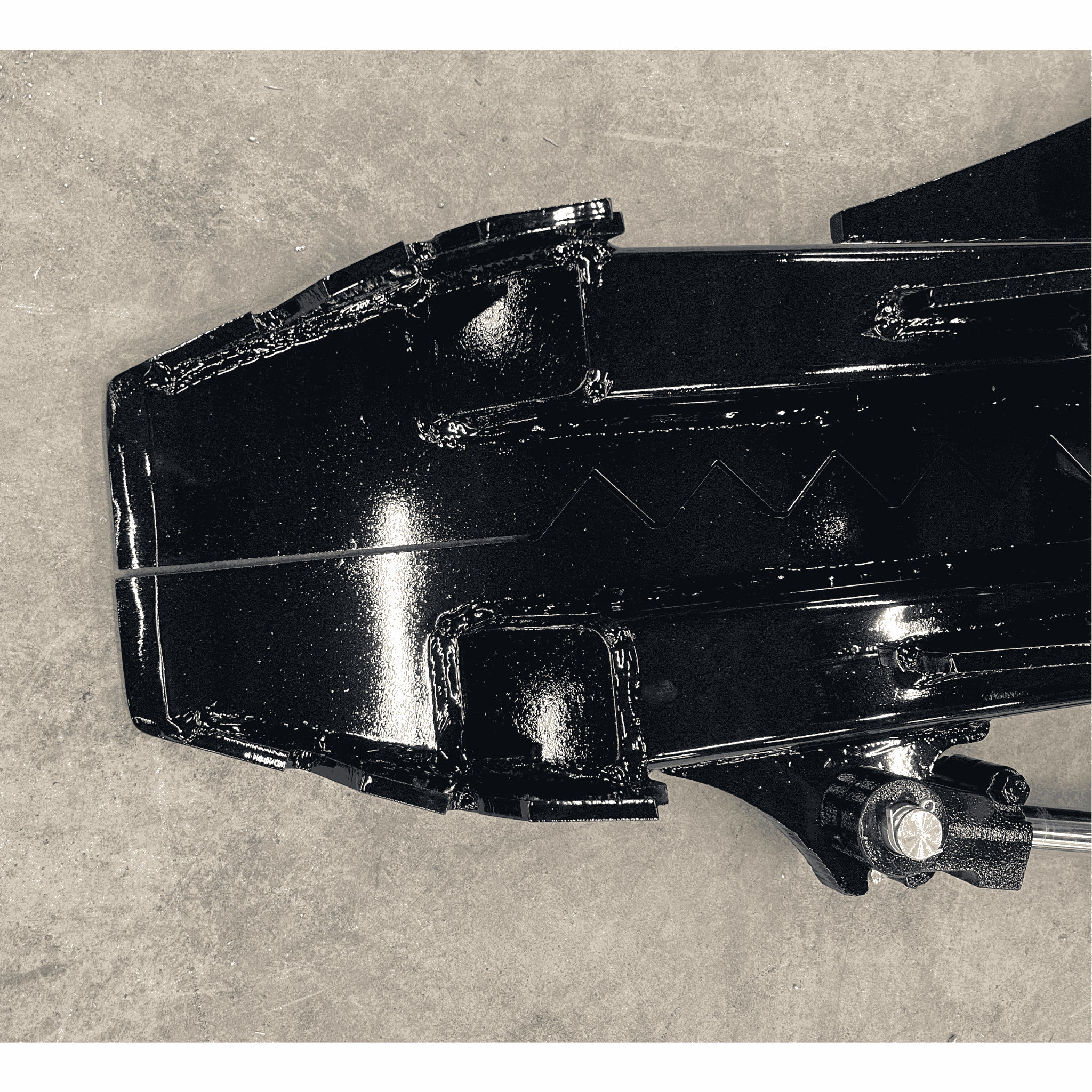

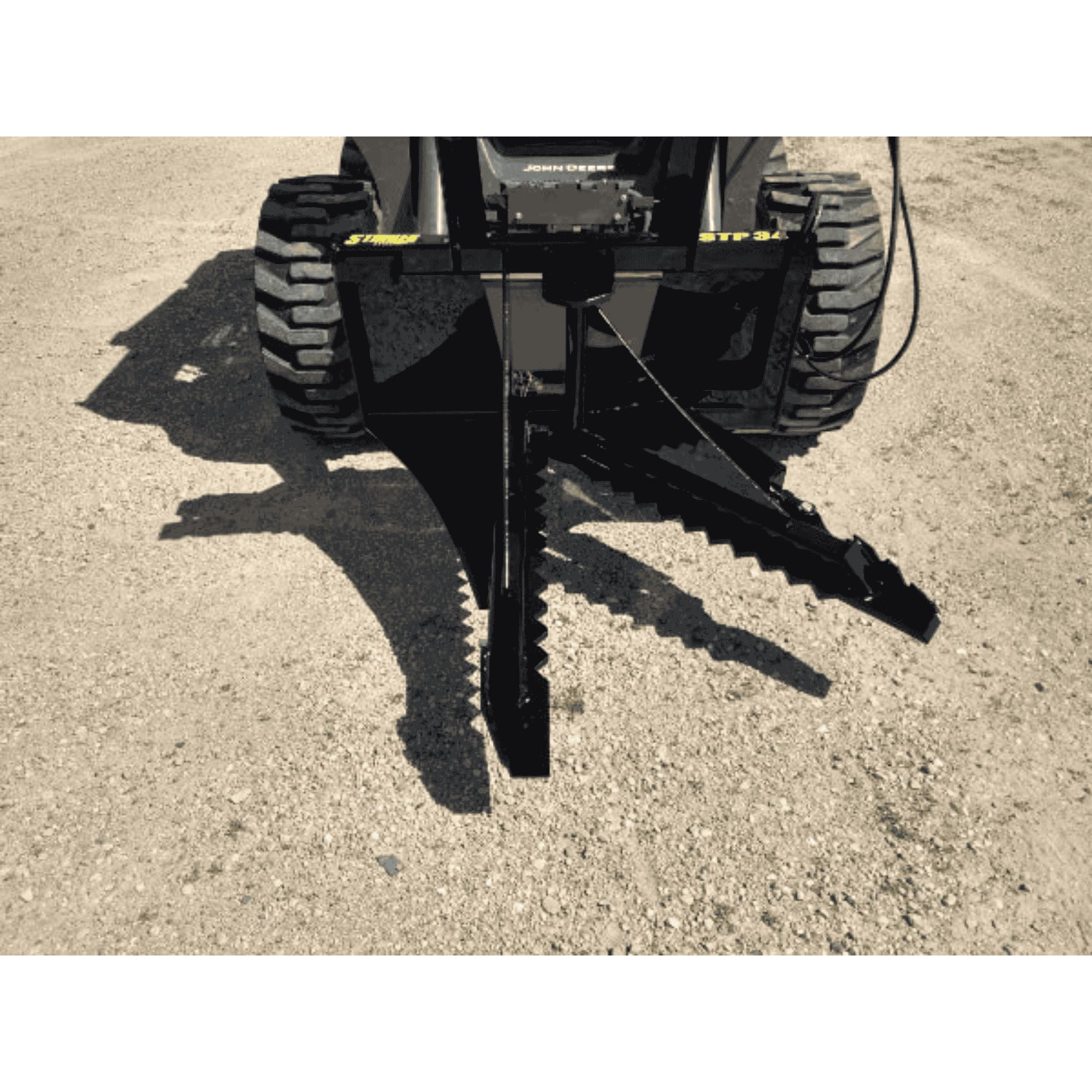

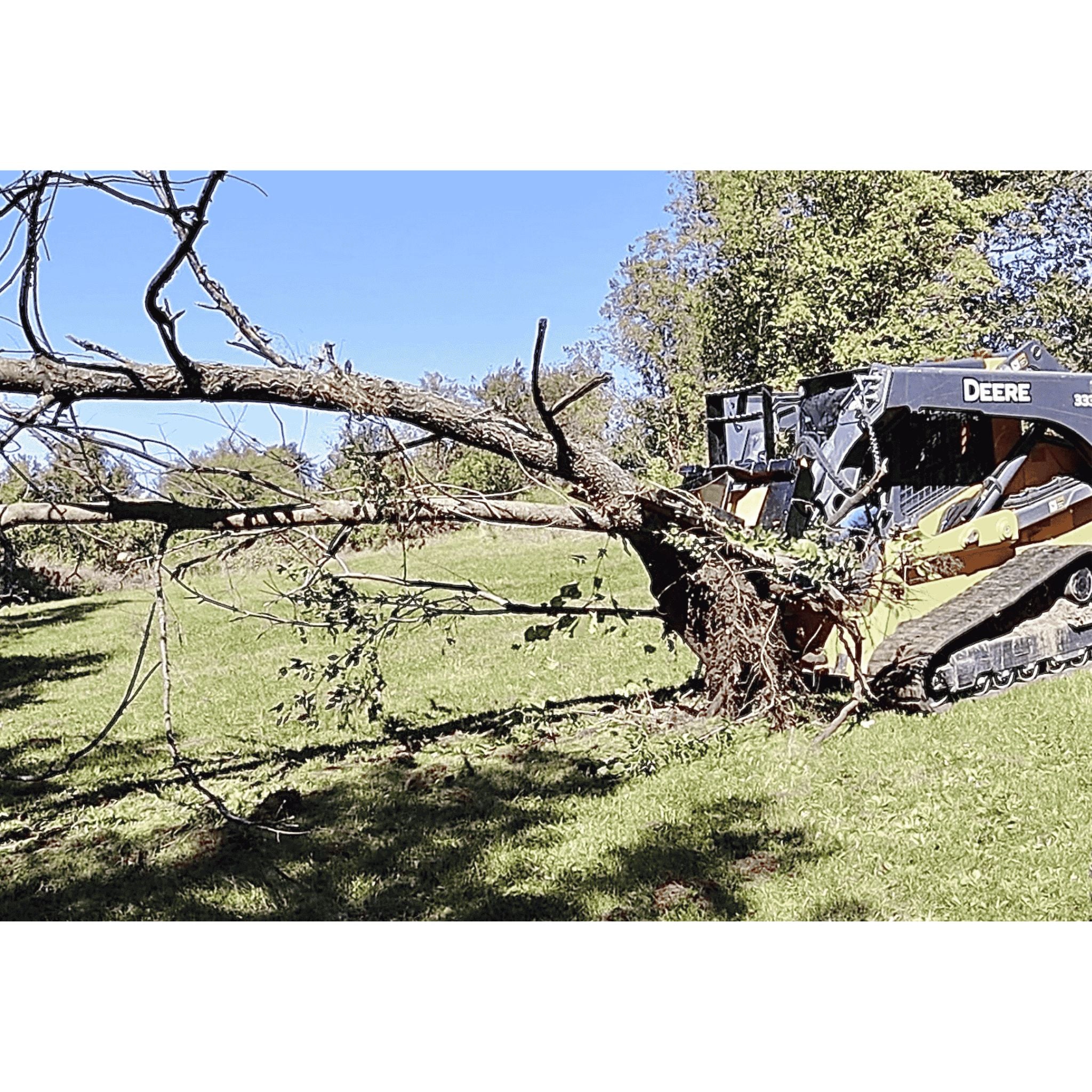

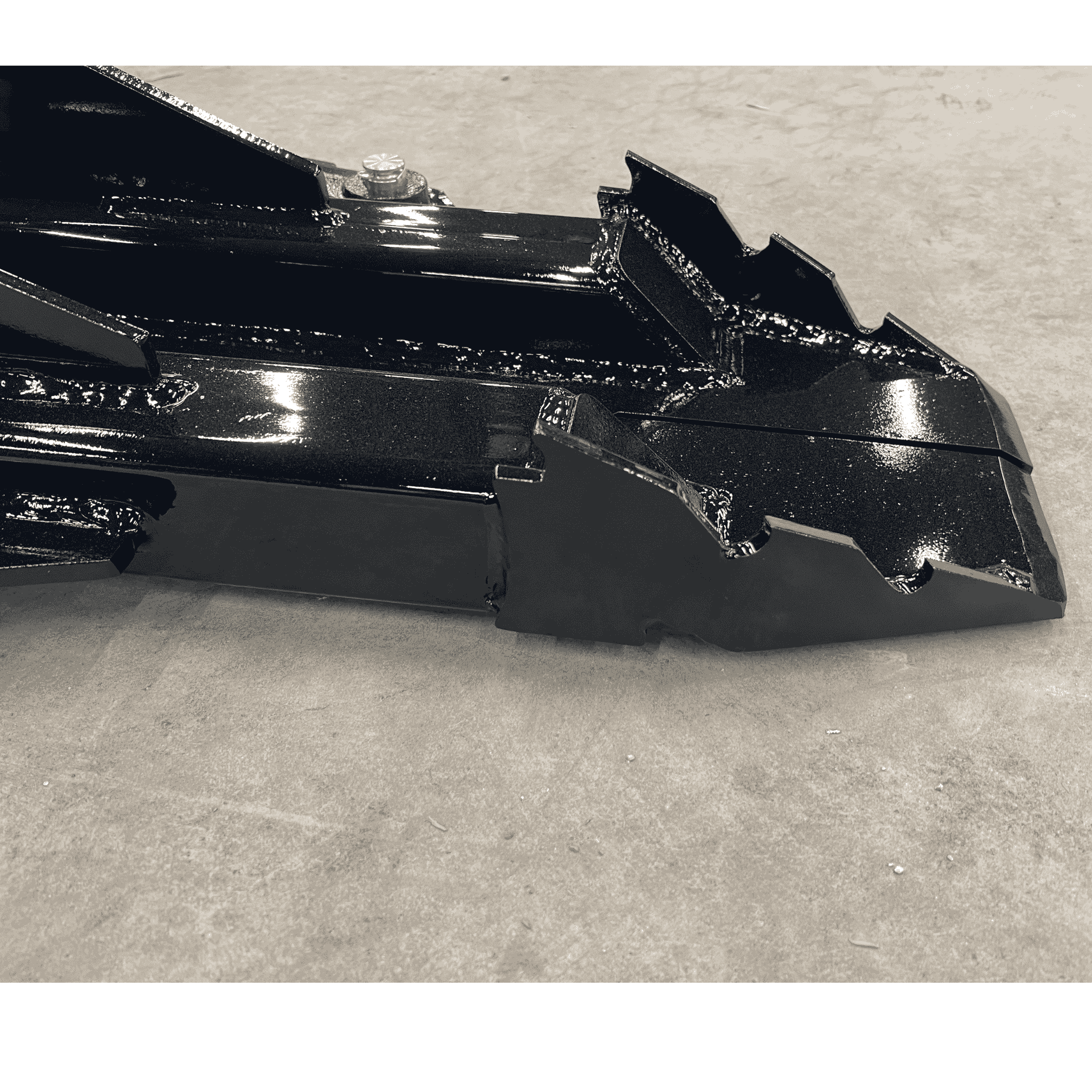

Grip, Grub, and Rip: The Stinger Attachments Tree Puller (STP-34) is the ultimate land clearing tool for invasive cedars, mesquite, and brush. Unlike simple pinchers, the STP features a 3/4" Thick Front Spade. This allows you to dig into the soil to sever stubborn taproots and "grub" out the root ball, ensuring the tree doesn't grow back.

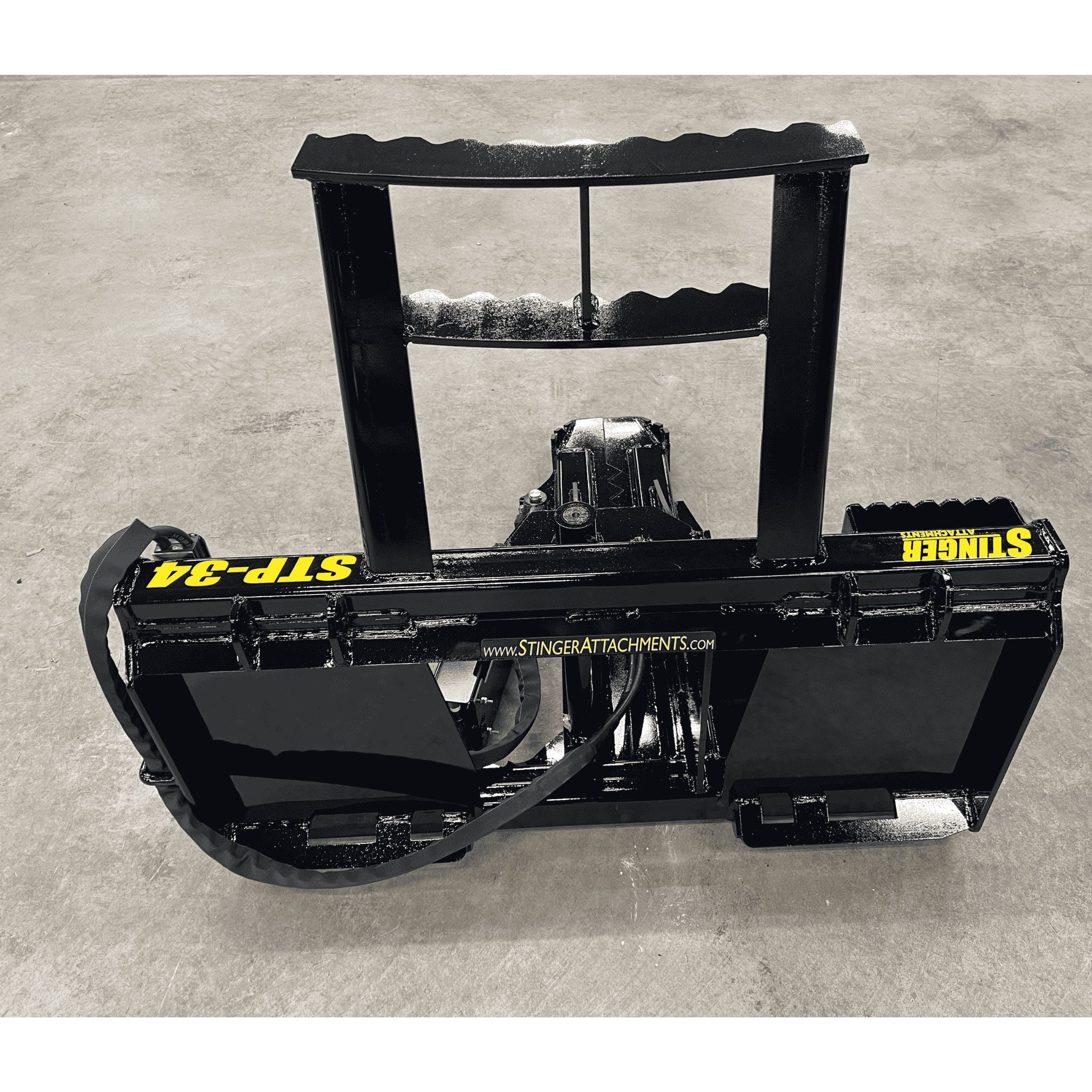

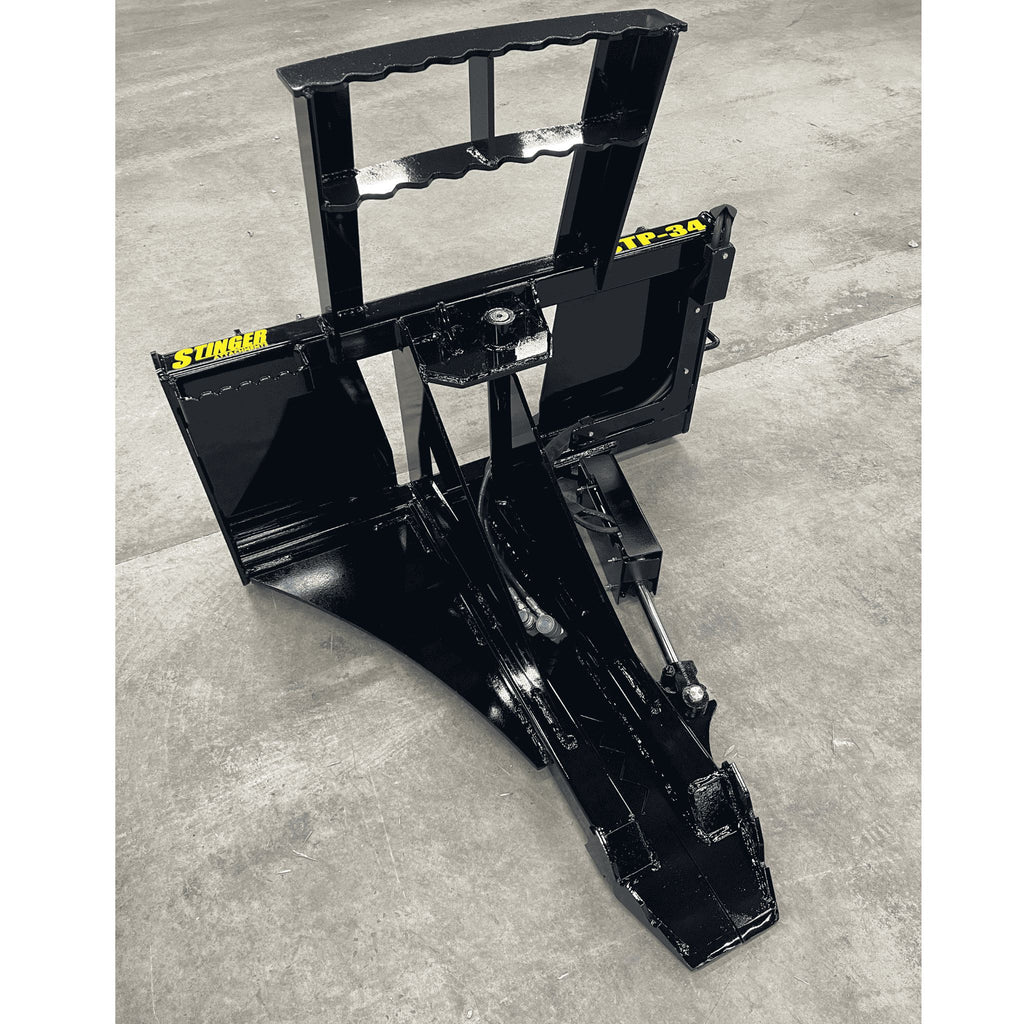

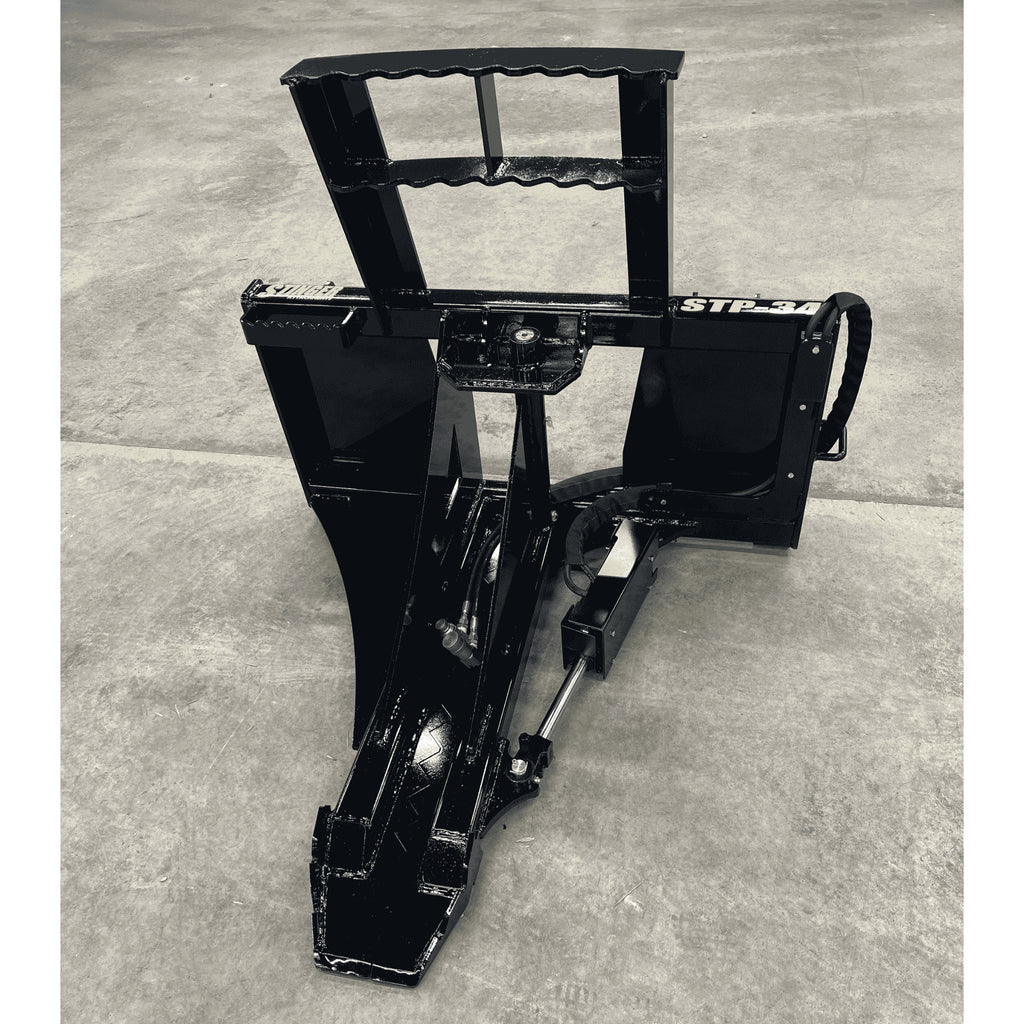

Safety First: Pulling trees creates falling debris. Stinger prioritizes operator safety by including a massive 20" x 24" Welded Steel Guard on the main frame. This barrier helps protect the operator's cab from falling limbs and brush while the Tight Clamping Jaw (powered by a 2,500 PSI cylinder) locks onto trees up to 10 inches in diameter.
⚙️ Technical Specifications
Tree Capacity: Up to 10" Diameter
Jaw Opening: 34 Inches
Jaw Length: 42 Inches
Digging Spade: 6" x 6" x 3/4" Thick

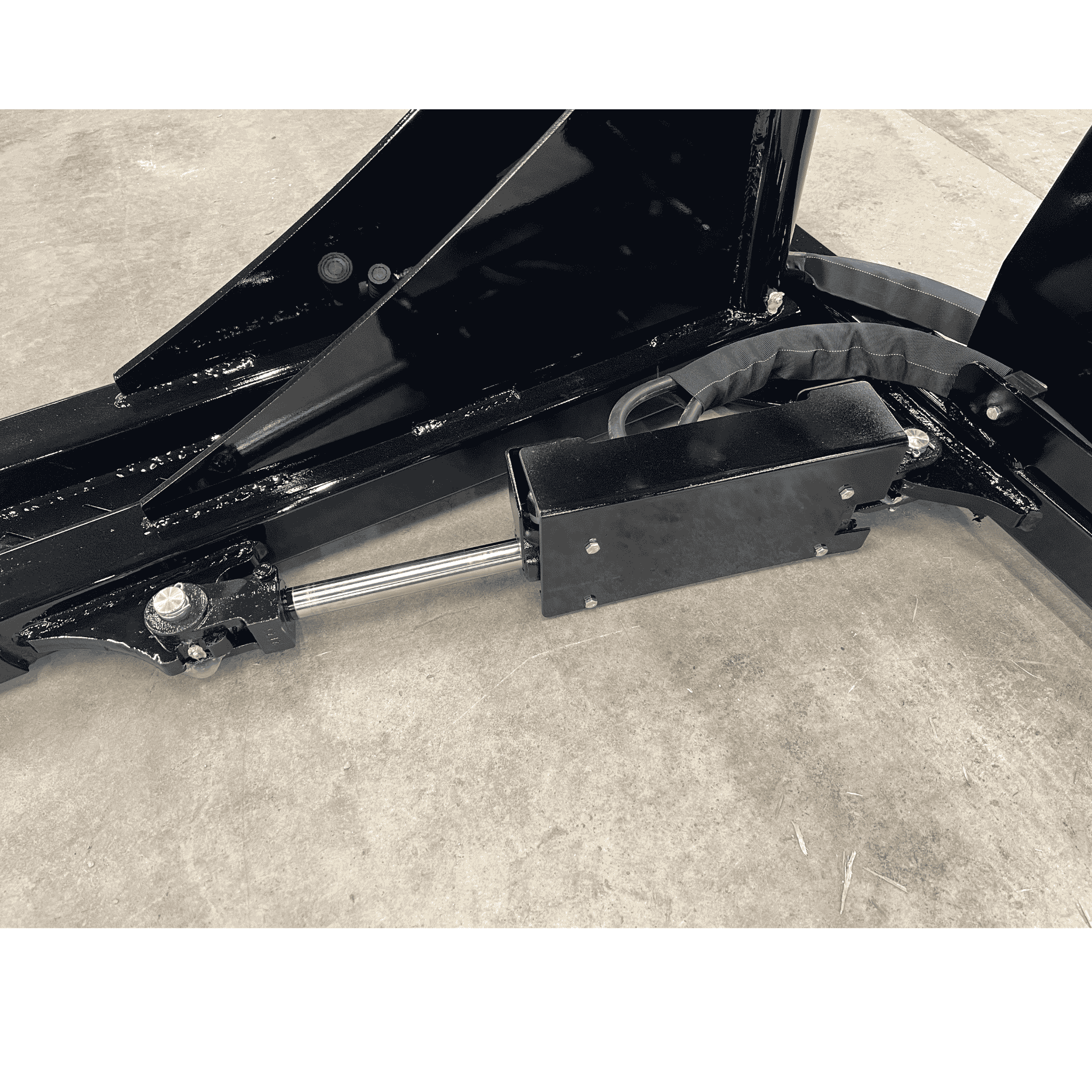

Cylinder: 2.5" x 8" (2,500 PSI)
Pivot Pin: 1.5" Greaseable with 3/8" Bushings
Safety Feature: 20" x 24" Welded Cab Guard
Warranty: 1-Year Structural
⚠️ Setup Requirement: Plug & Play
Hydraulics: Uses Standard Flow auxiliary hydraulics. Includes 1/2" Flat-Face Couplers (ISO 16028).
Safety Note: While the Tree Guard offers protection, always use a machine with a demo door or forestry cage when clearing overhead limbs.
✅ Machine Compatibility
1. Mount Type:
Universal Quick Attach (SSQA). Fits all standard skid steers and compact tractors.
2. Machine Size:
Ideal for machines with 1,500 lb+ Operating Capacity.
3. Confirmed Fitment:
- Kubota: SSV65/75, SVL75/95/97.
- Bobcat: S500-S850, T500-T870.
- John Deere: 317G - 333G.
- CAT: 259D - 299D.
Additional Specifications
| Mount Interface | Universal Skid Steer |
| Warranty | 1-Year Structural |
| Max Operating Pressure | 2500 PSI |
| Shipping Dimensions (LxWxH) | 42x45x25 |
