Description

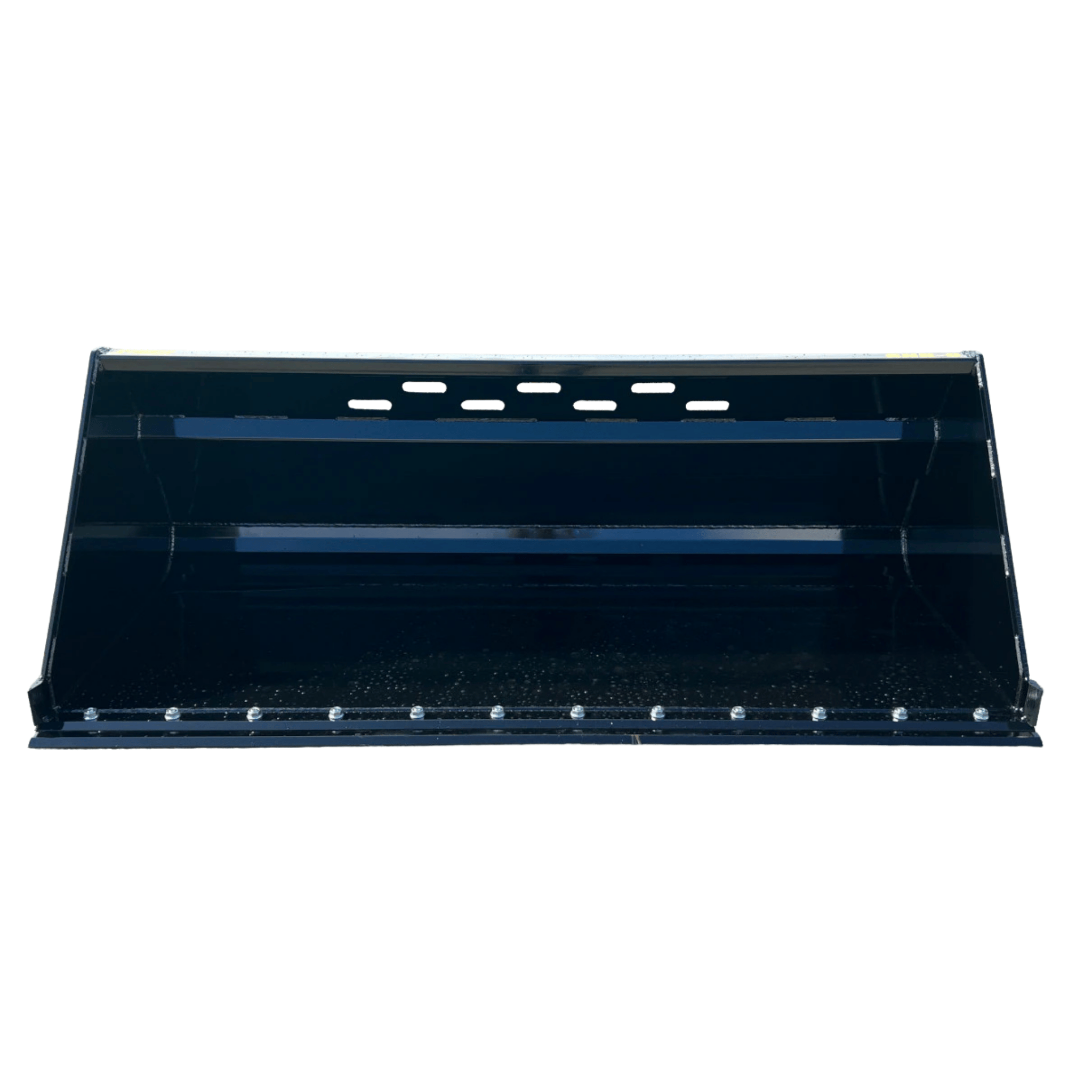

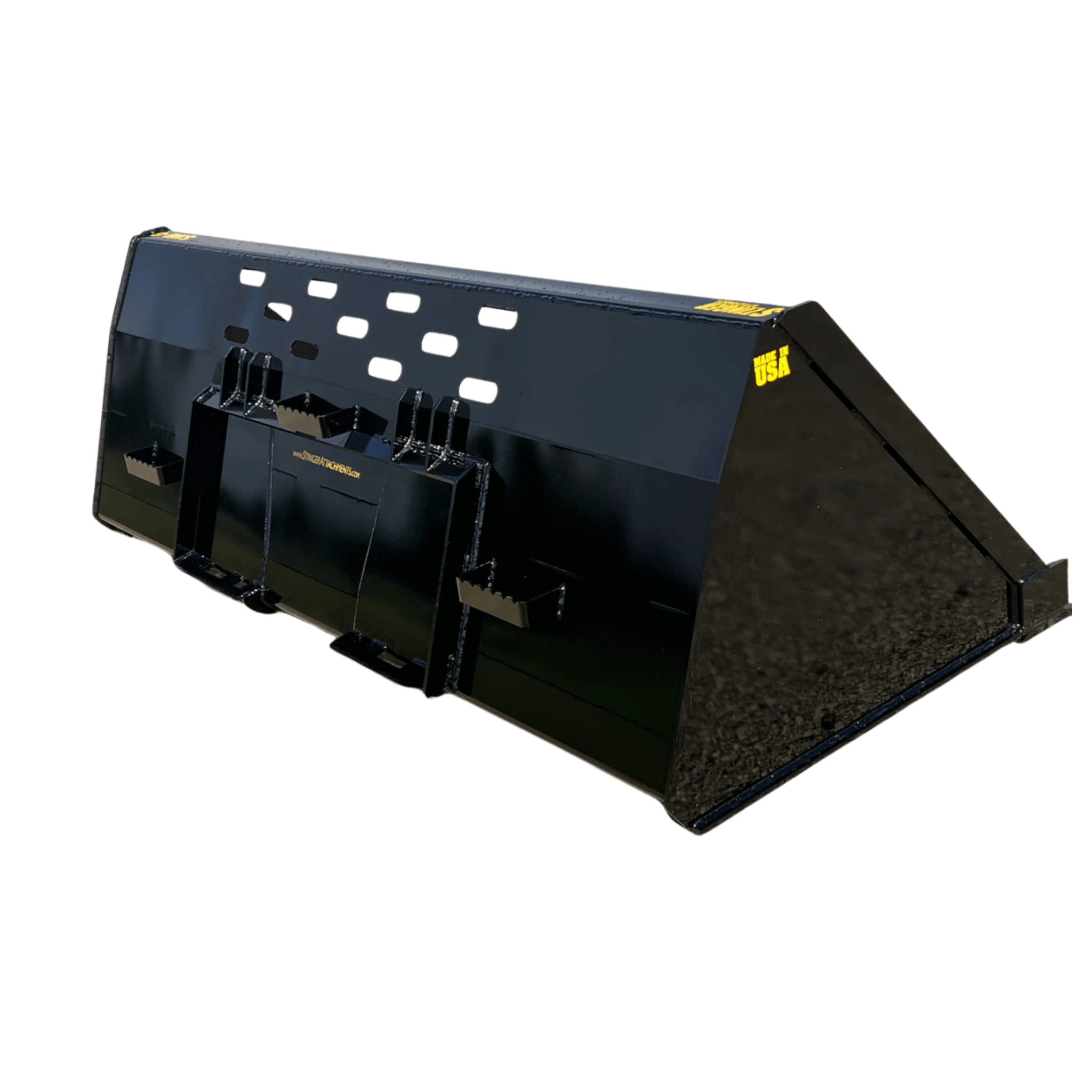

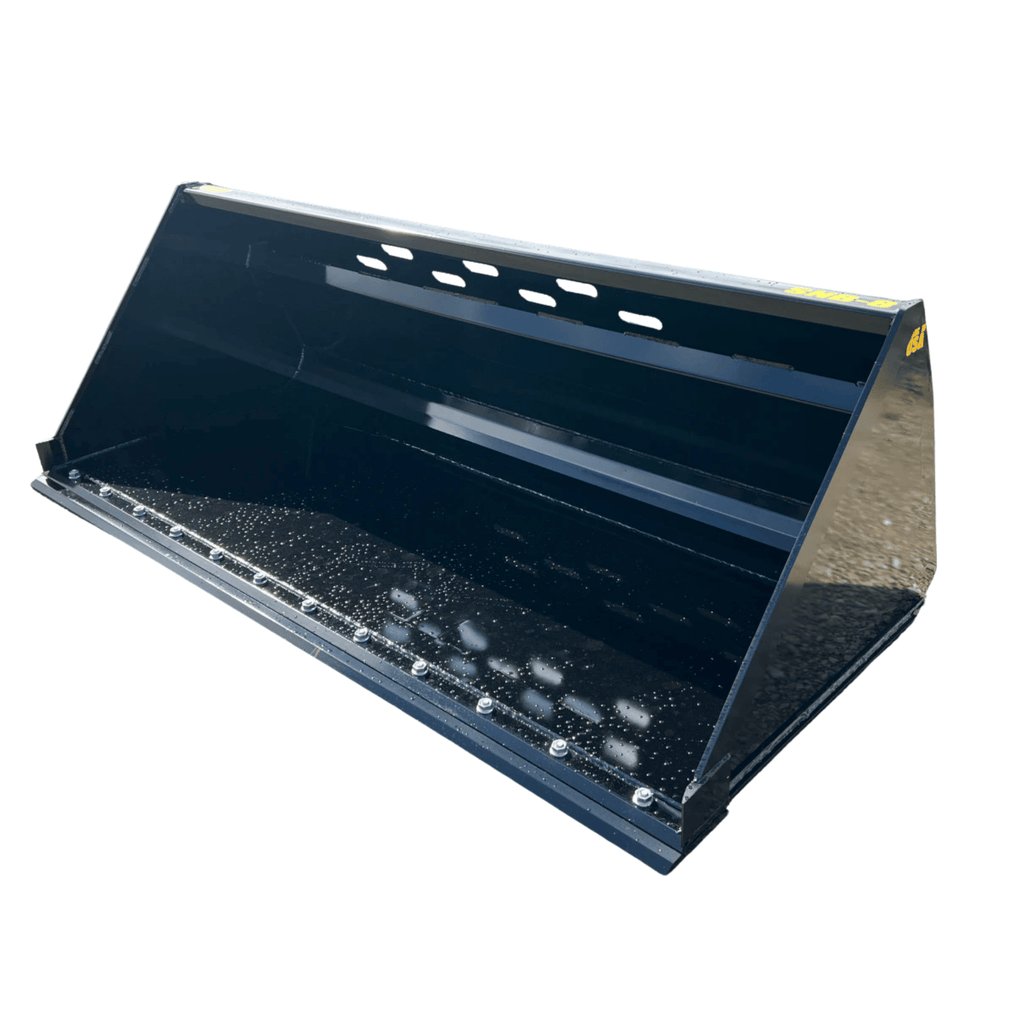

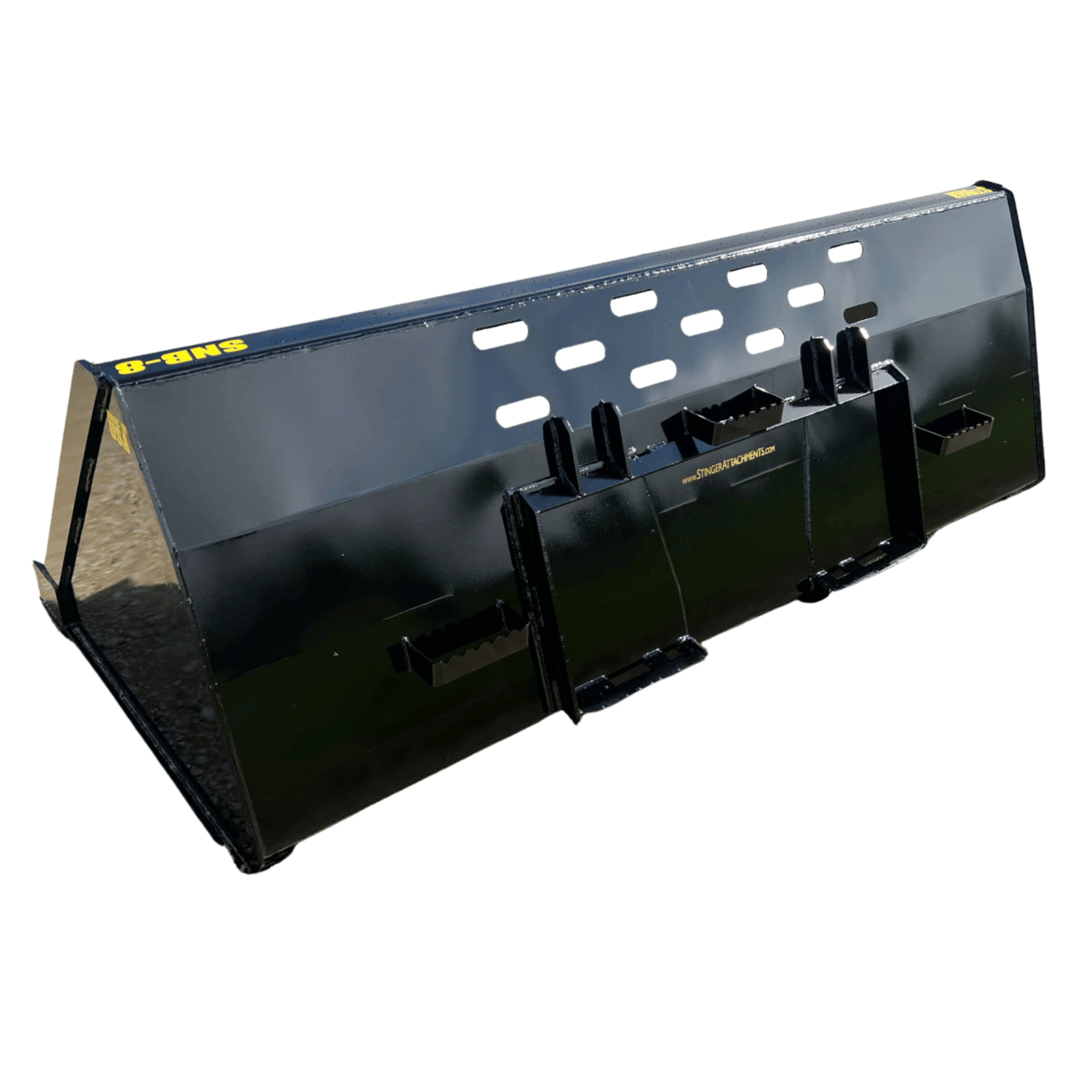

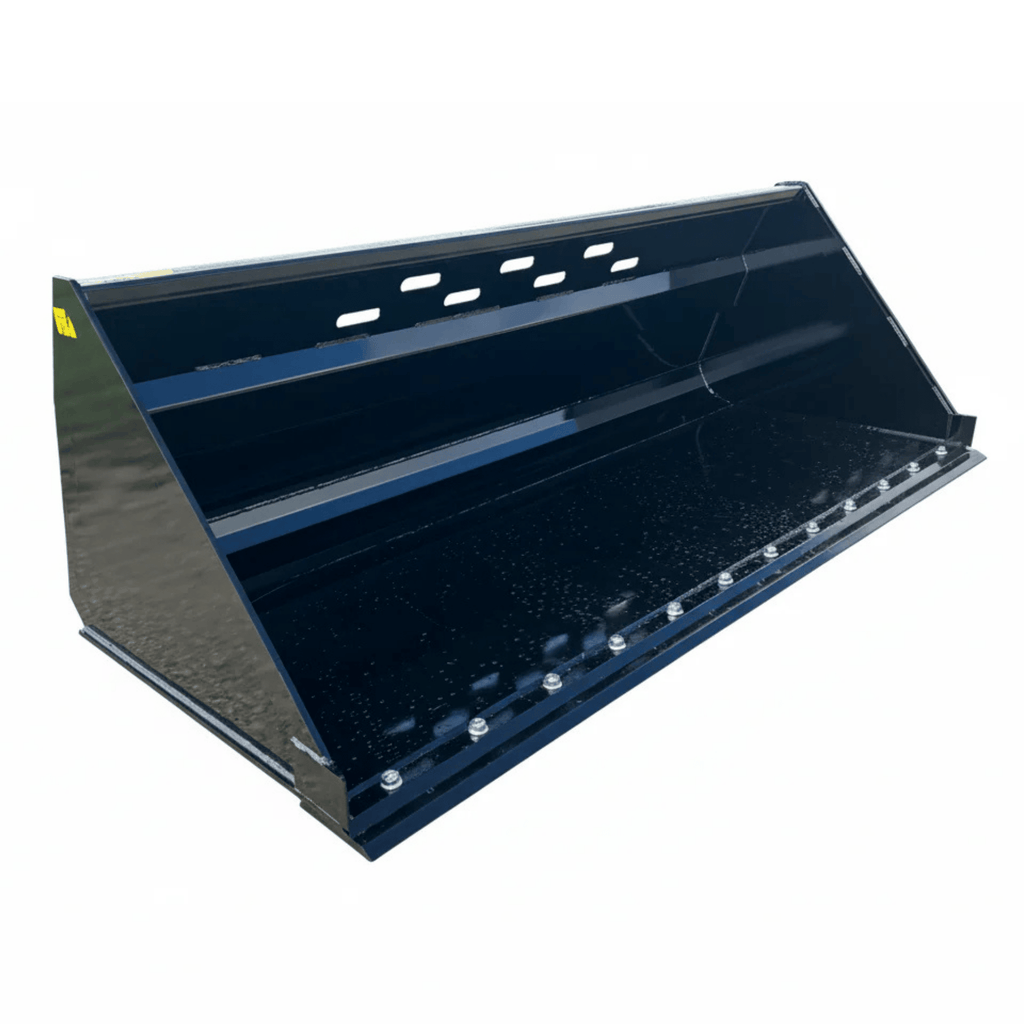

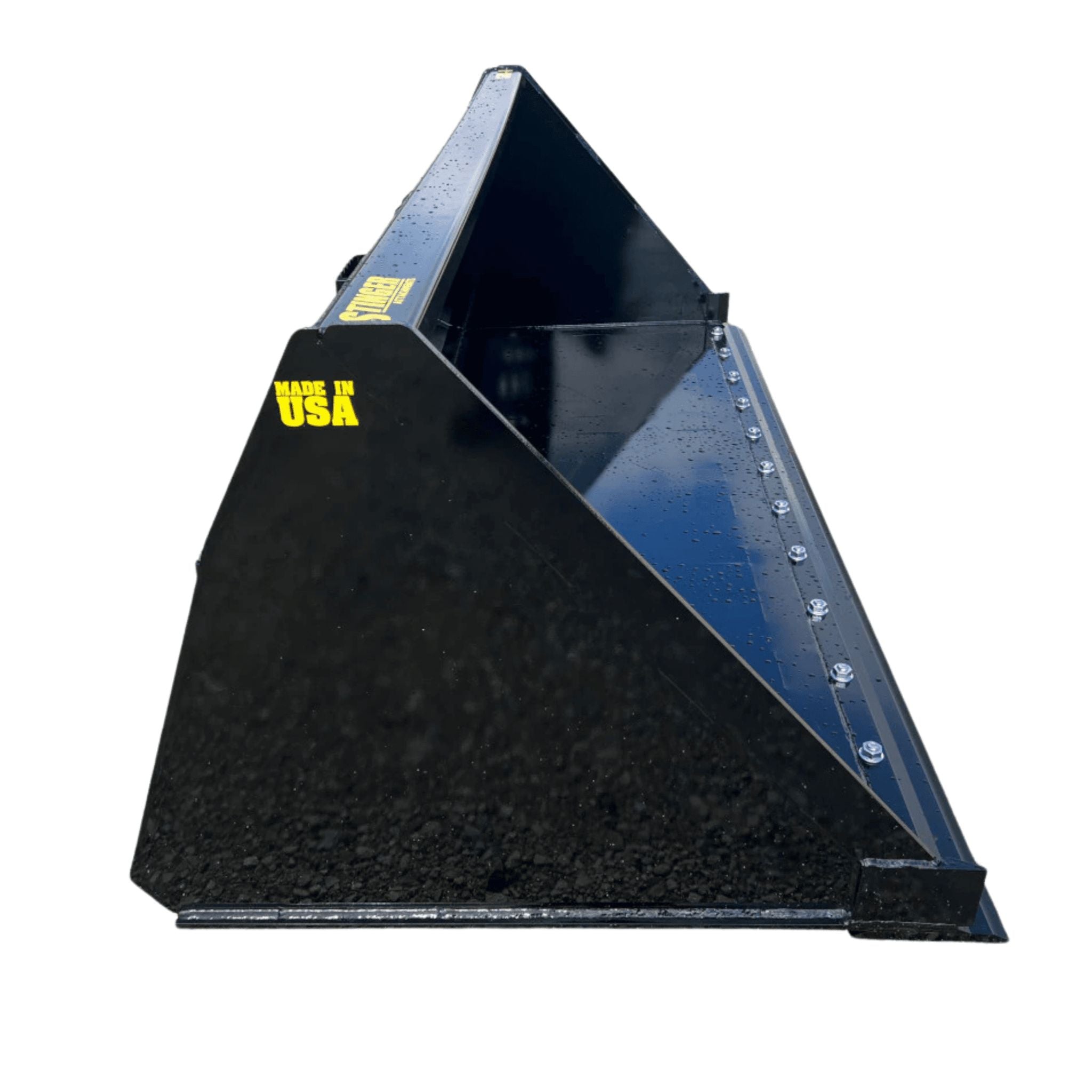

Move Volume, Not Just Weight: The Stinger Attachments High-Volume Snow Bucket is engineered for speed and efficiency. Unlike standard dirt buckets that spill light materials, this High Capacity Design allows you to move massive amounts of snow, mulch, or wood chips in a single pass.

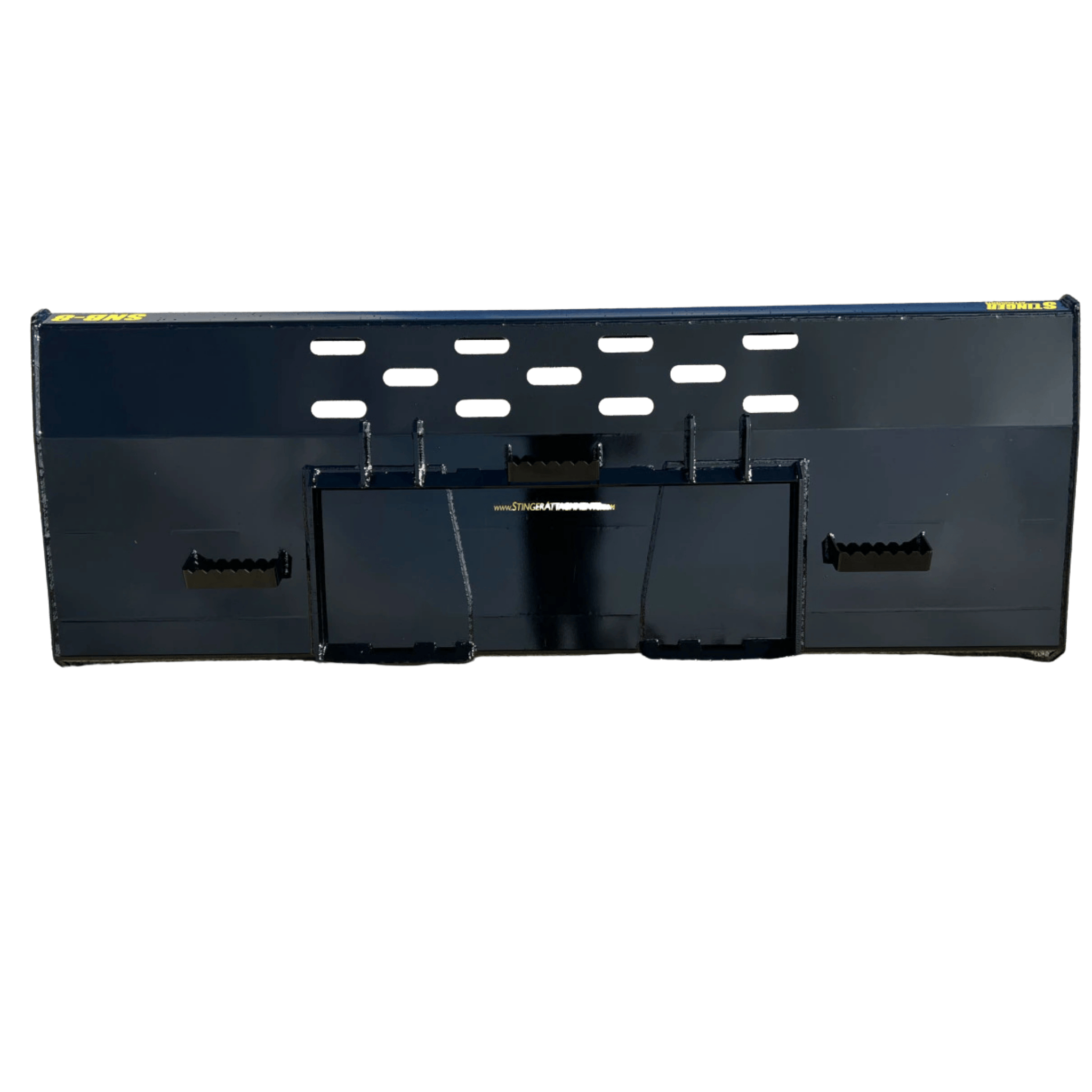

Drive with Vision: Standard high-volume buckets are solid walls of steel that block your view. Stinger’s unique See-Through Back Design gives you clear sightlines to your cutting edge. This means faster stacking, safer operation, and fewer accidents in crowded lots.
Smart Engineering:
• Rolled Cleanout Insert: The back of the bucket features a rolled radius support. This prevents wet snow from packing into the corners, ensuring a clean dump every time.
• Grade 50 Steel: Built with a 3/16" Grade 50 shell and reinforced with a 4" x 2" top tube to resist twisting under heavy loads.
• Year-Round Versatility: While built for snow, this is the perfect "Light Material Bucket" for landscaping, easily handling mulch and leaves in the off-season.
⚙️ Technical Specifications
Shell Thickness: 3/16" High-Tensile Grade 50
Side Thickness: 1/4" with 1/2" Support Ribs
Top Reinforcement: 4" x 2" Steel Tube
Wear Bars: 4 to 5 Bars (1/2" x 4")
Back Angle: 70 Degrees (Optimized for Roll-Back)
Warranty: 1 Year Structural
⚠️ Edge Selection Guide
Weld-On Edge: A permanent 3/4" x 8" edge welded to the bucket. Good for general use.
Bolt-On Edge (Recommended): A replaceable 3/4" x 6" edge bolted over the main lip. This extends the life of the bucket significantly and is recommended for asphalt/concrete use.
✅ Size & Capacity
- 6ft: 850 lbs | 32.3 cu.ft Heaped
- 7ft: 900 lbs | 37.5 cu.ft Heaped
- 8ft: 1025 lbs | 43.0 cu.ft Heaped
- 10ft: 1150 lbs | 45.6 cu.ft Heaped
Additional Specifications
| Mount Interface | Universal Skid Steer |
| Warranty | 1-Year Structural |
| Capacity | 32.3 ft³ |
| Shipping Dimensions (LxWxH) | 72x40x30 |
