Description
The Ultimate Efficiency Tool for Commercial Hay.

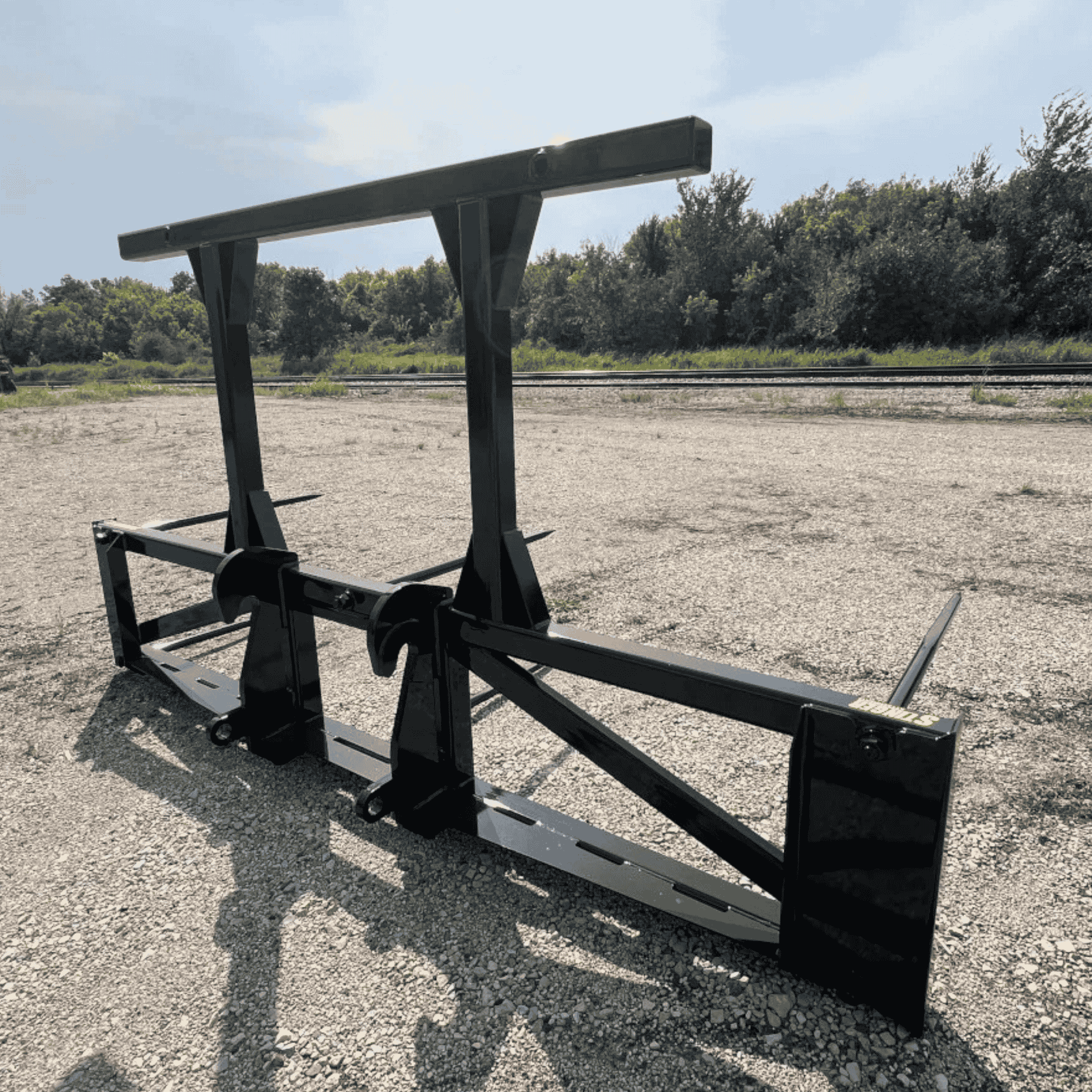

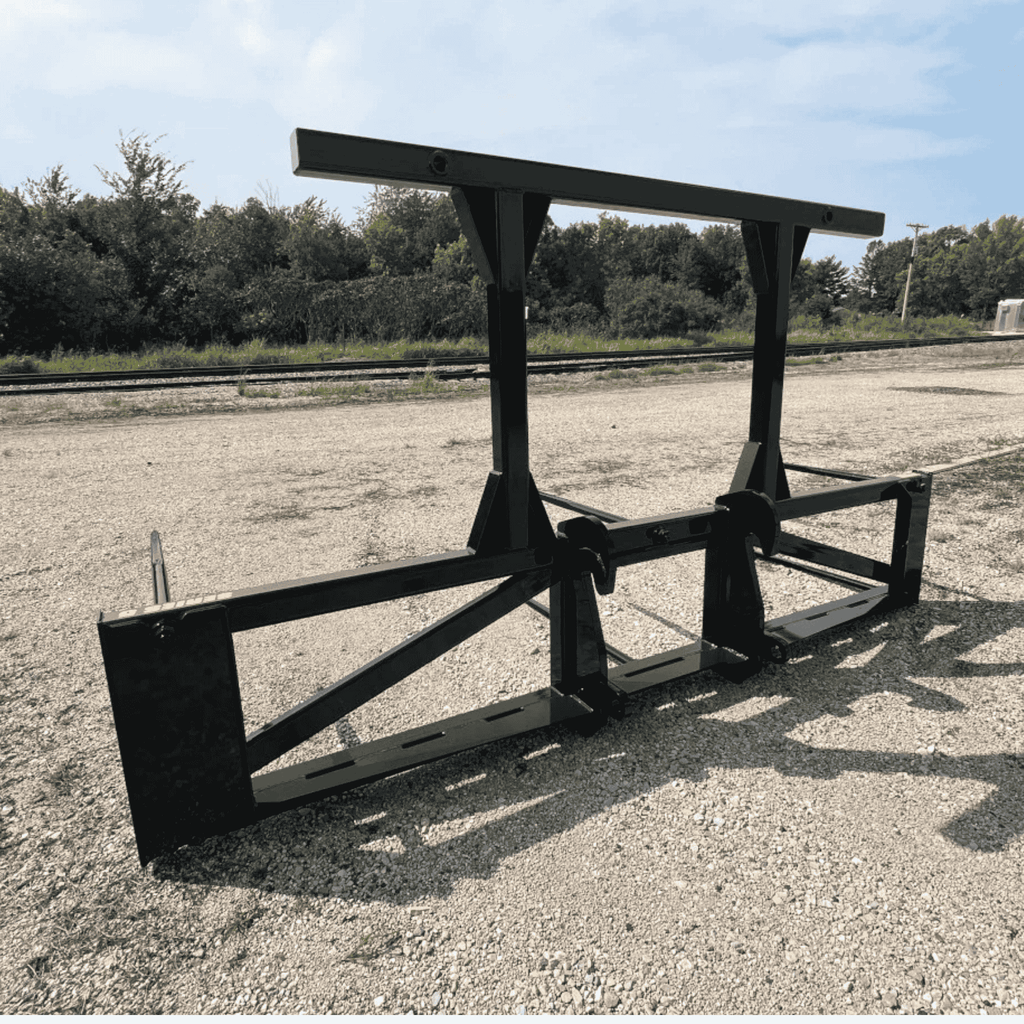

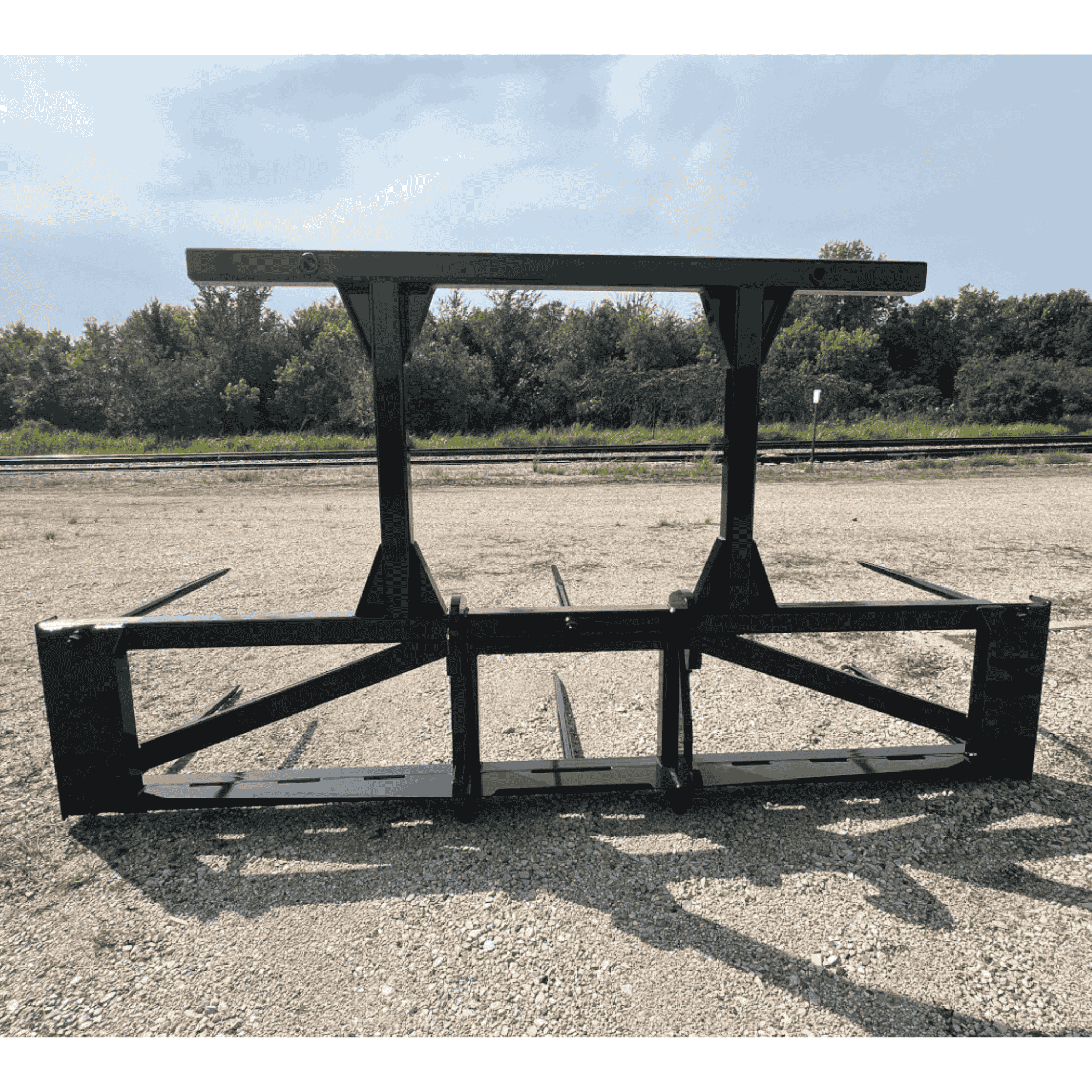

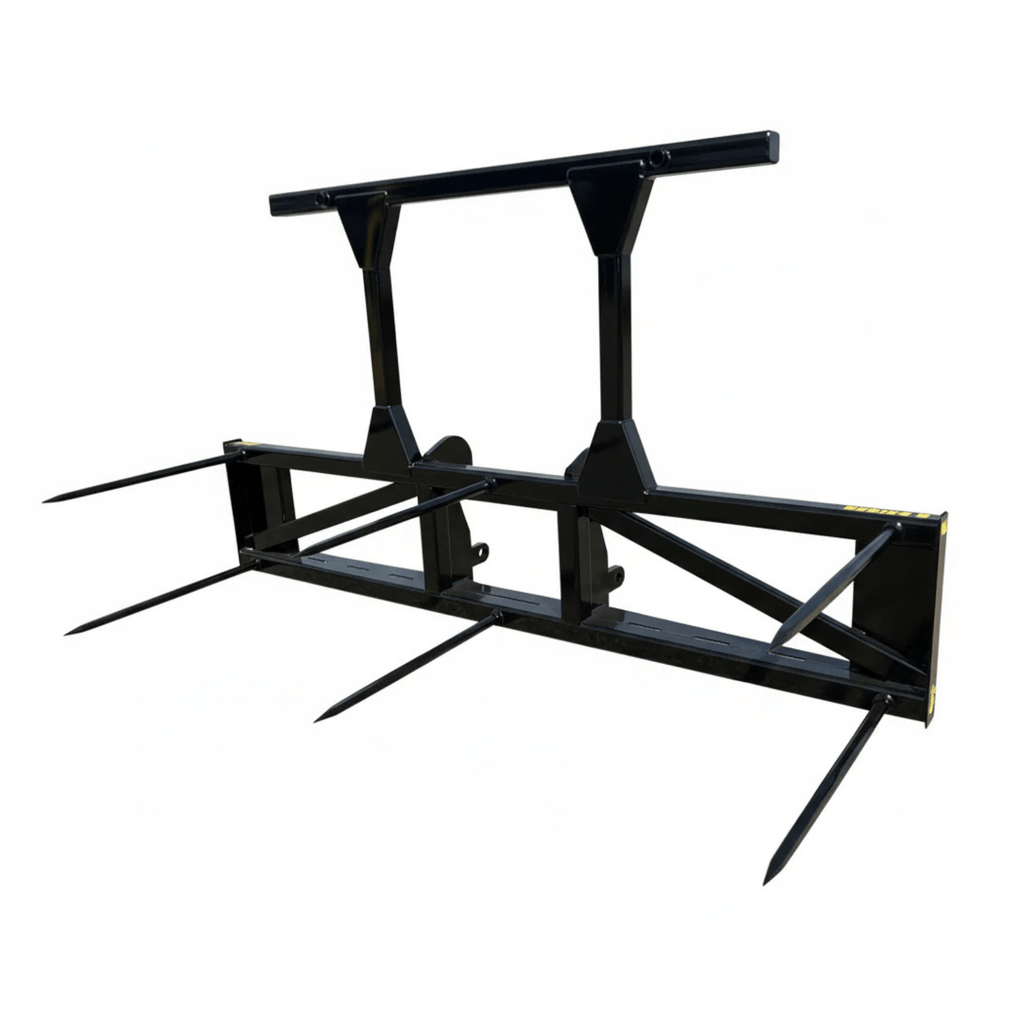

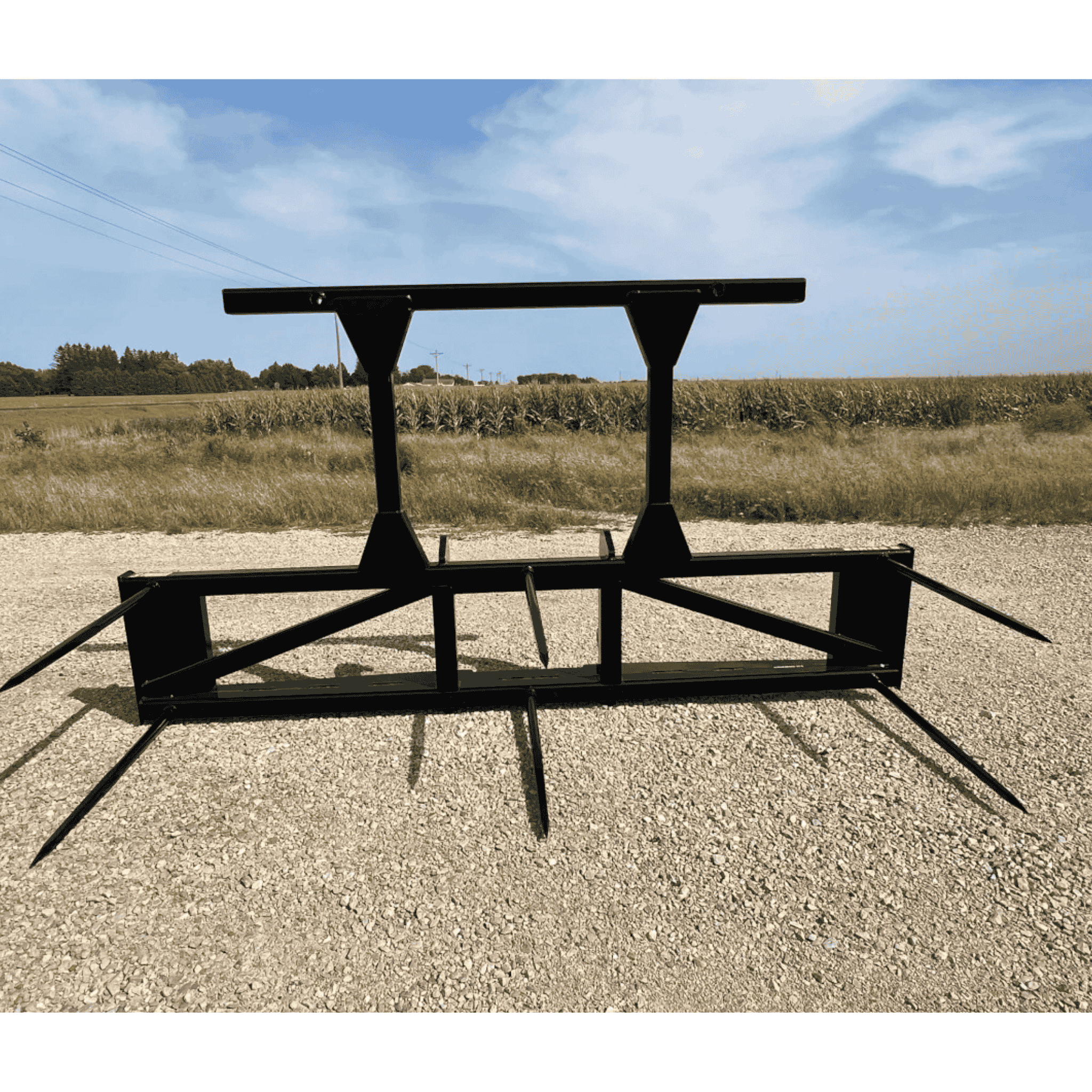

The Stinger Series 5 Bale Mover is engineered for large-scale producers who measure productivity in tons per hour. Designed specifically for Telehandlers and Wheel Loaders, this 12-foot wide beast allows you to move massive amounts of hay in a single trip.
The "Pyramid" Stacking Advantage:

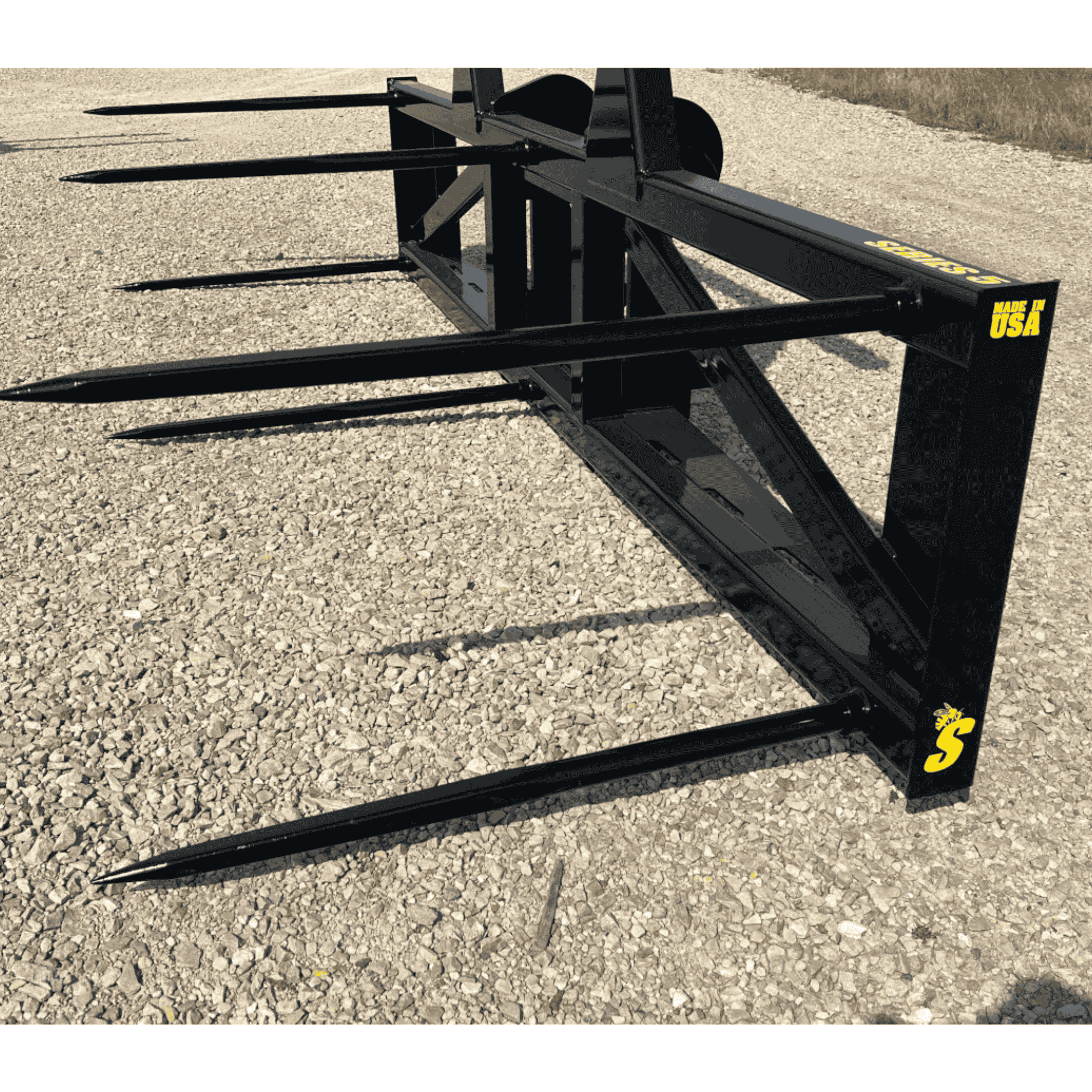

- Bottom Row: Carries three (3) large 6' round bales side-by-side using heavy-duty Conus 2 spears.
- Top Row (5-Bale Model): Features upper support sleeves to carry two (2) additional bales nested on top, stabilizing the load for transport.
Industrial Construction: We stepped up the steel for this series. The frame is built from 4" x 4" x 3/8" Structural Tubing (upgraded from 1/4") and reinforced with Grade 50 side plates to handle a staggering 21,000 lb Working Load Limit.
⚙️ Technical Specifications
| Lift Capacity: | 21,000 lbs (Extreme Duty) |
| Frame Width: | 12 Feet (144 Inches) |
| Frame Thickness: | 4" x 4" x 3/8" (Bottom) | 4" x 2" x 3/8" (Top) |
| Primary Spears: | Conus 2 Forged (Double Nut Replaceable) |
| Secondary Spears: | Sleeves ready for Conus 1 (Top Row) |
| Safety: | Integrated Safety Step |
| Warranty: | 1-Year Structural Warranty |
⚠️ Critical Machine Requirement
NOT FOR SKID STEERS: This attachment is 12 feet wide and creates a massive leverage point. It is strictly designed for Telehandlers or Large Wheel Loaders.
Ballast Warning: A fully loaded 5-bale mover can exceed 10,000 lbs of payload plus the attachment weight. Ensure your machine is rated for this tipping load.
✅ Ideal Applications
1. Mount Type:
Typically sold with Telehandler or Wheel Loader mounts (JCB, Manitou, Genie, JLG, ISO). Please specify your machine mount at checkout.
2. Best For:
- Large Round Bales: 5' and 6' rounds.
- Field Clearing: Moving 3-5 bales per trip to the stack yard.
- Commercial Hay Operations: High-volume loading.
Additional Specifications
| Mount Interface | Universal Skid Steer |
| Warranty | 1-Year Structural |
| Capacity | 21000 lb |
| Shipping Dimensions (LxWxH) | 43x144x24 |
