Description
The Hybrid Solution

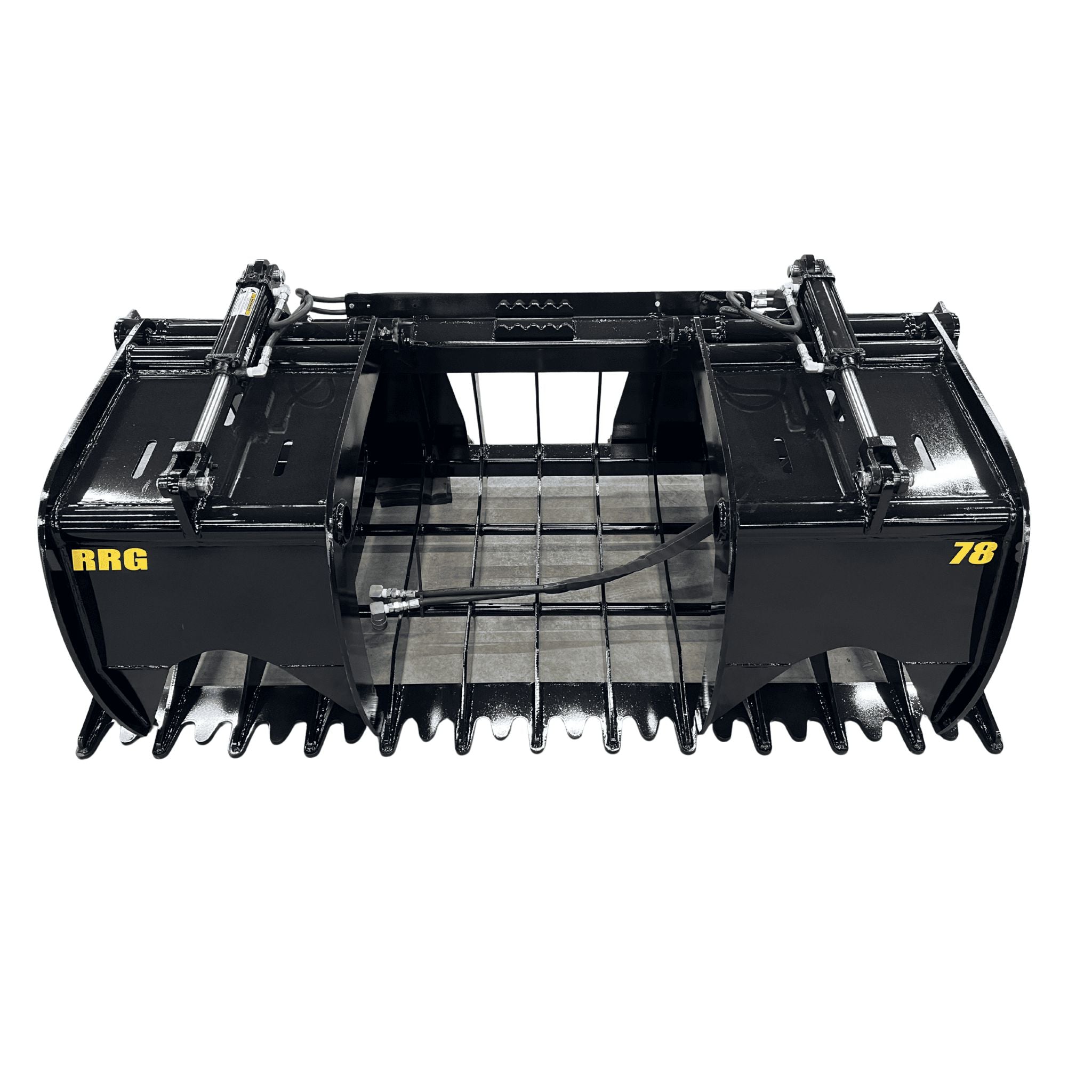

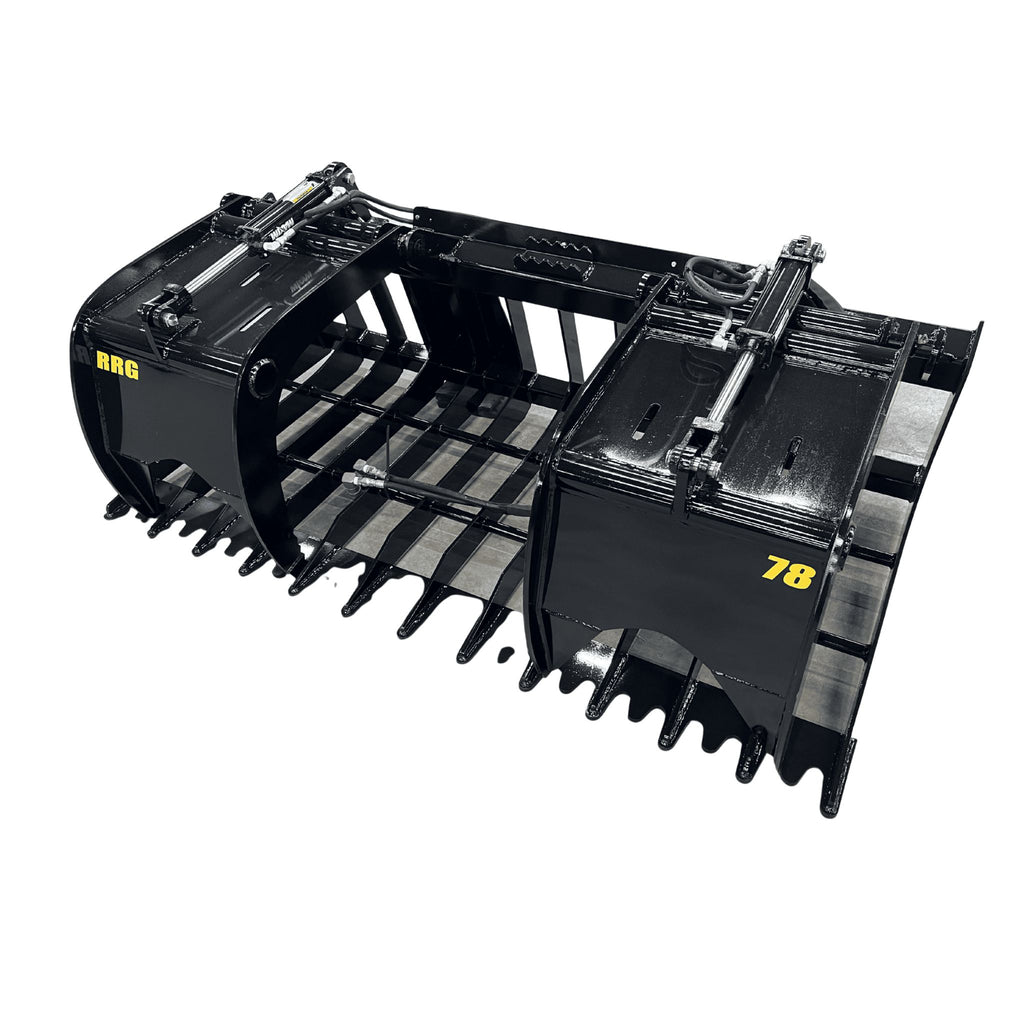

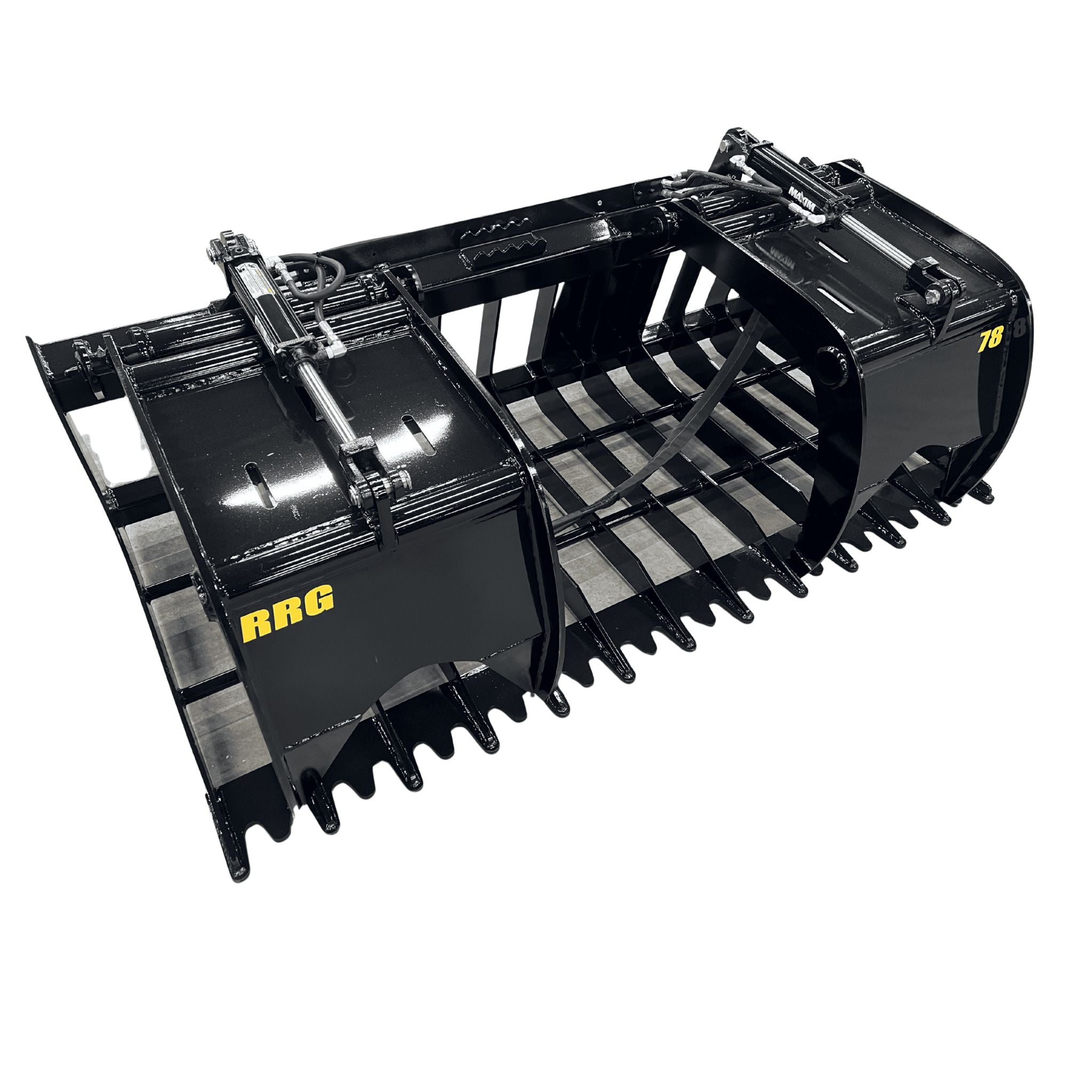

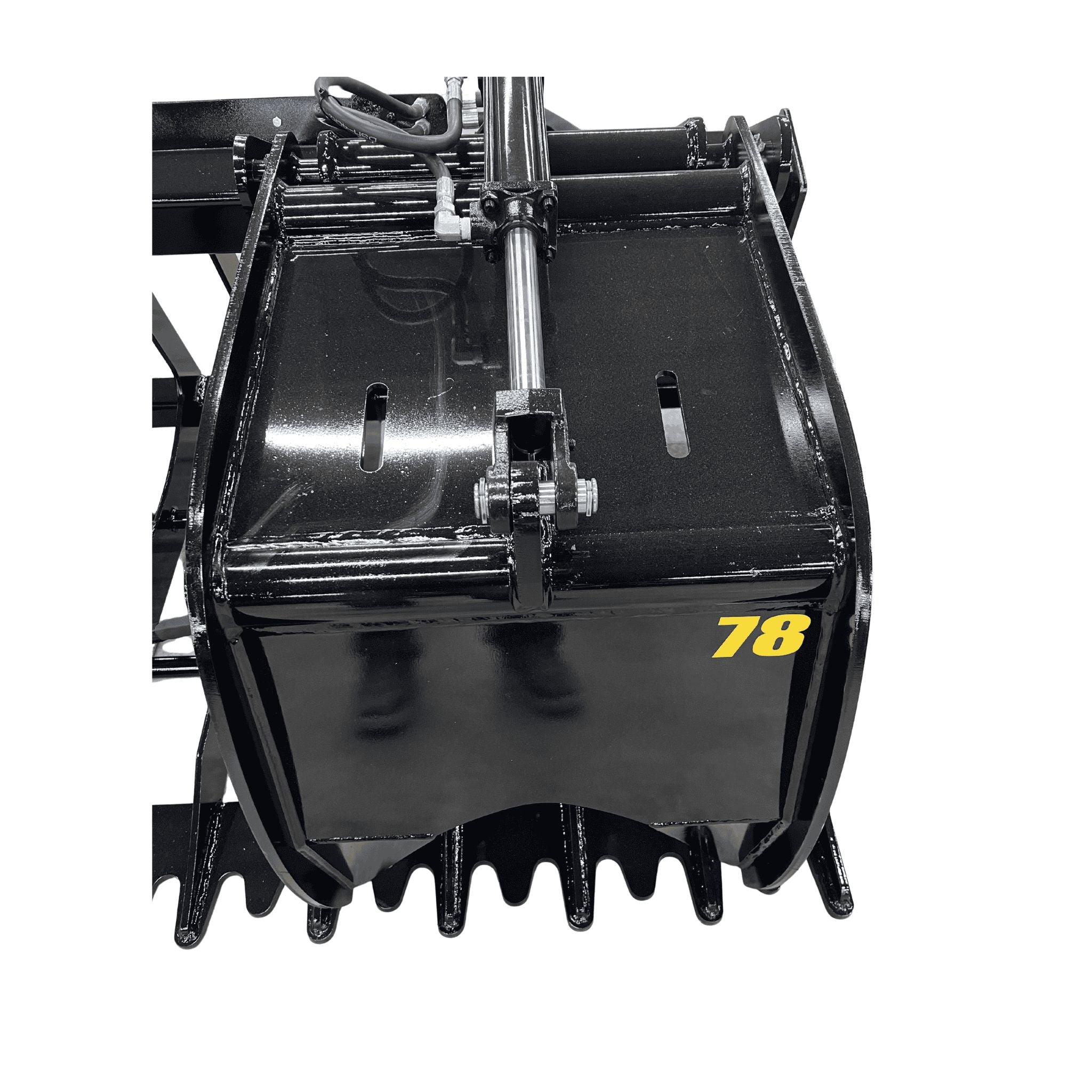

The Stinger RRG Series combines the durability of a rock grapple with the sifting speed of a root rake. By widening the tine spacing to 6-3/8 inches, this grapple sheds small dirt and rocks instantly, allowing you to grab large piles of brush, roots, and logs without carrying unwanted fill.
Lighter & Faster
The wide-spacing design significantly reduces the weight of the attachment (approx. 200 lbs lighter than the RG Series). This makes the RRG the **ideal choice for mid-frame skid steers** with lower lift capacities, allowing you to maximize your payload rather than spending your lift capacity on the steel of the grapple itself.
⚙️ Technical Specifications

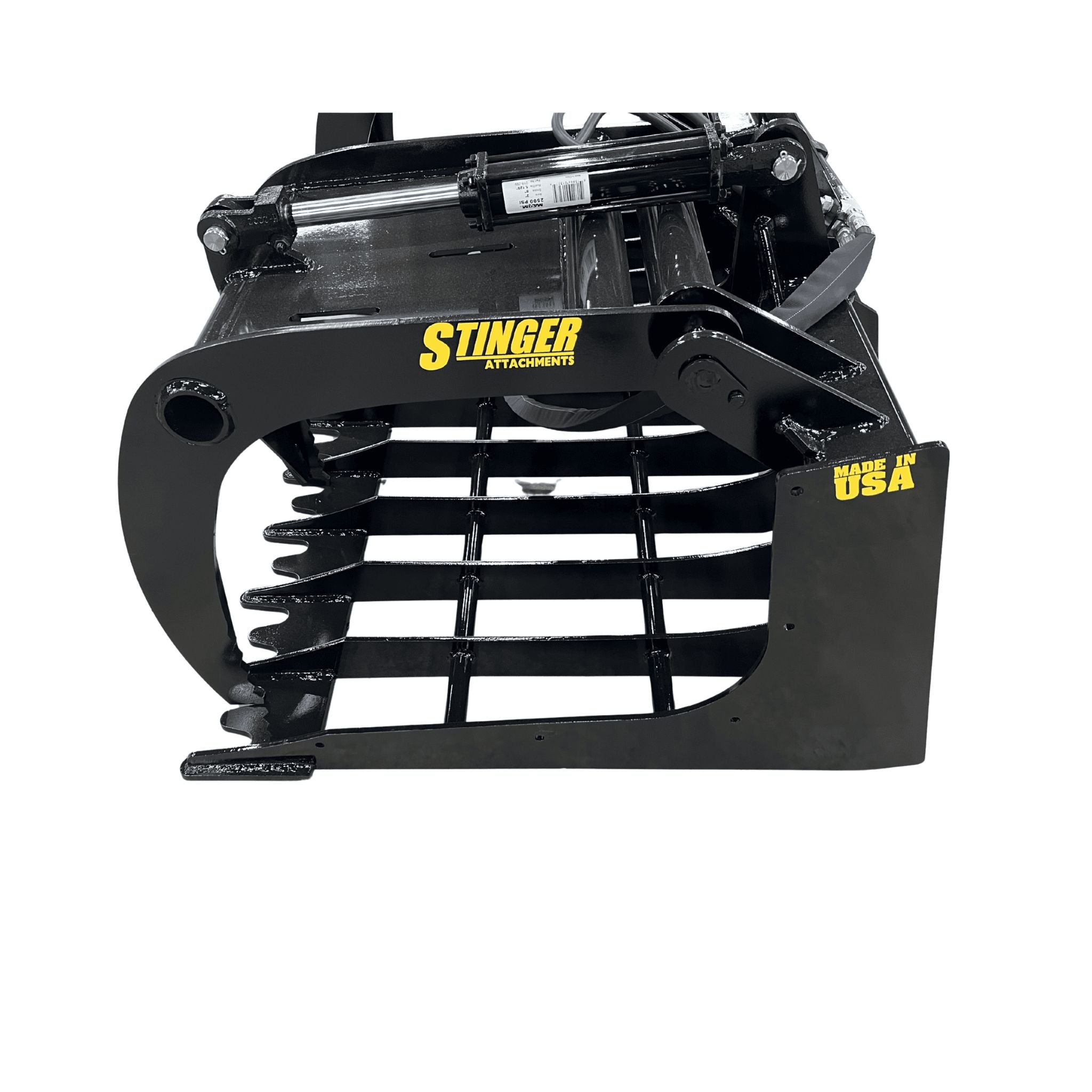

Steel Grade: A572 Grade 50 (USA)

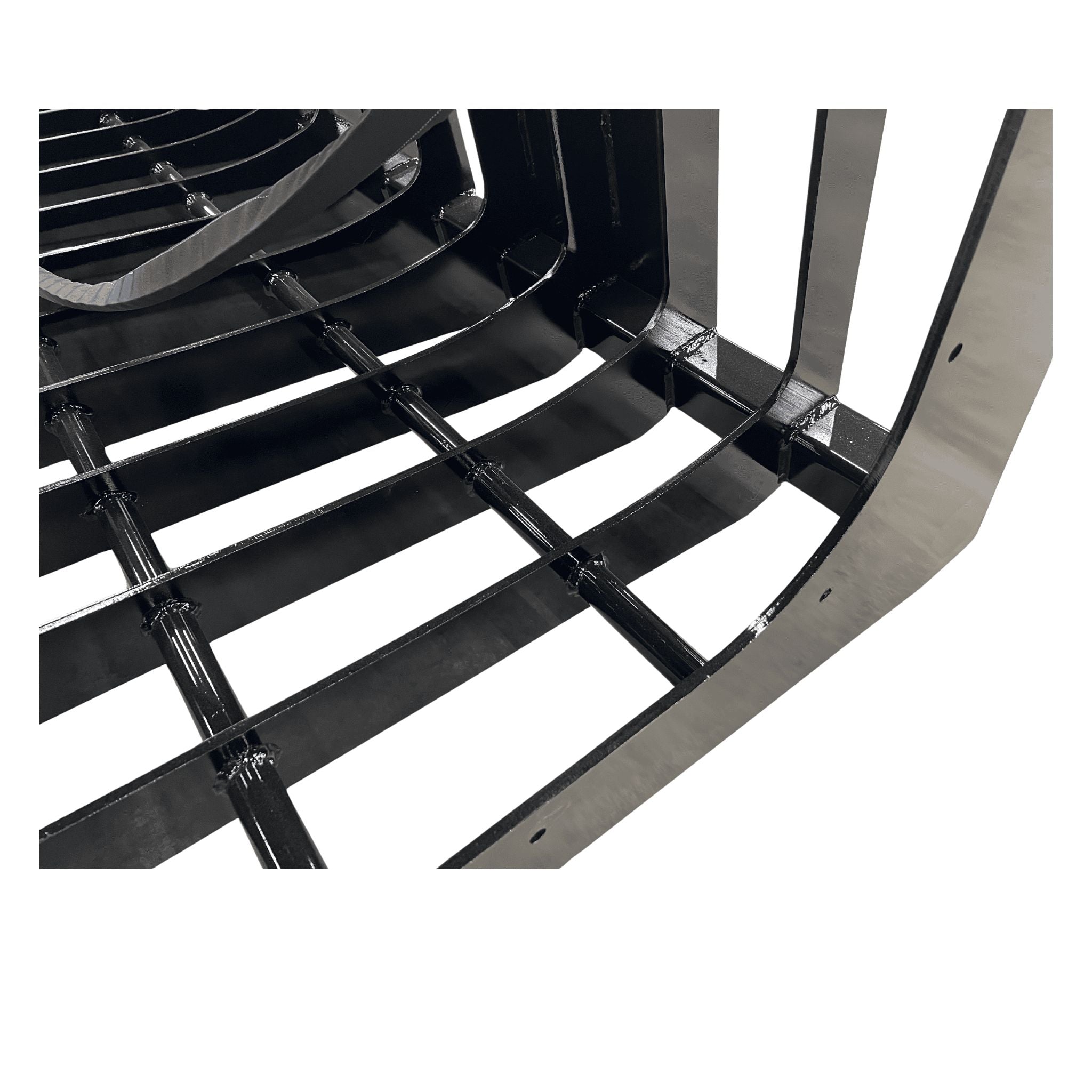

Tine Design: 3/8" One-Piece (Flat Bottom)
Tine Spacing: 6-3/8" (Wide Sifting)
Grapple Opening: 45 Inches

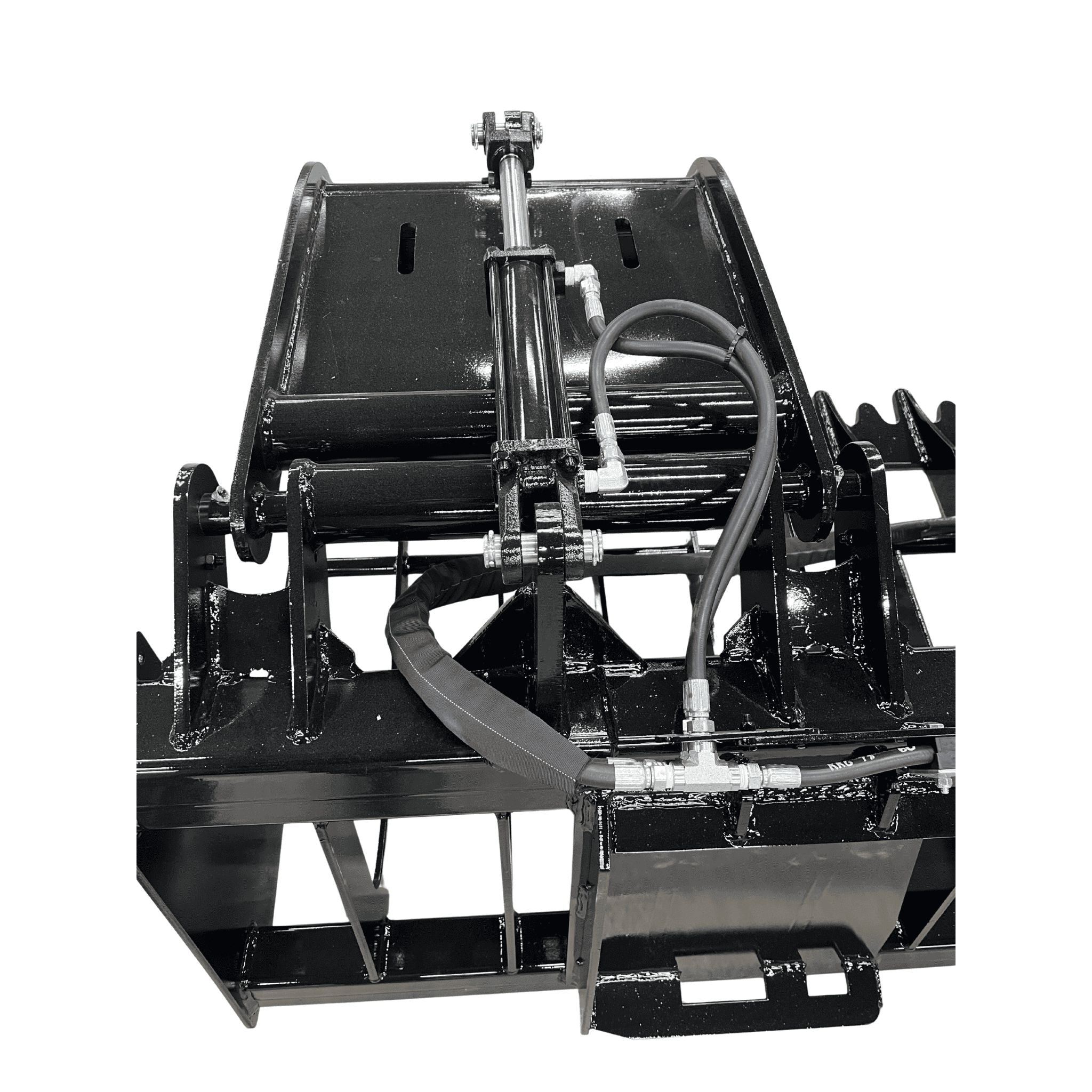

Standard Cylinder: 2" x 8" (2,500 PSI)
Optional Upgrade: Extreme Duty (Cylinder Guards)
Warranty: 1-Year Structural
⚠️ Setup Requirement: Plug & Play
Hydraulics: Uses Standard Flow auxiliary hydraulics. Includes 1/2" Flat-Face Couplers (ISO 16028).
No Case Drain required.
✅ Machine Compatibility
1. Mount Type:

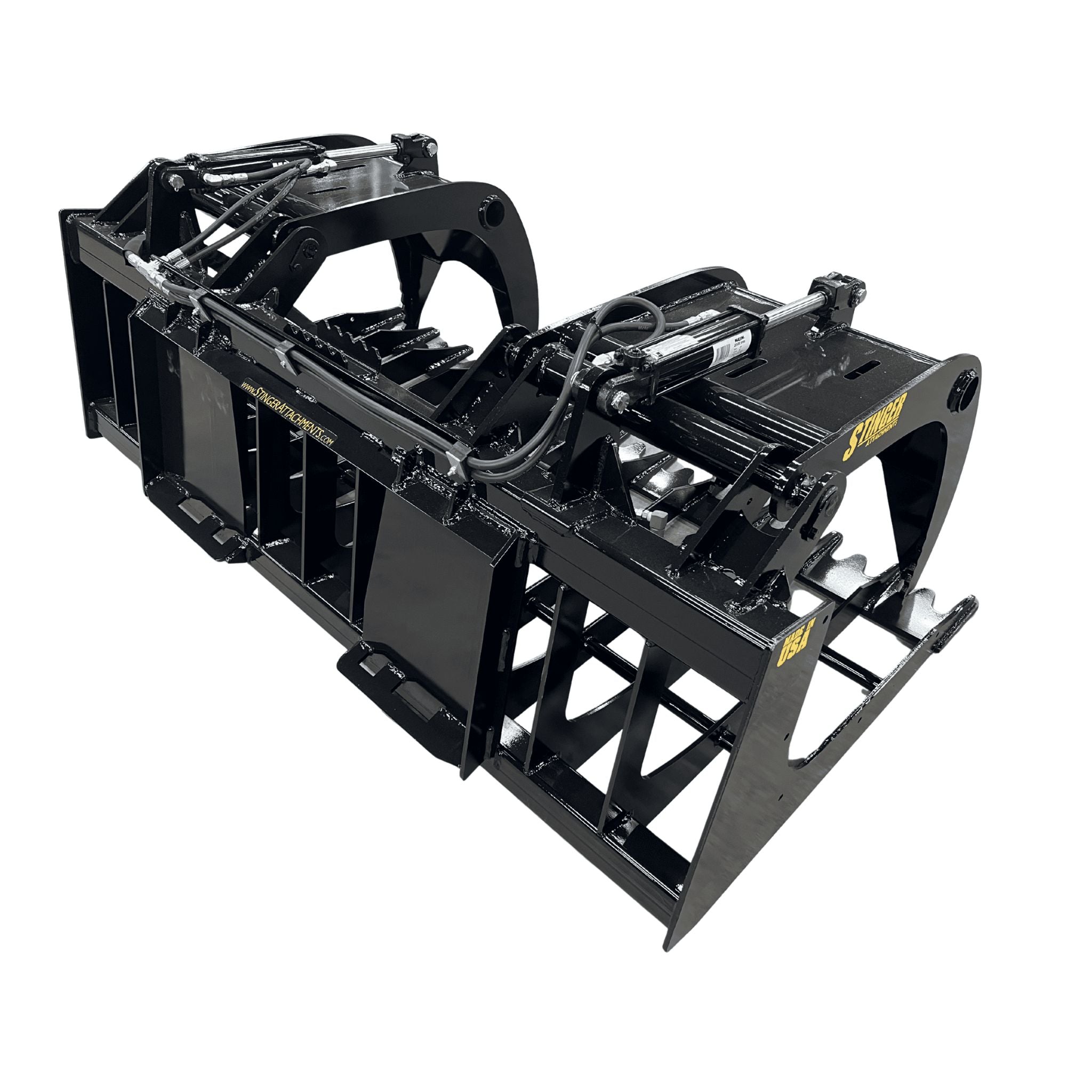

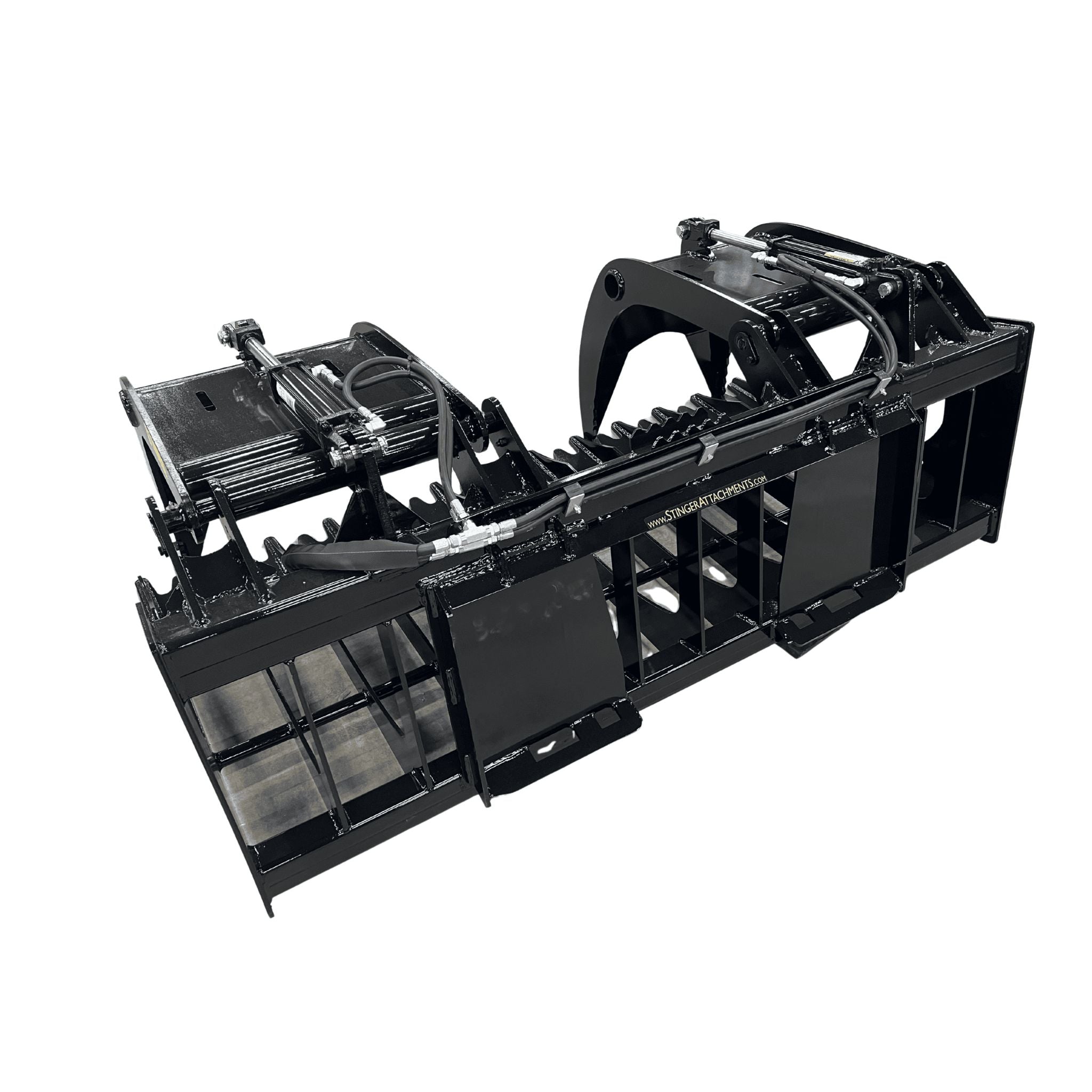

Universal Quick Attach (SSQA). Fits all standard skid steers and track loaders.
2. Size Recommendation:
Weight Class: Perfect for Mid-Frame machines (1,300 lb+ ROC) due to its lighter weight.
60" - 78": Fits Bobcat S500/T500 Series, Kubota SSV65/SVL75, John Deere 317G/320G.
3. Confirmed Fitment:
- Kubota: SSV65, SSV75, SVL75-2.
- Bobcat: S510, S590, T550, T590.
- CAT: 232D, 236D, 242D, 259D.
- John Deere: 317G, 318G, 320G, 324G.
- Case/New Holland: SR175, SV185, TR270.
Additional Specifications
| Mount Interface | Universal Skid Steer |
| Warranty | 1-Year Structural |
| Max Operating Pressure | 3000 PSI |
| Shipping Dimensions (LxWxH) | 42x60x25 |
