Description
The Clean-Up Specialist

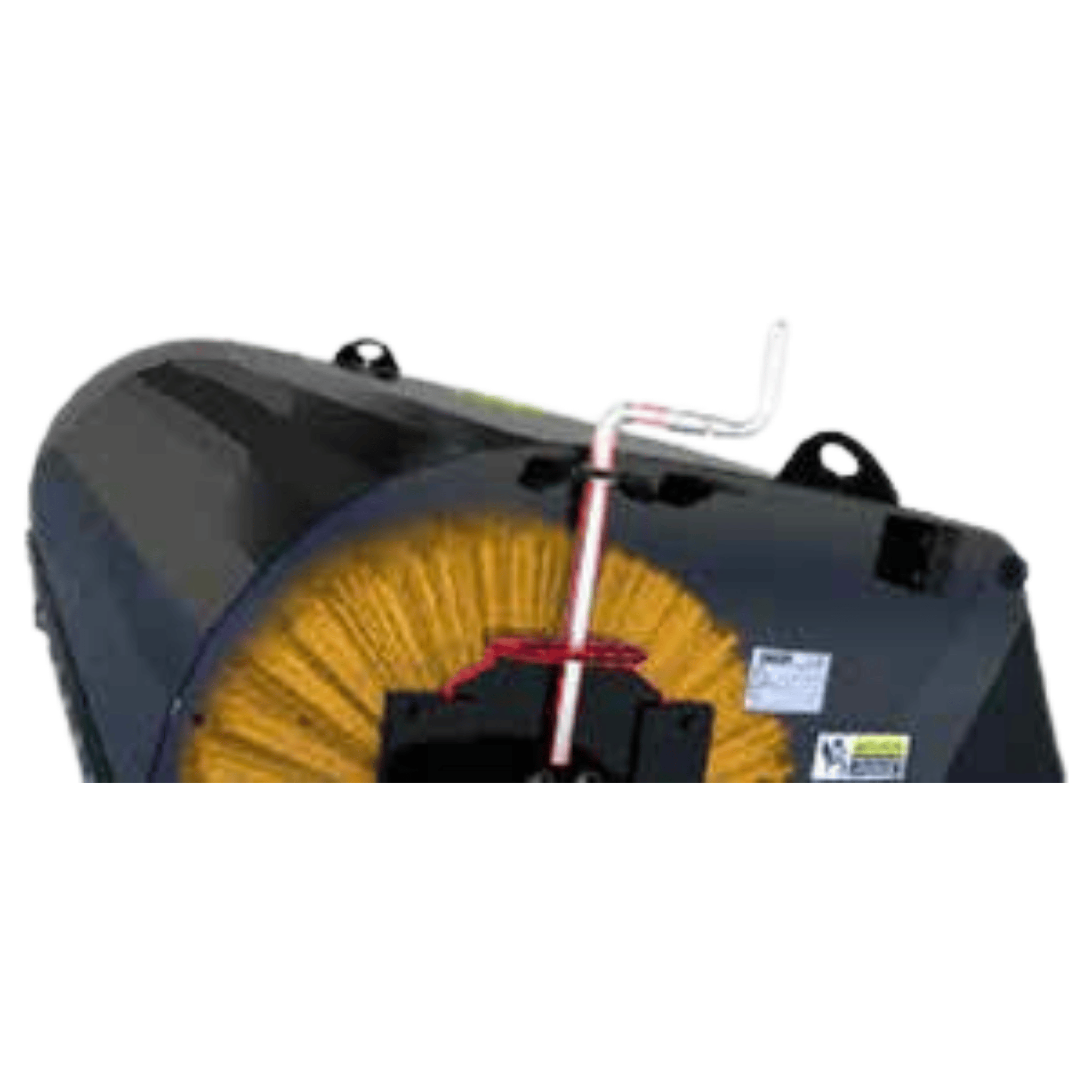

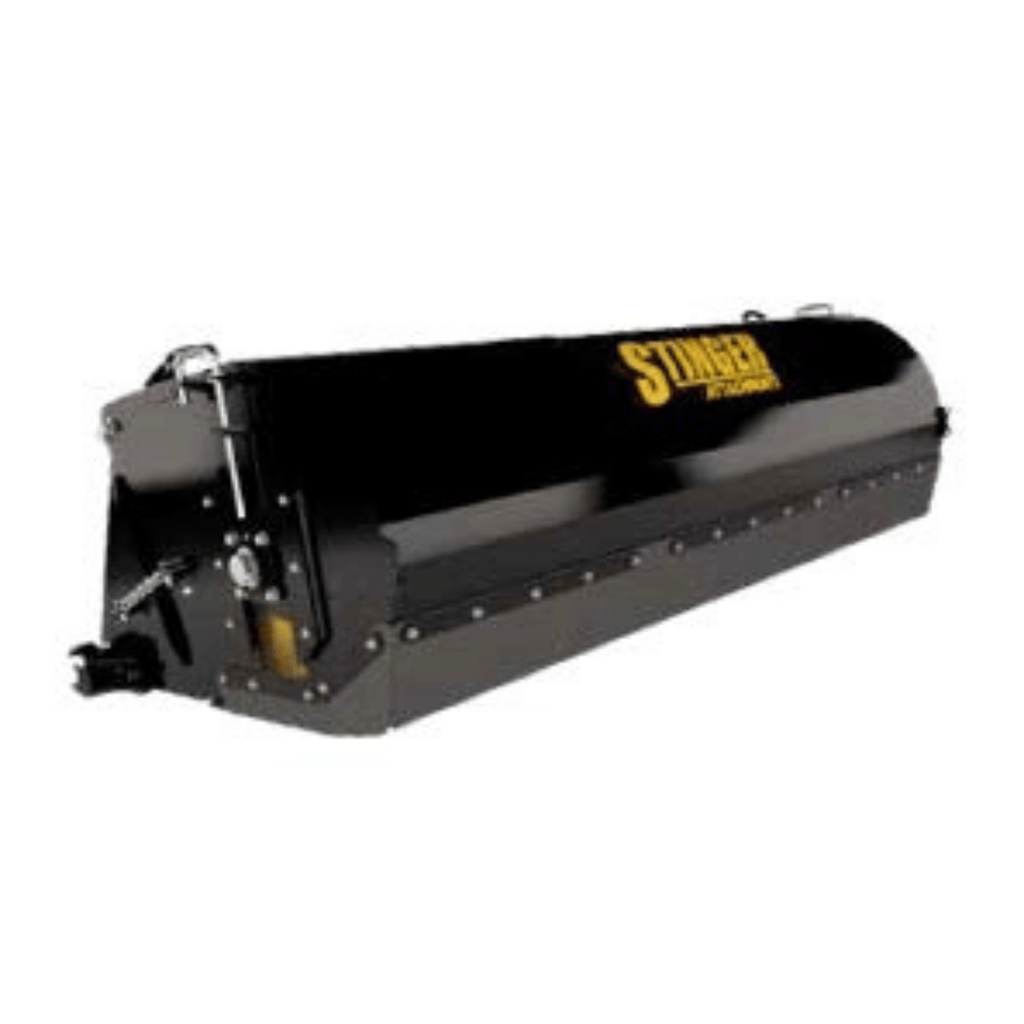

The Stinger Attachments Pickup Broom is the ultimate tool for site cleanup. Unlike angle brooms that windrow debris to the side, this attachment sweeps dirt, trash, and rocks directly into its integrated hopper. When the bucket is full, simply lift and dump it like a standard loader bucket. It is essential for maintaining warehouses, machine sheds, and paved parking lots.
Cut, Sweep, Contain

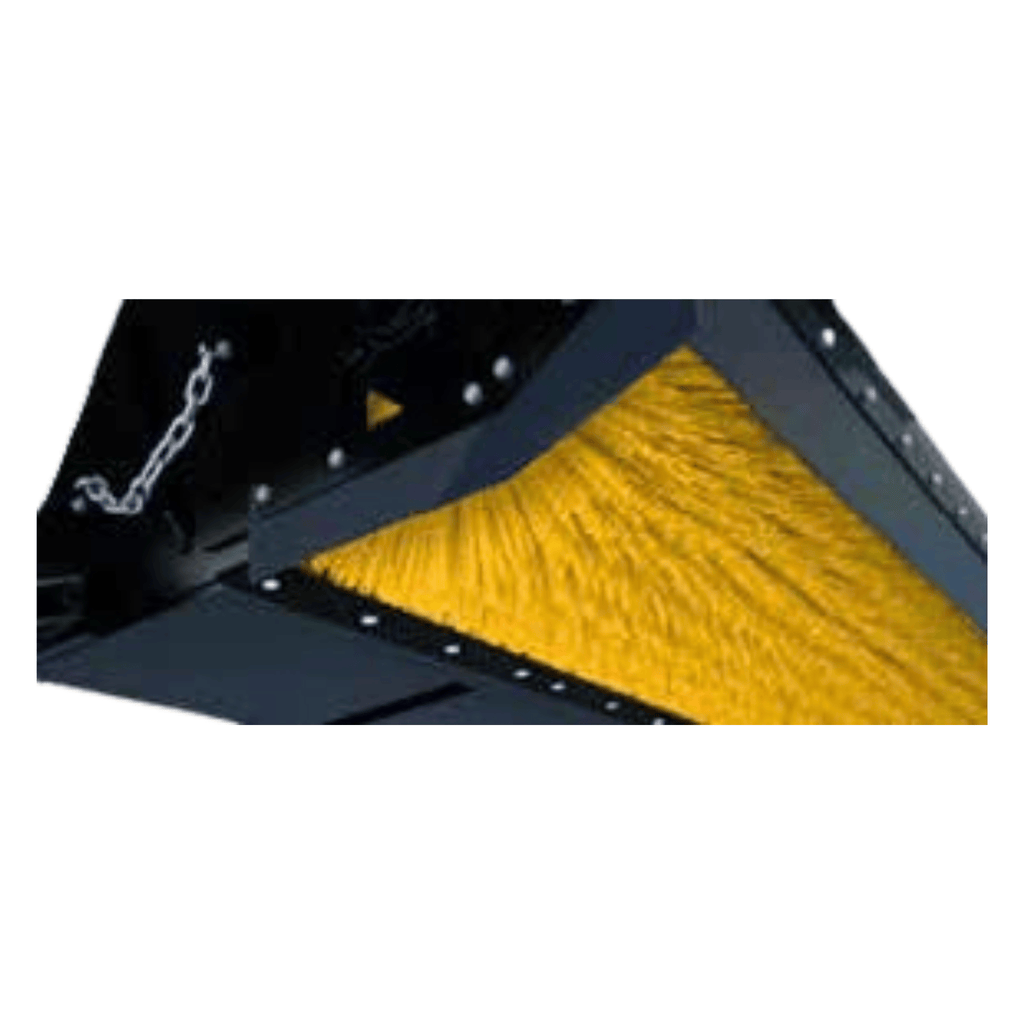

Stinger engineers this unit for heavy use. It features a Bolt-On Cutting Edge to scrape up packed mud and Poly/Wire Hybrid Bristles to scour the surface.
Available Upgrades:
• Gutter Brush: A side-mounted rotary brush that pulls debris away from curbs and walls into the main sweeper path.
• Water Tank Kit: A dust suppression system that sprays water ahead of the broom, keeping silica dust and dirt out of the air (ideal for indoor use).
⚙️ Technical Specifications
Bristle Type: 50/50 Poly & Wire Mix (Replaceable Wafers)
Hydraulic Motor: Eaton (Bi-Directional / Reverse Flow)
Height Adjustment: Heavy Duty Casters
Cutting Edge: Reversible Bolt-On Edge
Optional Gutter Brush: Curb/Edge Cleaning
Optional Water Kit: Dust Suppression Tank & Sprayers
Warranty: 1-Year Structural
⚠️ Setup Requirement: Hydraulics
Standard Flow: Requires standard auxiliary flow. Includes 1/2" Flat-Face Couplers (ISO 16028).
Electrical: If selecting the Water Kit option, a 12V connection may be required for the water pump.
✅ Machine Compatibility
1. Mount Type:
Universal Quick Attach (SSQA). Fits standard skid steers and track loaders.
2. Size Recommendation:
60": Compact & Mid-Frame Skid Steers.
72": Large-Frame Skid Steers & CTLs.
84": Large Hub Machines & Wheel Loaders.
Additional Specifications
| Mount Interface | Universal Skid Steer |
| Warranty | 1-Year Structural |
| Max Operating Pressure | 3000 PSI |

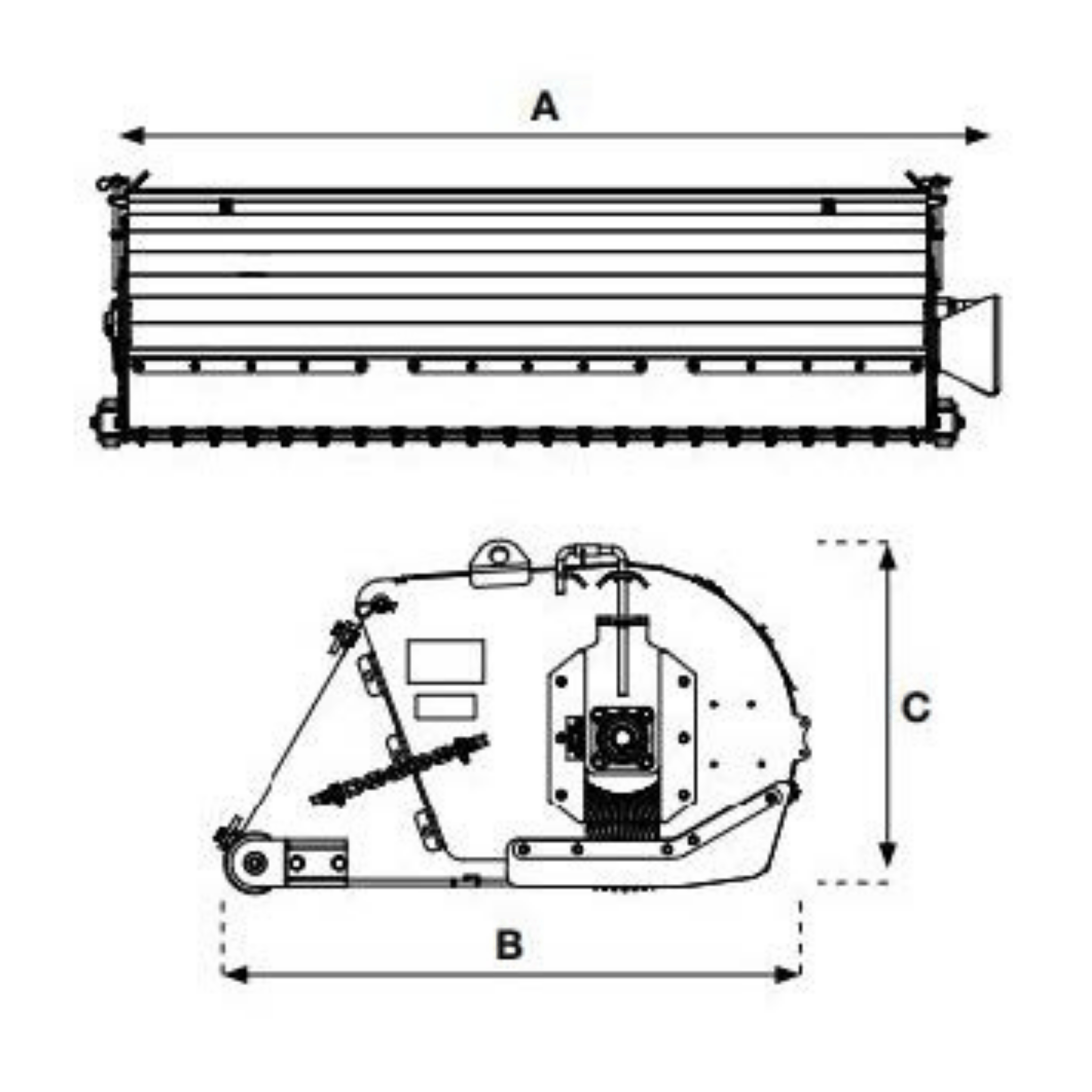

| Shipping Dimensions (LxWxH) | 50x74x30 |
