The Ultimate Bedding Buster: The Stinger Attachments Manure Spear takes the utility of a manure fork and upgrades it with Forged Conus 2 Bale Spears. Unlike straight round tines, the tapered design of the Conus 2 spear allows for superior penetration into compacted livestock bedding, frozen silage, and hay piles.
Commercial Strength:
• Forged Spears: Equipped with 43" German Conus 2 spears, rated for high-stress loads.
• Replaceable: If you bend a spear, you can simply unbolt it and replace it—no cutting or welding required.

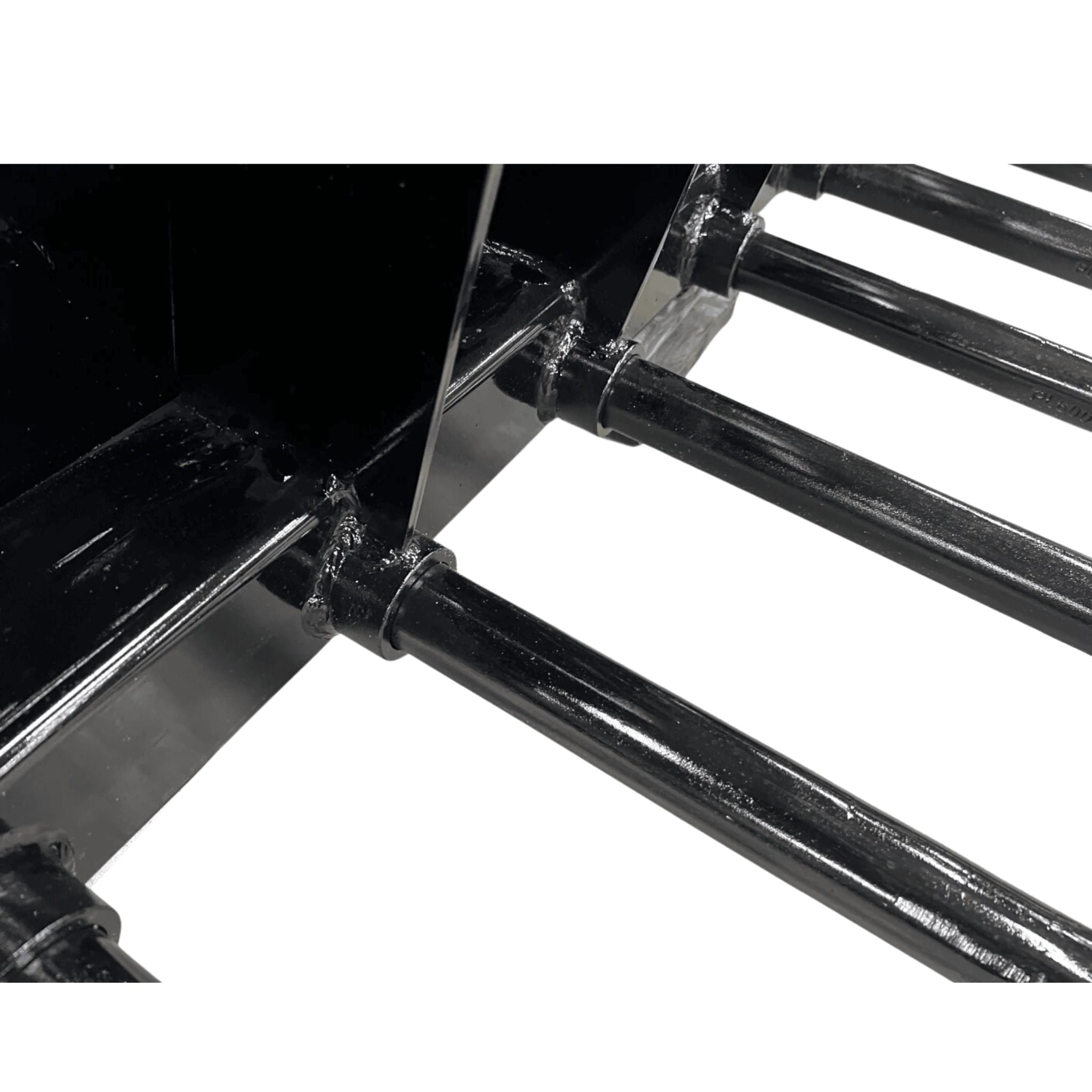

• Heavy Frame: Built with a 4" x 4" top tube and 3" x 3" bottom tube to withstand the prying force of breaking up a manure pack.
⚙️ Technical Specifications
Spear Type: 43" Conus 2 (Forged/Tapered)
Usable Length: ~42"
Spacing: 8" On Center (6" Opening)
Top Frame: 4" x 4" x 1/4" Tubing
Bottom Frame: 3" x 3" x 1/4" Tubing
Steel Grade: Grade 50
Warranty: 1 Year Structural
⚠️ Back Style Selection

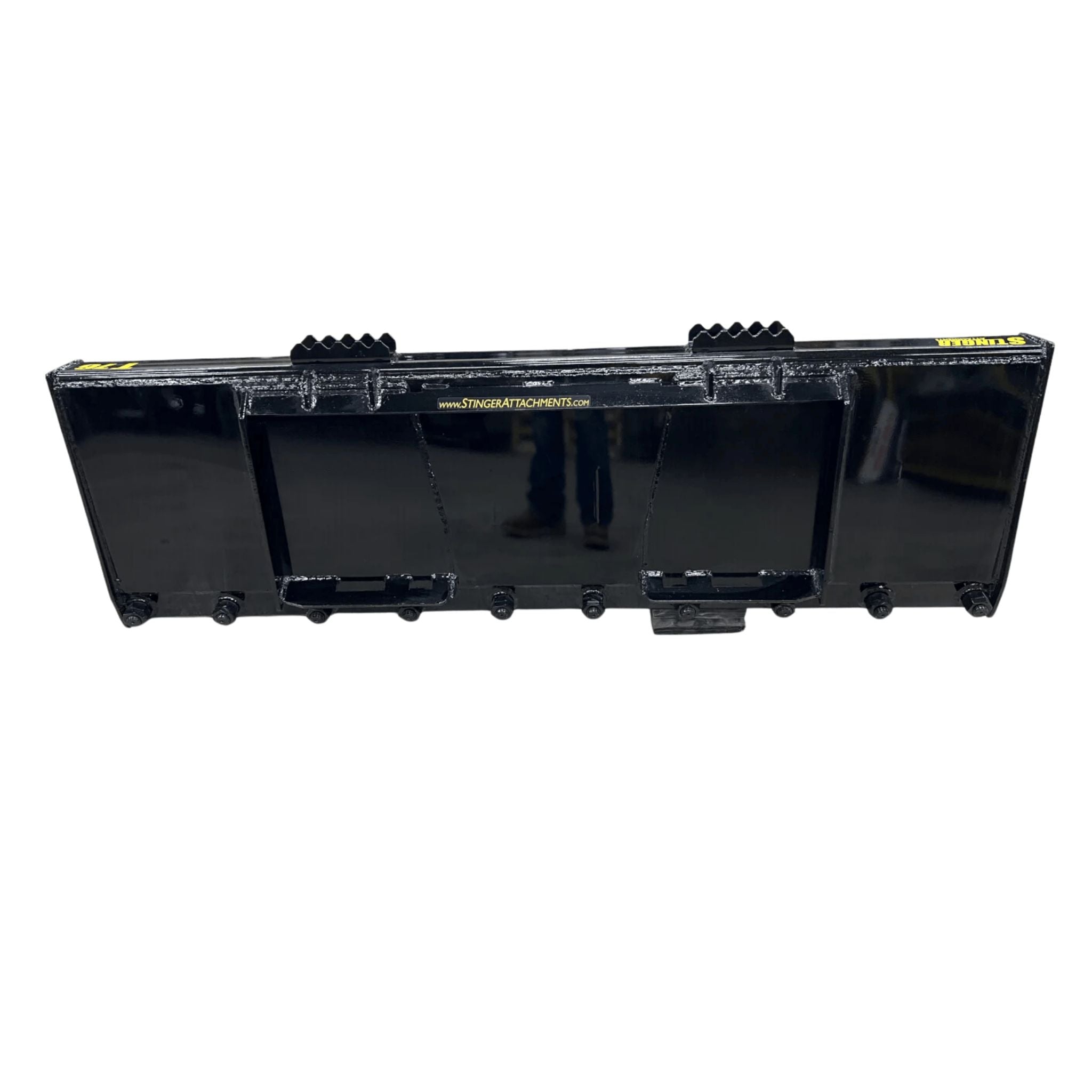

Open Back (Standard): Offers superior visibility to the spear tips for precision work.
Closed Back (+$150): Features a solid steel plate at the back to prevent loose manure, silage, or debris from falling back onto the attachment coupler.
✅ Size Guide
60" & 68": Ideal for Compact Tractors and Small Skid Steers.
76" & 84": Ideal for Standard Skid Steers and Utility Tractors (matches tire width of most 74HP machines).
Additional Specifications
| Mount Interface | Universal Skid Steer |
| Warranty | 1-Year Structural |
| Shipping Dimensions (LxWxH) | 60x47x23 |
