Description
The Livestock Producer's Choice.

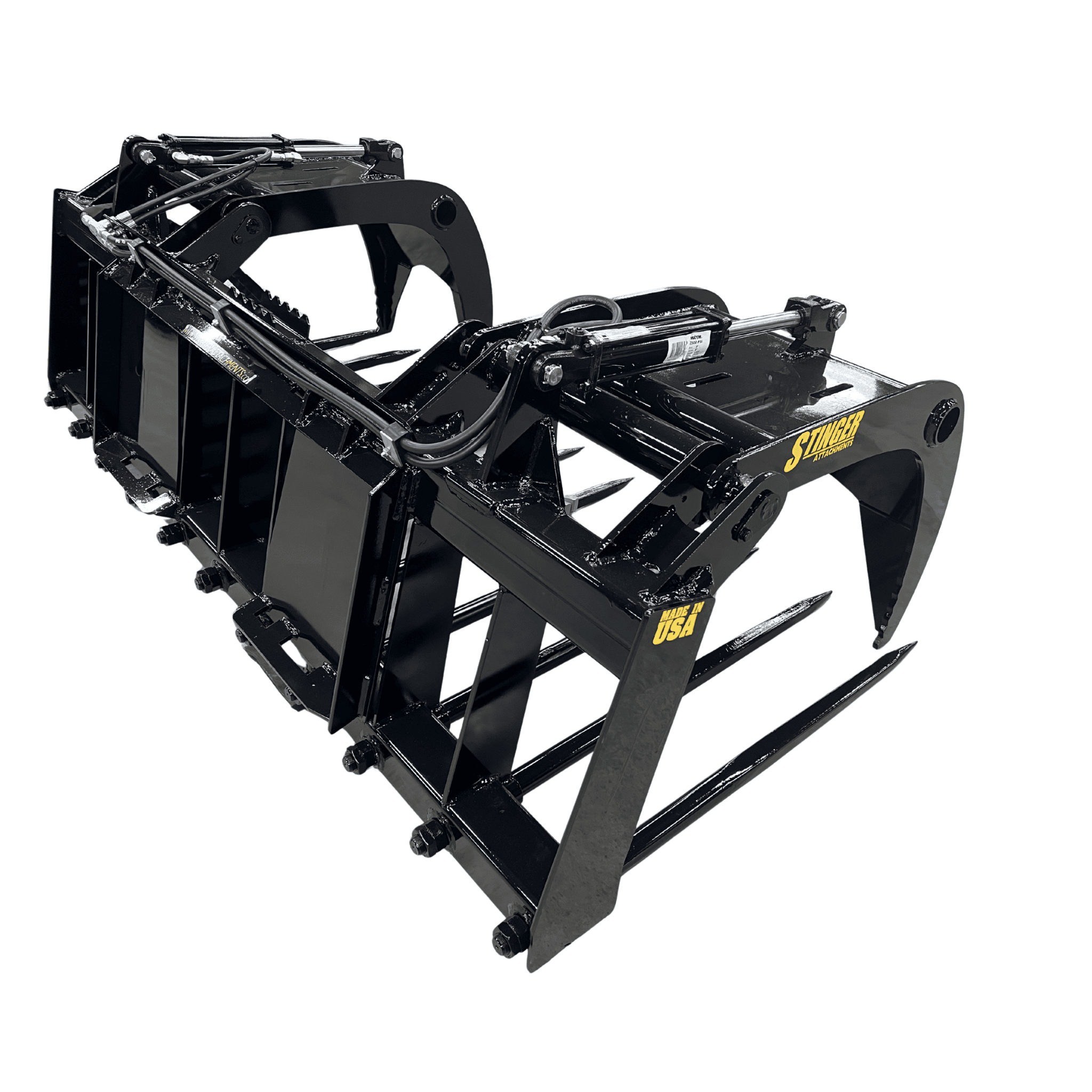

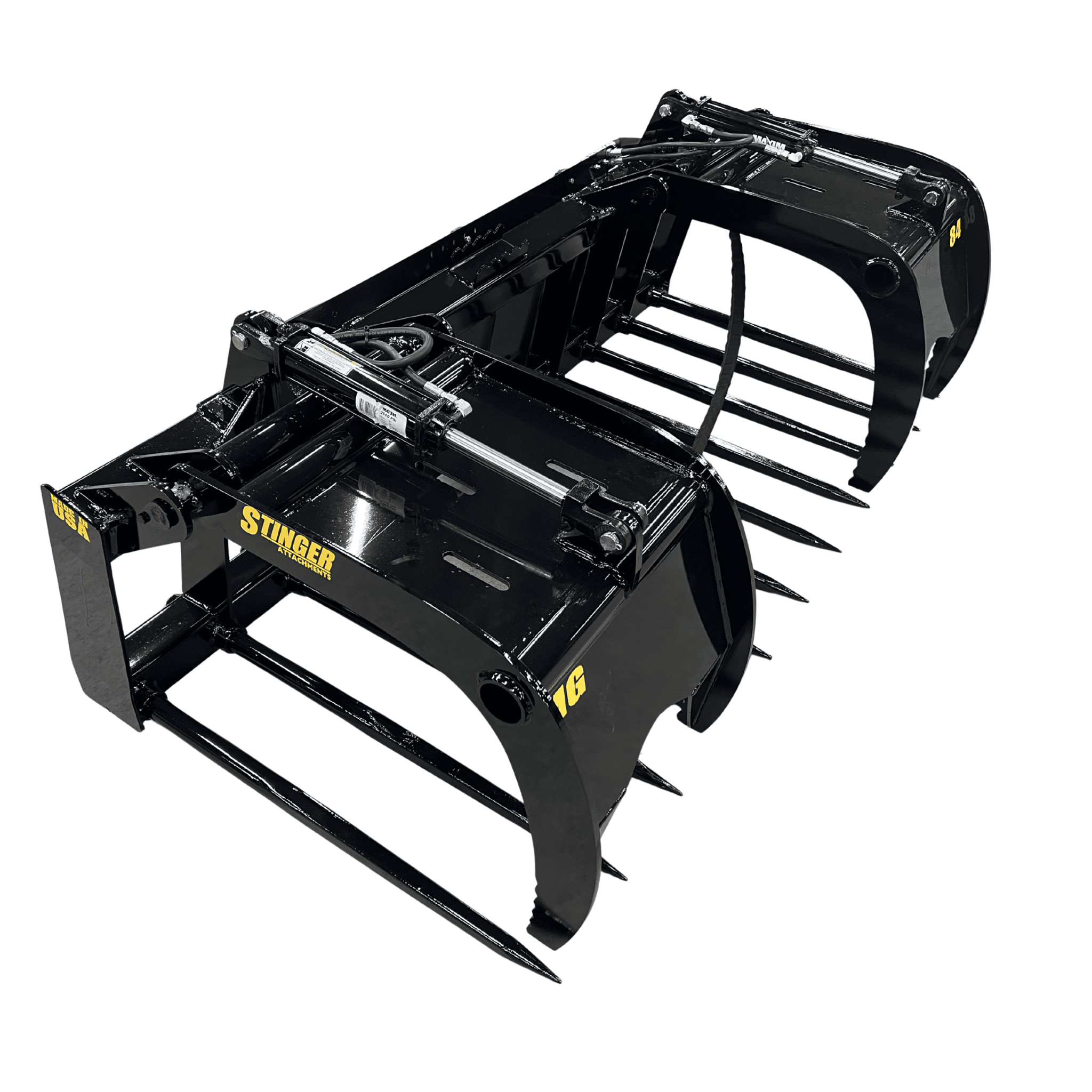

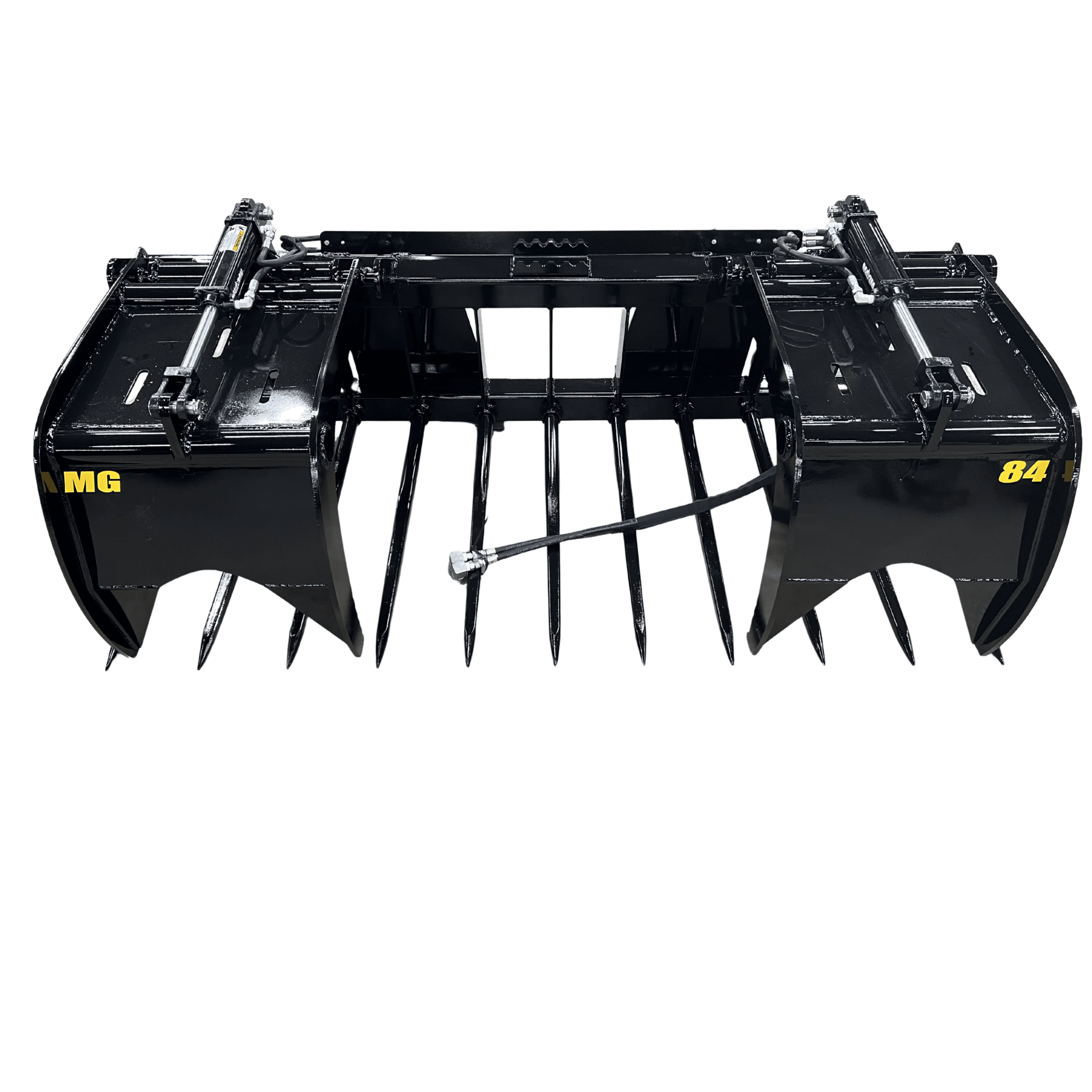

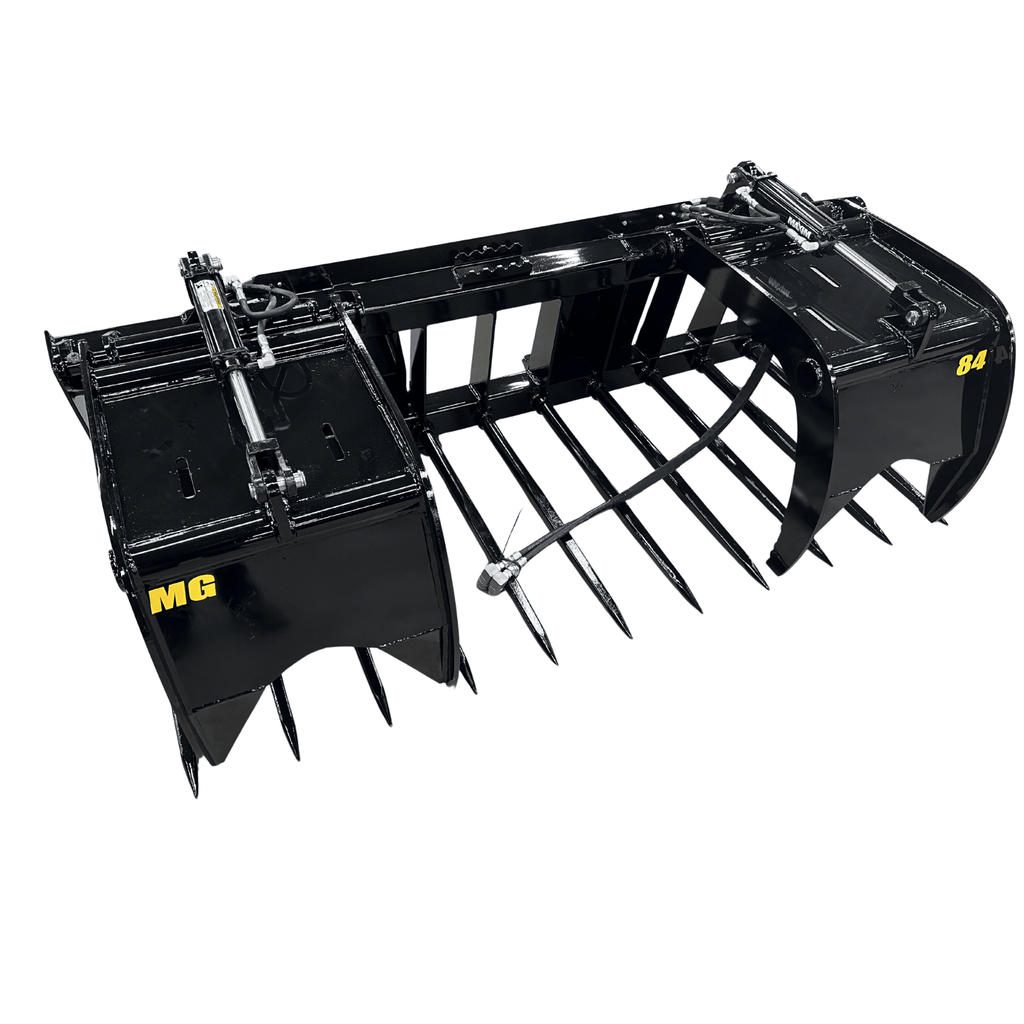

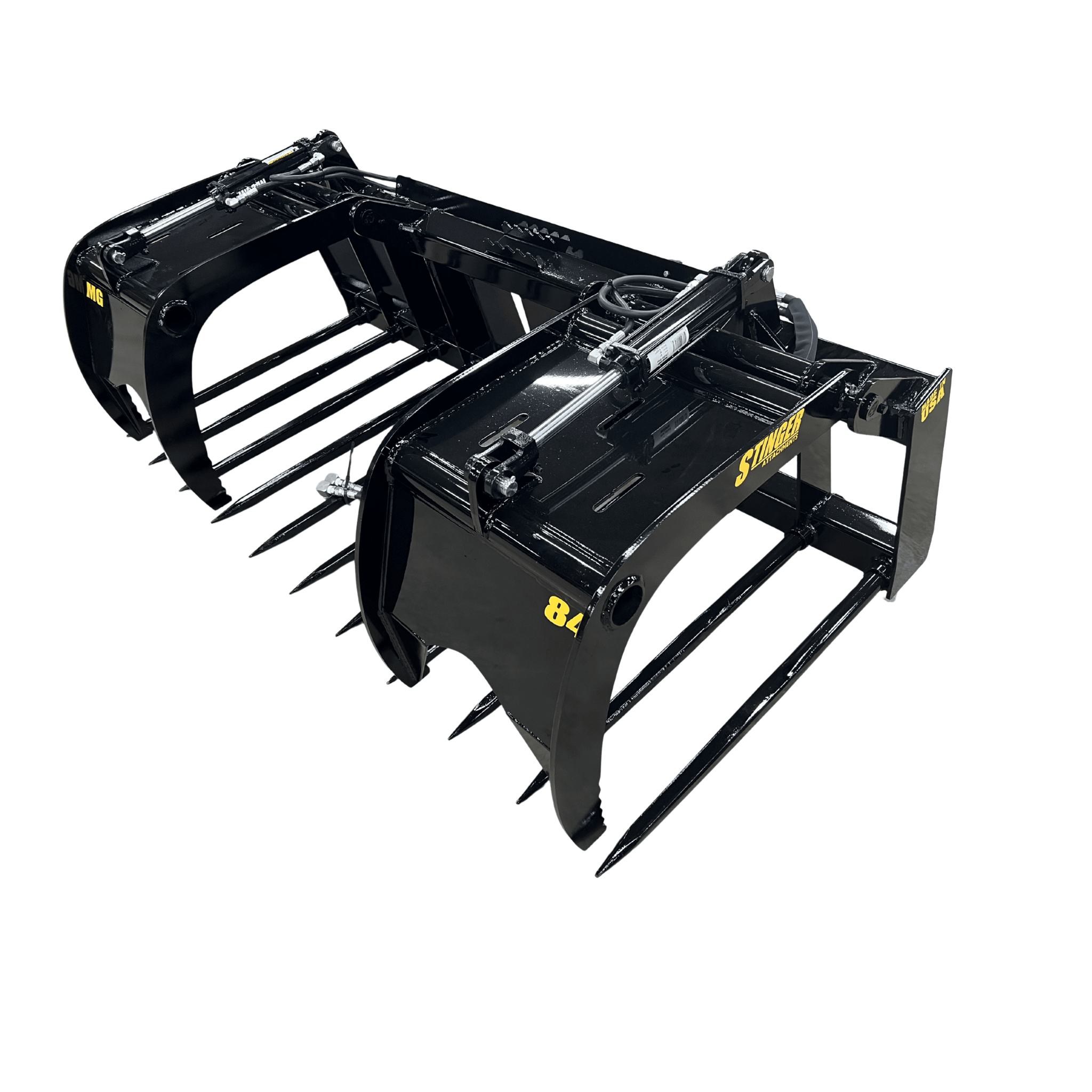

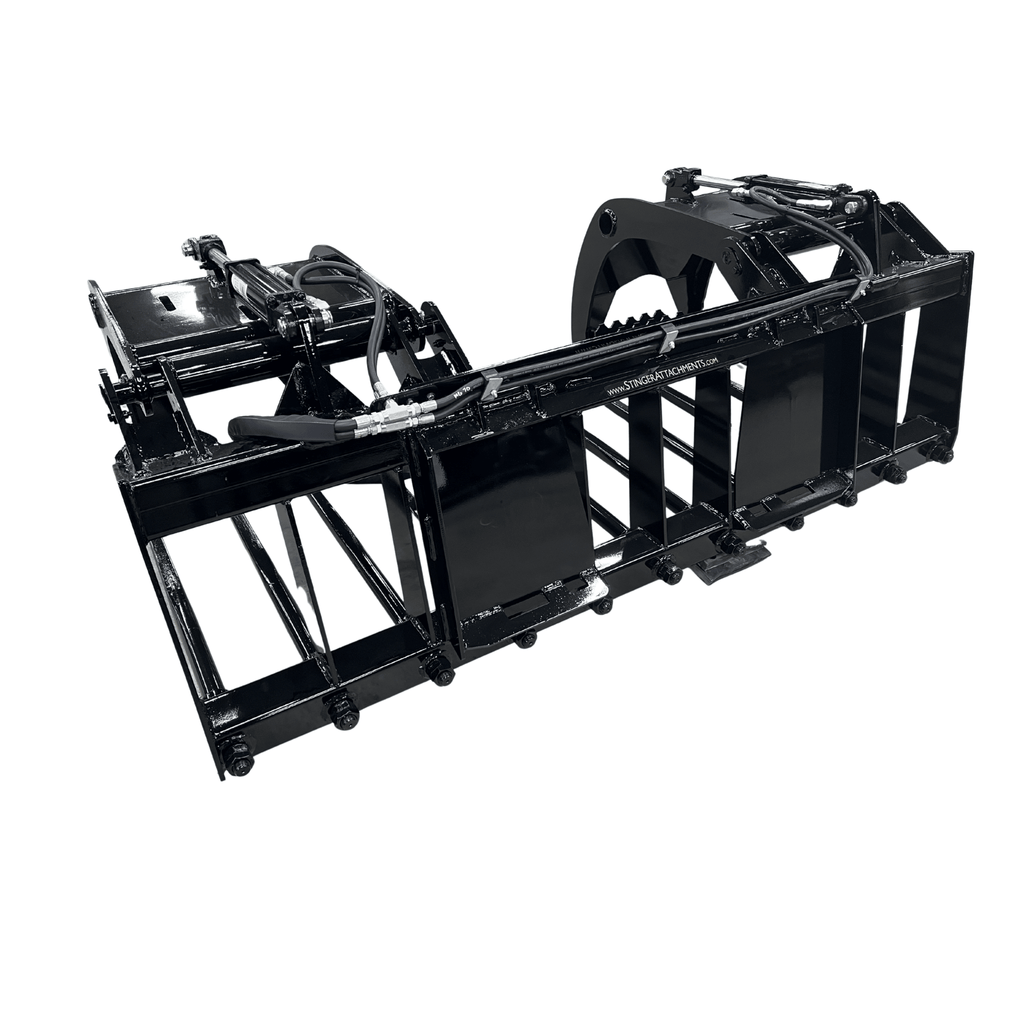

The Stinger Manure Grapple Series is purpose-built for the daily grind of the farm. Whether you are mucking out barns, handling loose hay, or breaking up frozen silage, this grapple penetrates dense material that standard buckets simply bounce off of.

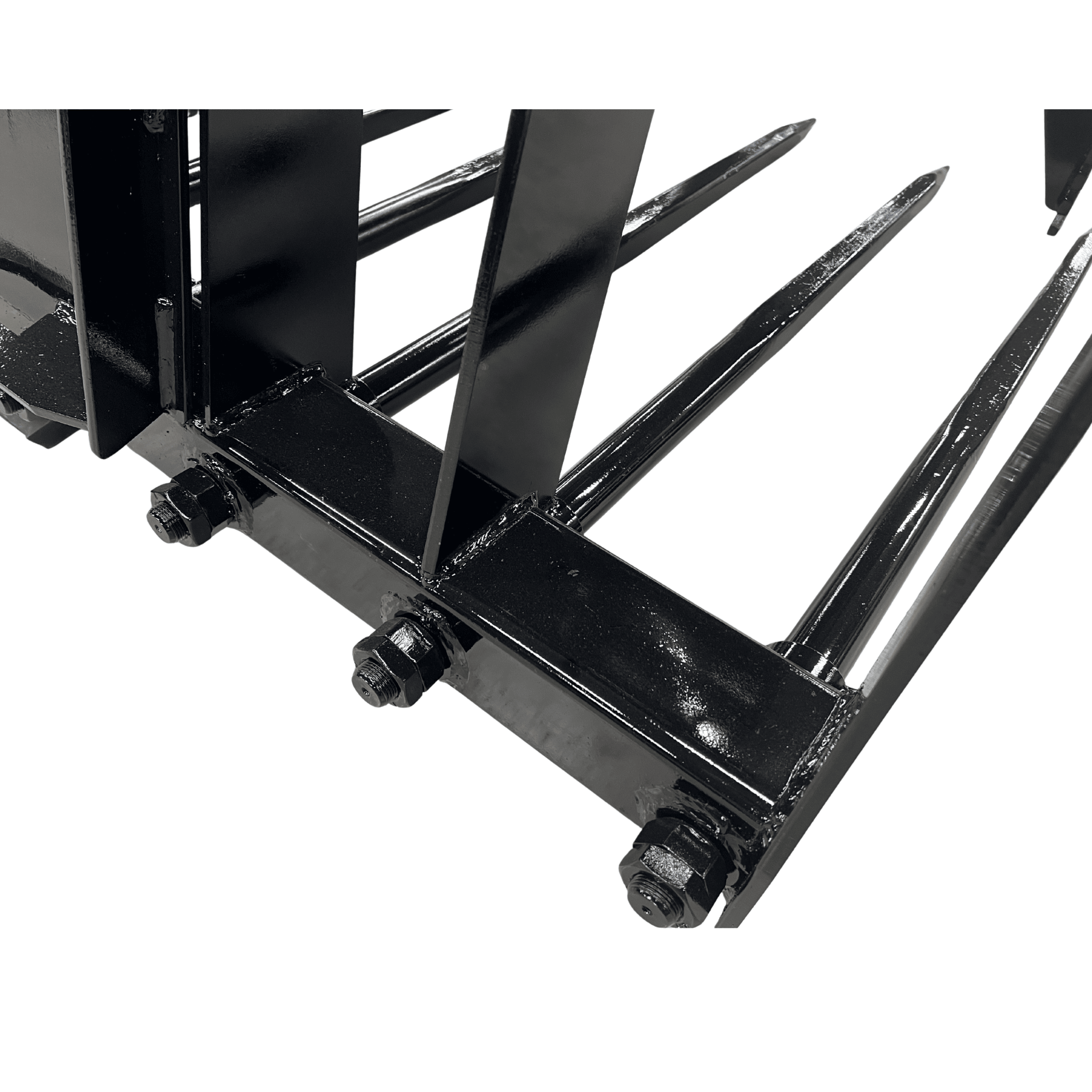

The "Replaceable" Advantage: Accidents happen on the farm. Unlike solid-weld rock grapples where a bent tine requires a torch and a welder to fix, the Stinger Manure Series features fully Replaceable Tines. If you bend one, simply unbolt it and replace it in minutes.
đ¤ Which Model Do I Need?
Both models use the same heavy-duty frame, but the tines are specialized for different tasks:

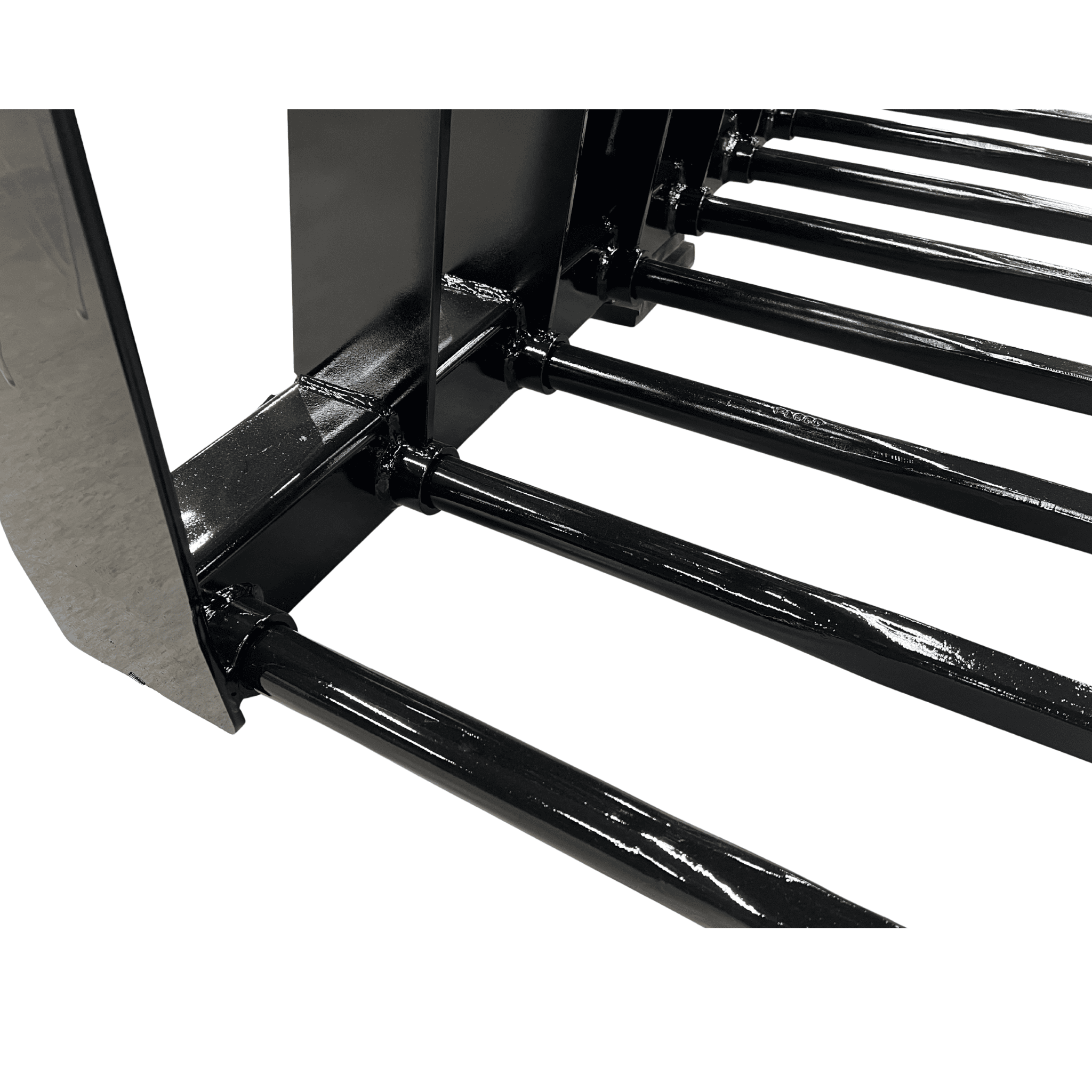

- The Tine: 2" Cold Rolled Steel (Round)
- Best For: General bedding, loose manure, mucking out stalls, and handling loose hay.
- Action: Acts like a pitchfork. Excellent for scooping.

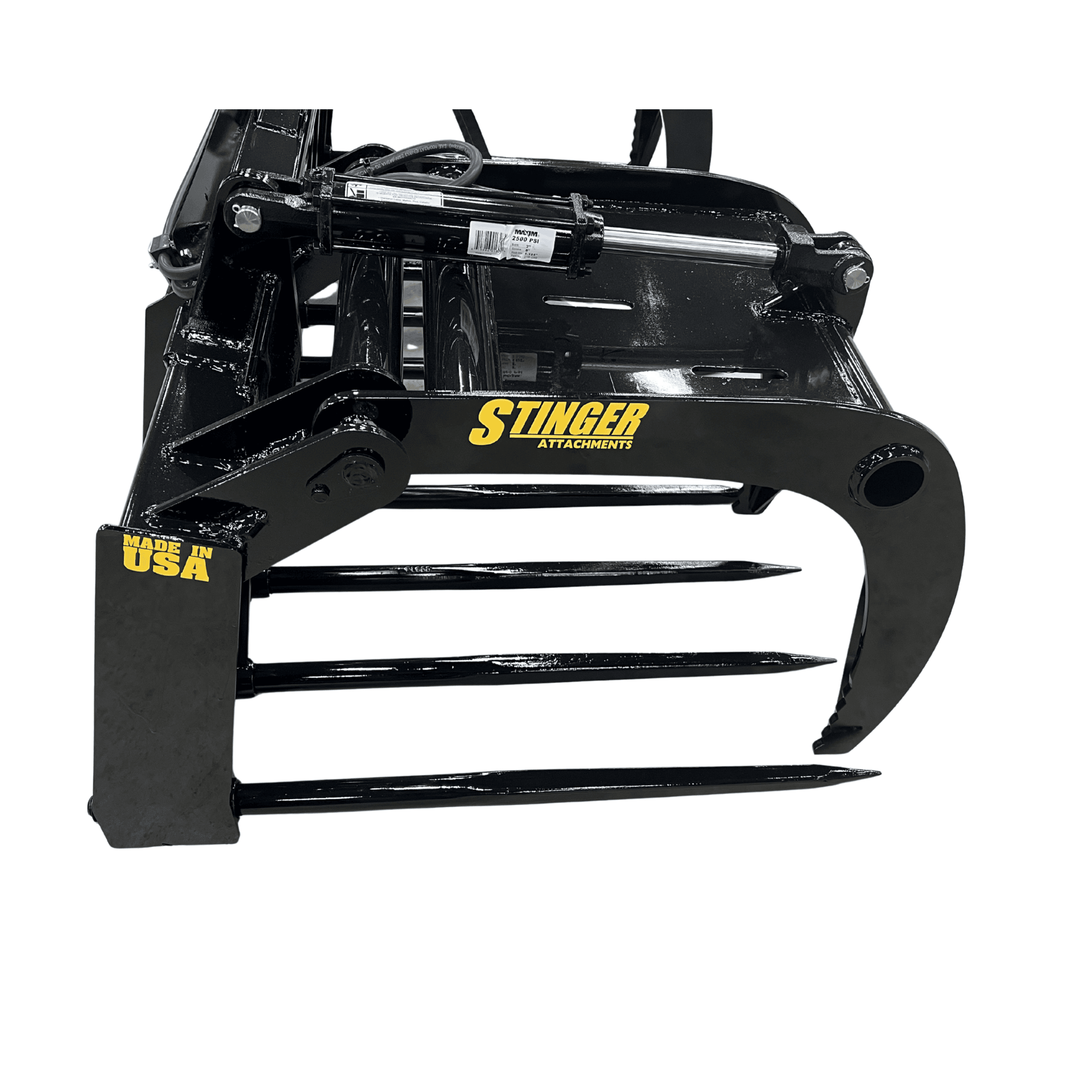

- The Tine: Conus 2 Tapered Spears (Sharp)
- Best For: Piercing frozen silage packs, moving large round bales, and breaking up compacted feed.
- Action: Acts like a spear. Excellent for penetration.
âď¸ Technical Specifications
| Steel Grade: | A572 Grade 50 Structural Steel Frame |
| Tine Spacing: | 8 Inches (Ideal for retaining material) |
| Grapple Opening: | 45 Inches (Wide bite) |

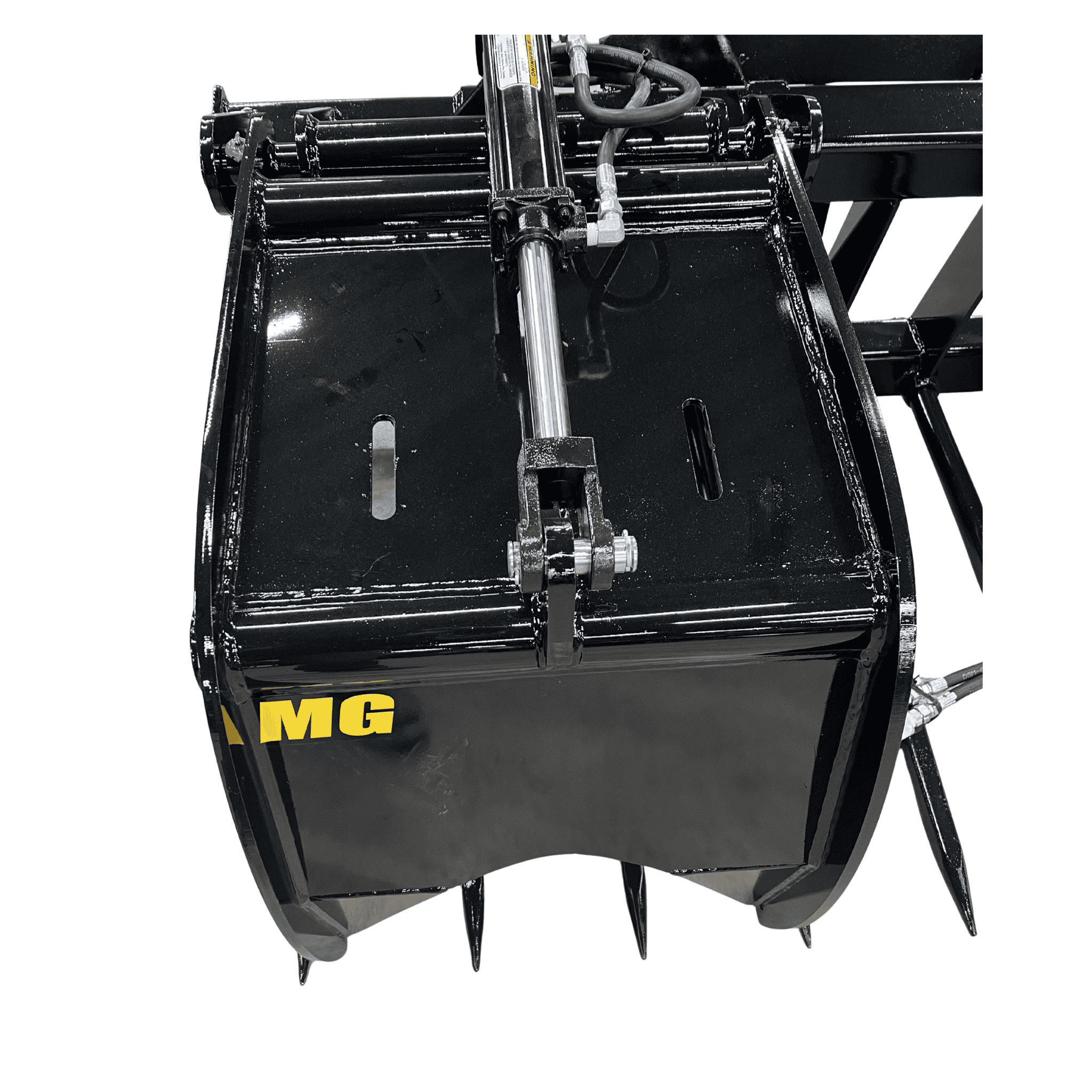

| Cylinder: | 2" x 8" (Rated for 2,500 PSI) |
| Maintenance: | Fully Greaseable Pivot Points & Bolt-On Tines |
| Warranty: | 1-Year Structural Warranty |
â ď¸ Usage Warning
Soft Material Only: This grapple is designed for manure, hay, silage, and bedding. Do not use this grapple for prying concrete, digging up roots, or handling large boulders. For rock and demolition work, please see the Stinger Rock Grapple (RG) series.
â Machine Compatibility
Mount Type:
Universal Skid Steer Quick Attach (SSQA). Fits 99% of modern loaders.
Hydraulics:
Standard Flow Ready. Includes 1/2" Flat Face Couplers (ISO 16028). No Case Drain required.
Sizing Guide:
- 60" - 68": Best for Small Frame Skid Steers (e.g., Bobcat S450, S510, Kubota SSV65).
- 72" - 84": Best for Mid/Large Frame Track Loaders (e.g., Kubota SVL75/97, Bobcat T770, Deere 333G).
Additional Specifications
| Mount Interface | Universal Skid Steer |
| Warranty | 1-Year Structural |
| Max Operating Pressure | 3000 PSI |
| Shipping Dimensions (LxWxH) | 48x60x45 |
