Stop the Slosh

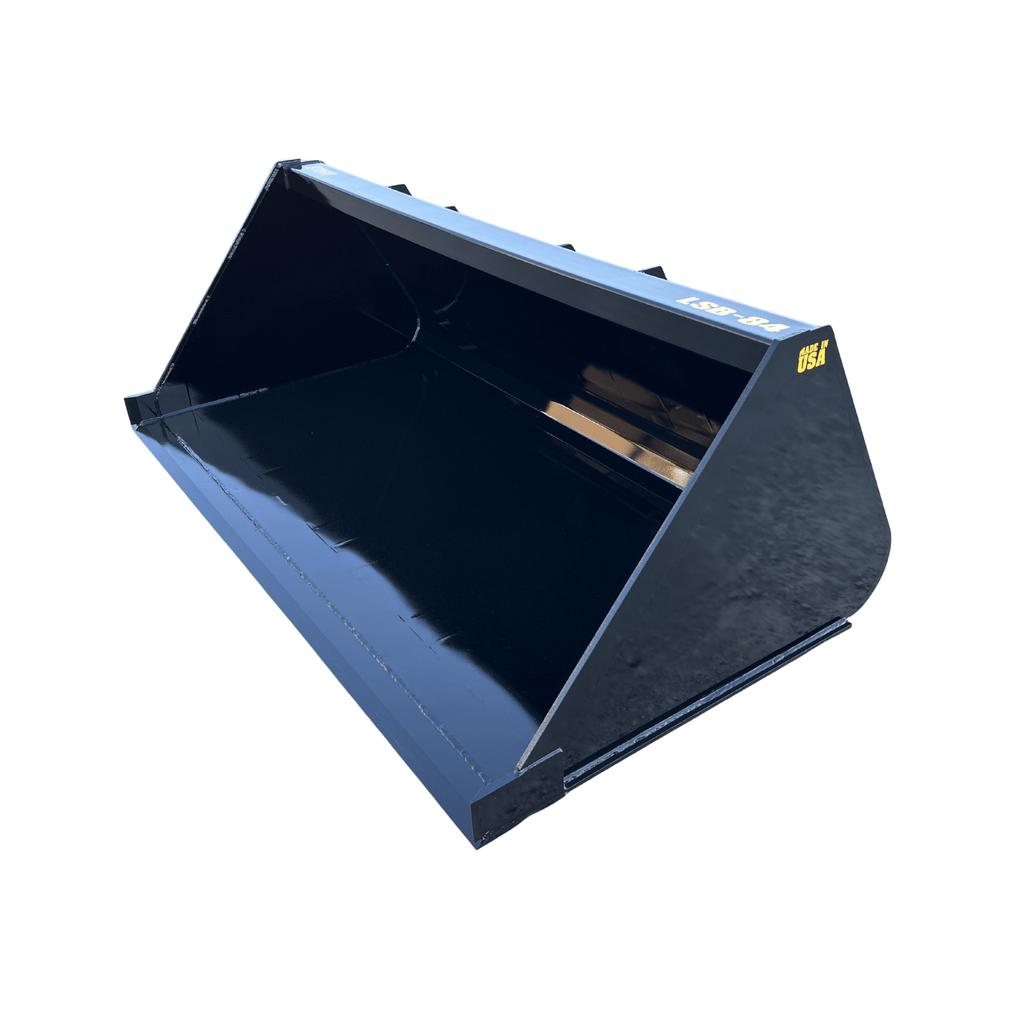

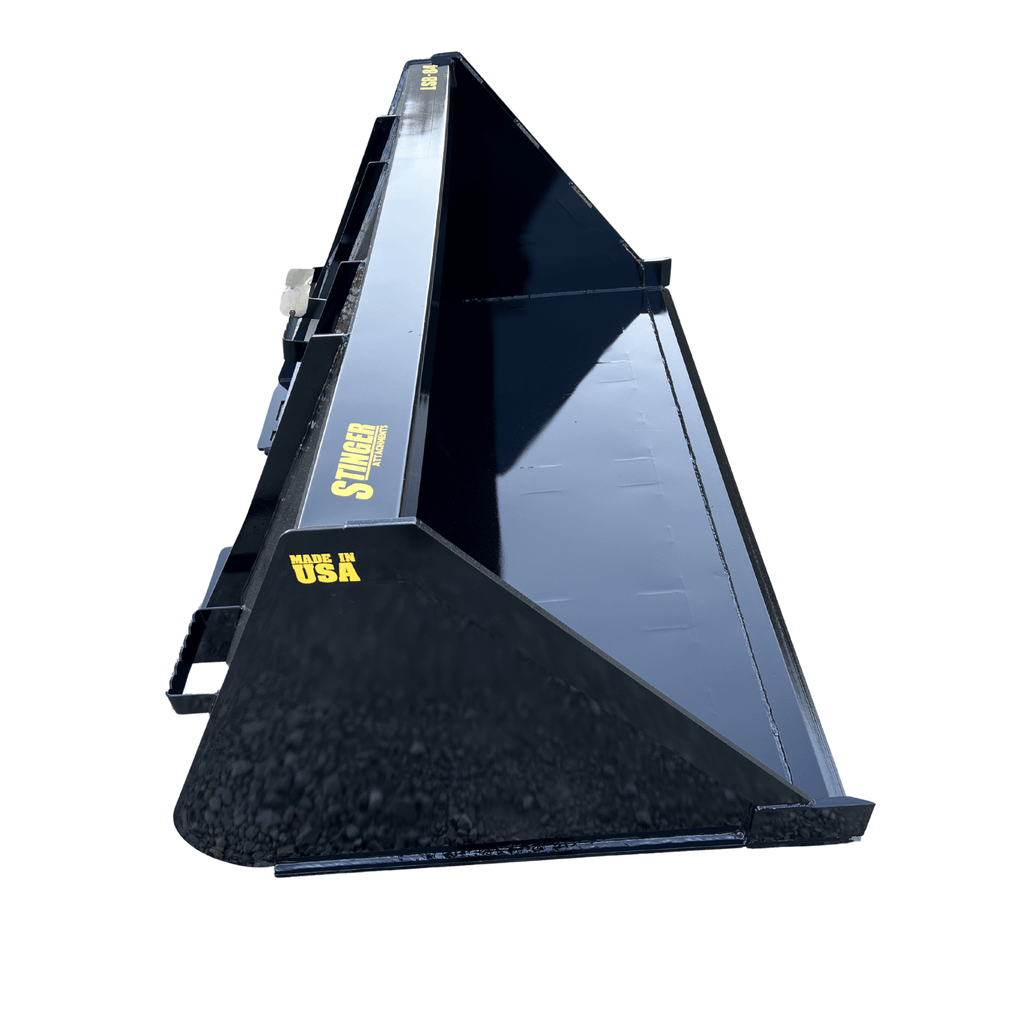

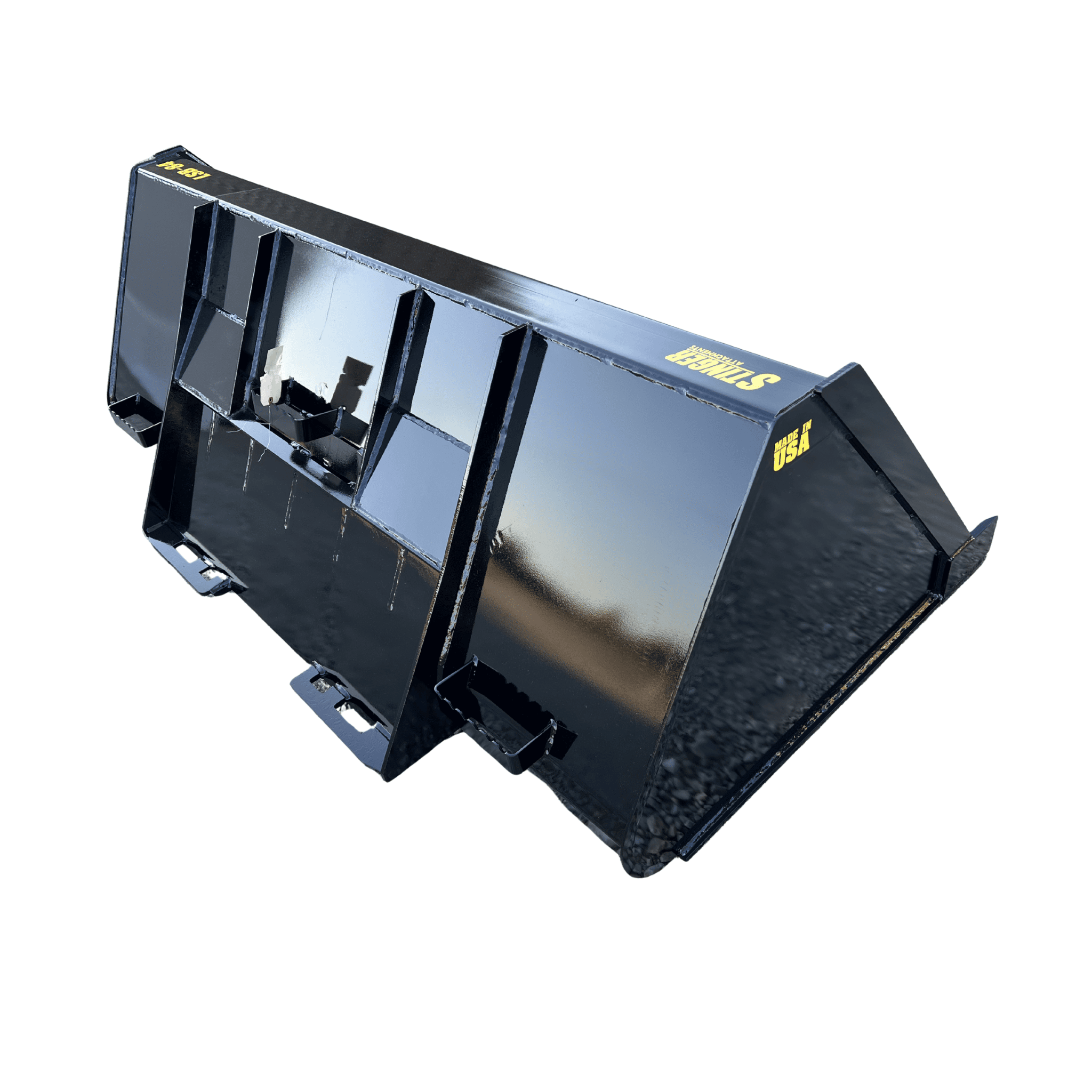

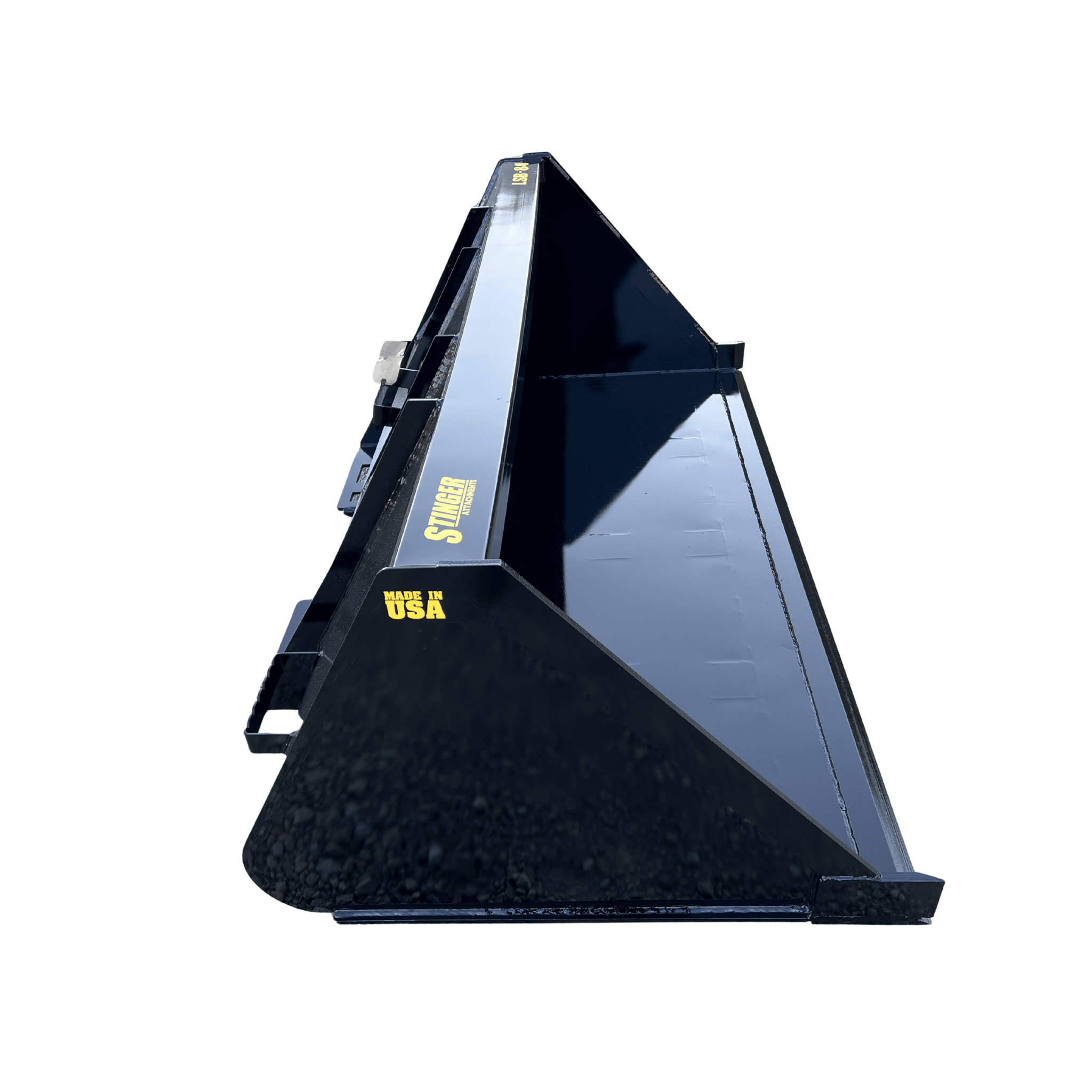

Moving liquid material with a standard dirt bucket is a mess—as soon as you raise the boom, the angle changes and product spills over the front. The Stinger Liquid Slurry Bucket (LSB) solves this with an aggressive 60-Degree Back Angle. This geometry allows the operator to roll the bucket back further, keeping the liquid payload level and contained during transport.
High-Volume & Leak-Free

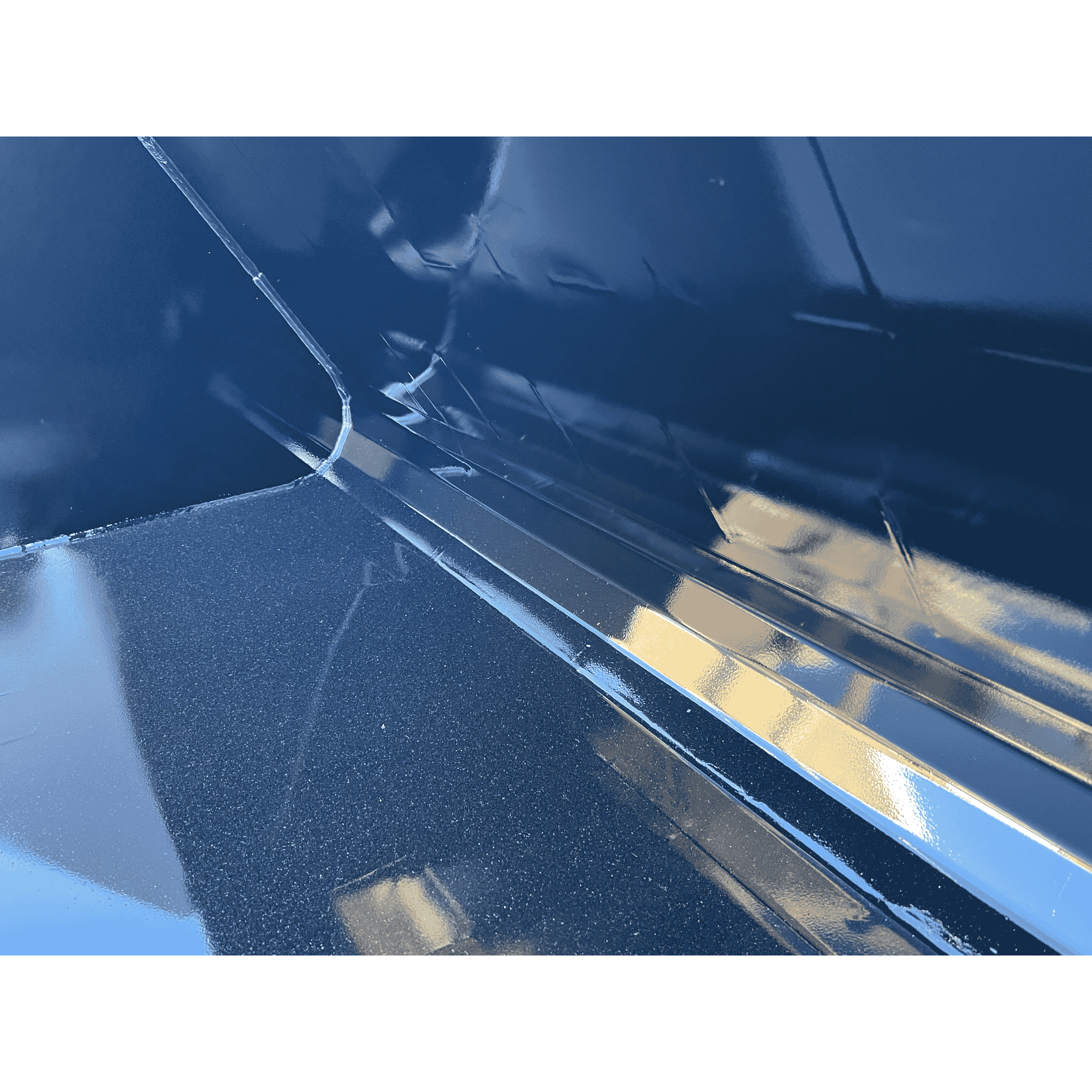

Designed for liquid manure, wet concrete, and slurry, the LSB is built from a heavy-duty 1/4" Grade 50 Steel Shell to prevent bowing under heavy fluid loads. It stands 30 inches tall for maximum volume and features a Rolled Radius Insert for a smooth, clean discharge.
⚙️ Technical Specifications
Shell Material: 1/4" Grade 50 Steel (Heavy Duty)

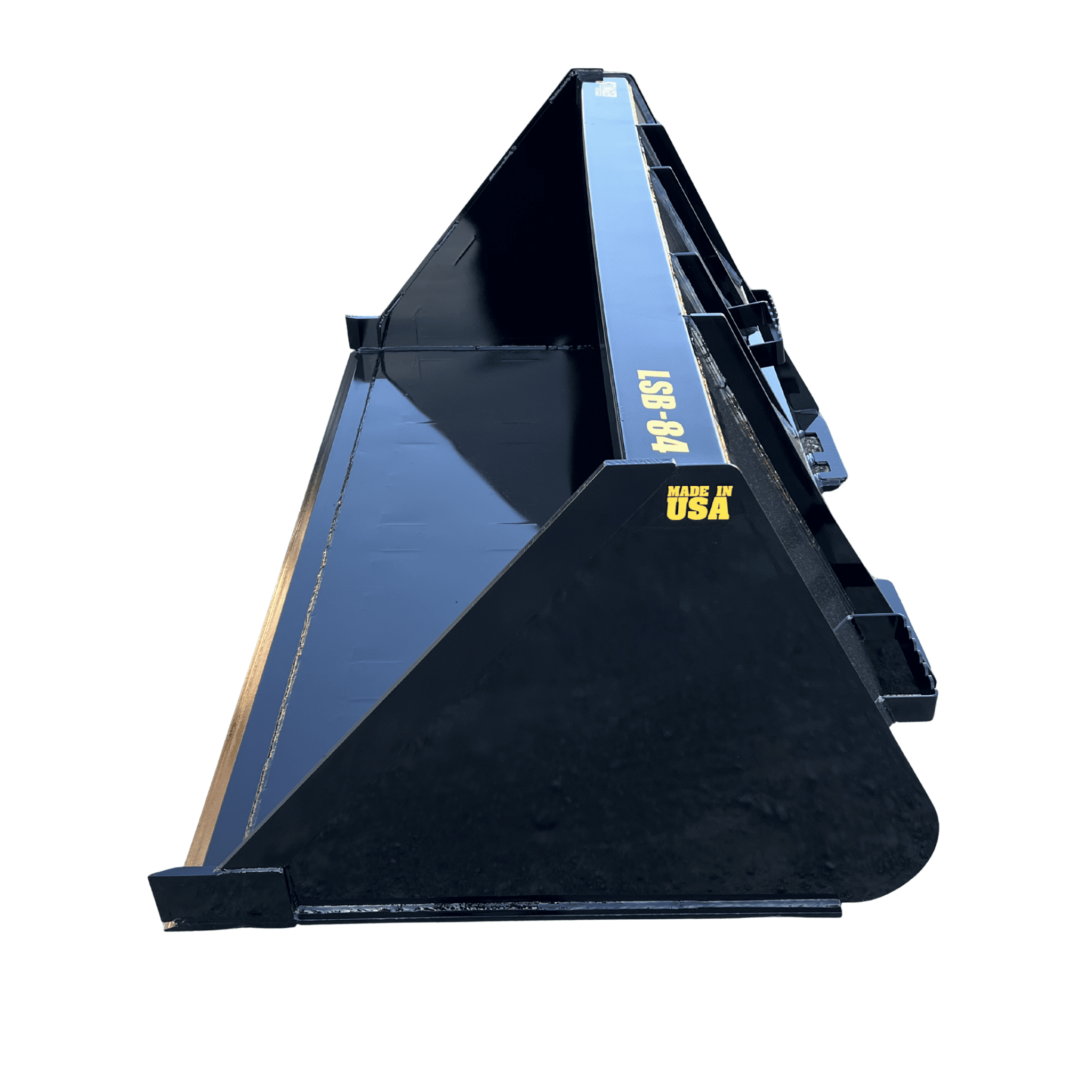

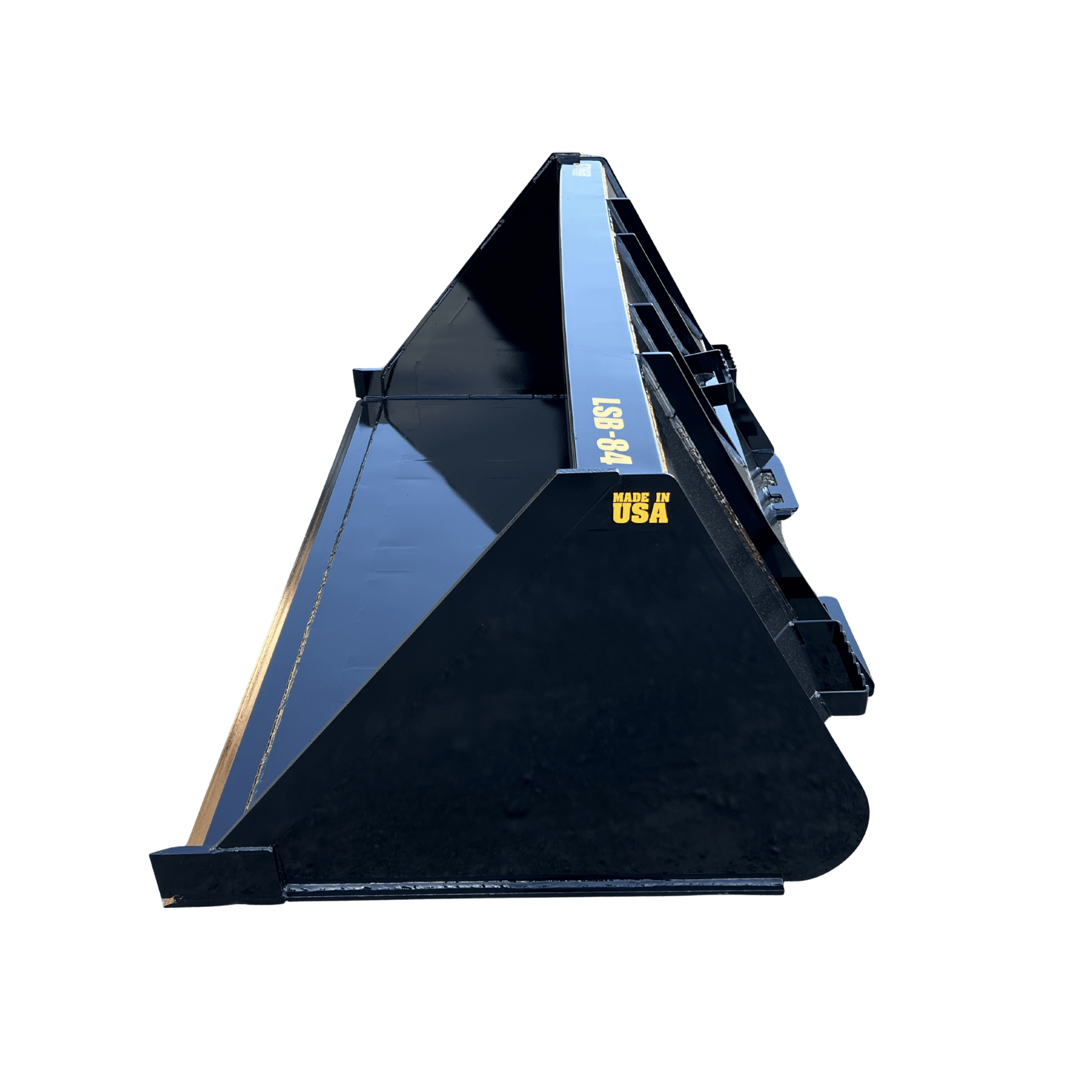

Back Angle: 60 Degrees (Max Rollback)
Bucket Height: 30 Inches
Bucket Depth: ~38 Inches
Wear Protection: 1/2" x 4" Underside Wear Bars
Cutting Edge: 3/4" x 8" (Weld-On or Bolt-On)
Warranty: 1-Year Structural
⚠️ Critical Warning: Fluid Weight
Density Hazard: Liquid payloads are incredibly dense. An 84" bucket of wet concrete can exceed 4,000 lbs.
Ensure your machine has the Rated Operating Capacity (ROC) to handle full liquid loads safely.
✅ Machine Compatibility
1. Mount Type:

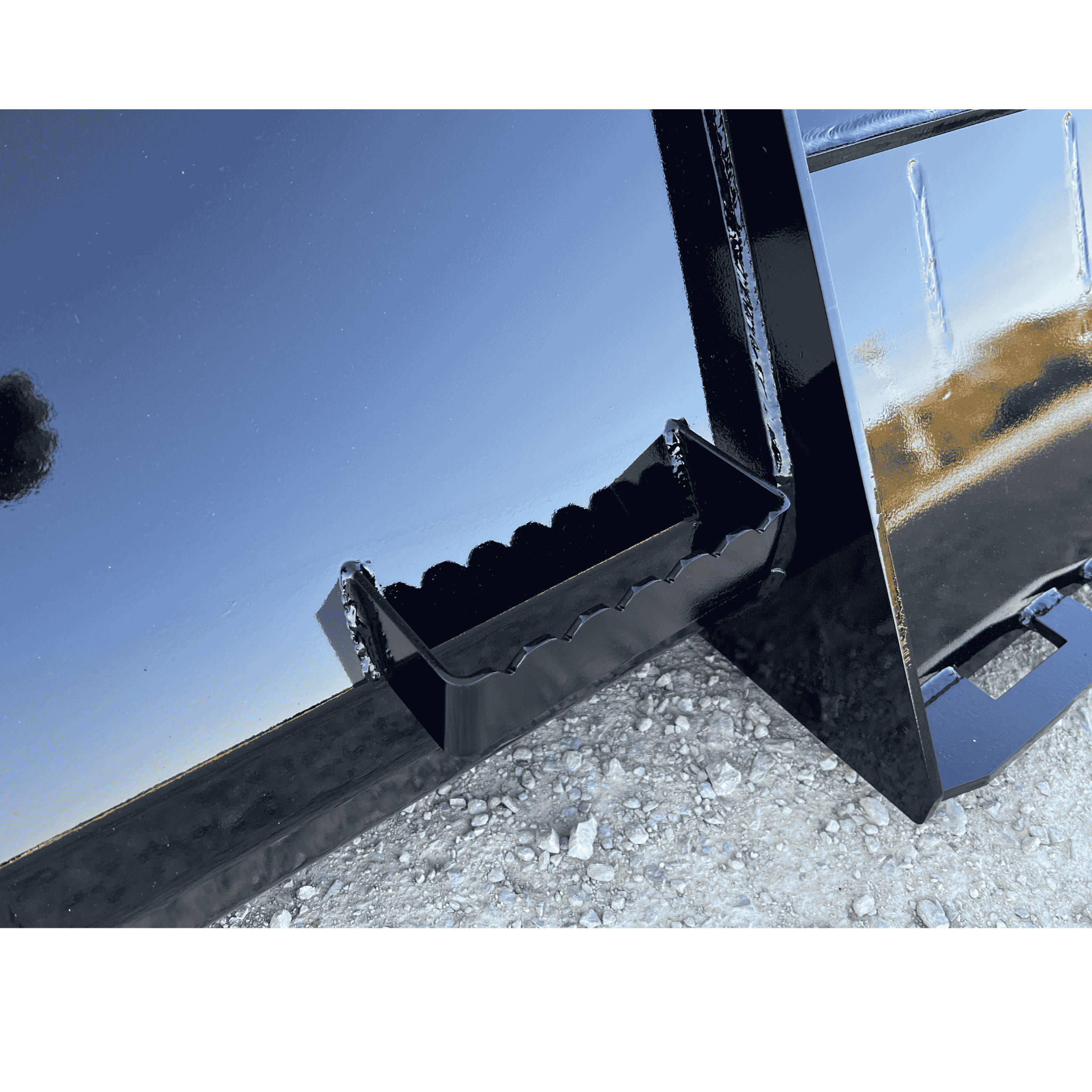

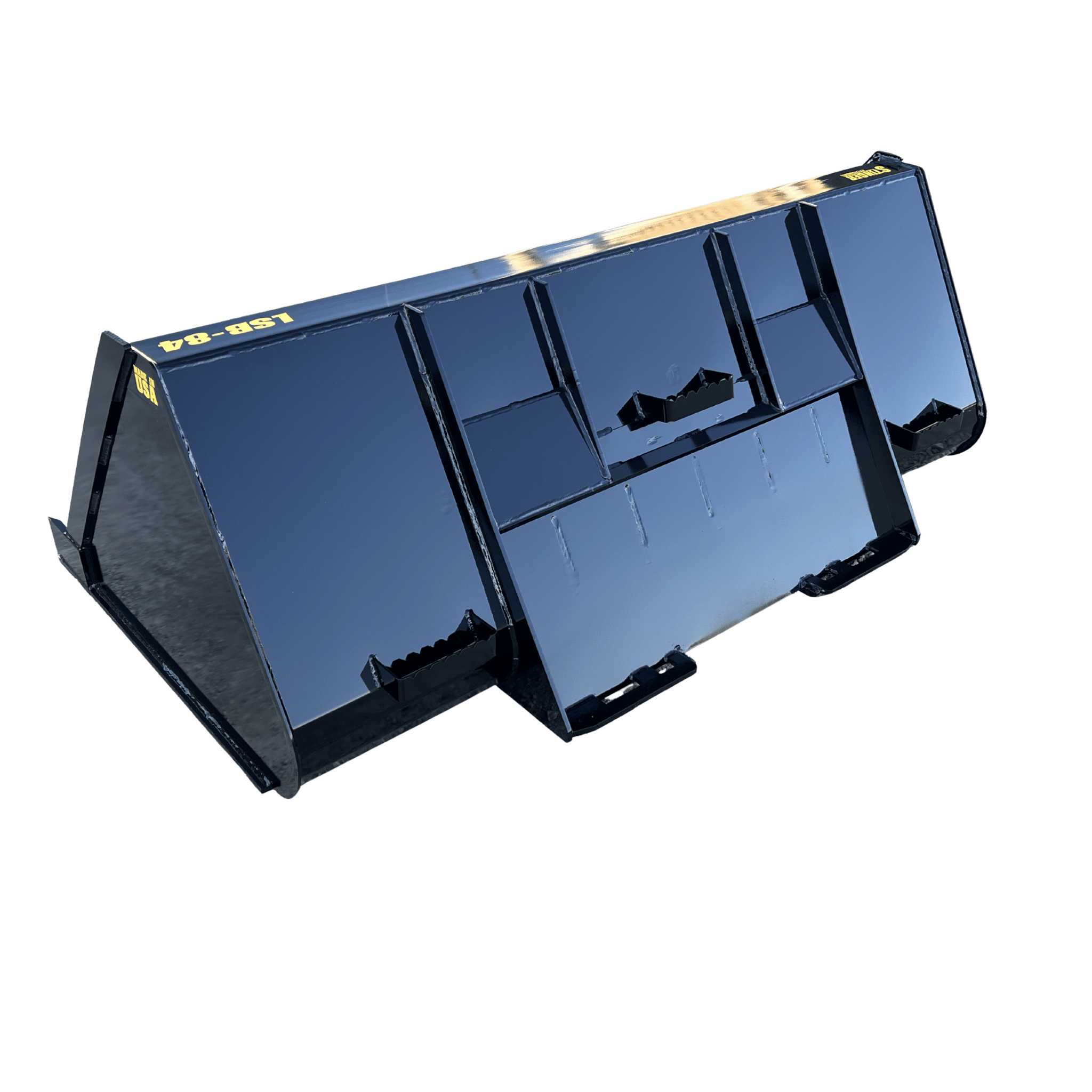

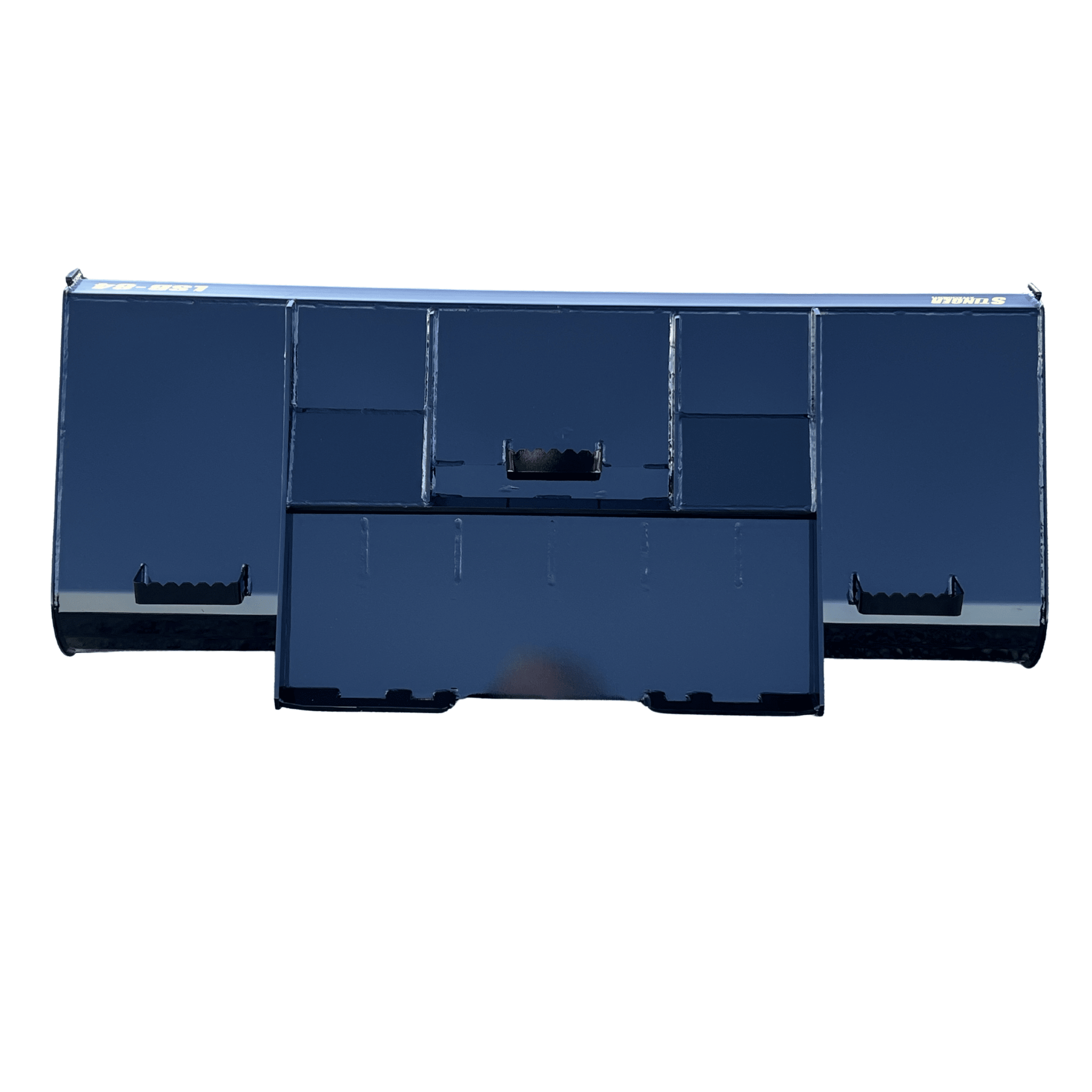

Universal Quick Attach (SSQA). Fits standard skid steers.
2. Size Recommendation:
60" - 72": Utility Tractors & Mid-Frame Skid Steers.
78" - 84": Large Frame Track Loaders & Feedlot Machines.
3. Confirmed Fitment:
- Kubota: SVL95-2, SVL97-2, M-Series.
- Bobcat: S770, S850, T770, T870.
- John Deere: 331G, 333G.
- CAT: 289D, 299D3.
Additional Specifications
| Mount Interface | Universal Skid Steer |
| Warranty | 1-Year Structural |
| Capacity | 0.76 yd³ |
| Shipping Dimensions (LxWxH) | 38x60x30 |
