Description

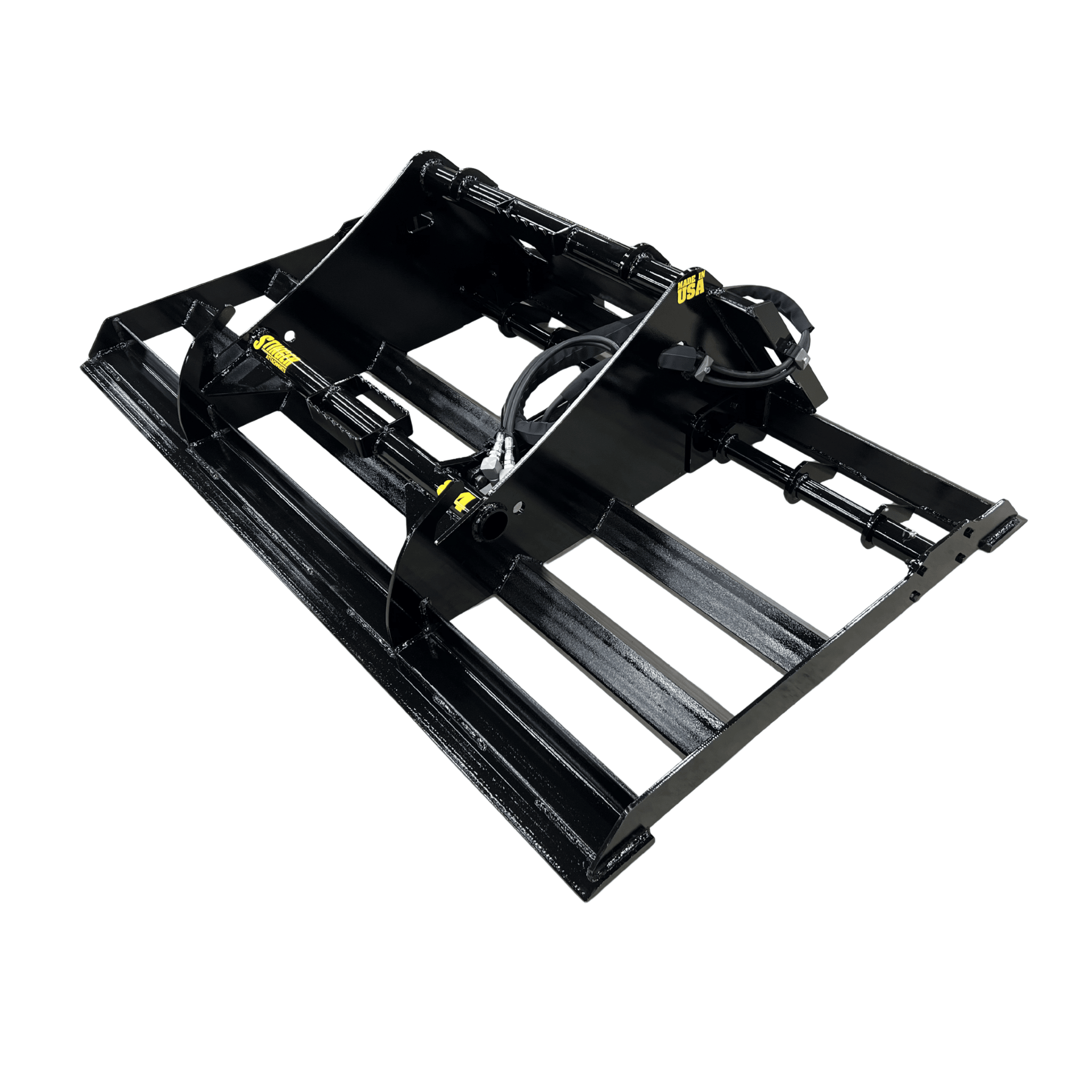

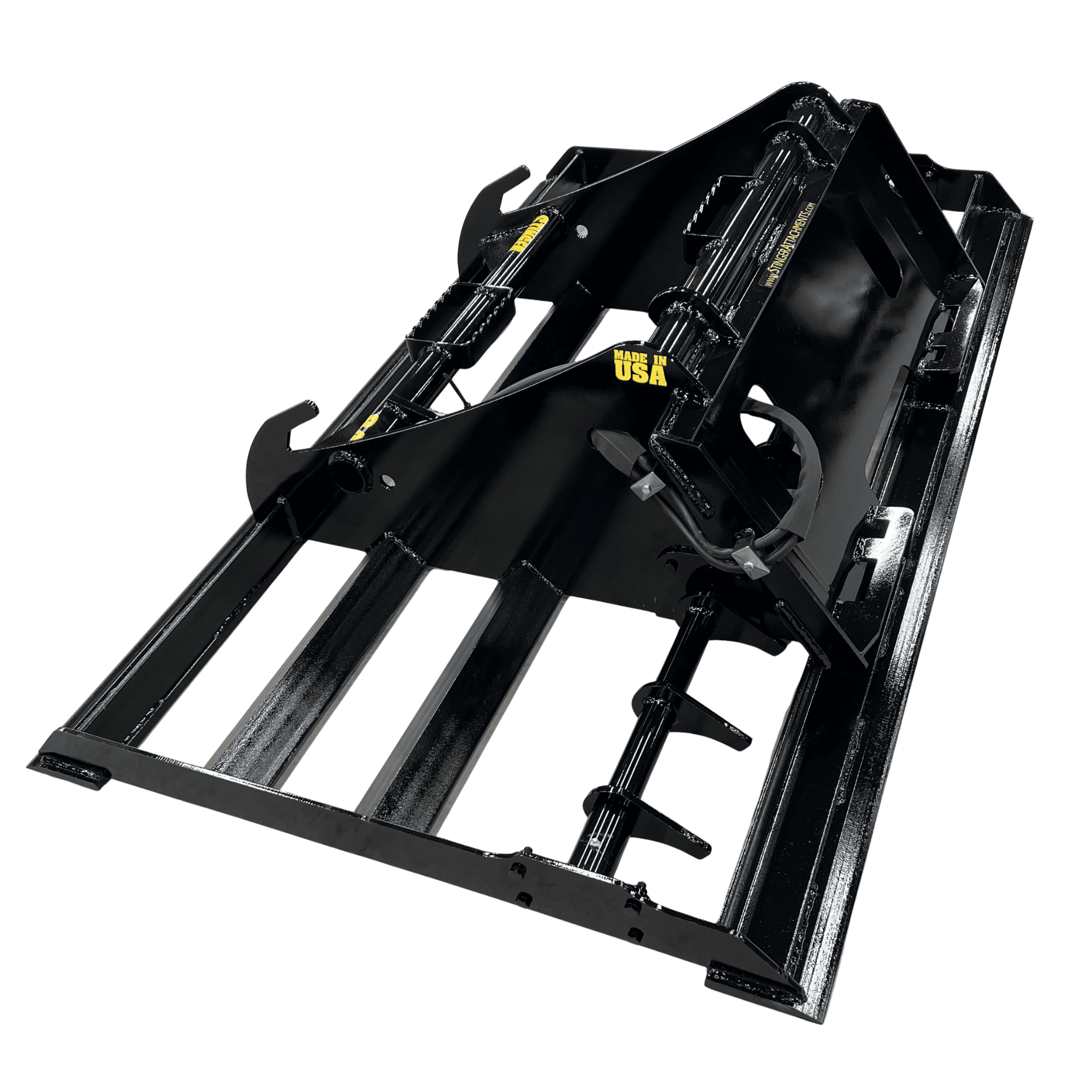

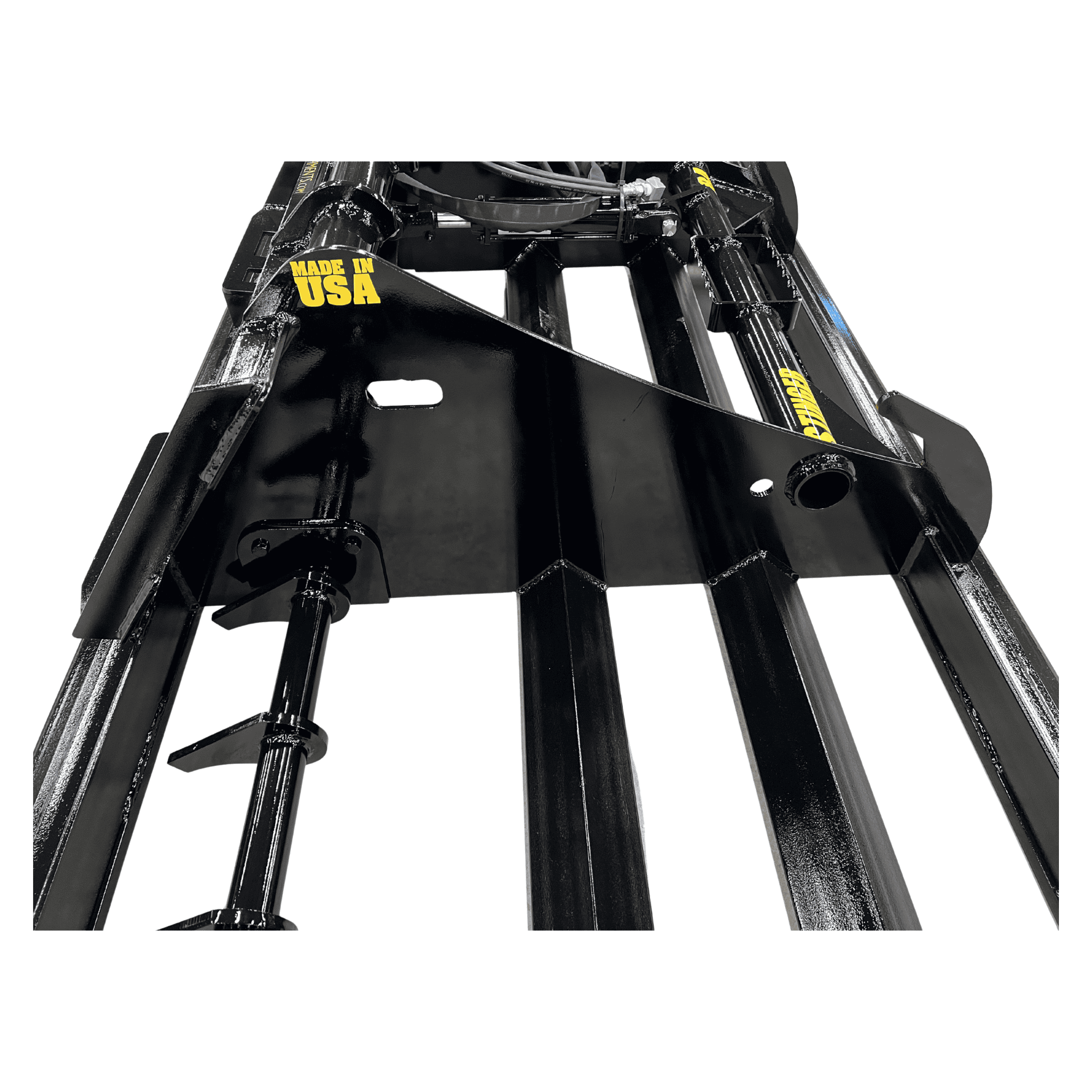

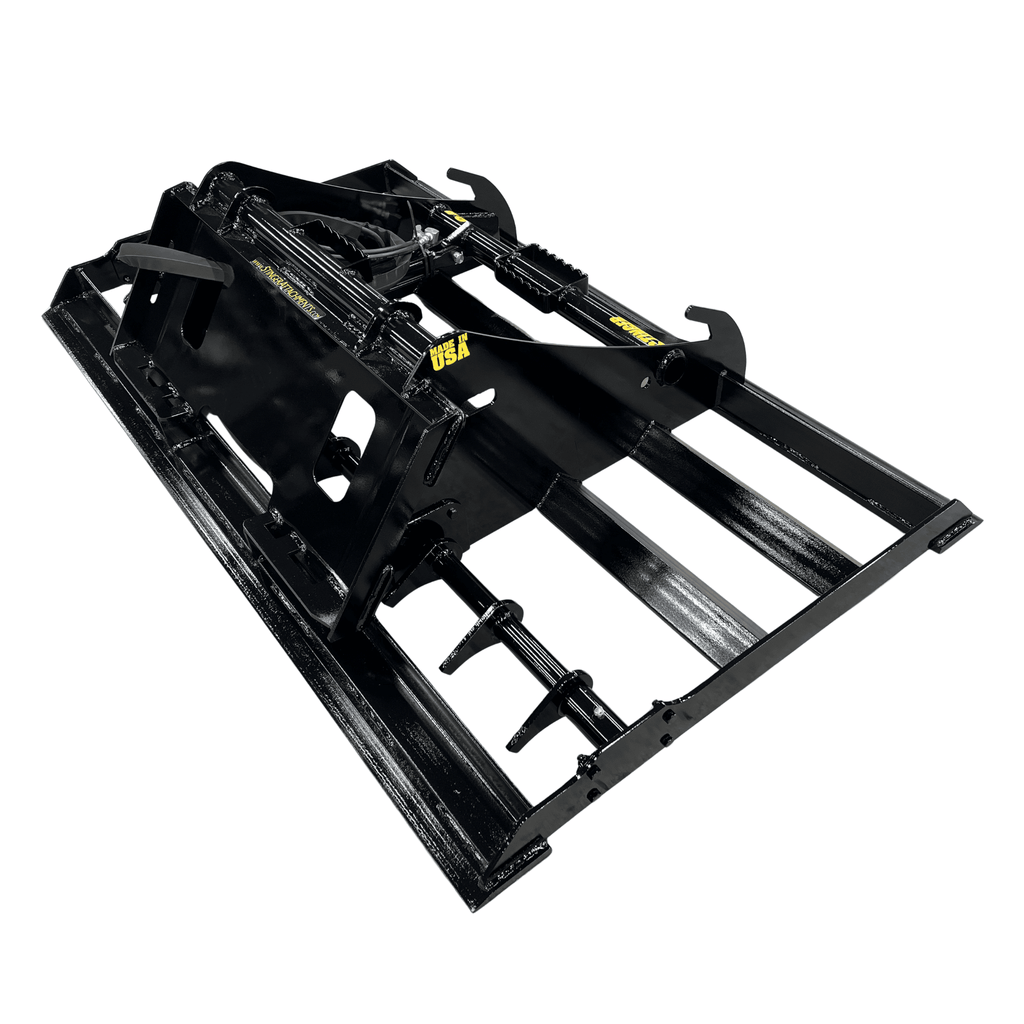

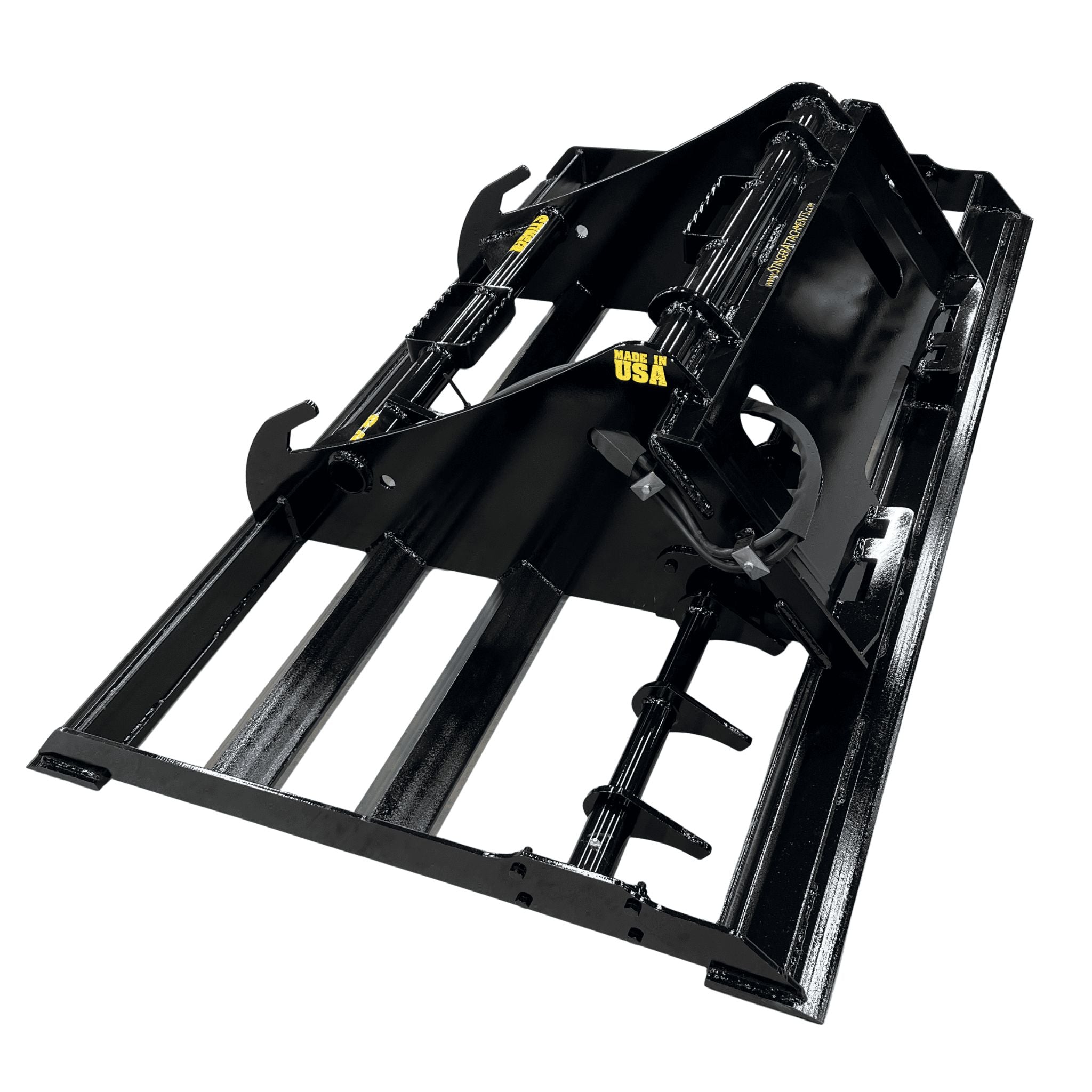

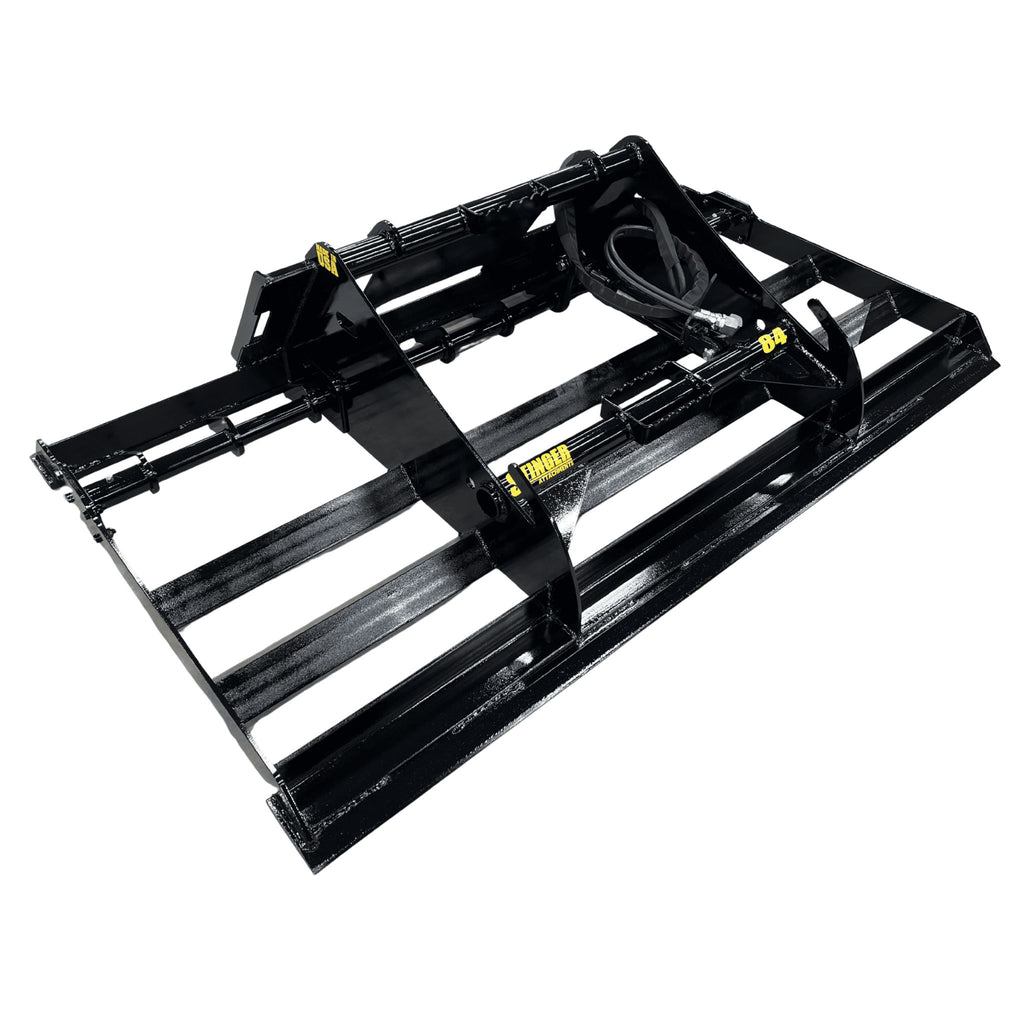

The Driveway Restorer: The Stinger Attachments Land Plane is the secret weapon for landscapers and property owners. It works on a simple principle: the dual angled blades cut down high spots and carry that material to fill in low spots (potholes). The result is a perfectly level, graded surface with zero "washboarding." It is ideal for gravel driveways, arena grooming, and seedbed preparation.

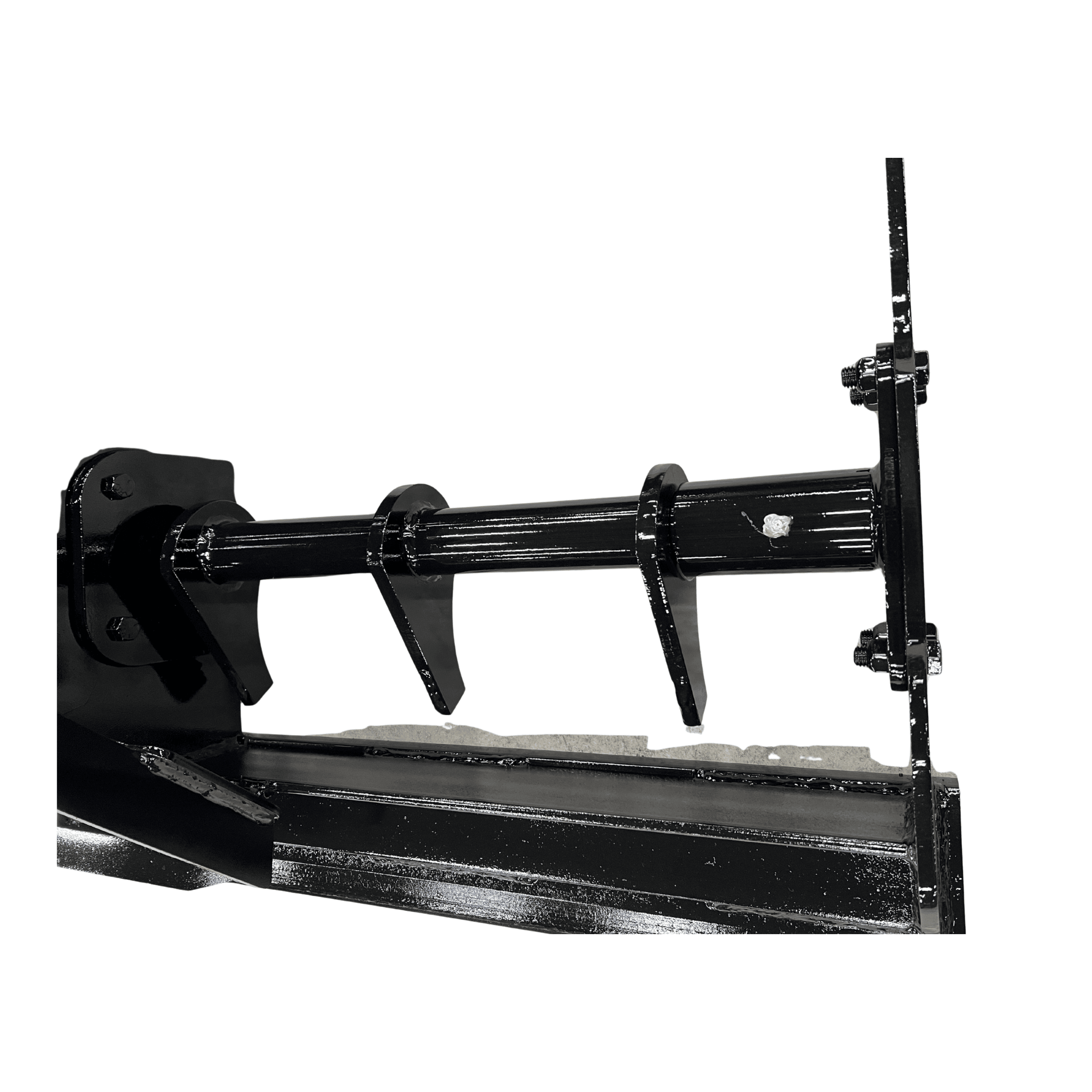

Hydraulic Scarifier Upgrade (LPS): Hard-packed gravel is tough to grade. The optional Hydraulic Scarifier utilizes a 2" x 8" cylinder to drive ripping teeth up to 2 inches into the ground. Control the depth from your cab to break up stubborn potholes, roots, and hardpan, then retract the teeth to finish-grade the loose material smooth.
⚙️ Technical Specifications
Frame Material: 3/8" x 3.5" Grade 50 Angle Iron
Cutting Edges: 3/4" x 6" (Front & Back)
Edge Type: Standard Weld-On (Bolt-On Optional)
Scarifier (Optional): Hydraulic Actuation (2"x8" Cylinder)
Scarifier Depth: Adjustable up to 2"
Warranty: 1-Year Structural
⚠️ Setup Requirement
Standard Model (LP): Plug & Play (Mechanical).
Scarifier Model (LPS): Requires Standard Flow auxiliary hydraulics to operate the teeth. Includes 1/2" Flat-Face Couplers.
✅ Machine Compatibility
1. Mount Type:

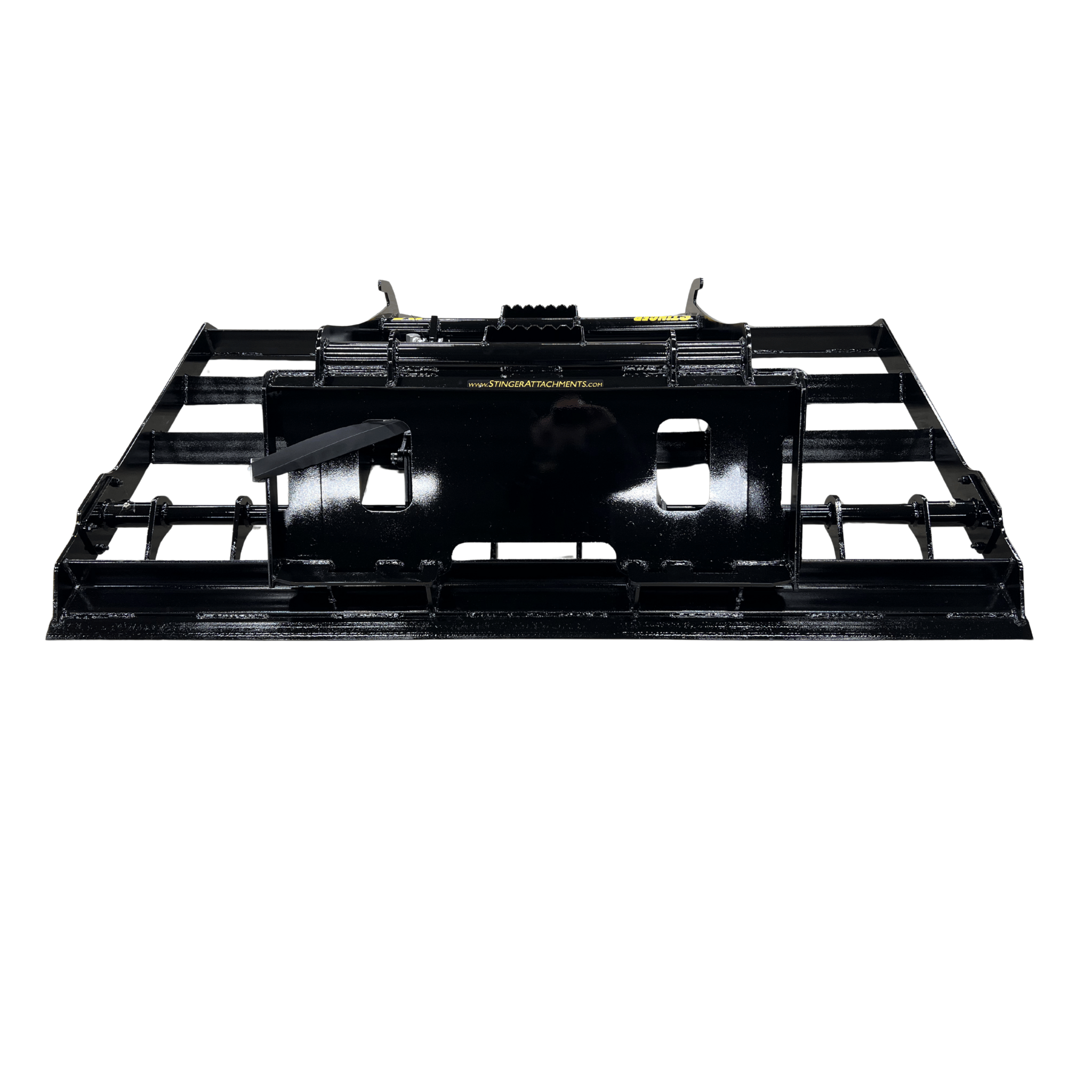

Universal Quick Attach (SSQA). Fits all standard skid steers and compact tractors.
2. Size Recommendation:
Select a width that covers your machine's tire tracks.
60" - 72": Compact Tractors & Mid-Frame Skid Steers.
78" - 84": Large Frame Track Loaders.
Additional Specifications
| Mount Interface | Universal Skid Steer |
| Warranty | 1-Year Structural |
| Max Operating Pressure | 2500 PSI |
| Shipping Dimensions (LxWxH) | 50x60x22 |
