Description
Retire the Wheelbarrow

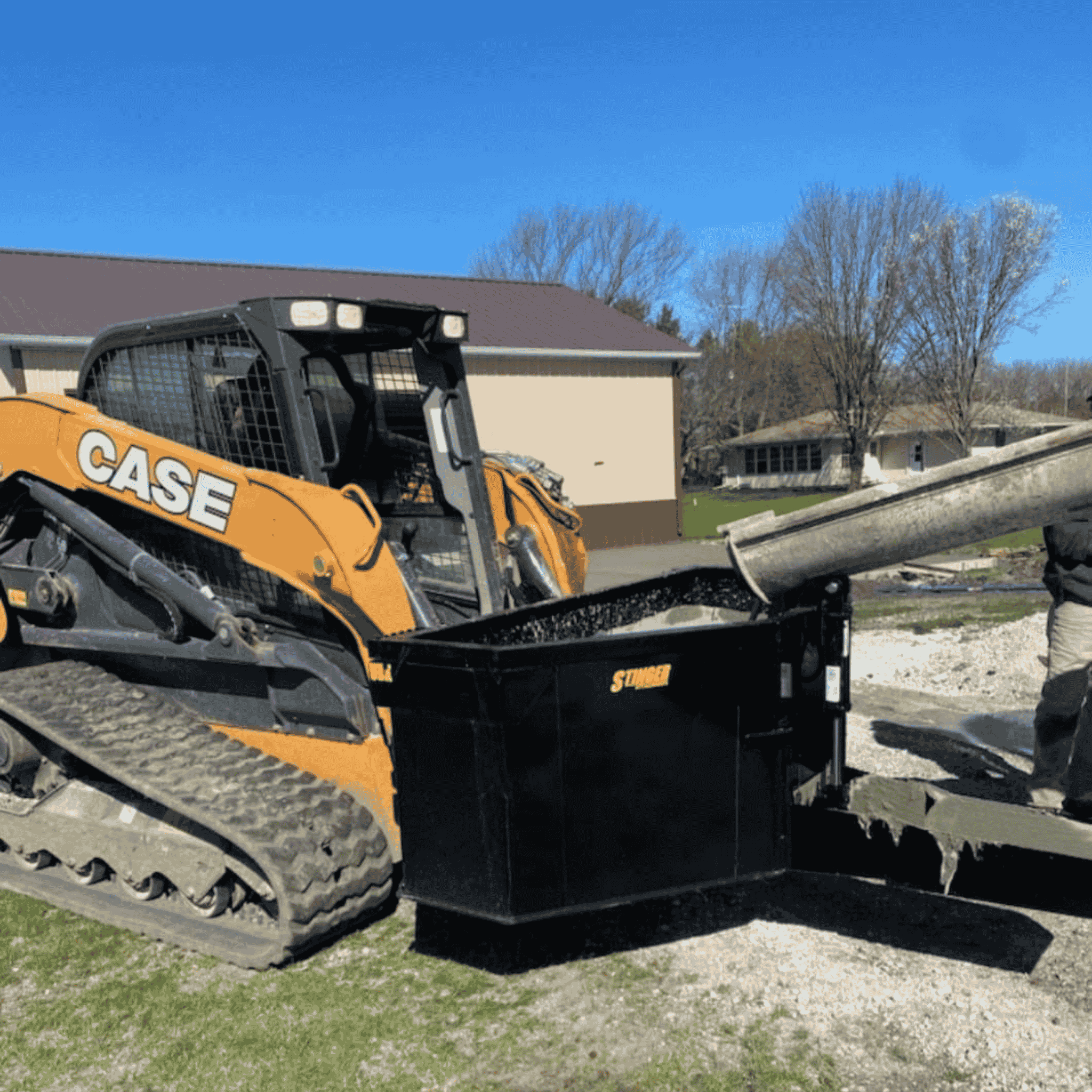

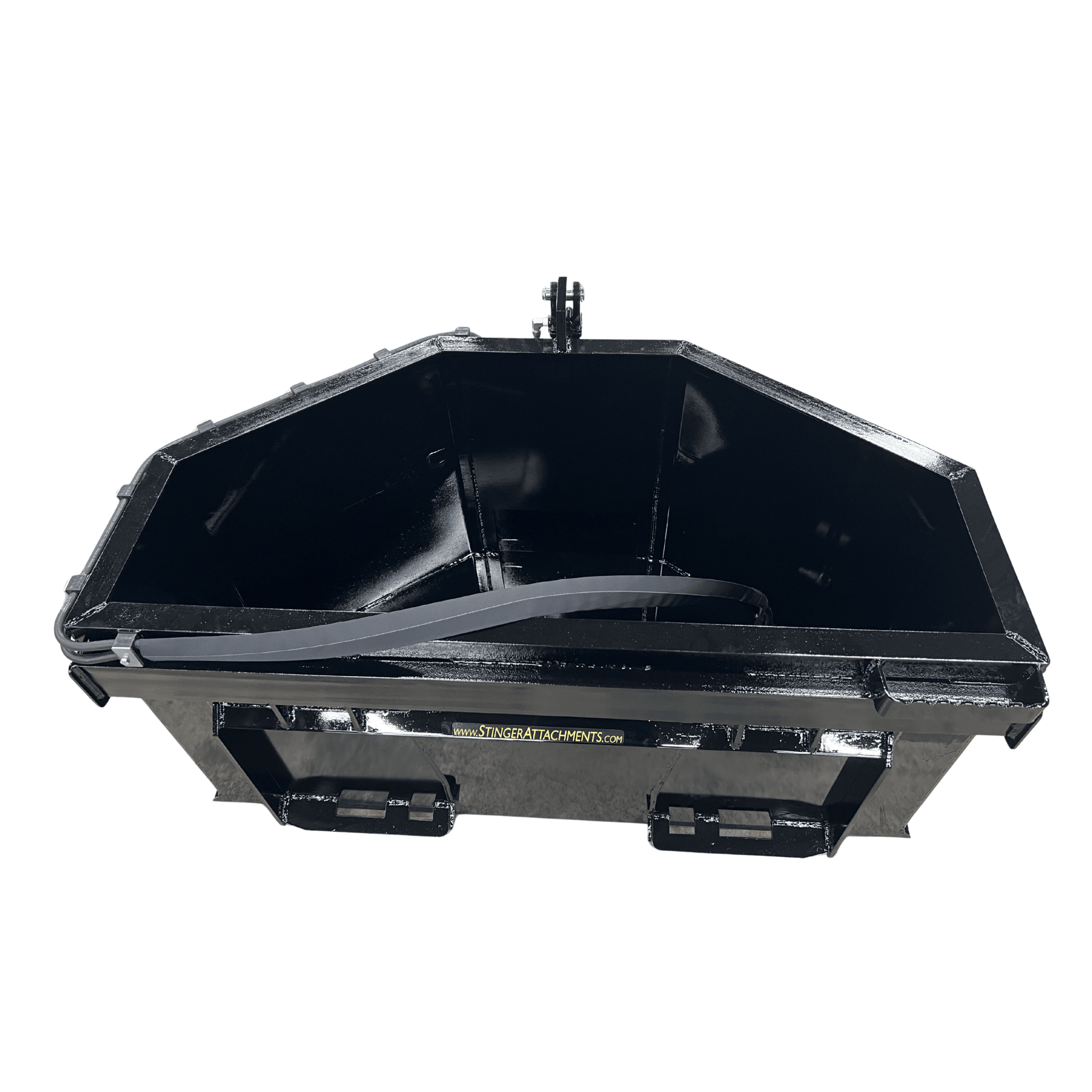

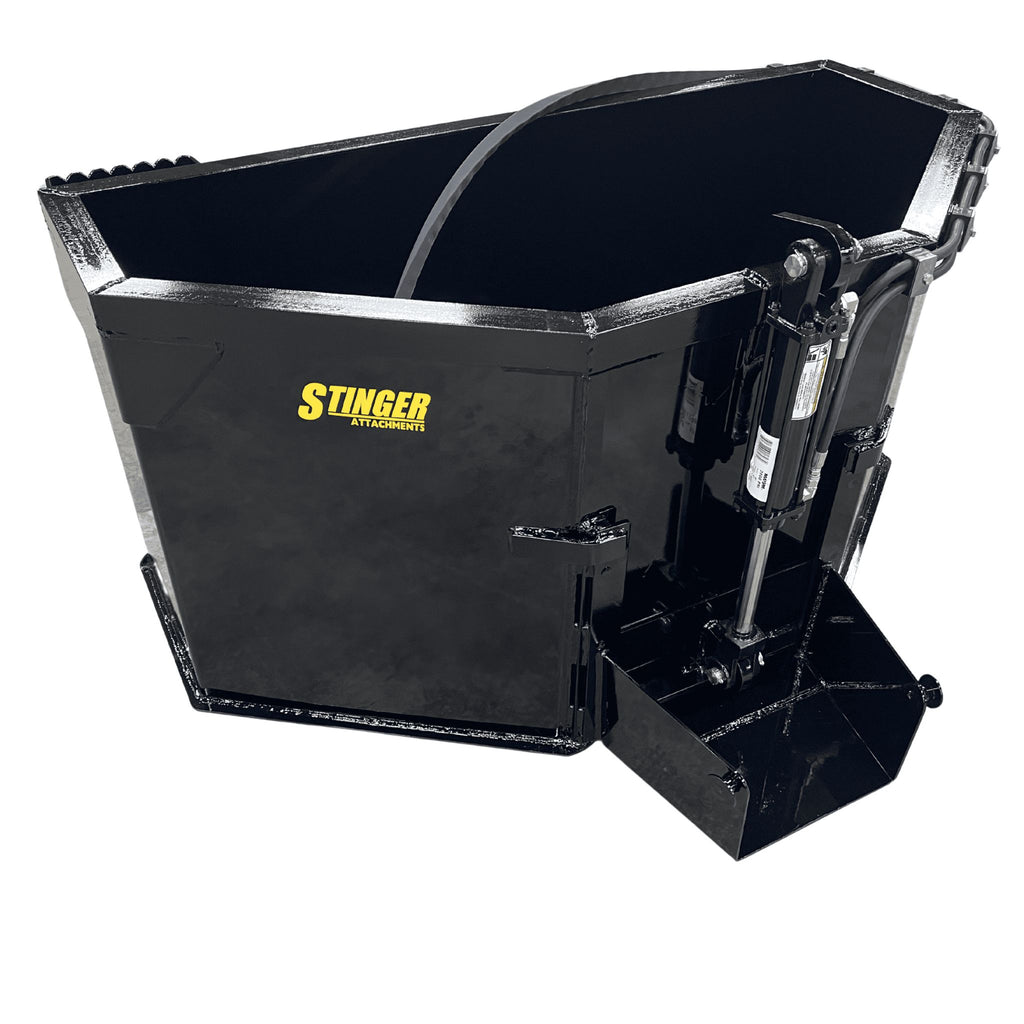

The Stinger Hydraulic Concrete Bucket (CB Series) transforms your skid steer into a mobile pour station. Designed for contractors who need to transport mix to hard-to-reach backyards or pour precise footings, this attachment eliminates the back-breaking fatigue of manual labor.
Precision Flow Control

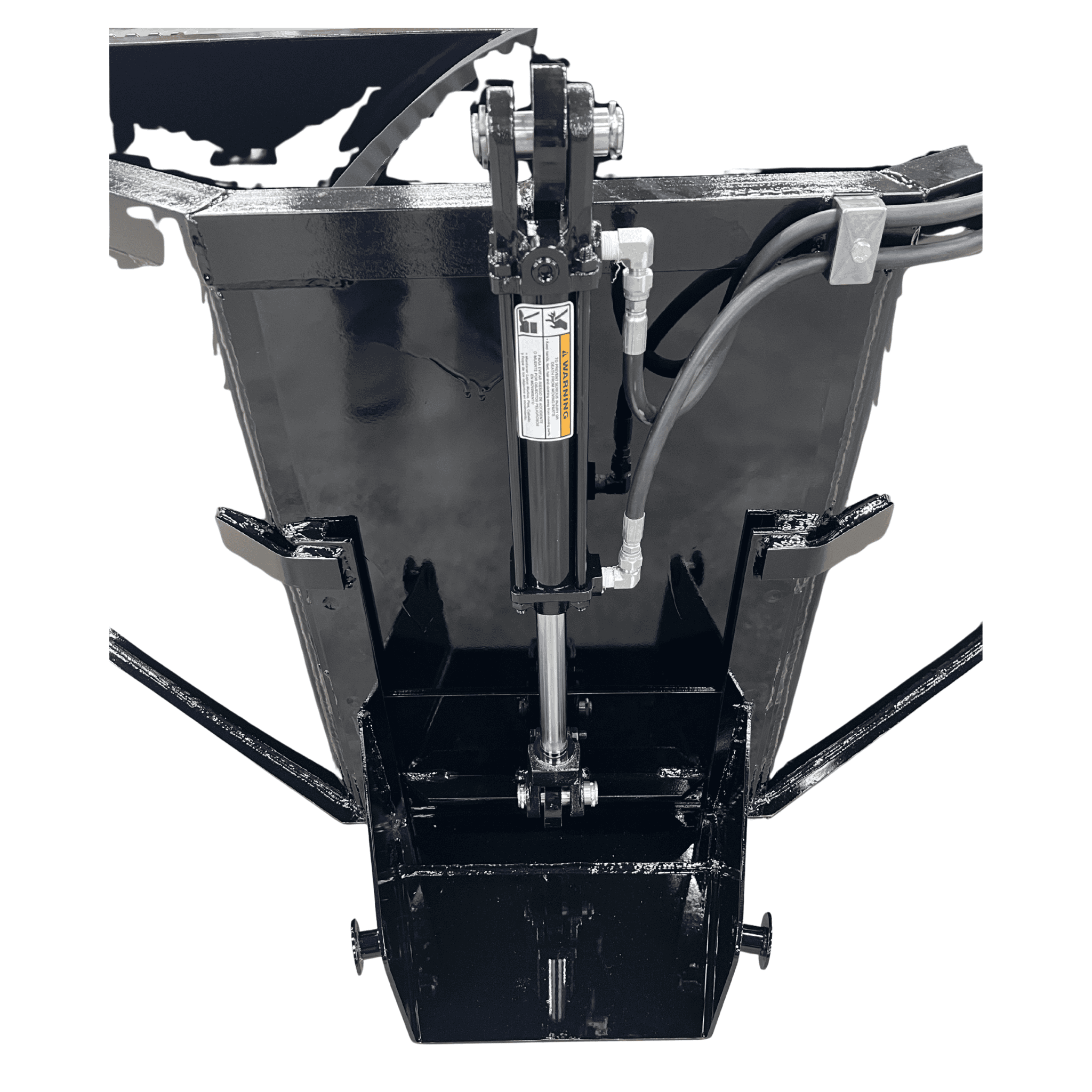

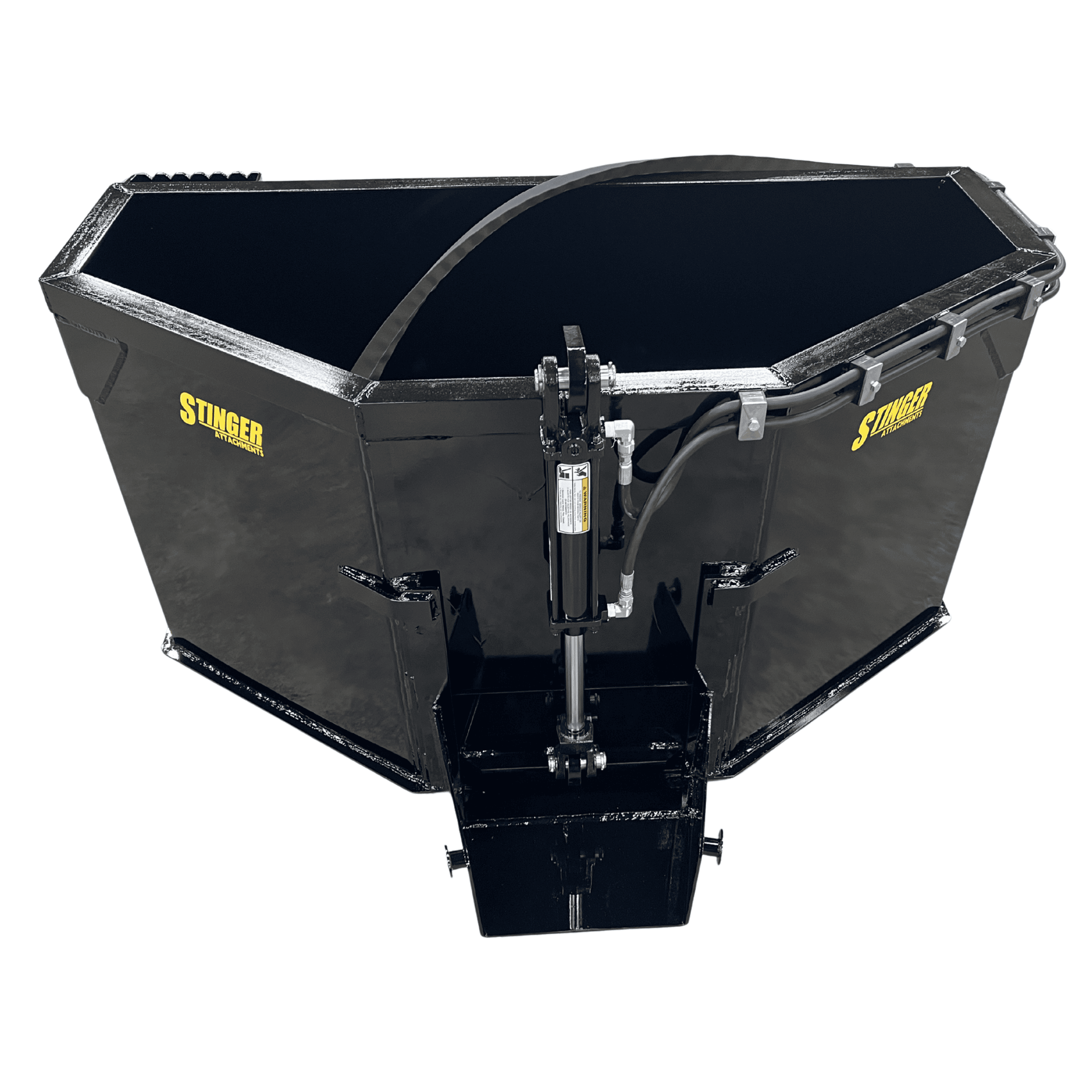

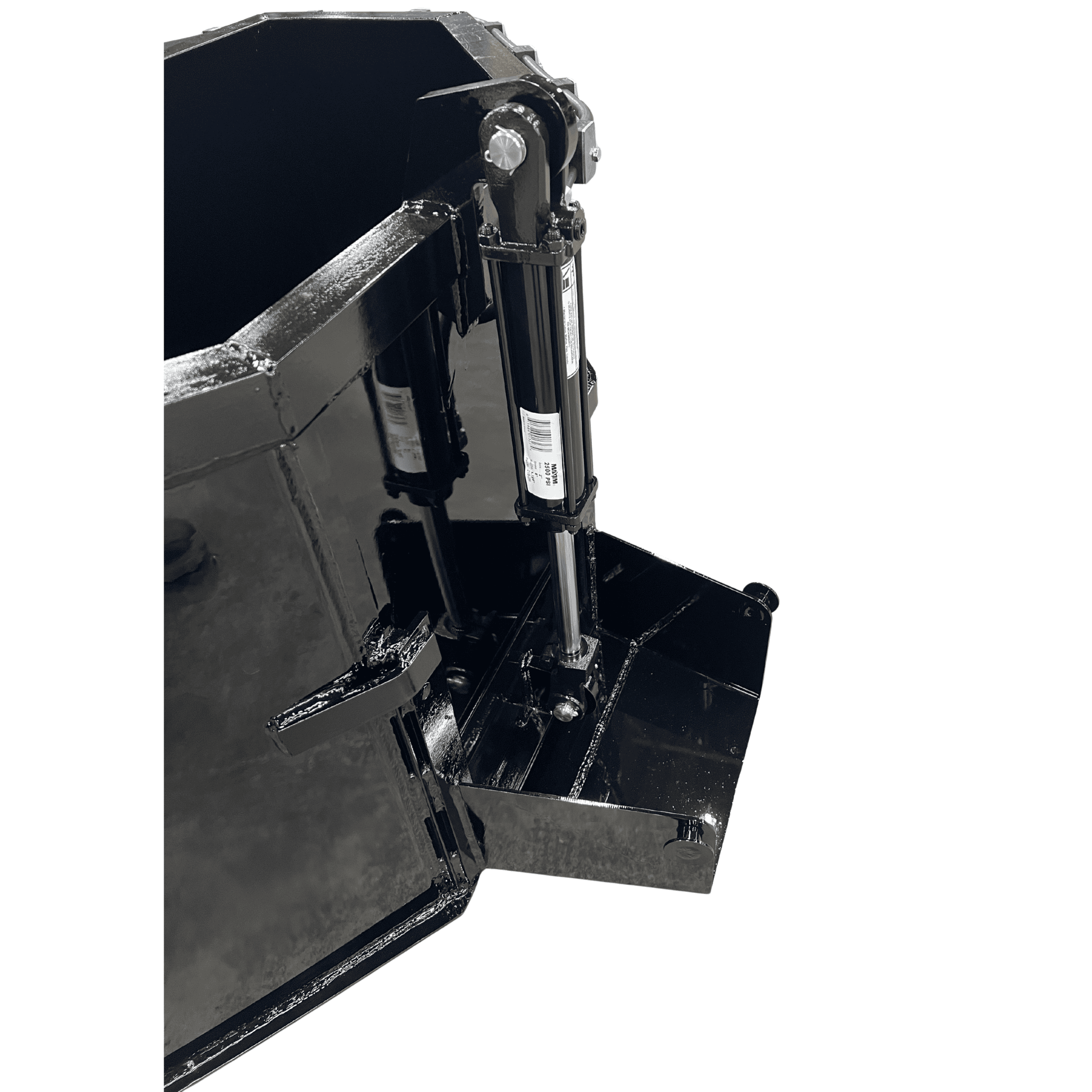

Unlike a standard bucket that dumps everything at once, the Stinger CB features a Hydraulic Gate powered by a 2" x 8" cylinder. This allows you to feather the opening to control the pour rate perfectly. Combined with the Removable Chute (24" or 36"), you can direct concrete exactly where it needs to go—into sonotubes, wall forms, or trench footings—with zero spillage.
⚙️ Technical Specifications
Shell Construction: 3/16" Grade 50 Steel
3/4 Yard Model: 0.83 cu. yd. Actual Capacity
1 Yard Model: 1.12 cu. yd. Actual Capacity
Discharge: Hydraulic Floor Gate (2"x8" Cylinder)
Chute: Removable (Select 24" or 36" Length)
Warranty: 1-Year Structural
⚠️ Critical Warning: Weight Load
Concrete is Heavy: Wet concrete weighs approx. 4,000 lbs per cubic yard.
• 3/4 Yd Model: Payload can reach ~3,300 lbs.
• 1 Yd Model: Payload can reach ~4,500 lbs.
Ensure your machine has the Rated Operating Capacity (ROC) to lift a full bucket safely.
Hydraulics: Requires Standard Flow (Plug & Play). Includes 1/2" Flat-Face Couplers.
✅ Machine Compatibility
1. Mount Type:

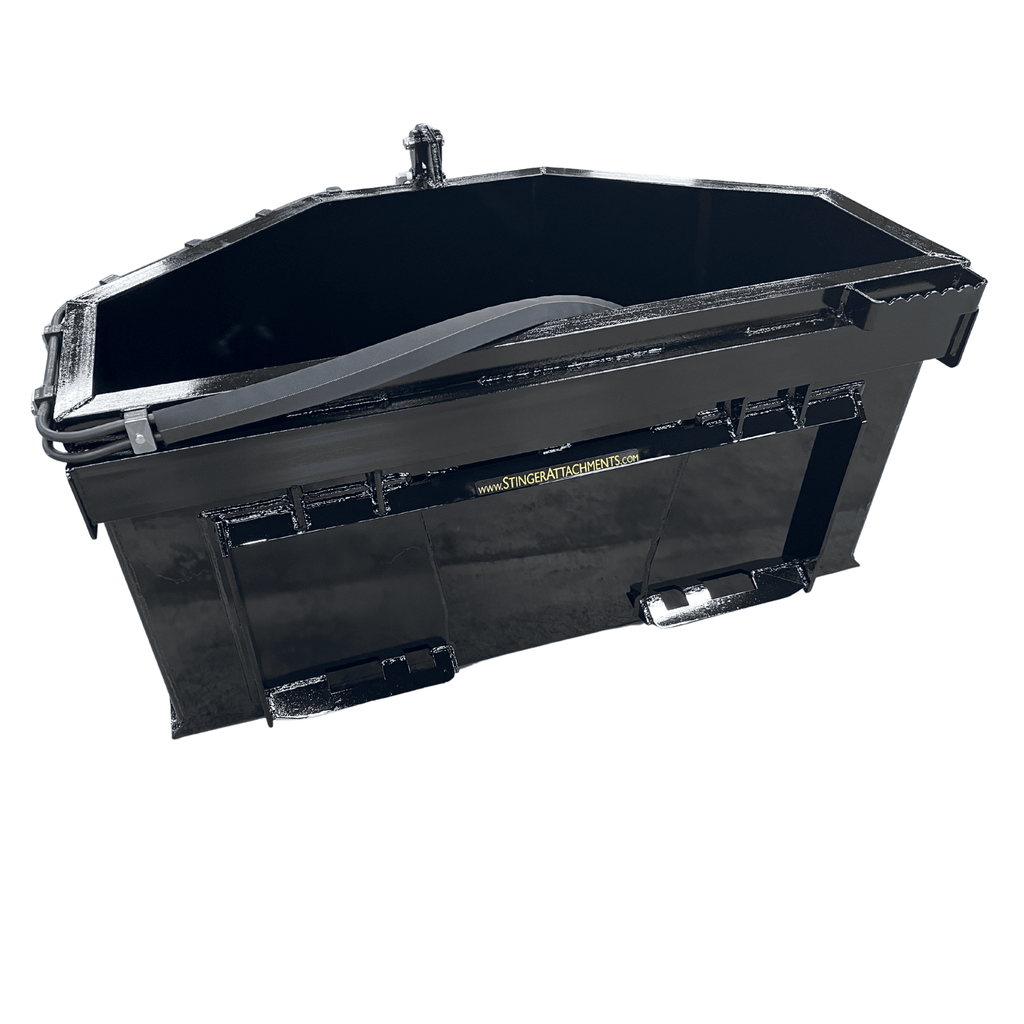

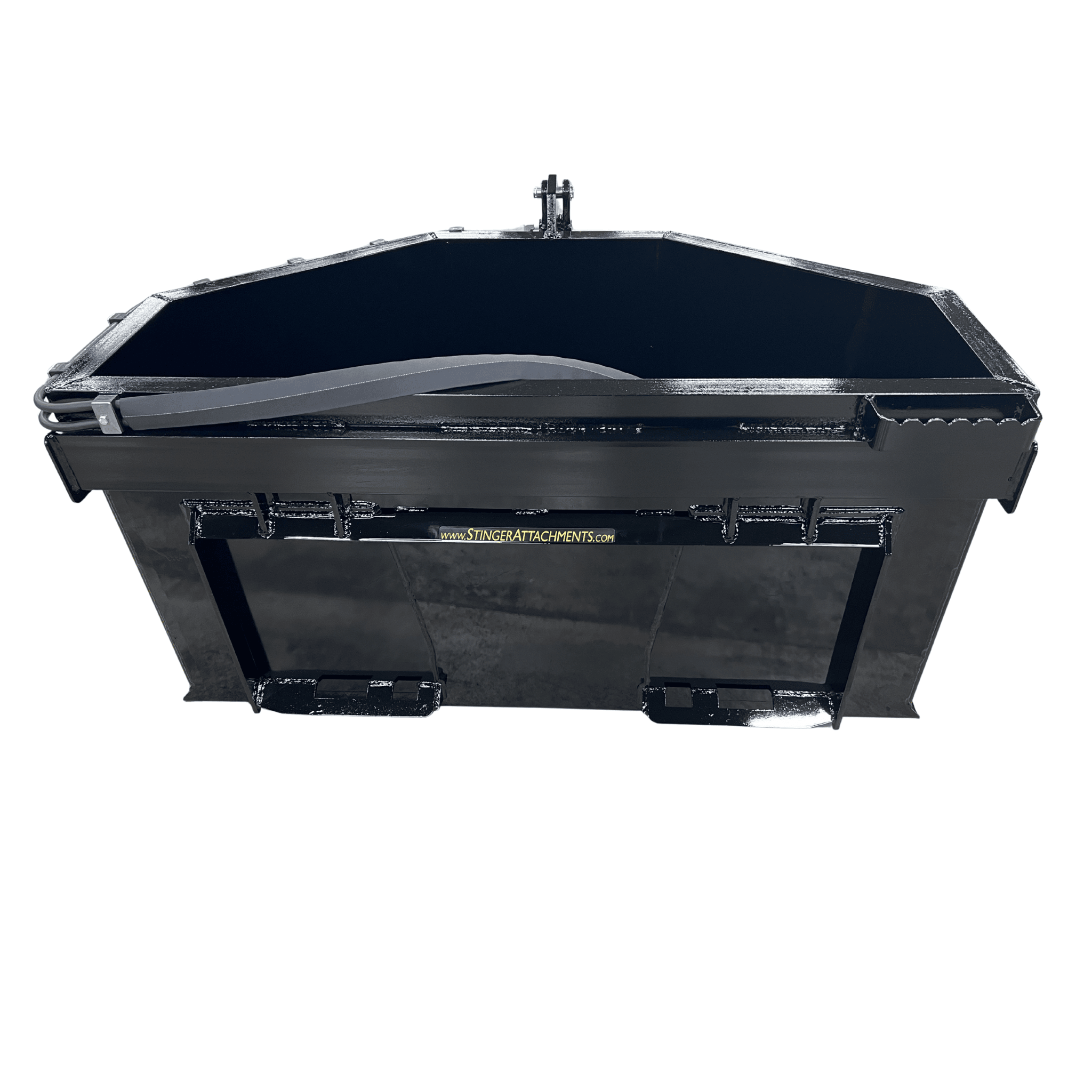

Universal Quick Attach (SSQA). Fits standard skid steers.
2. Size Recommendation:
3/4 Yard (CB75): Requires 3,000 lb+ Tipping Load (e.g., Bobcat S650).
1 Yard (CB100): Requires 4,500 lb+ Tipping Load (e.g., Kubota SVL97, Bobcat T870).
Additional Specifications
| Mount Interface | Universal Skid Steer |
| Warranty | 1-Year Structural |
| Max Operating Pressure | 2500 PSI |
| Capacity | 0.75 yd³ |
| Shipping Dimensions (LxWxH) | 48x60x30 |
