Description
The High-Volume Heavyweight

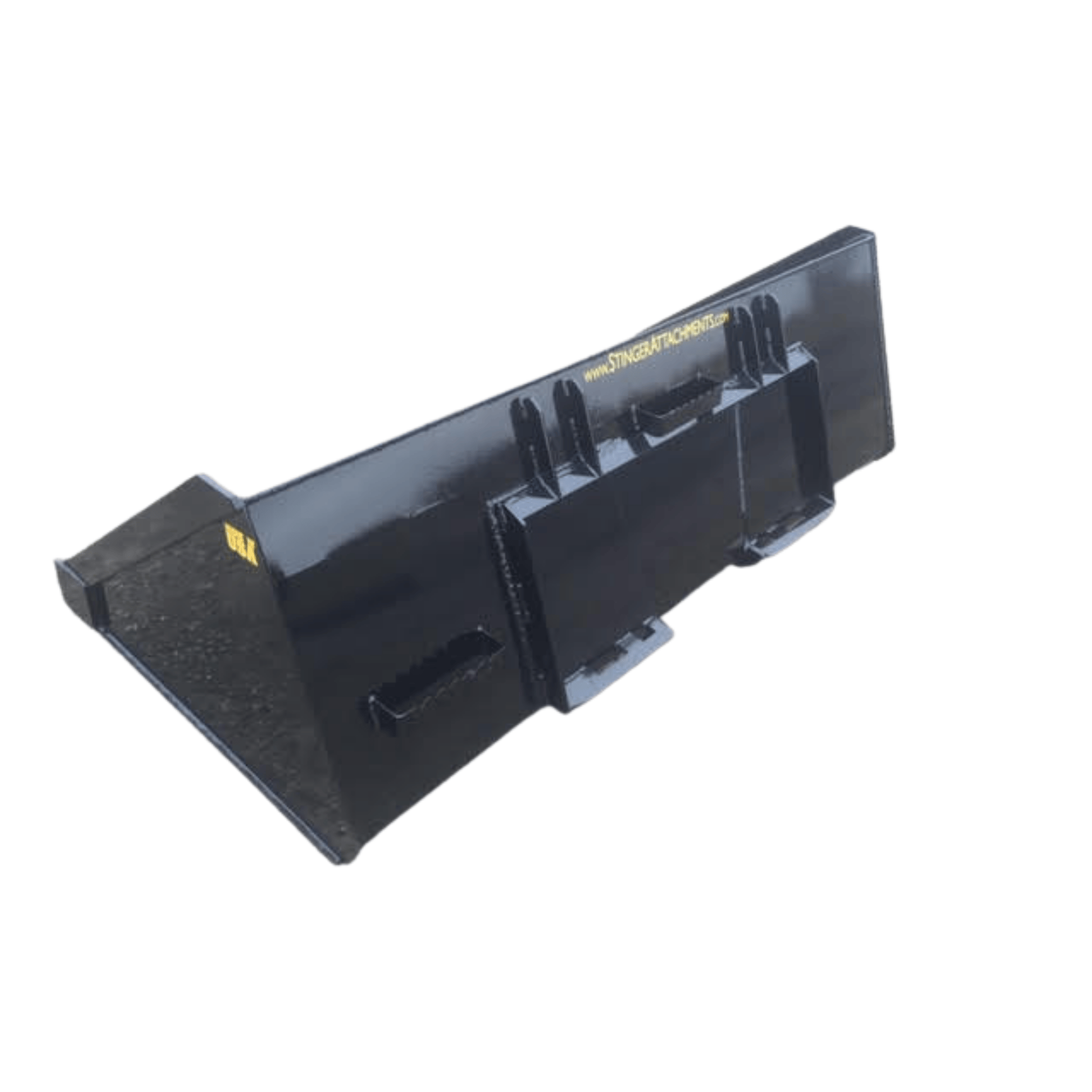

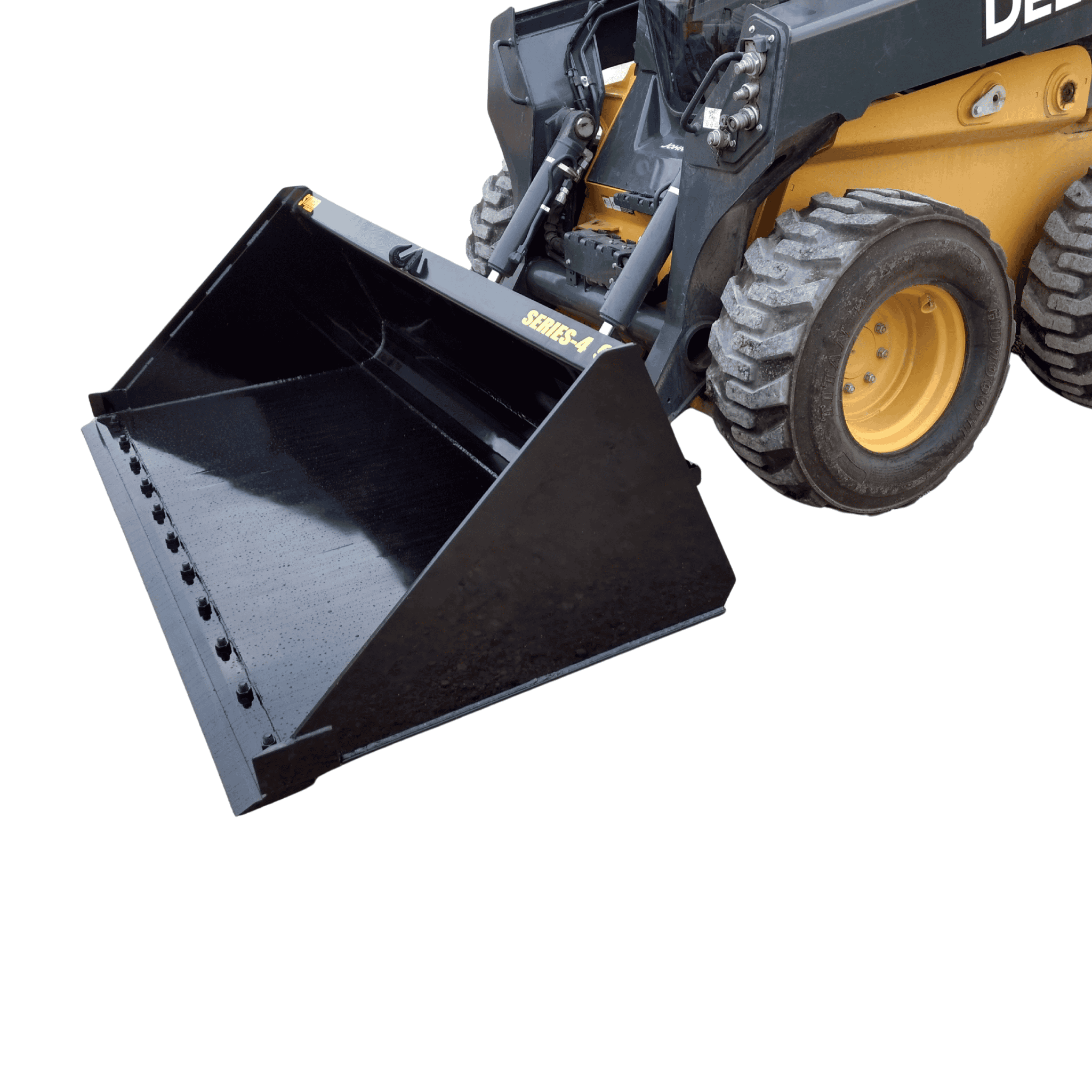

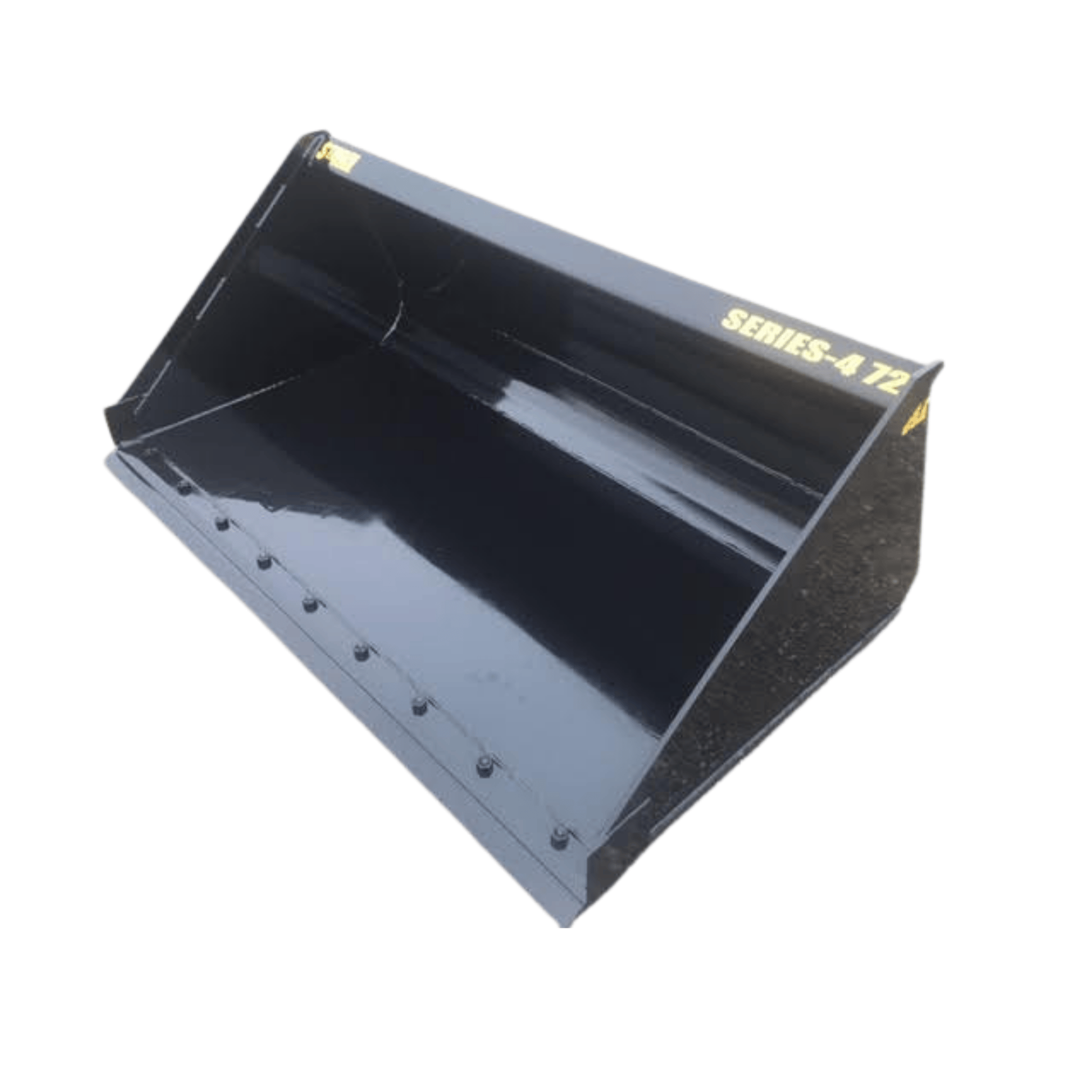

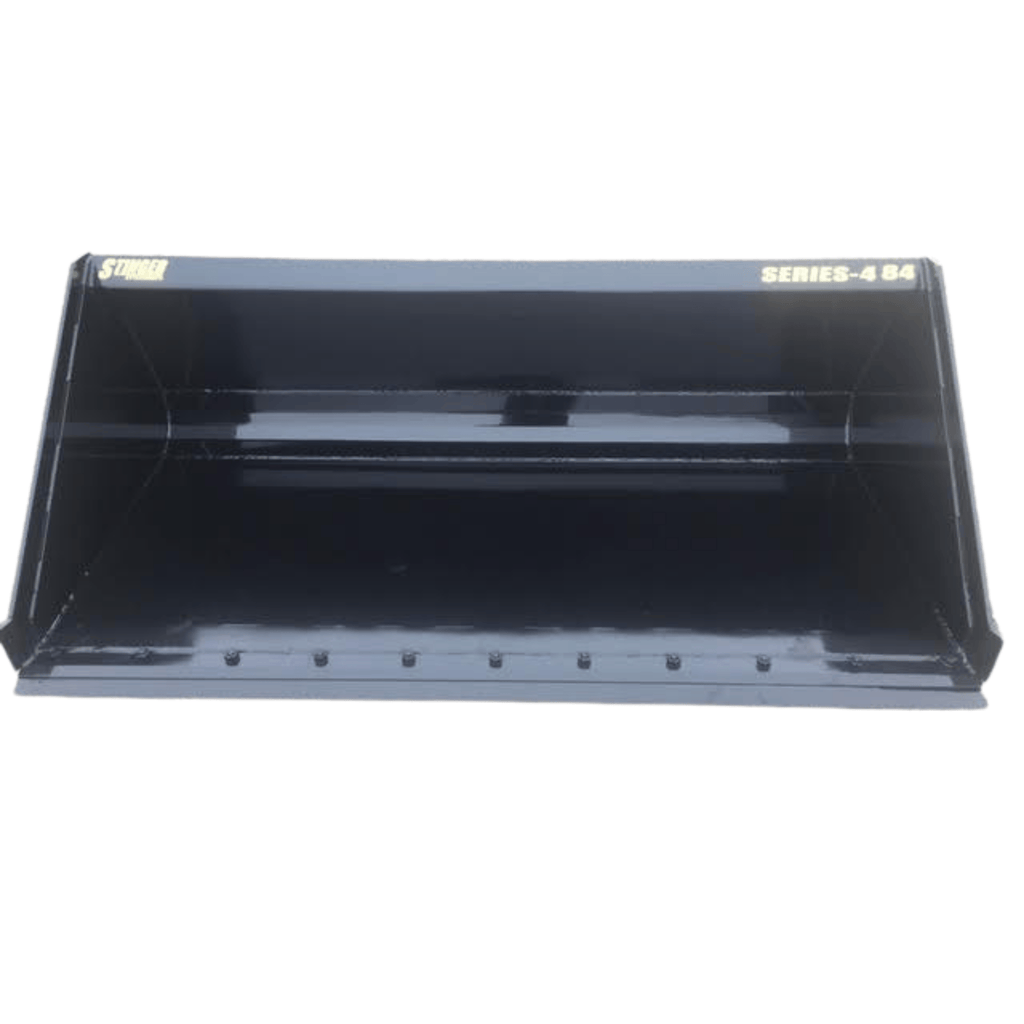

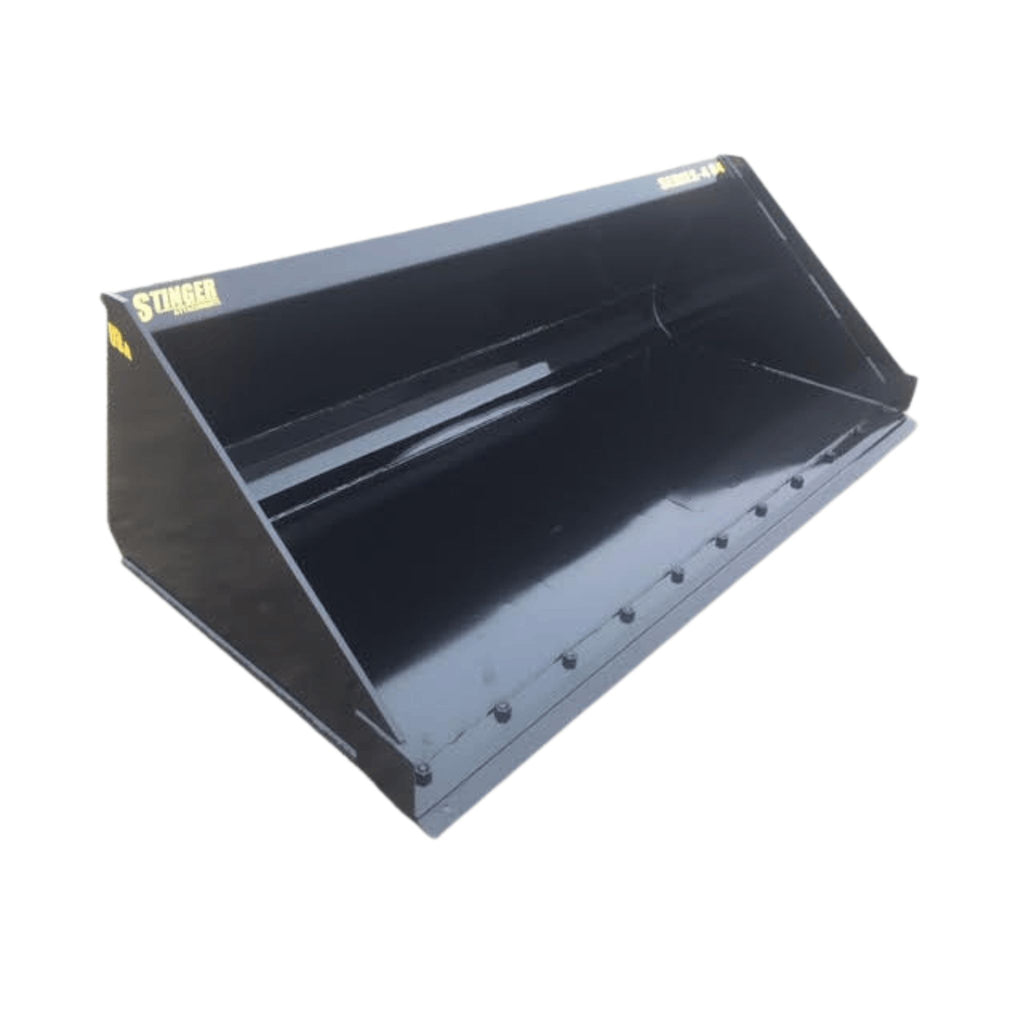

The Stinger Series 4 (MB4) is engineered for the largest Compact Track Loaders and Utility Tractors on the market. It takes the deep-bottom design of the MB3 and adds significant height (nearly 30 inches) and durability. Whether you are loading snow, mulch, or heavy dirt, the MB4 maximizes every cycle.
1/4" Shell Standard
While most buckets use lighter 3/16" steel, the MB4 is built with a 1/4" Grade 50 Steel Shell. This heavy-duty construction prevents bowing and warping under the extreme breakout forces of 90HP+ machines. Reinforced with a top tube, side braces, and the signature Rolled Radius Insert, it is built to handle 30 cubic feet of material without flinching.
⚙️ Technical Specifications
Shell Material: 1/4" Grade 50 Steel (Heavy Duty)
Front Height: 29.81 Inches (Extreme Height)
Bottom Depth: 44.29 Inches
Max Capacity: 30.0 cu ft (84" Heaped)
Wear Protection: 1/2" x 4" Underside Wear Bars
Cutting Edge: 3/4" x 8" (Weld-On or Bolt-On)
Warranty: 1-Year Structural
⚠️ Critical Warning: Extreme Loads
Payload Hazard: A full 84" bucket of wet soil can weigh over 3,500 lbs (Payload + Bucket Weight).
Do not use this attachment on mid-frame machines. It is designed strictly for Large Frame CTLs and Compact Wheel Loaders with high tipping loads.
✅ Machine Compatibility
1. Mount Type:

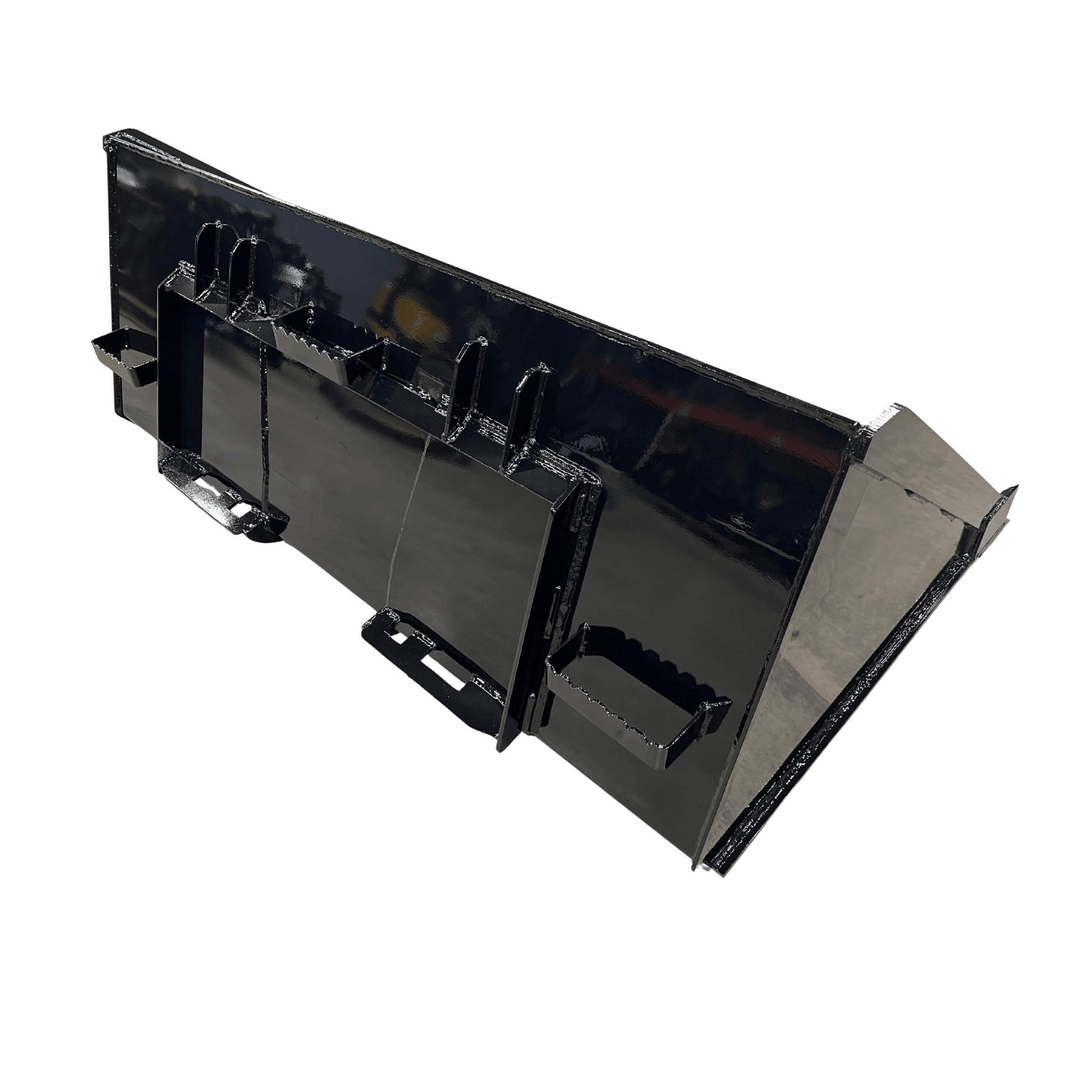

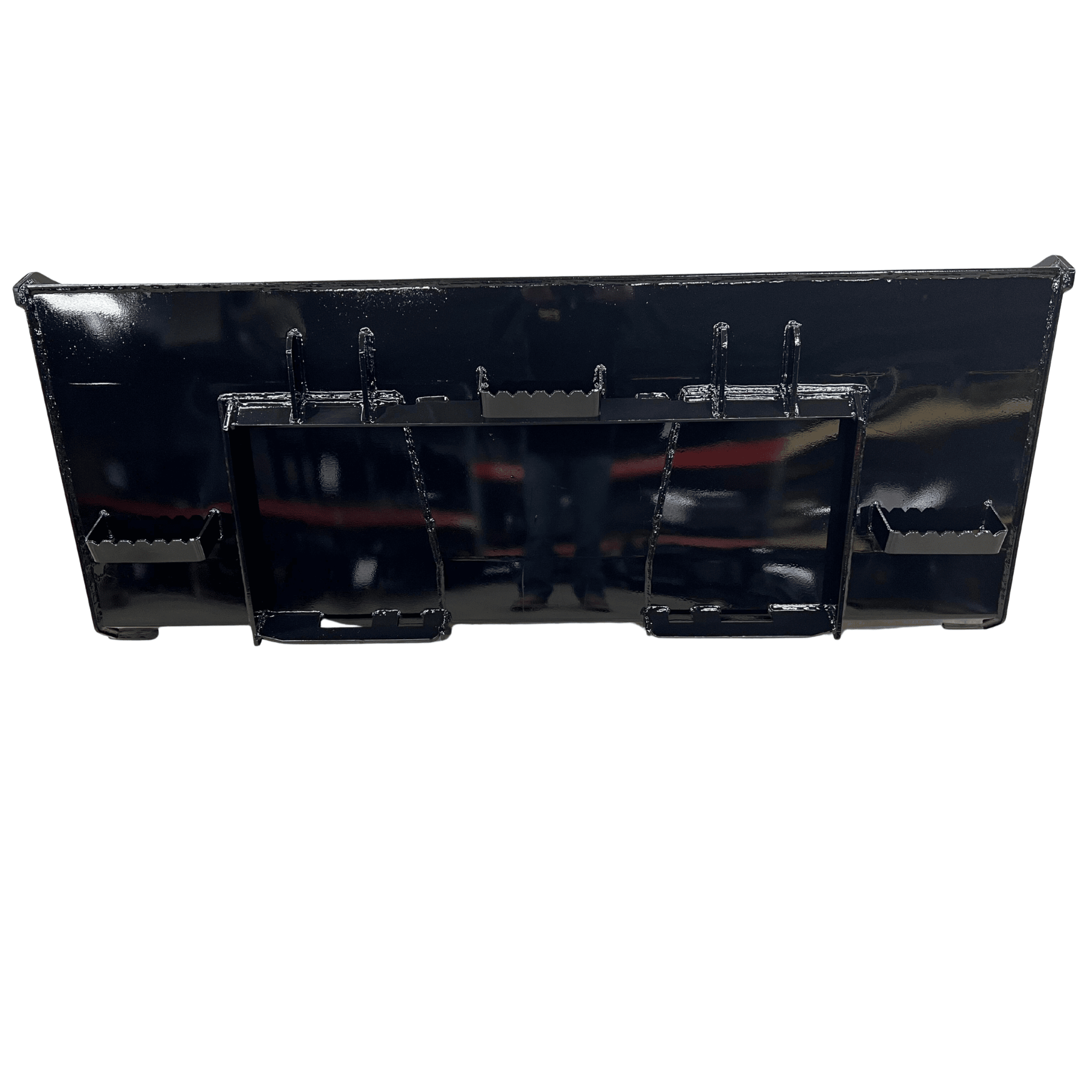

Universal Quick Attach (SSQA). Fits standard large skid steers.
2. Size Recommendation:
60" - 72": Ideal for Large Utility Tractors (60HP+).
78" - 84": Ideal for 90HP+ Track Loaders and Compact Wheel Loaders.
3. Confirmed Fitment:
- Kubota: SVL95-2, SVL97-2, M6 Series.
- Bobcat: T770, T870, A770.
- John Deere: 331G, 333G, 334/335 P-Tier.
- CAT: 299D3, 299D3 XE.
Additional Specifications
| Mount Interface | Universal Skid Steer |
| Warranty | Universal Skid Steer |
| Capacity | 21.5 cu ft |
| Shipping Dimensions (LxWxH) | 45x60x30 |
| Recommended Machine Class | Large Frame / Payloader |
