The Heavyweight Champion

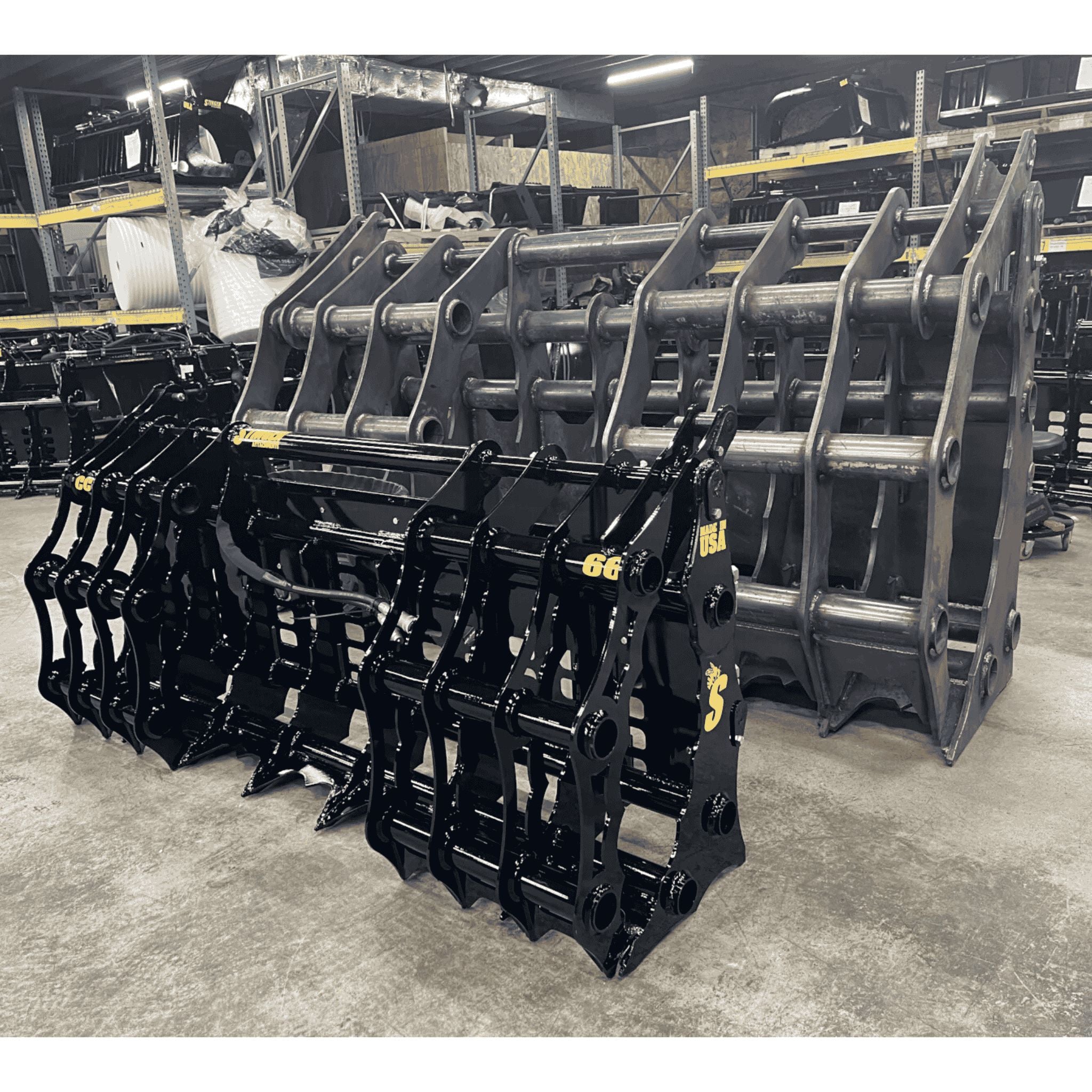

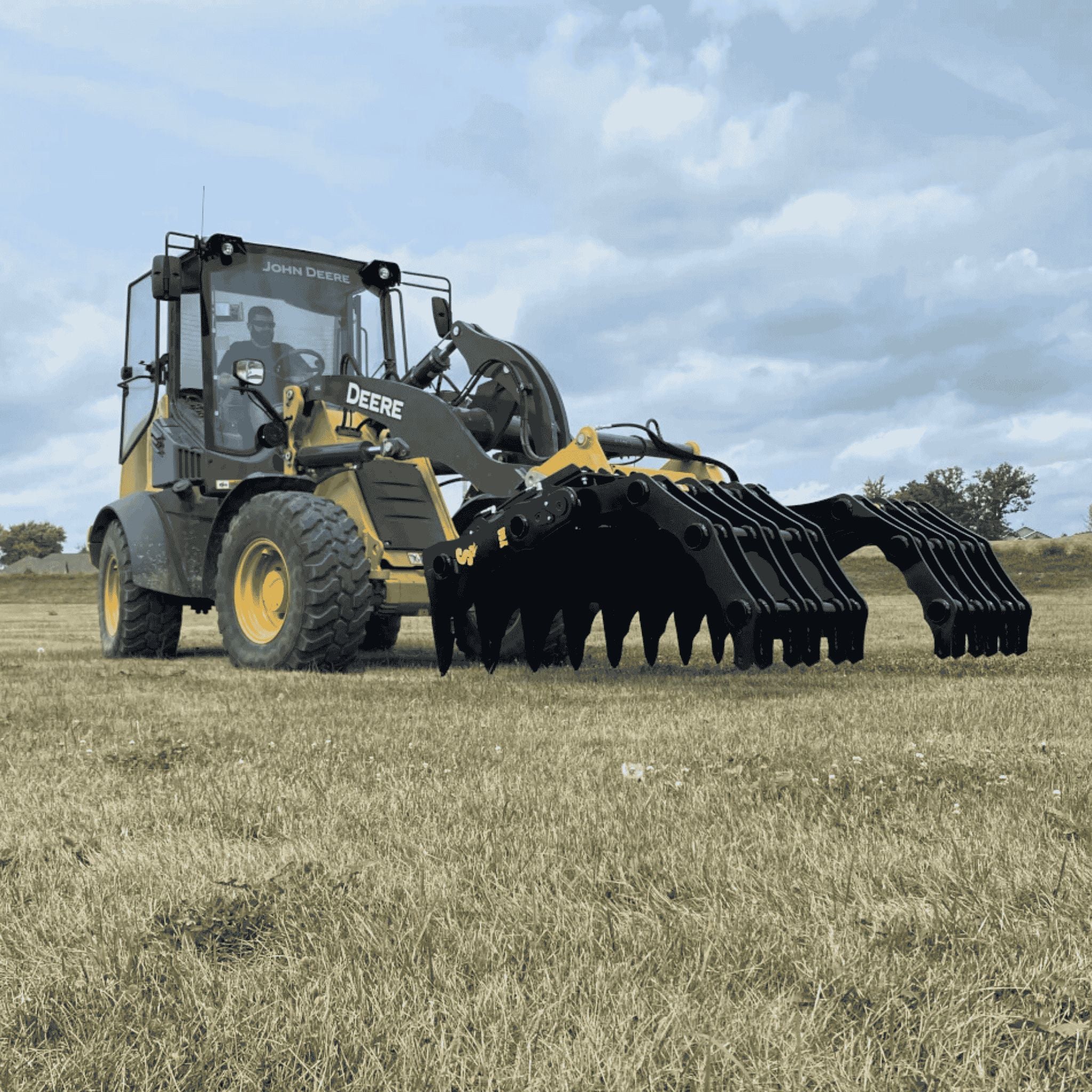

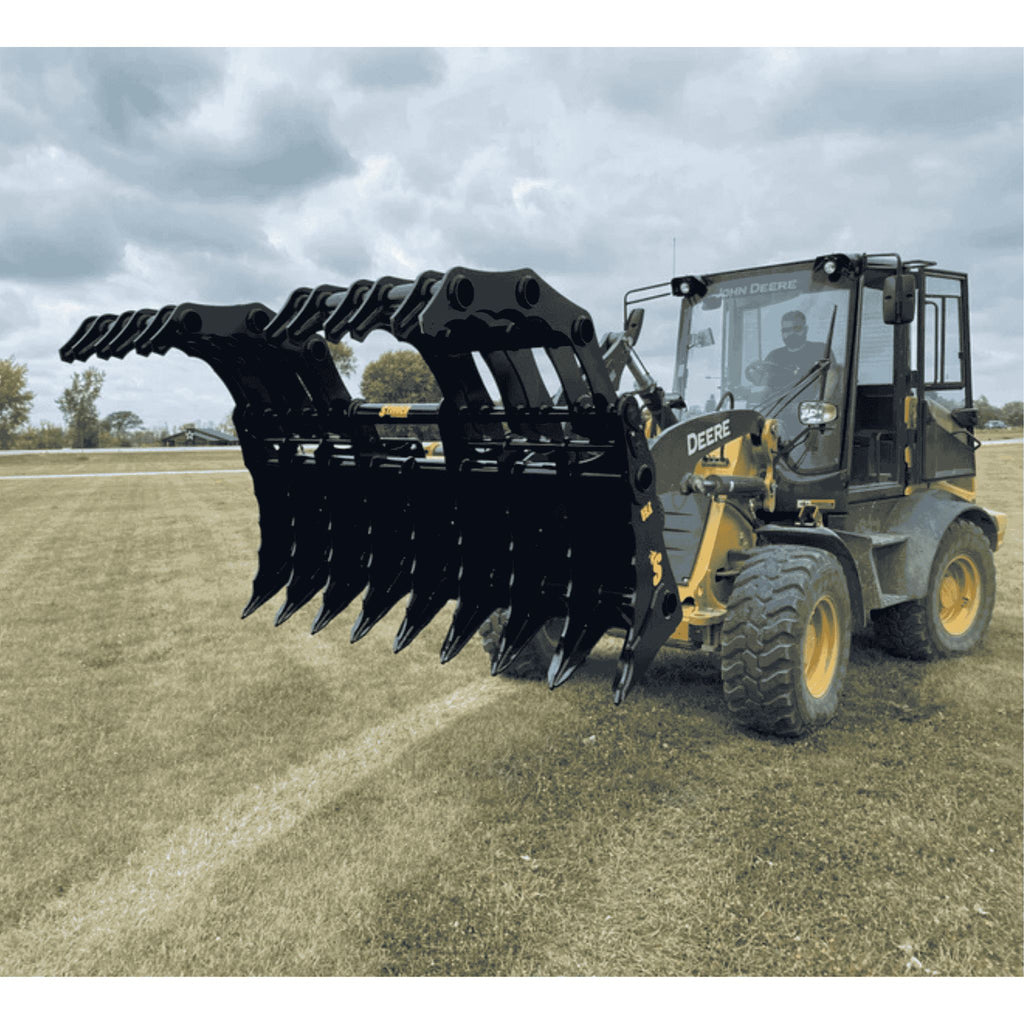

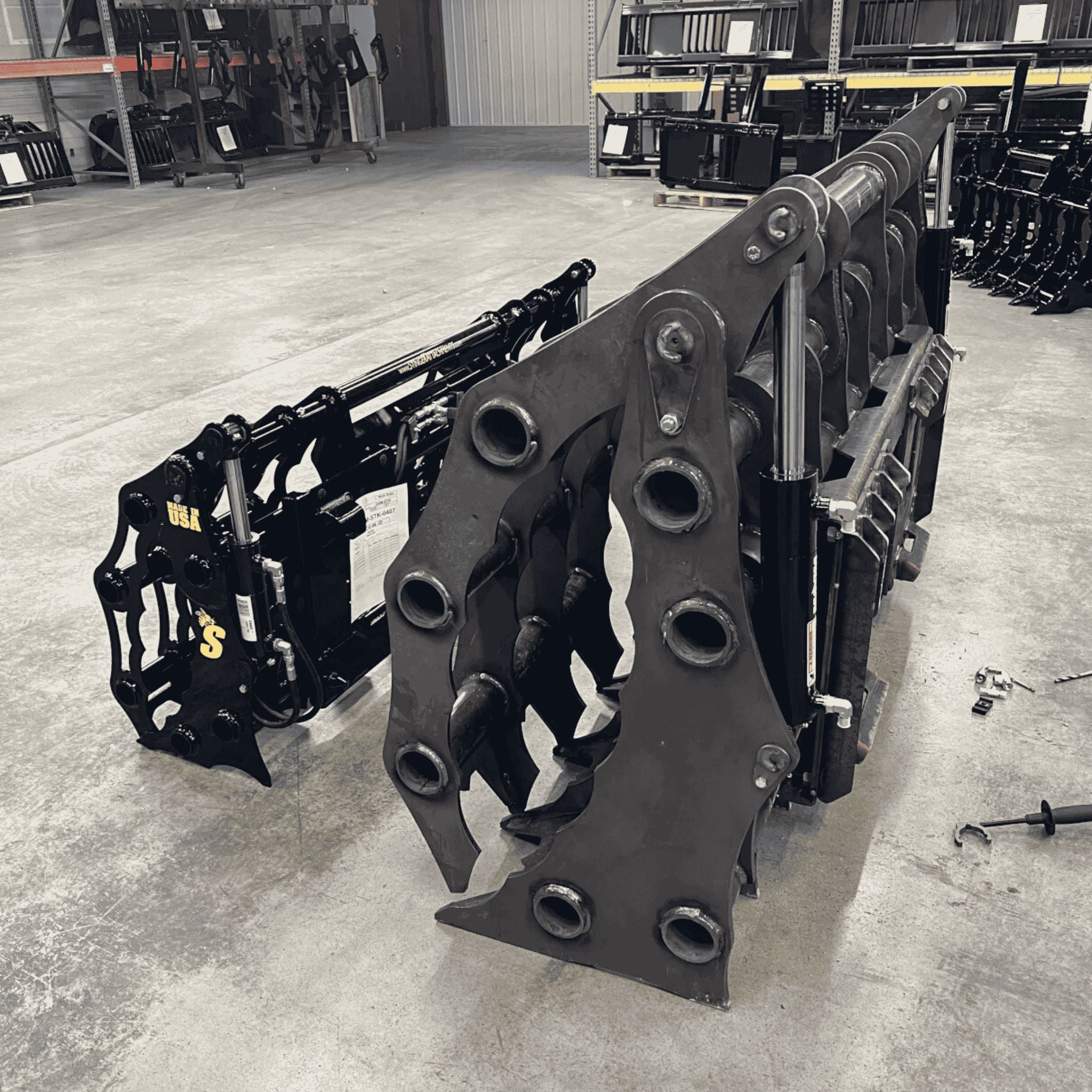

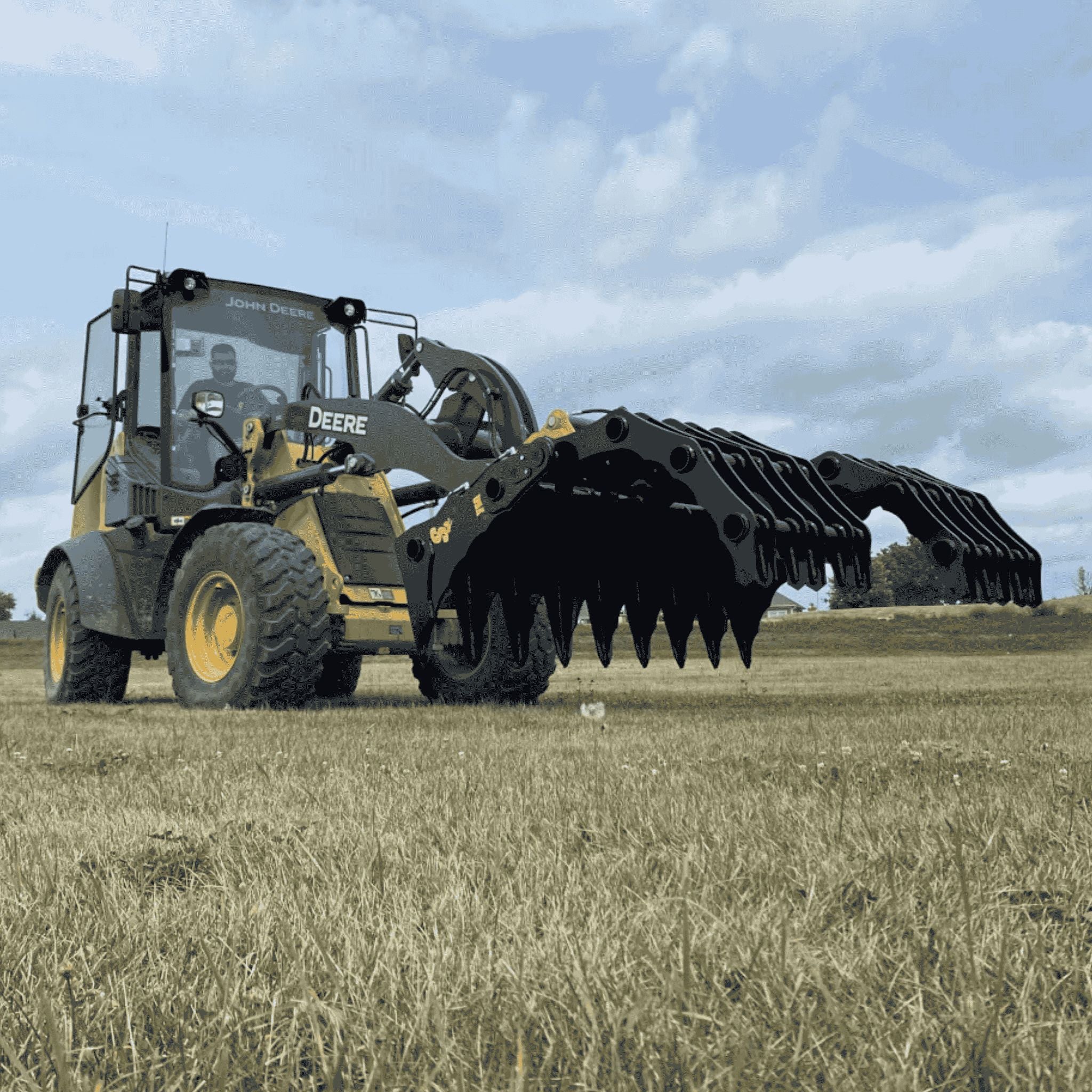

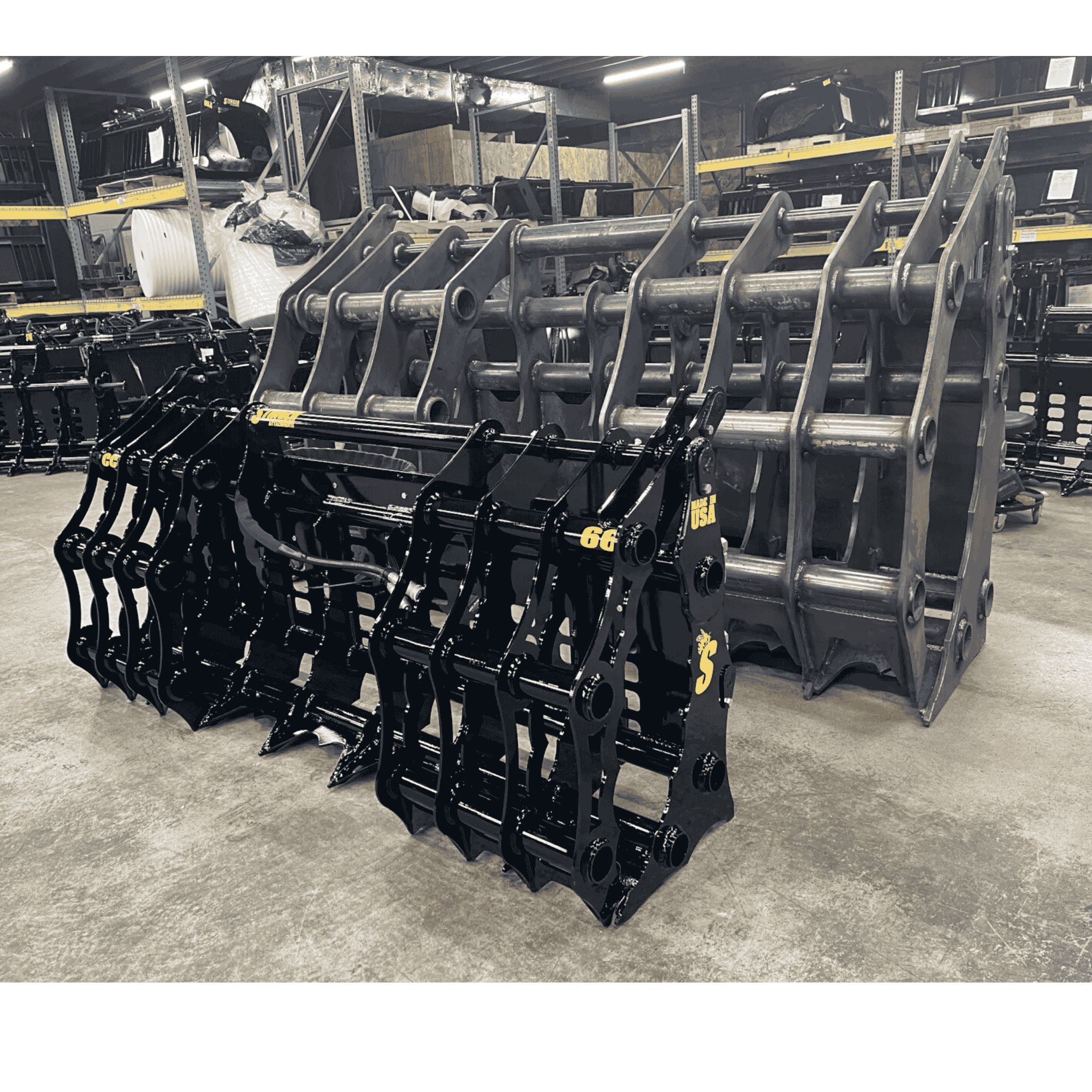

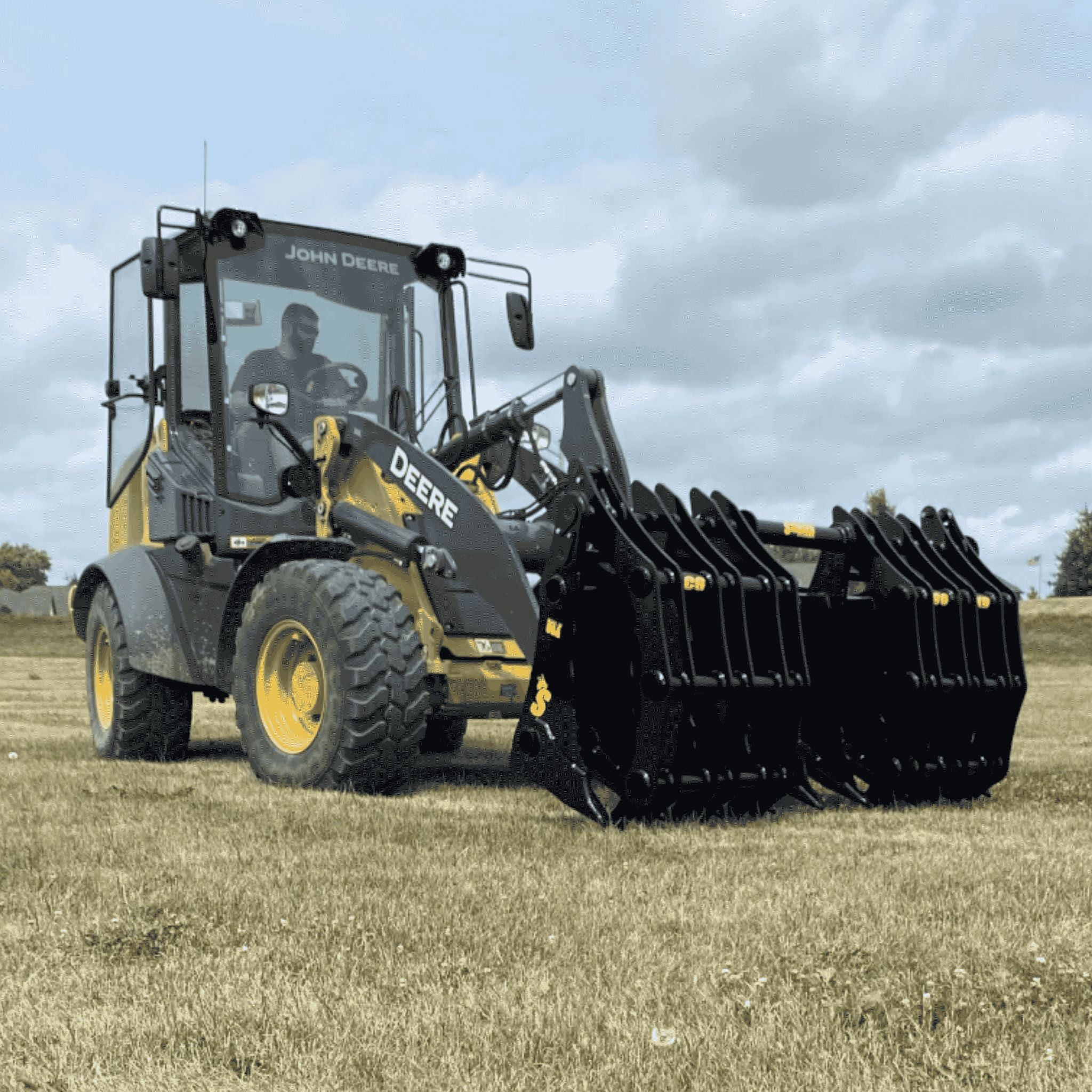

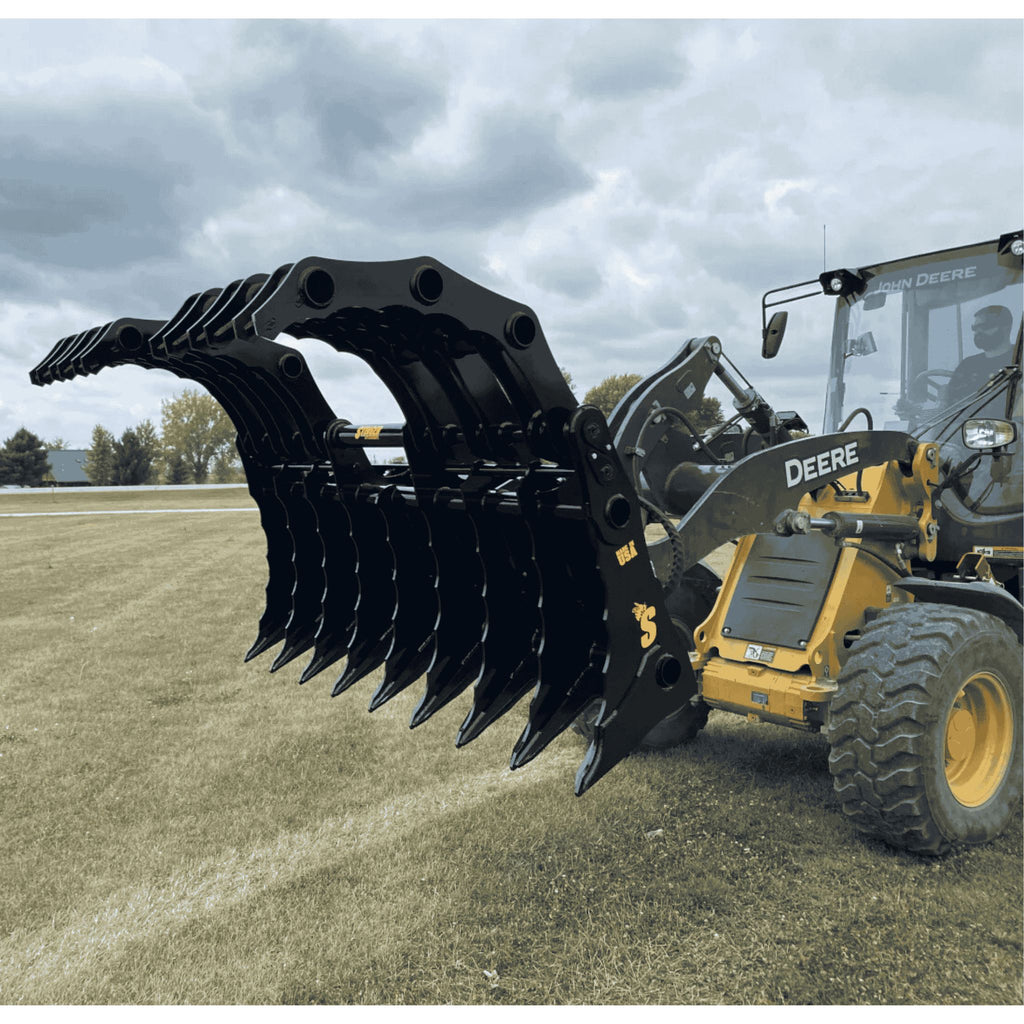

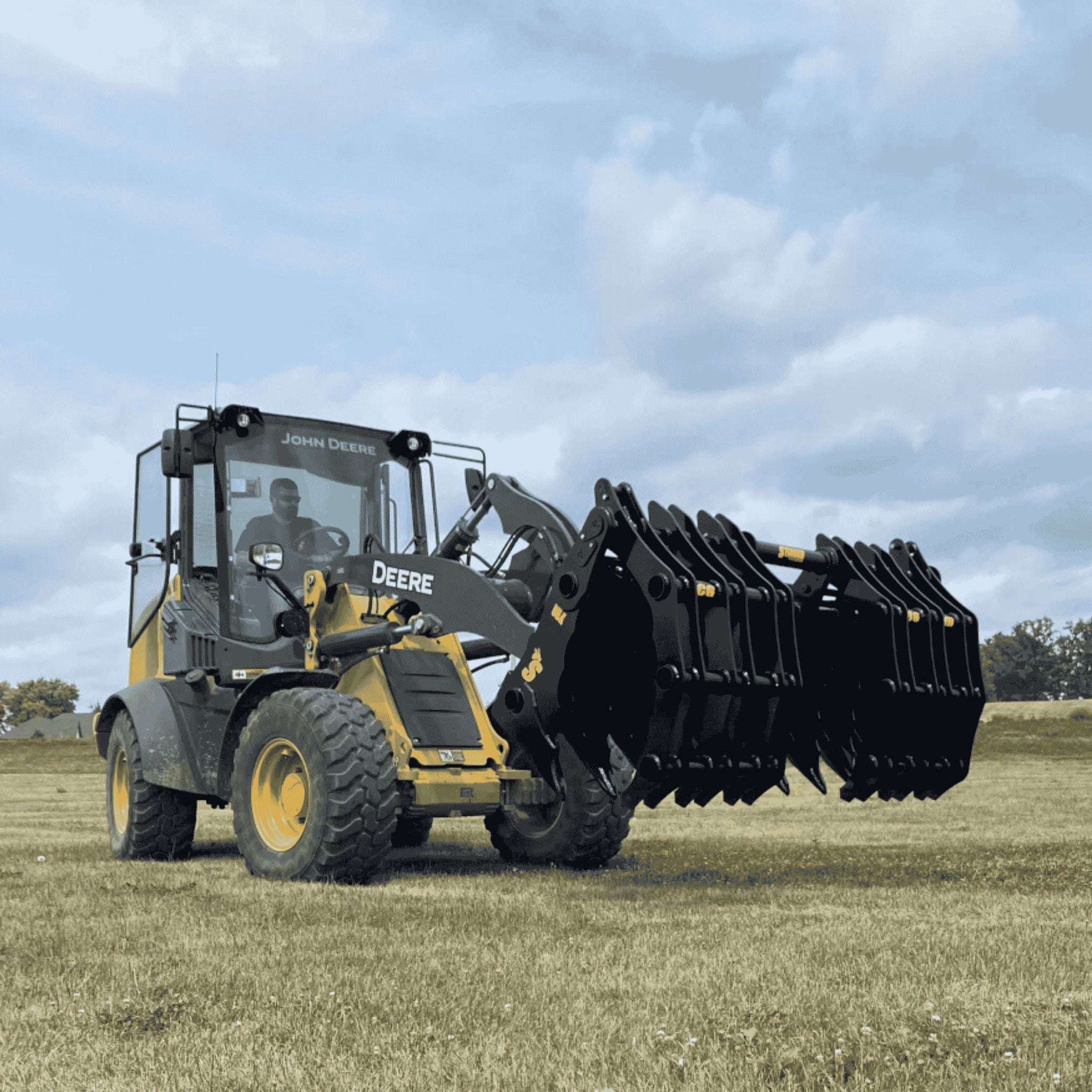

The Stinger Clam Grapple Extreme (XD) is not for standard skid steers. It is engineered specifically for High-Horsepower Machines, including the largest Compact Track Loaders, Telehandlers, and Wheel Loaders. With a massive 60-inch jaw opening and independent dual grapples, it engulfs huge debris piles, scrap, and boulders that would crush a standard grapple.
Extreme vs. Severe Duty
The XD Series is built from 1/2" AR200 Abrasion Resistant Steel and is optimized for 100HP+ Track Loaders (e.g., Deere 333G).
The Severe Duty (SXD) Series steps up to "Industrial Class" for Wheel Loaders and mining applications, featuring heavy-duty mounting options and reinforced chassis construction for 24/7 abuse.
⚙️ Technical Specifications
Material: 1/2" AR200 (Abrasion Resistant)
Grapple Opening: 60 Inches (Massive)
Tine Spacing: 10.5 Inches
Cylinders: Twin 3" x 10" (3,000 PSI)
Pivot Shafts: Greaseable Heavy-Duty Pins
Warranty: 1-Year Structural
⚠️ Critical Warning: Machine Weight
Minimum Lift Capacity: This attachment weighs between 1,750 lbs and 2,150 lbs empty.
Do not install on standard skid steers. Serious tipping hazard. Ensure your machine has a Rated Operating Capacity (ROC) of at least 3,500 lbs.
✅ Machine Compatibility
1. XD Series (Universal QA):
Fits 100HP+ Track Loaders: John Deere 333G, CAT 299D3, Bobcat T870, Kubota SVL97.
2. Severe Duty SXD (HD Mounts):
Designed for Compact Wheel Loaders and Telehandlers requiring specific couplers (e.g., JRB, CAT Fusion, Euro).
3. Hydraulic Check:
Requires Standard Flow (Plug & Play). High Flow is not required for grapple function.
Additional Specifications
| Mount Interface | Universal Skid Steer |
| Warranty | 1-Year Structural |
| Max Operating Pressure | 3000 PSI |
| Shipping Dimensions (LxWxH) | 48x86x47 |
