Description
The Utility Workhorse

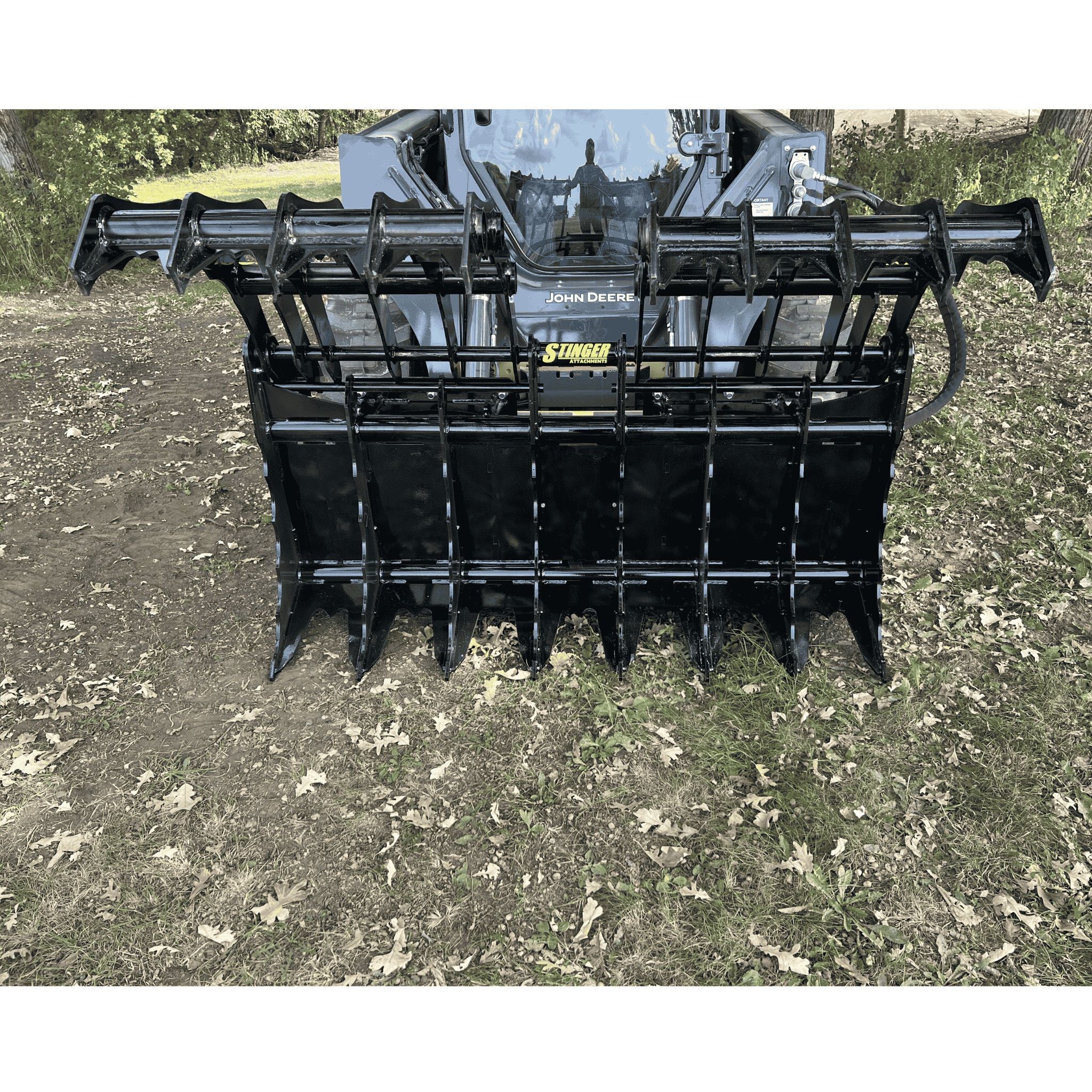

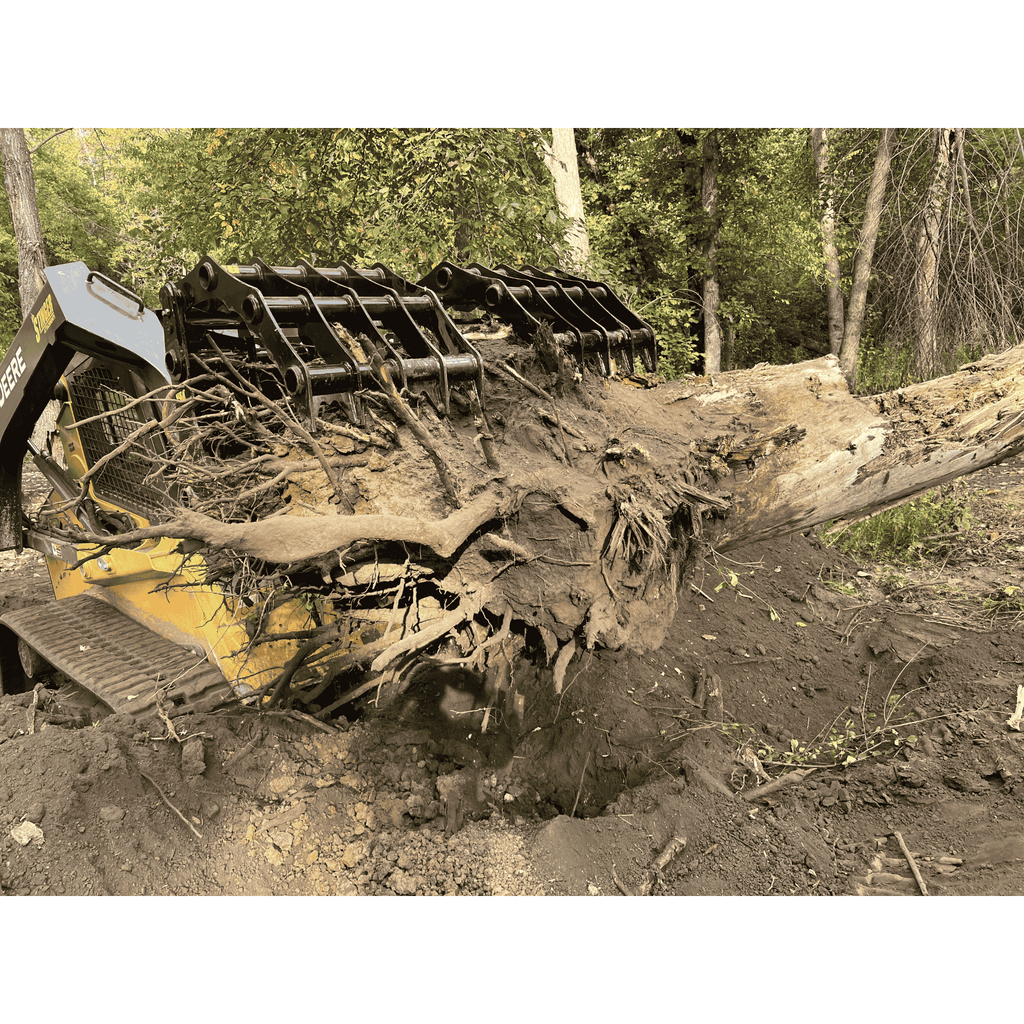

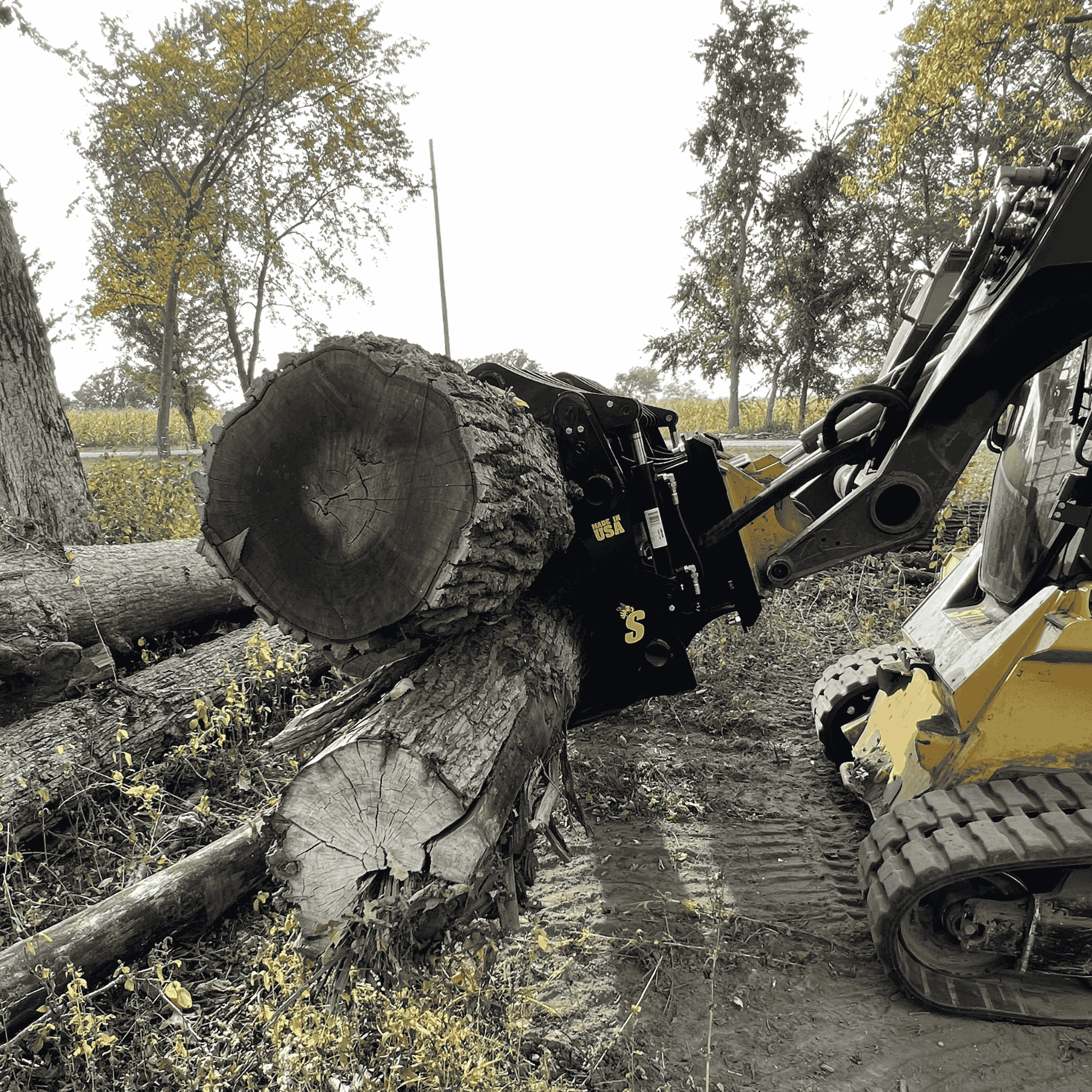

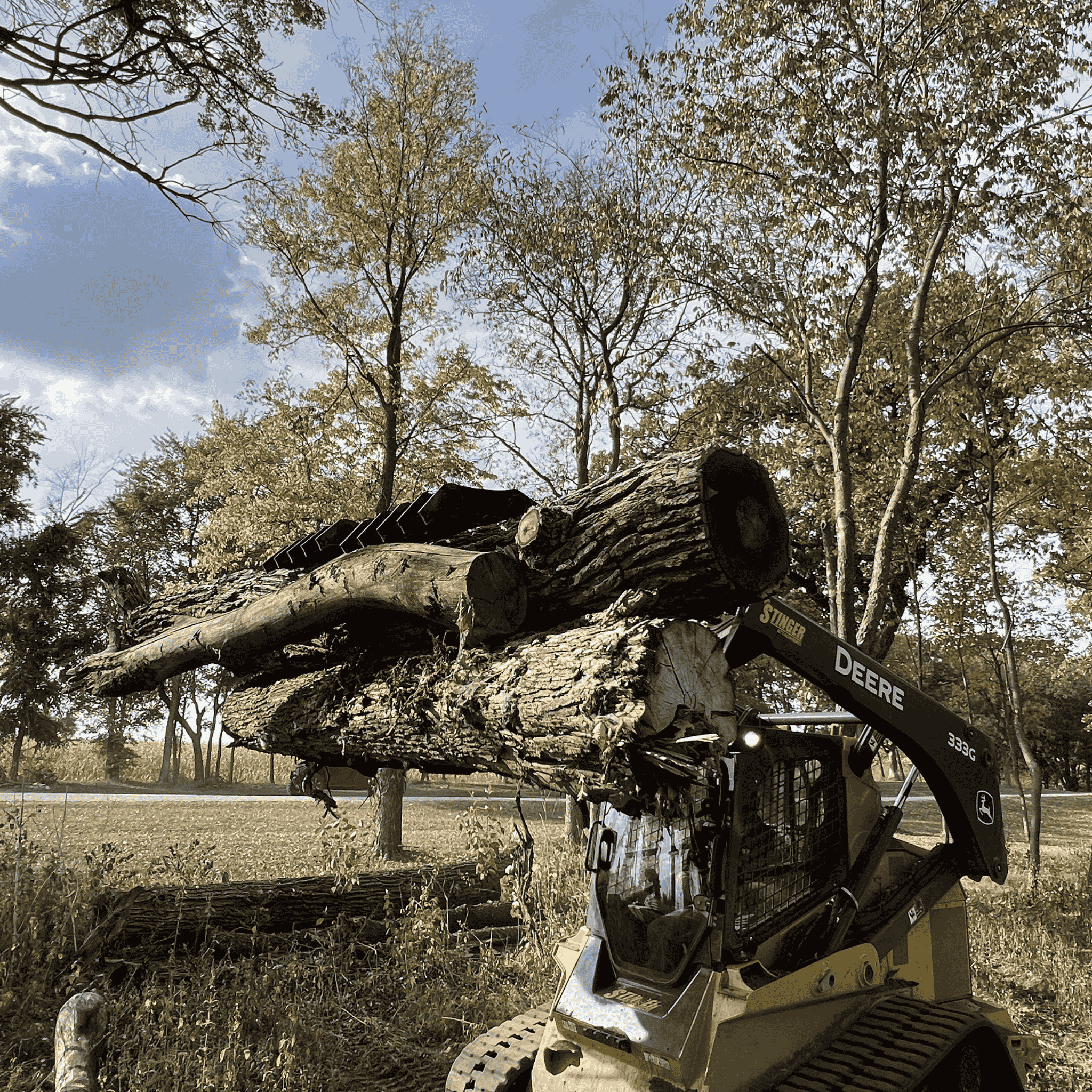

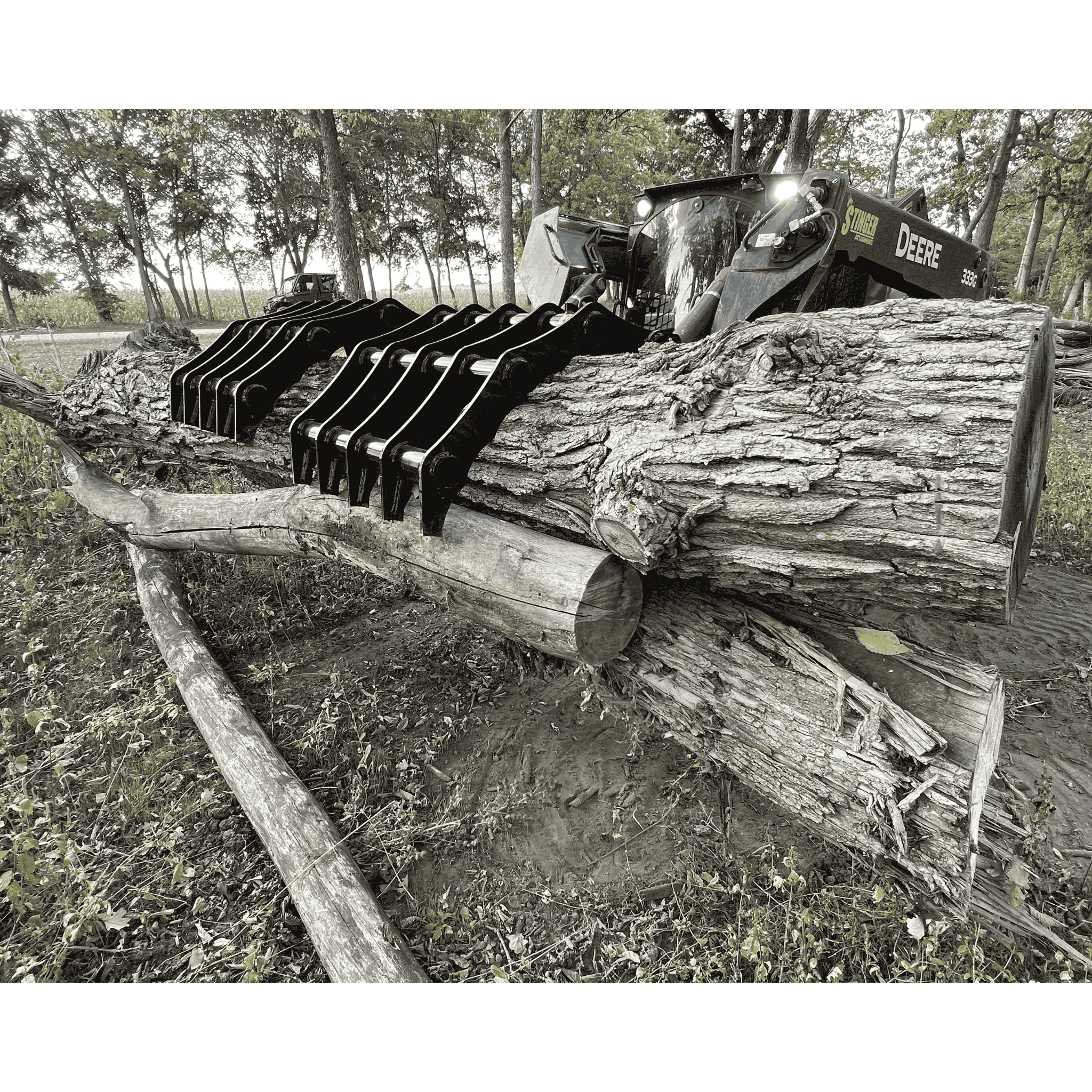

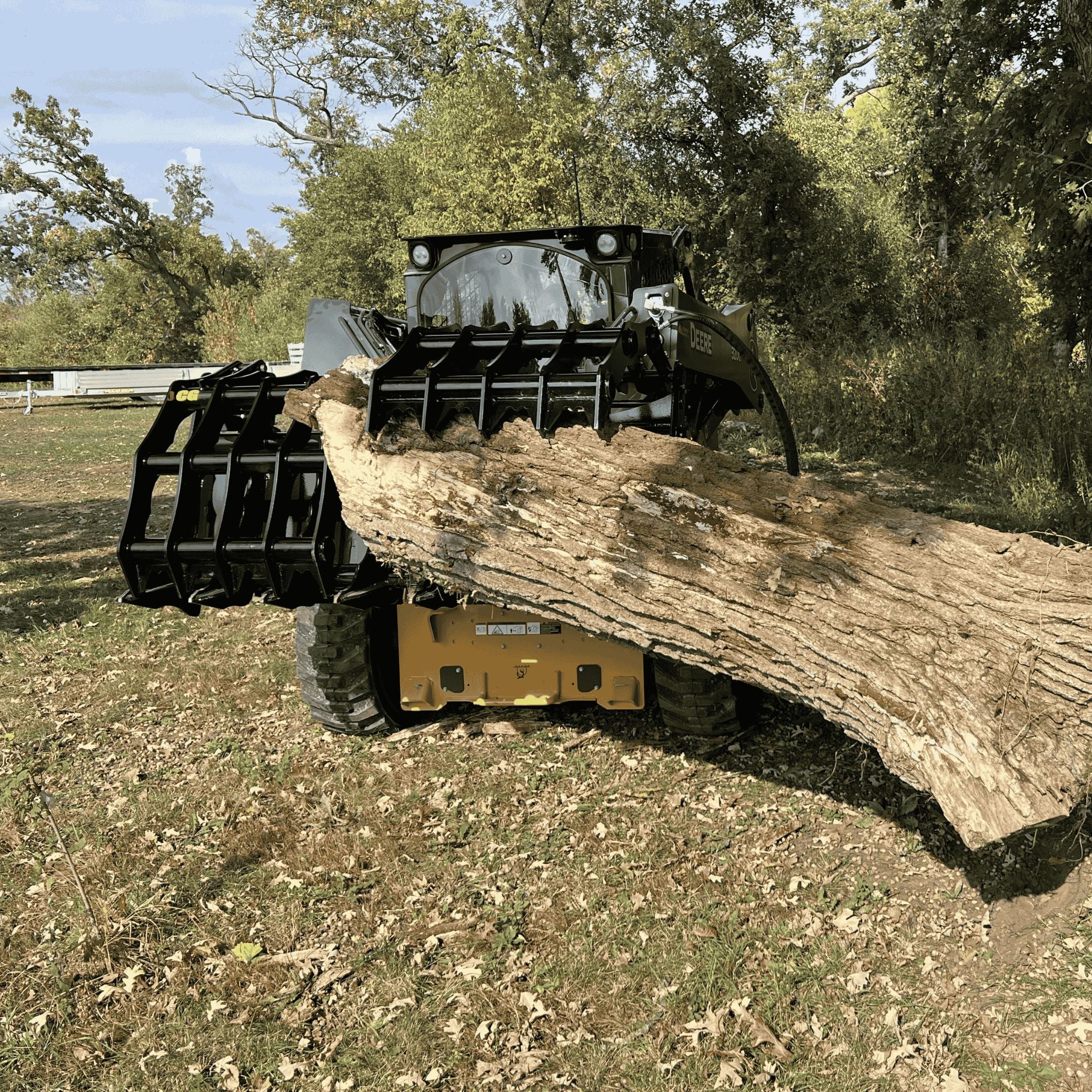

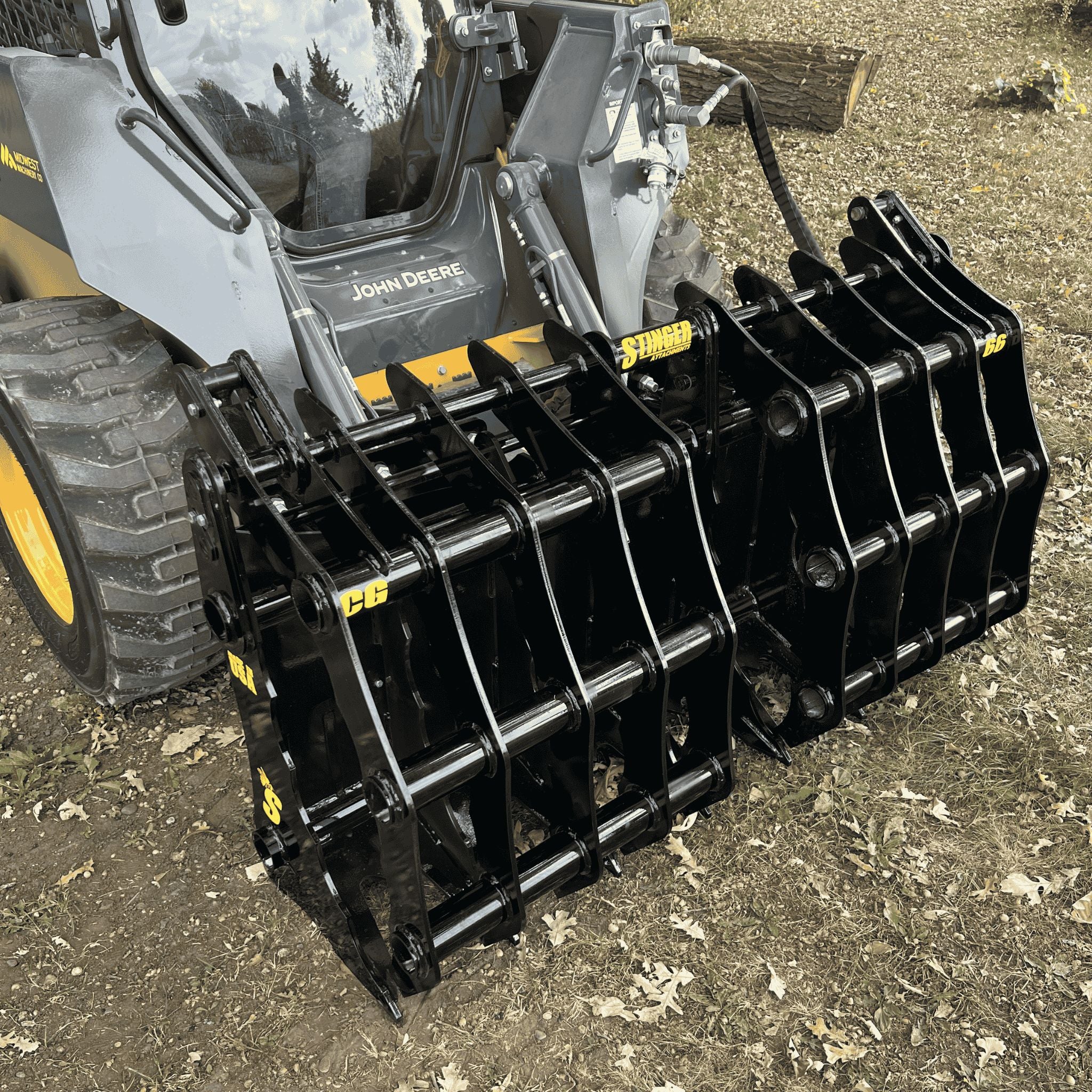

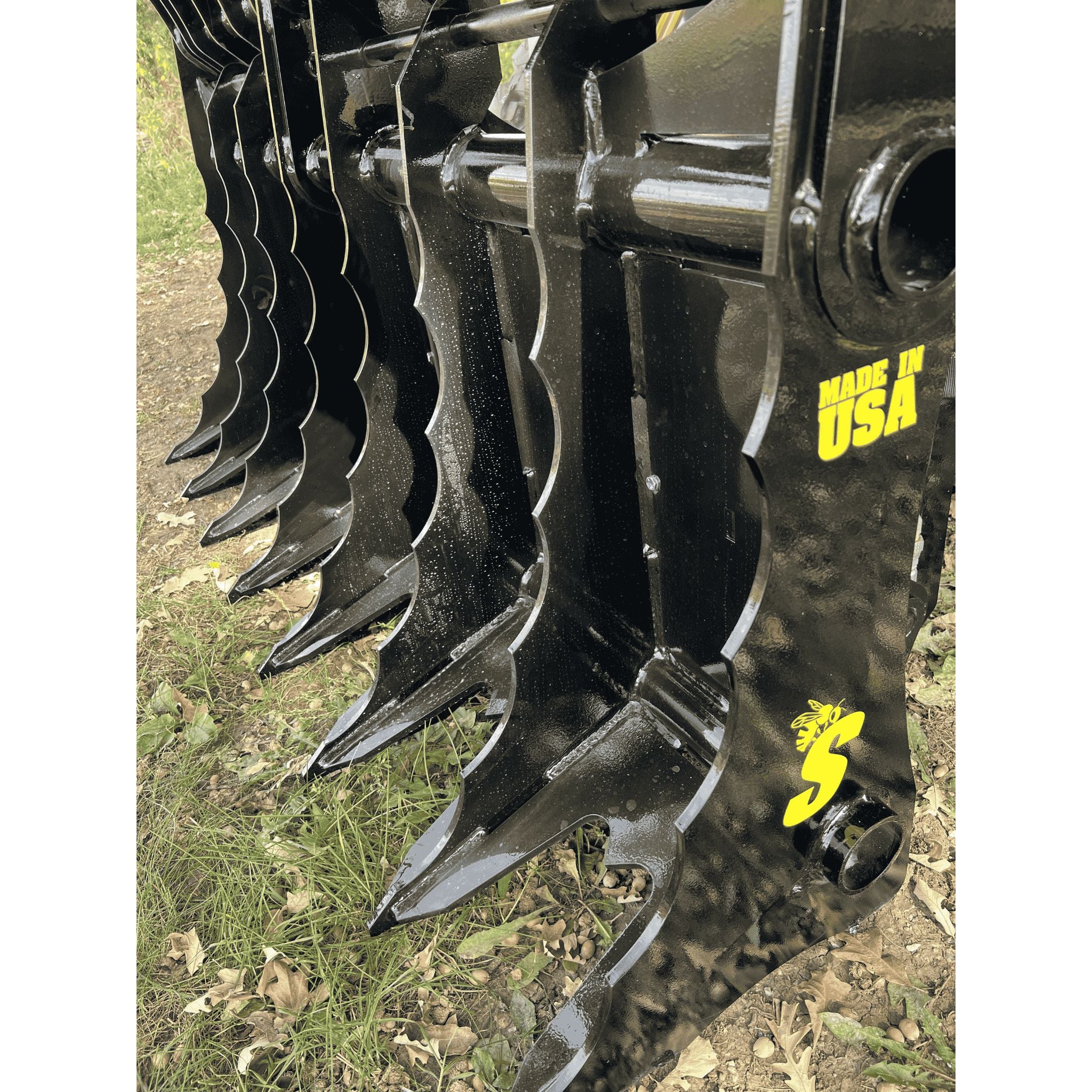

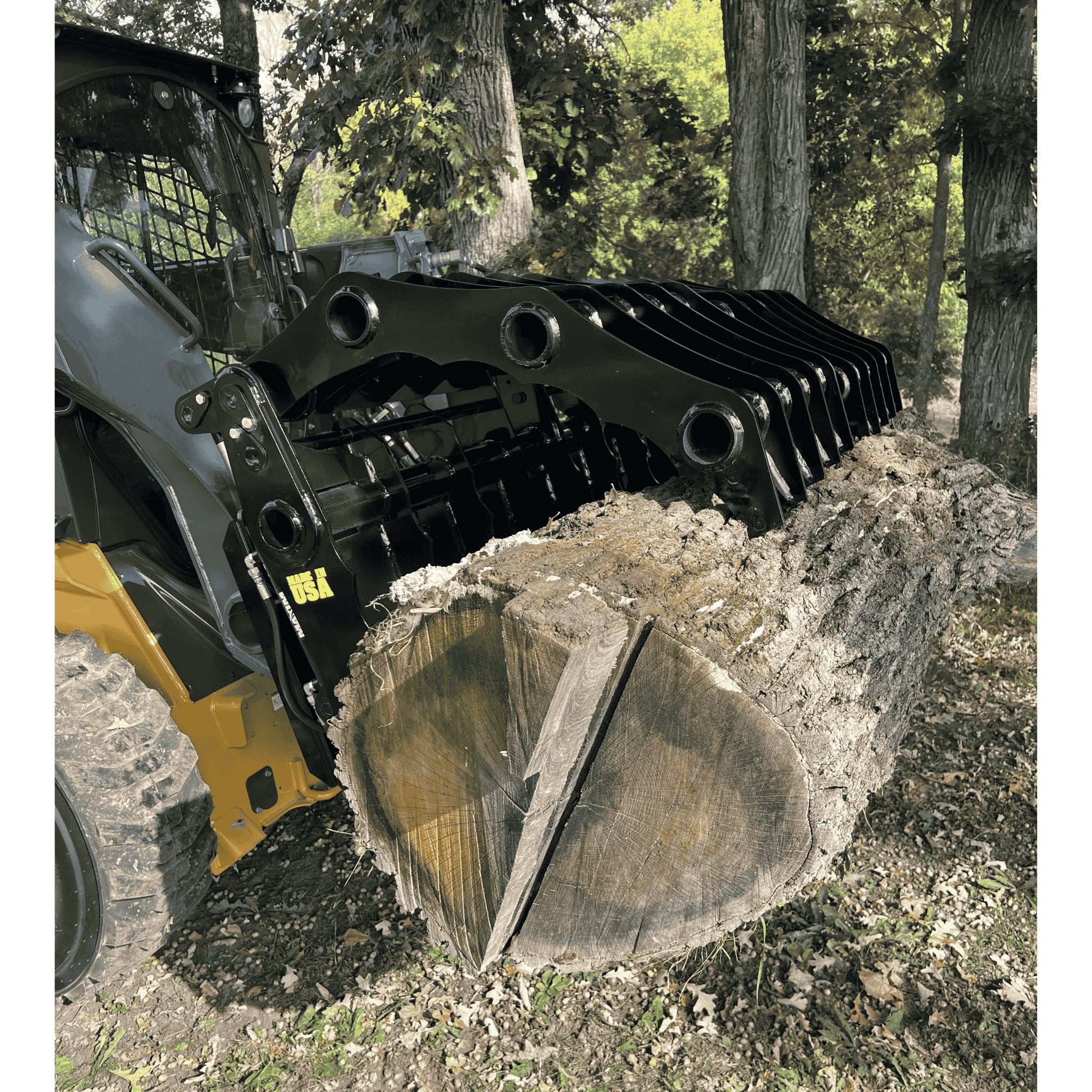

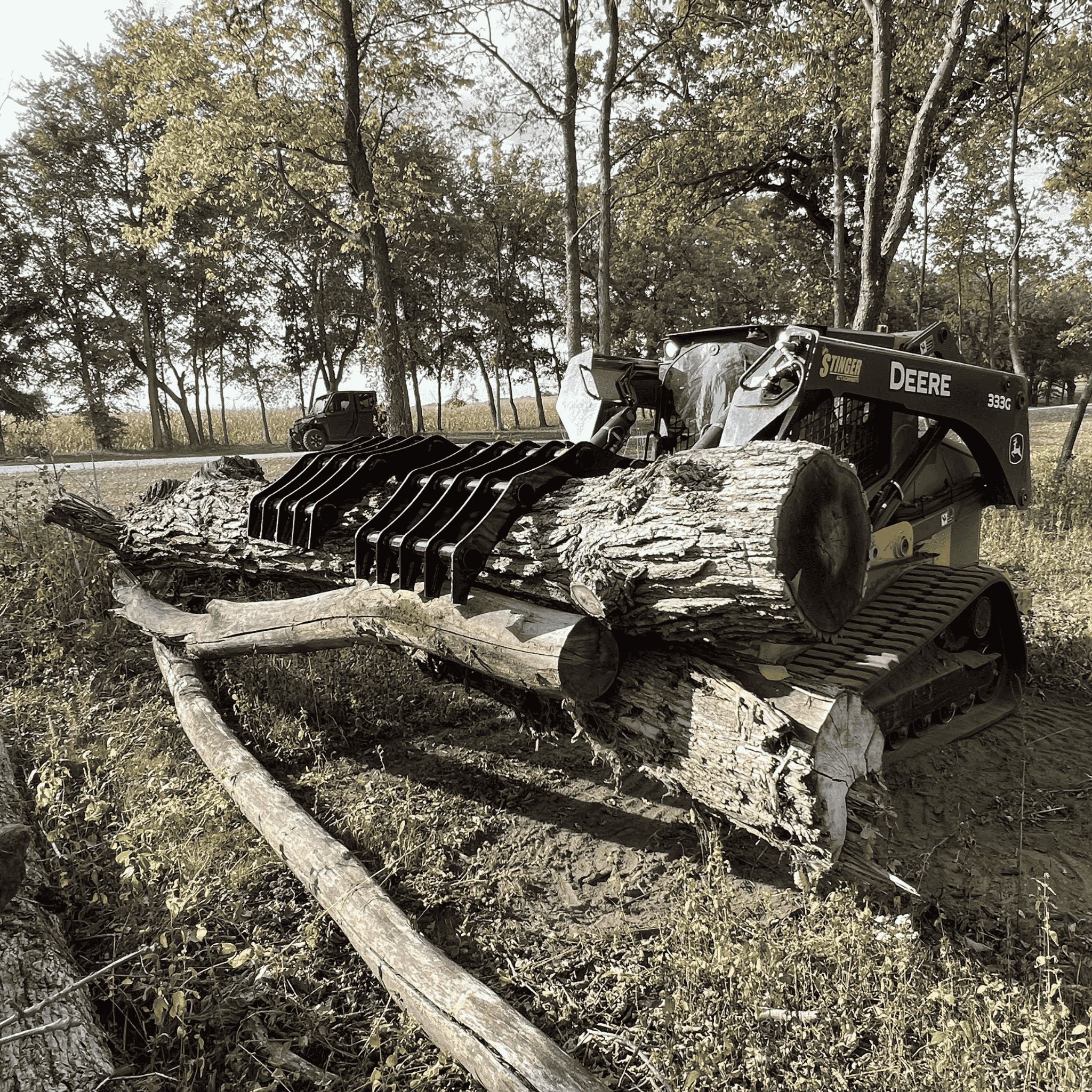

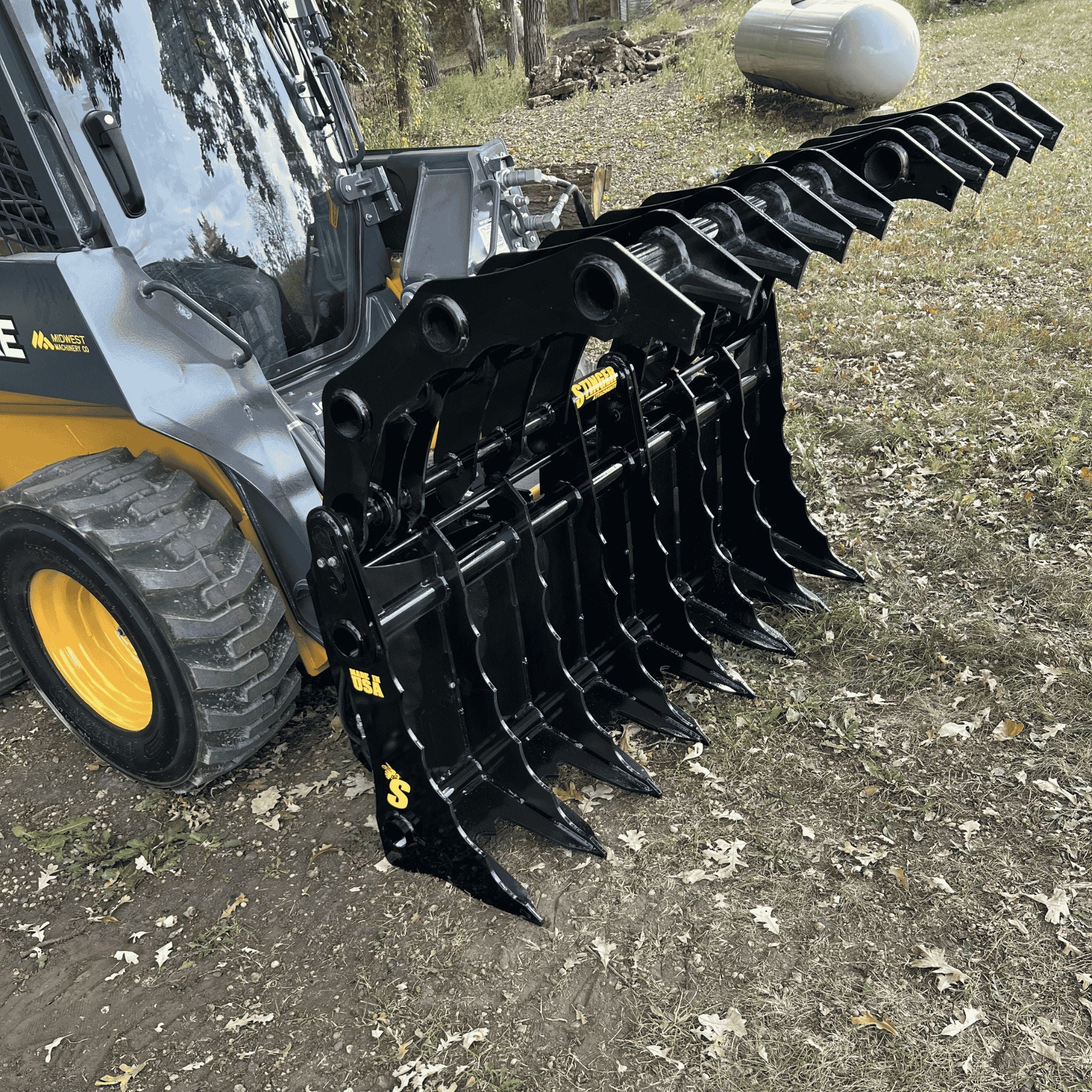

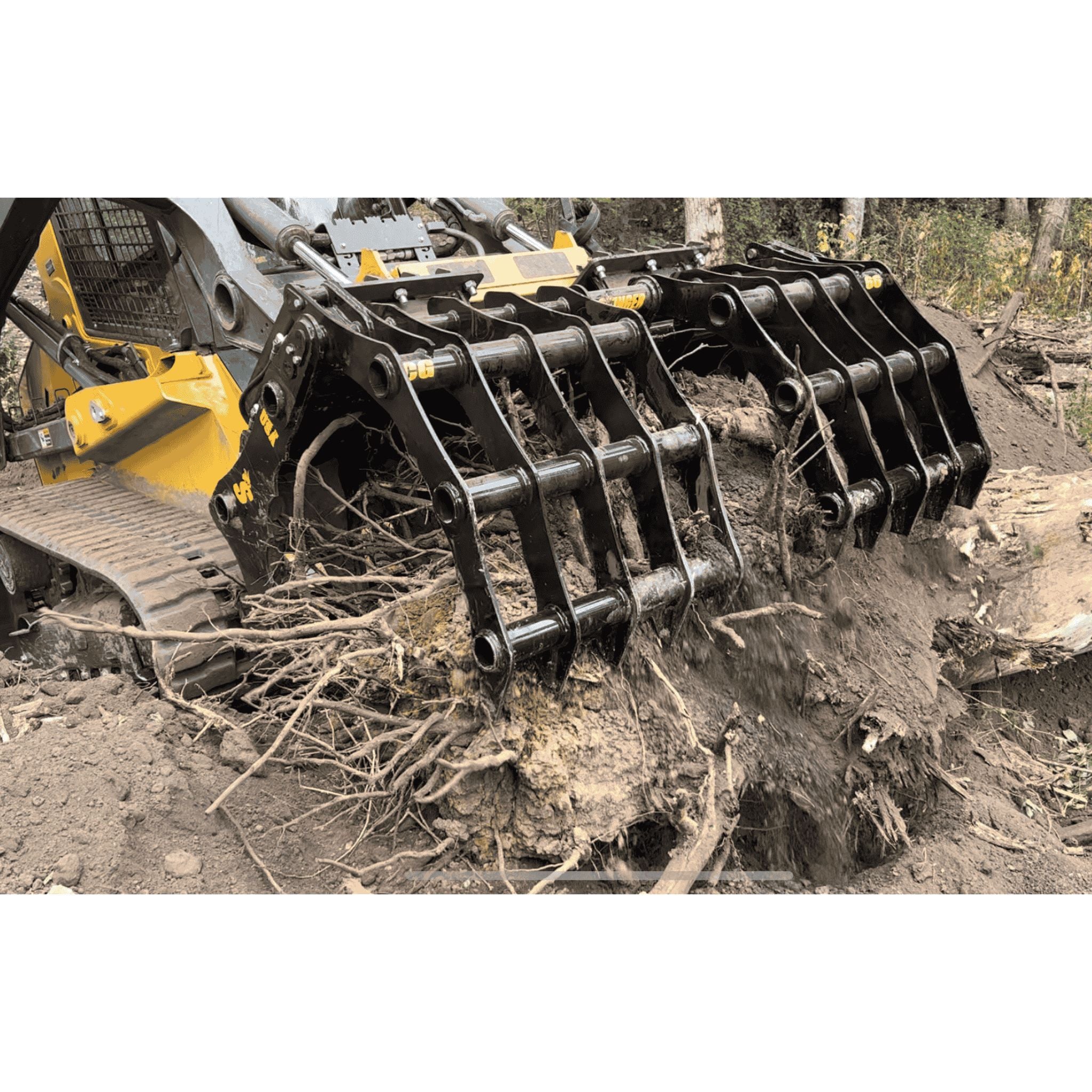

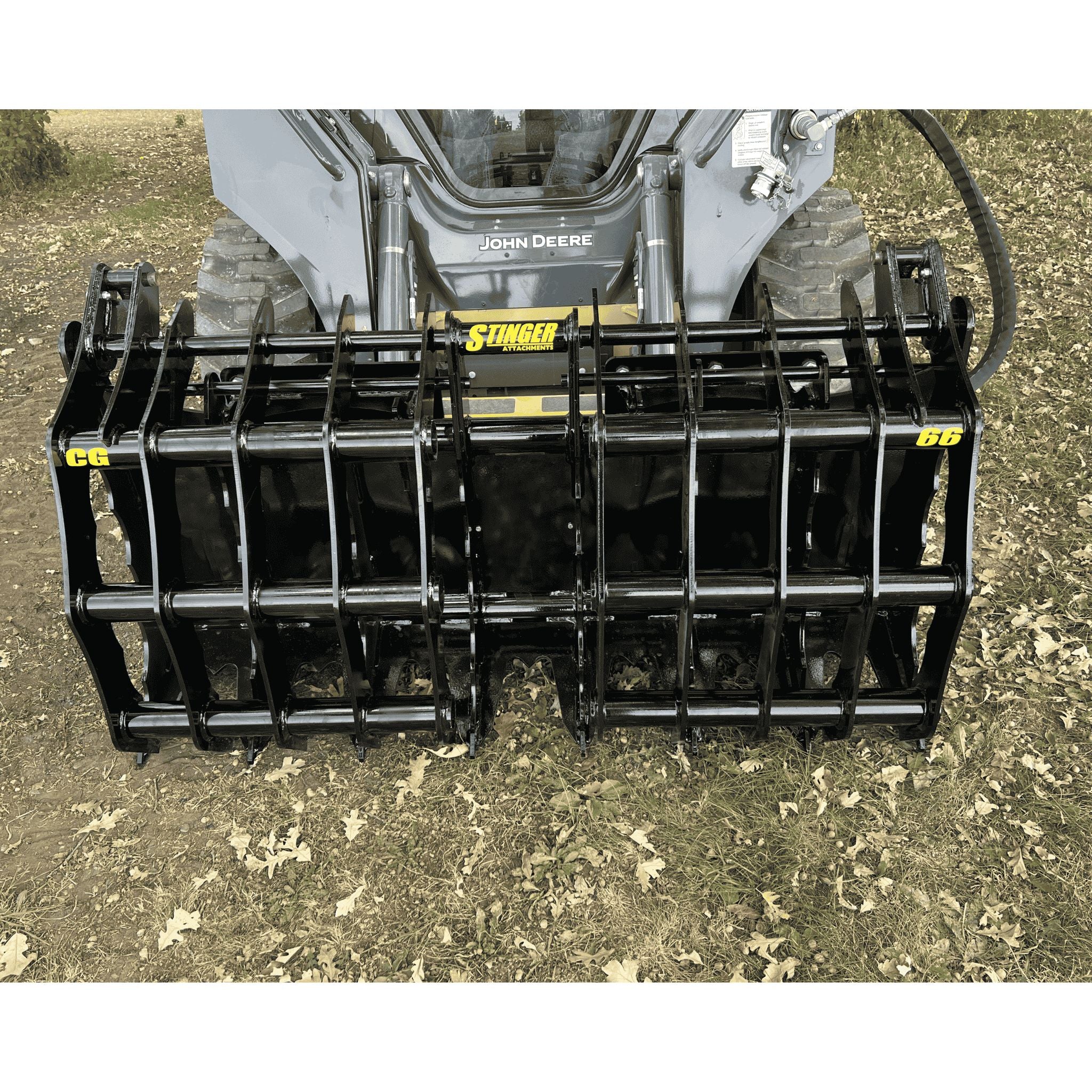

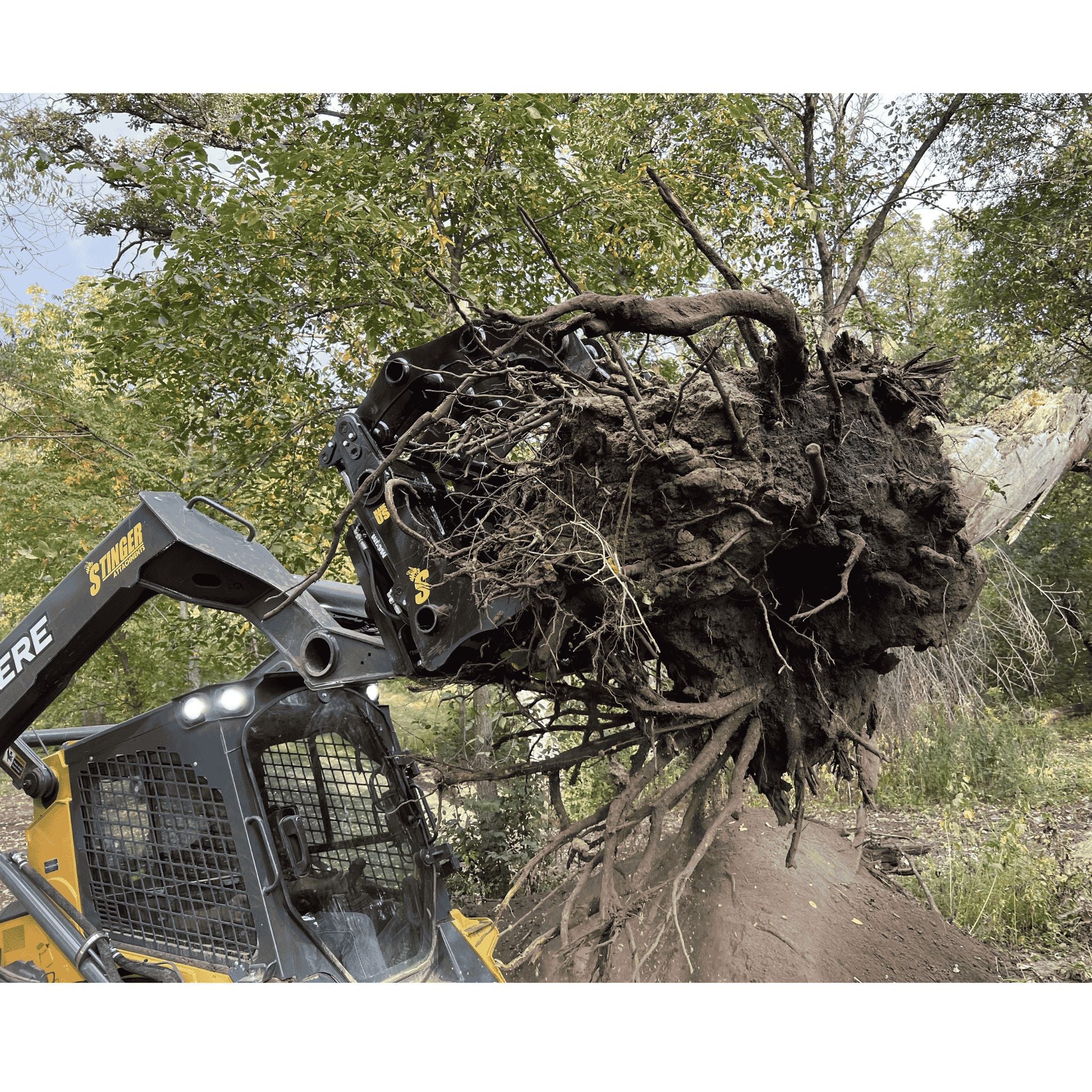

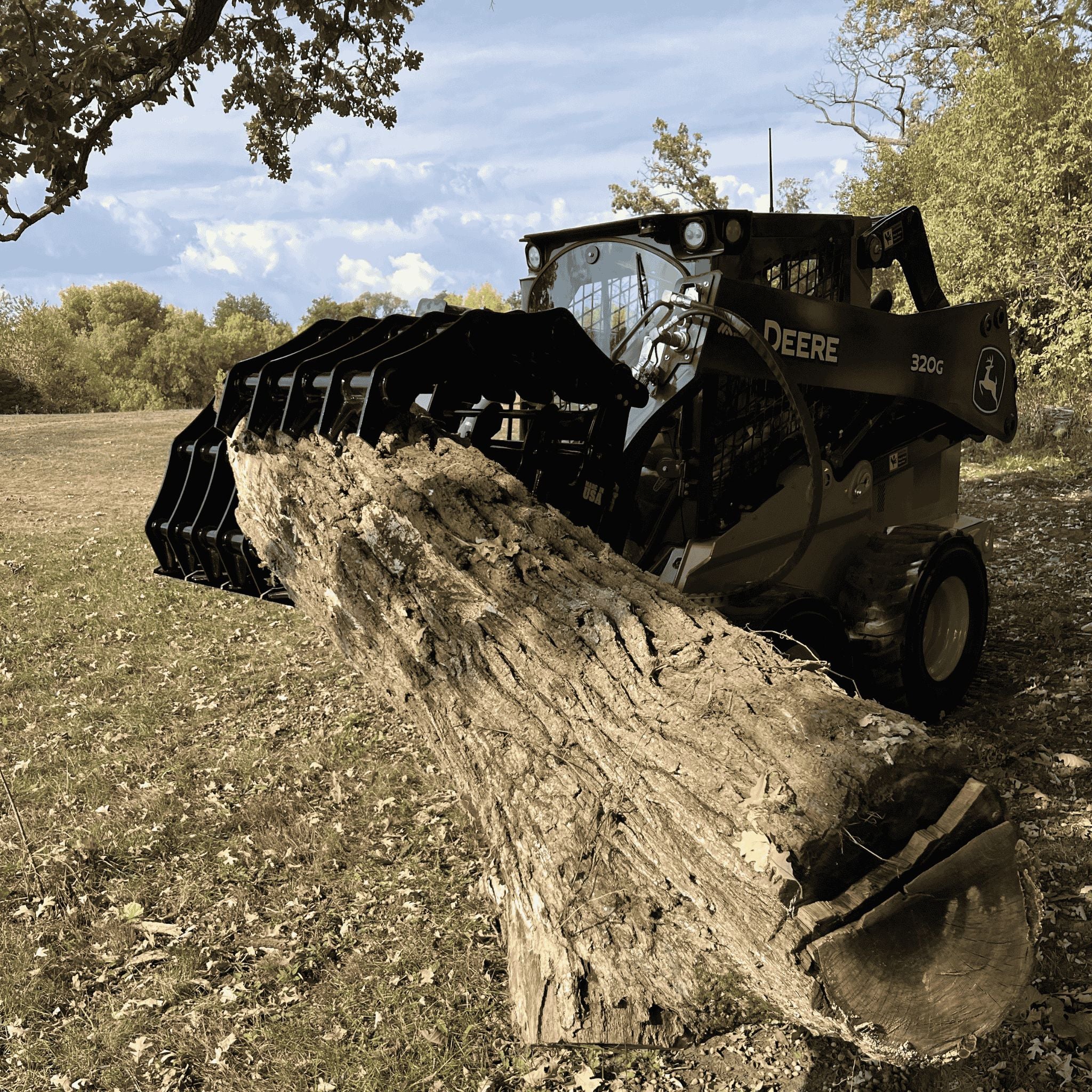

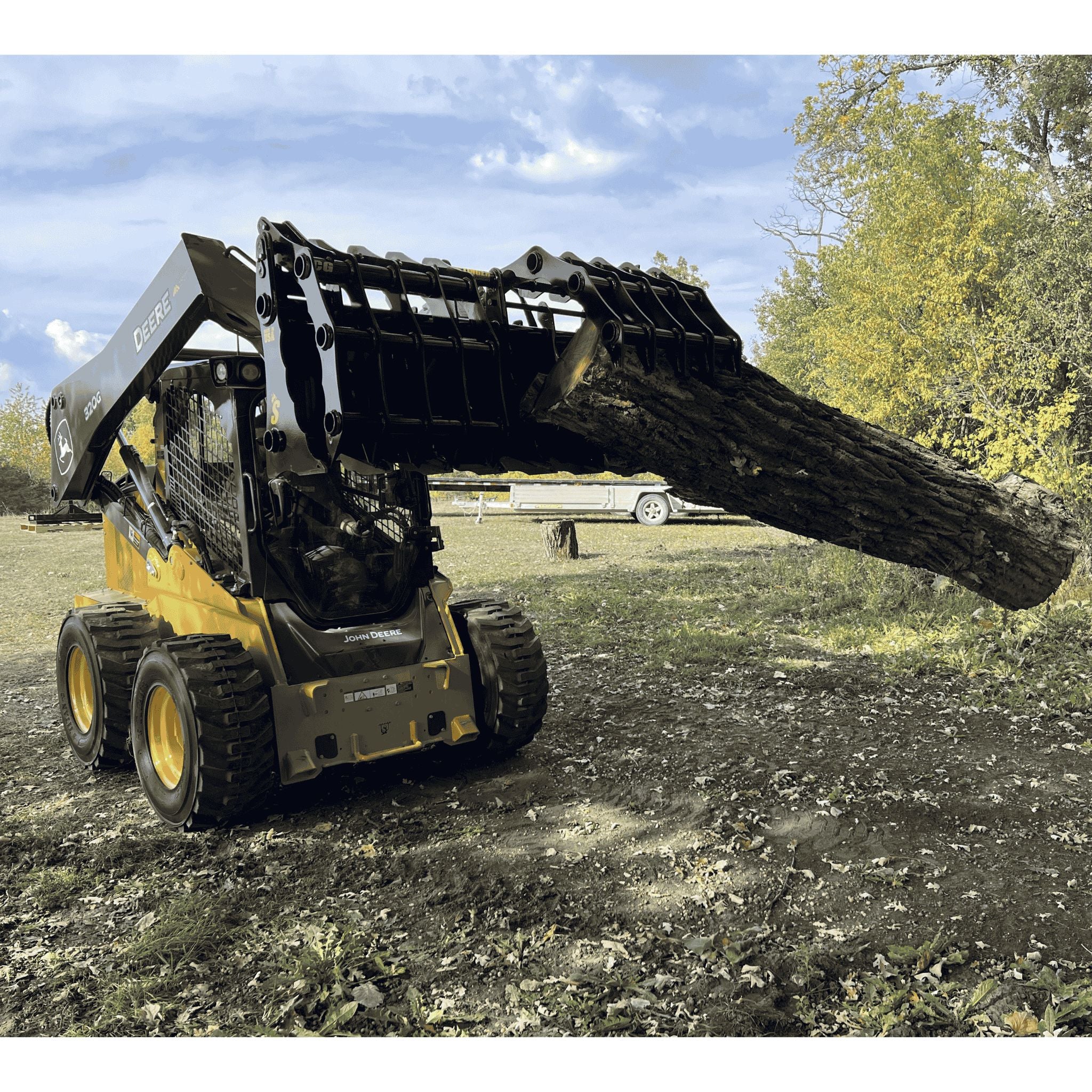

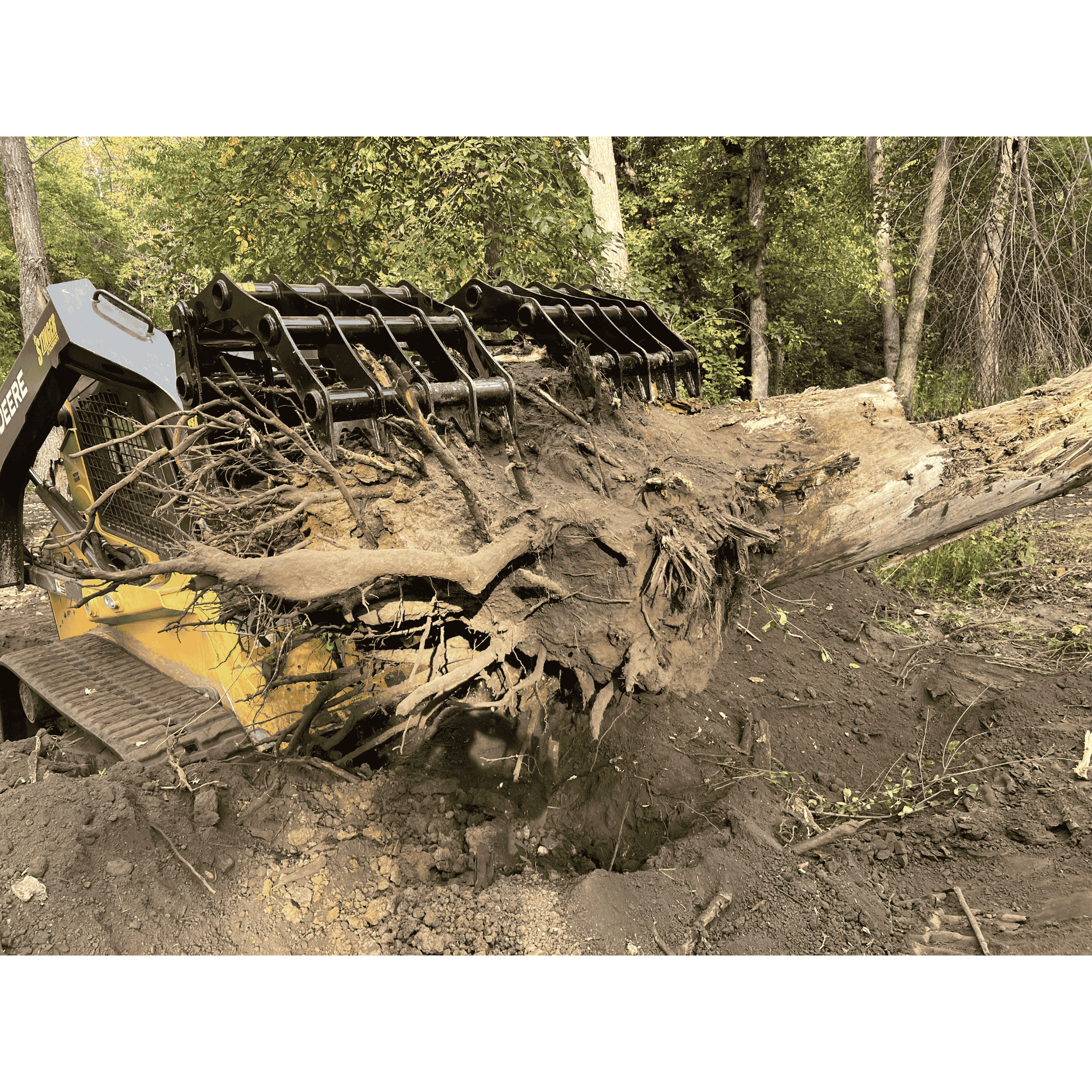

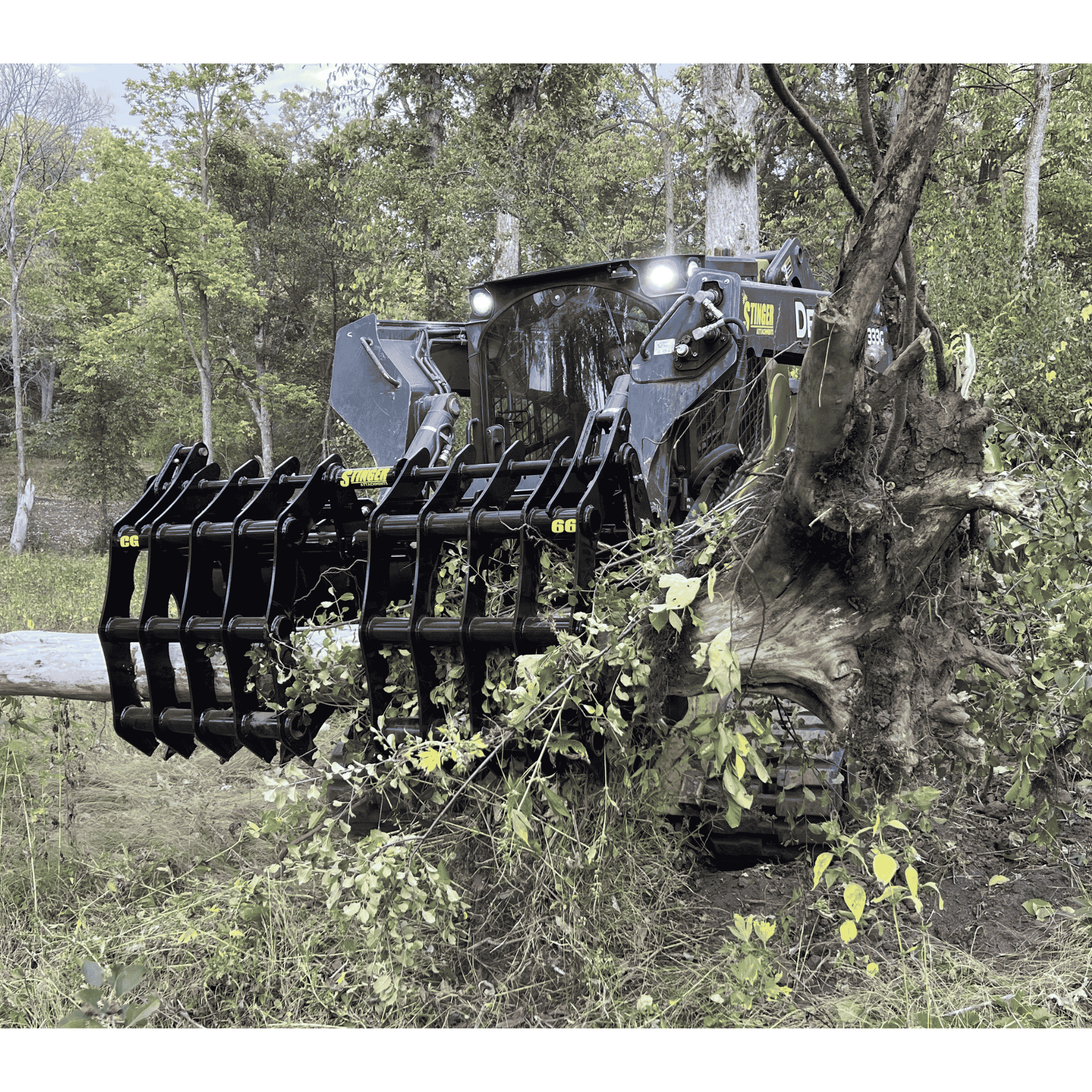

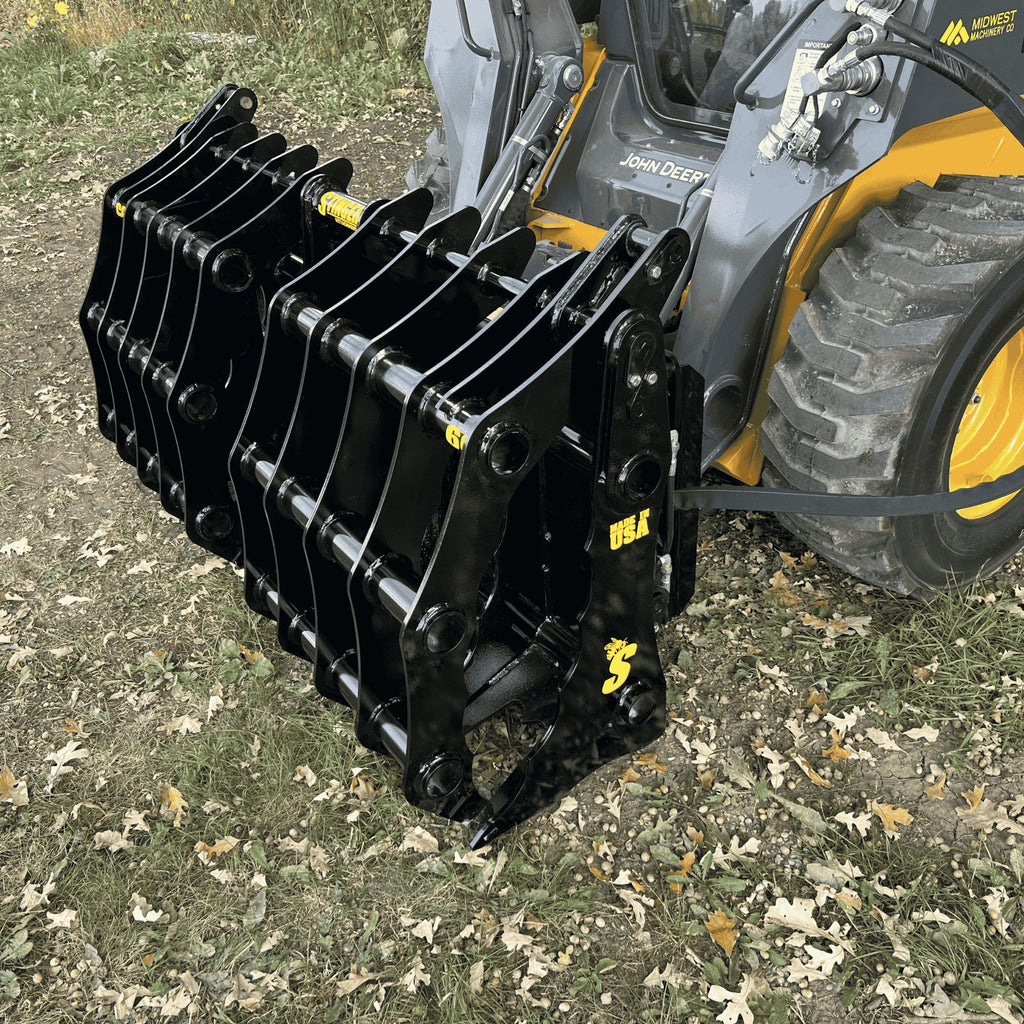

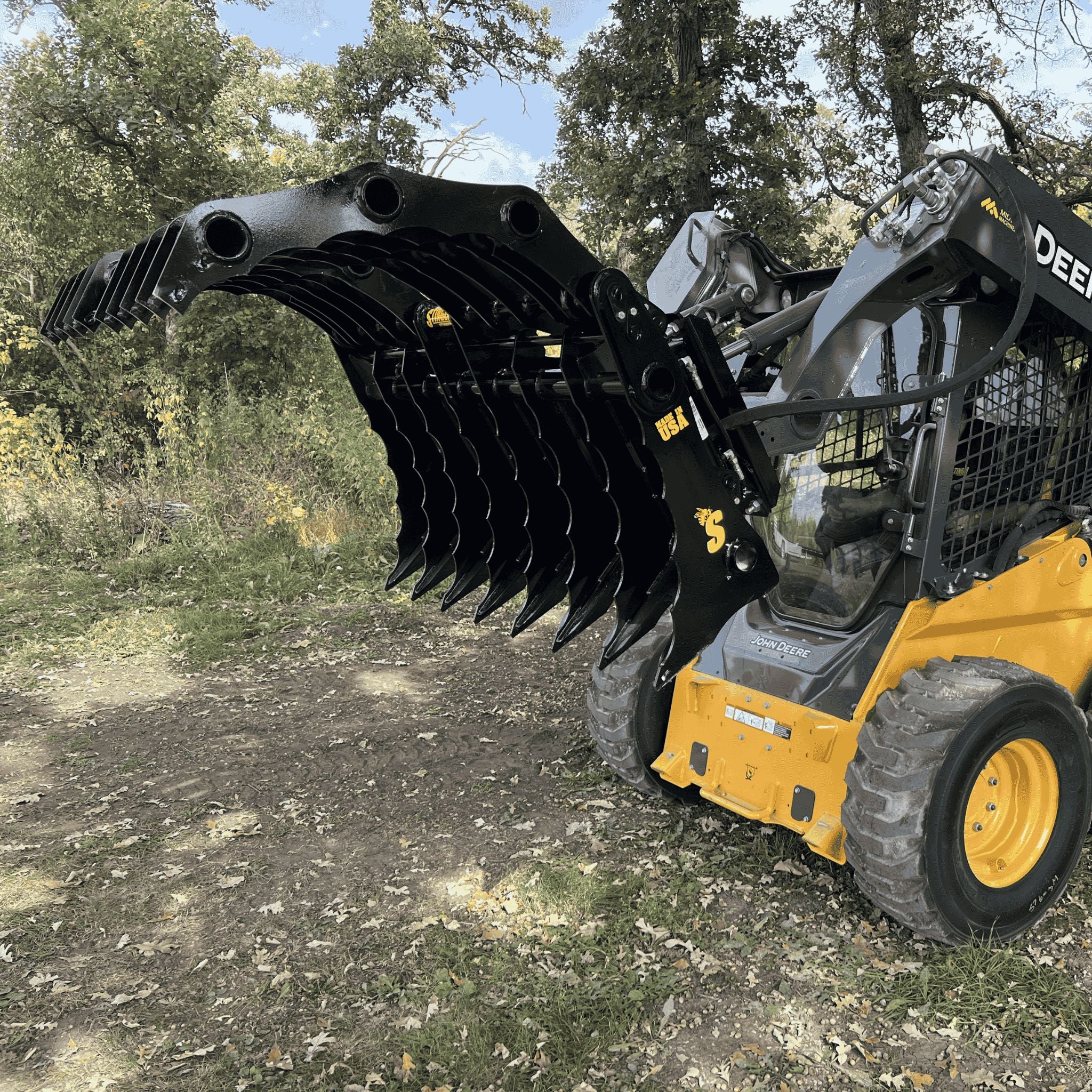

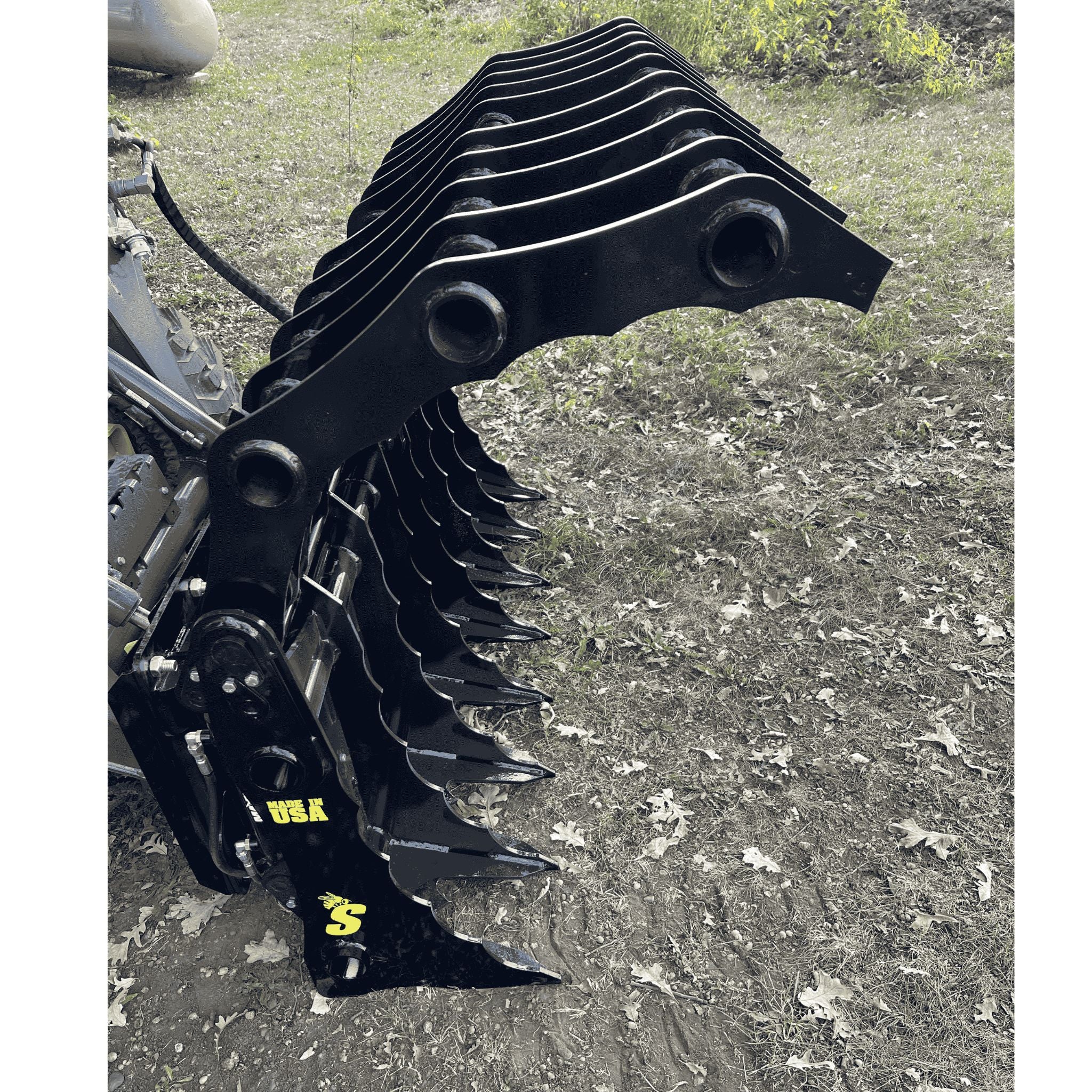

The Stinger CG Series Clam Grapple is the ultimate debris handler for 50–100 HP utility tractors and skid steers. Unlike standard brush grapples, the "Clam" design features a high-volume basket shape with 9-inch tine spacing, allowing you to scoop up bulky brush piles, logs, and barn waste while letting loose dirt sift through.
Future-Proof Design

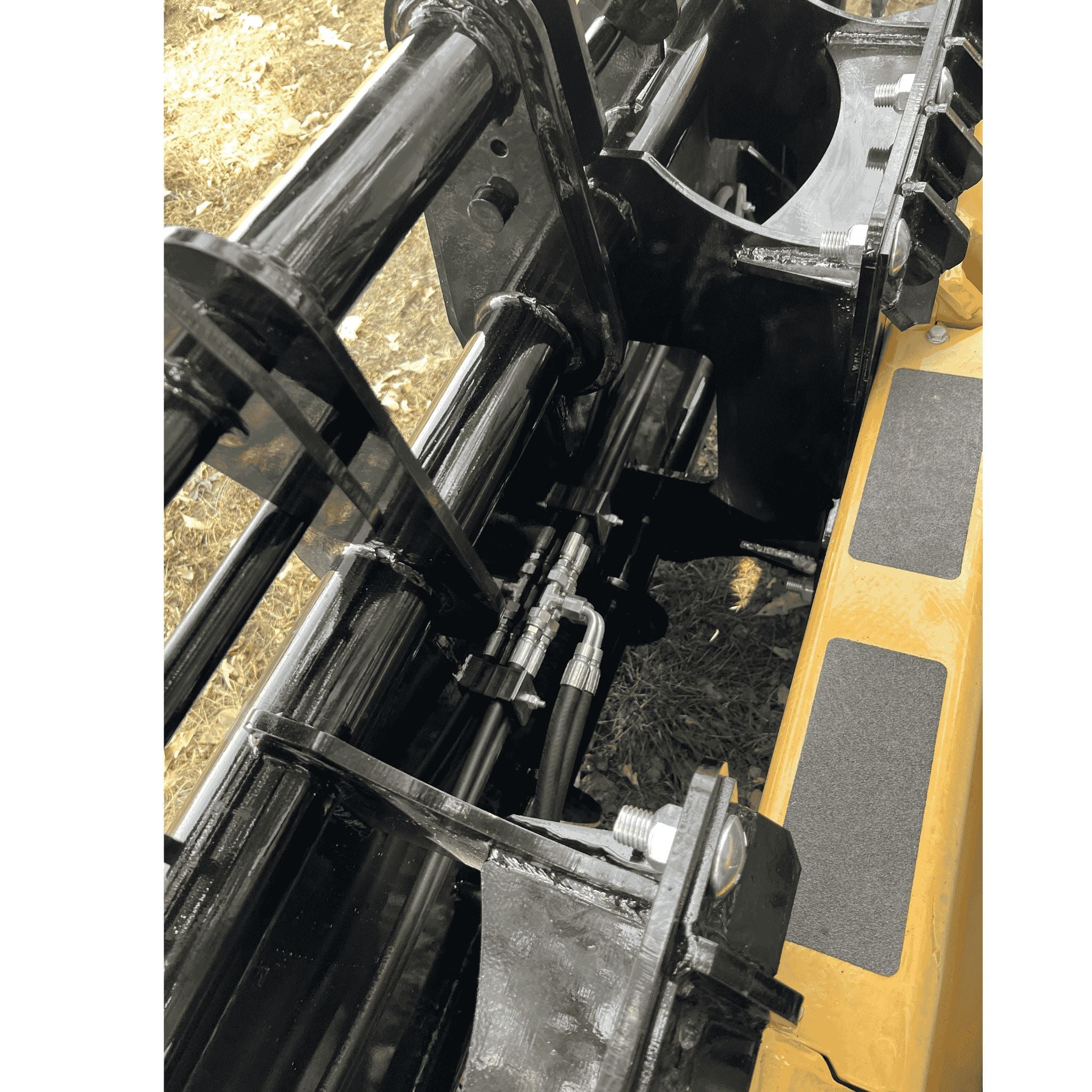

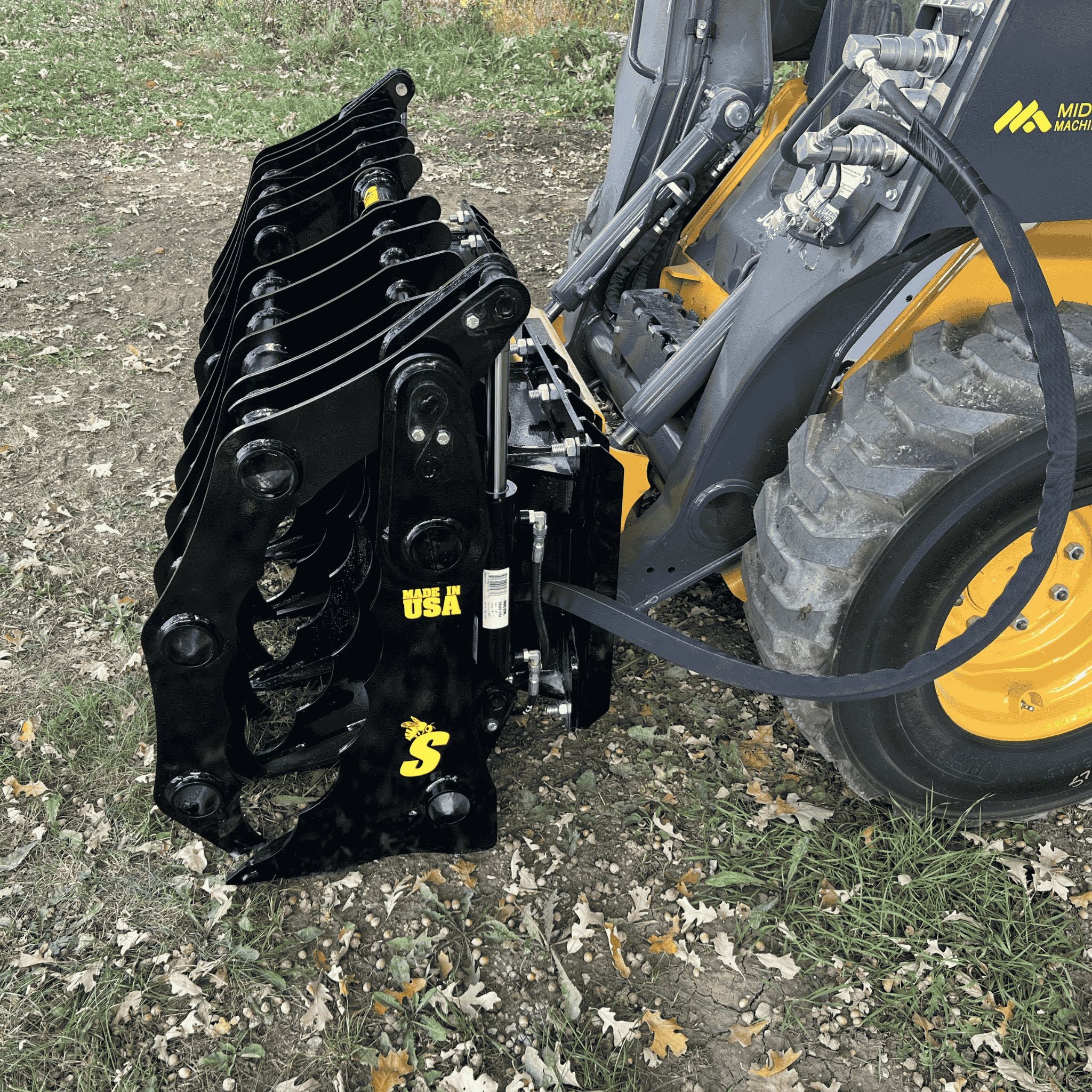

Most grapples have welded mounts, locking you into one machine type. The Stinger CG Series features an Interchangeable Bolt-On Mount System. Whether you run a Skid Steer (SSQA) today or a John Deere Tractor (JD 400/500) tomorrow, this grapple adapts to your fleet without needing a welder. Built with AR200 Abrasion Resistant Steel, it offers superior wear life compared to standard farm grapples.
⚙️ Technical Specifications
Steel Grade: AR200 (Abrasion Resistant)

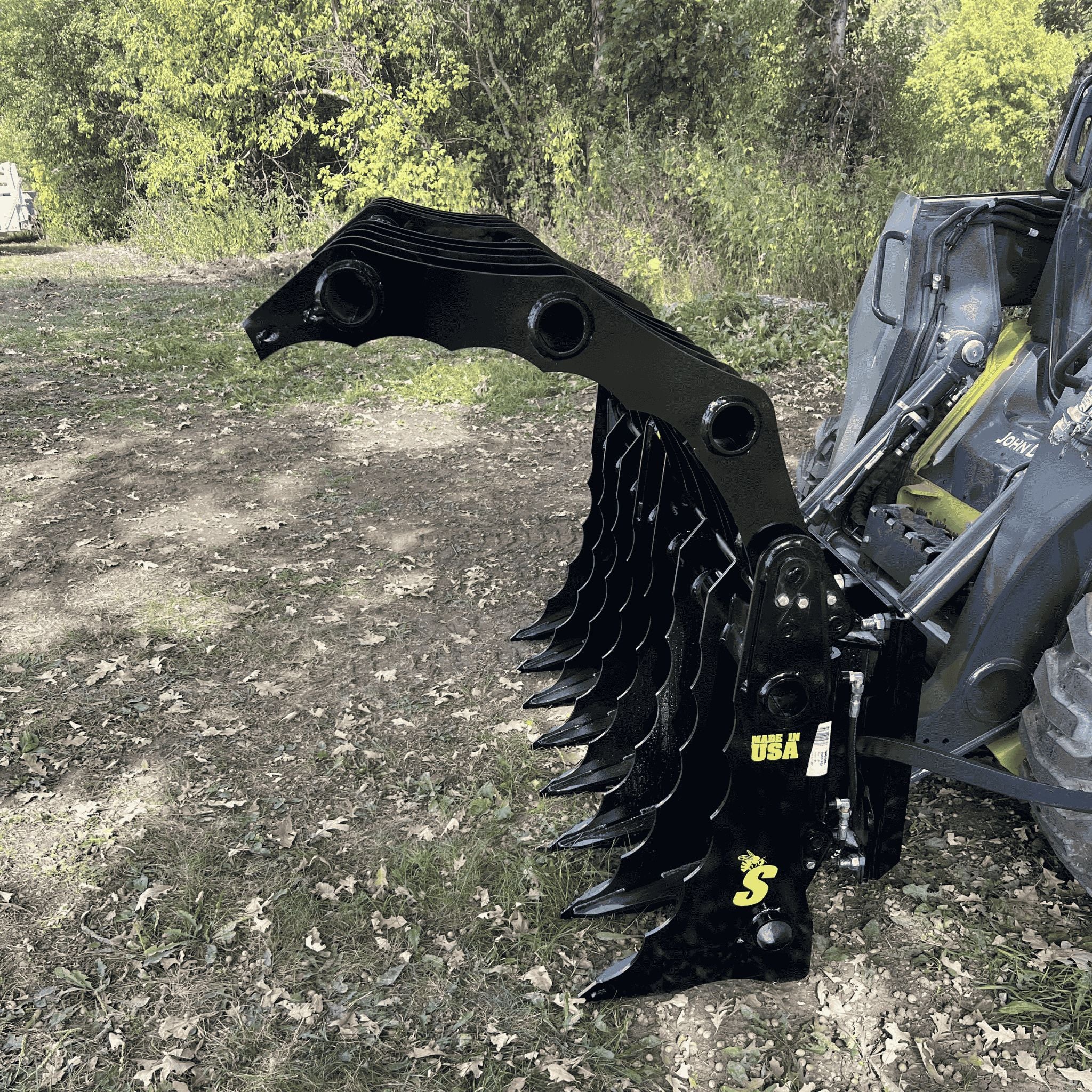

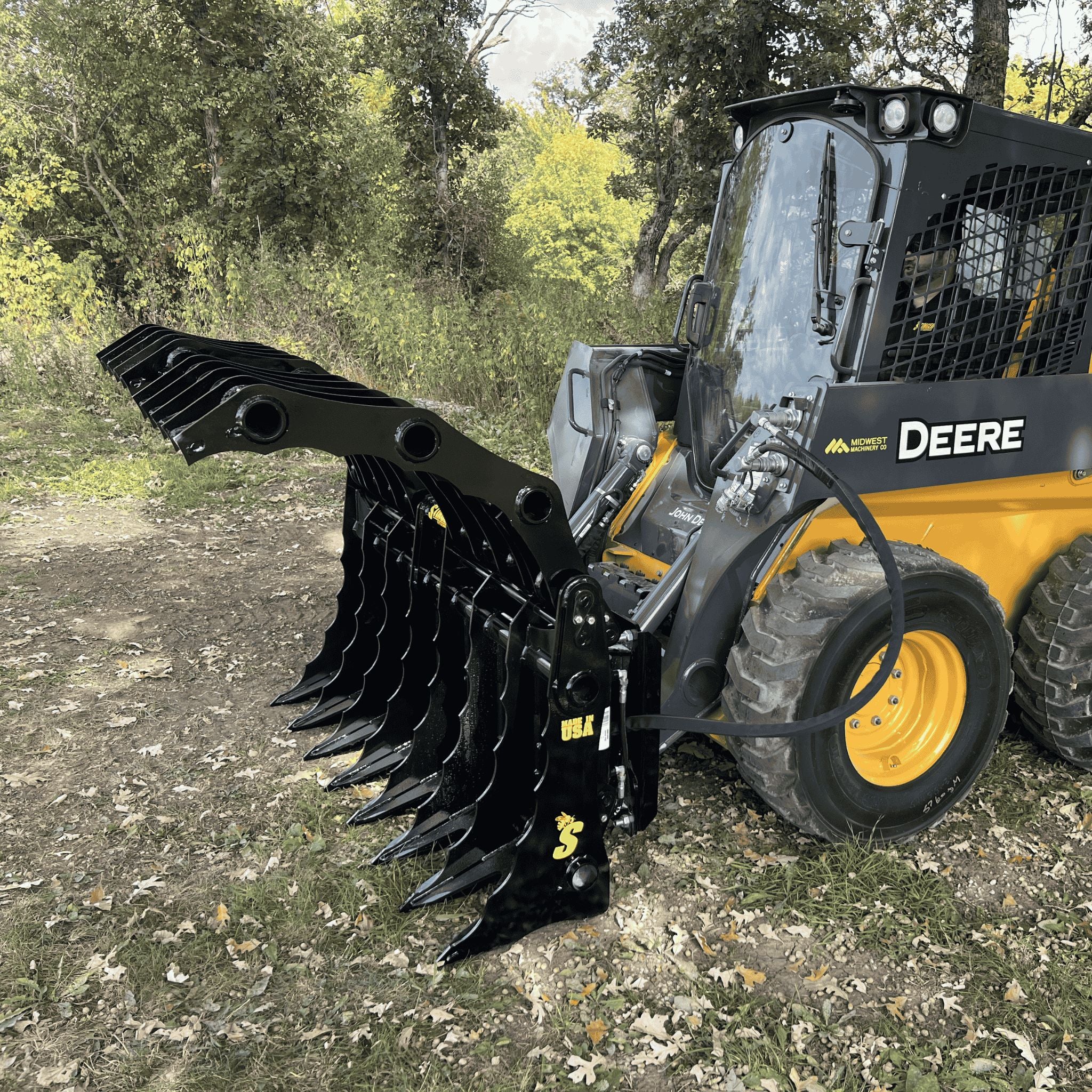

Grapple Opening: 46 Inches
Tine Spacing: 9 Inches

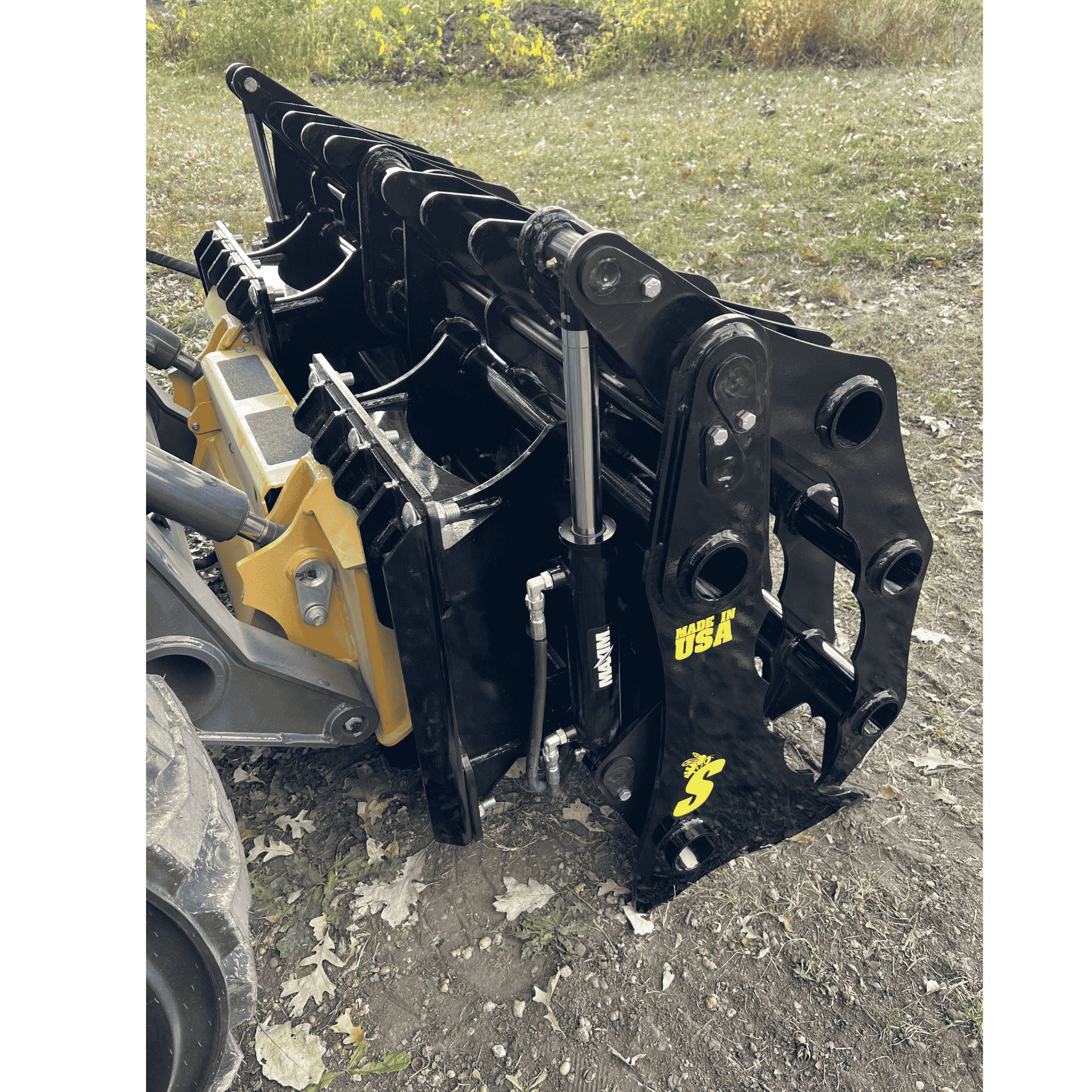

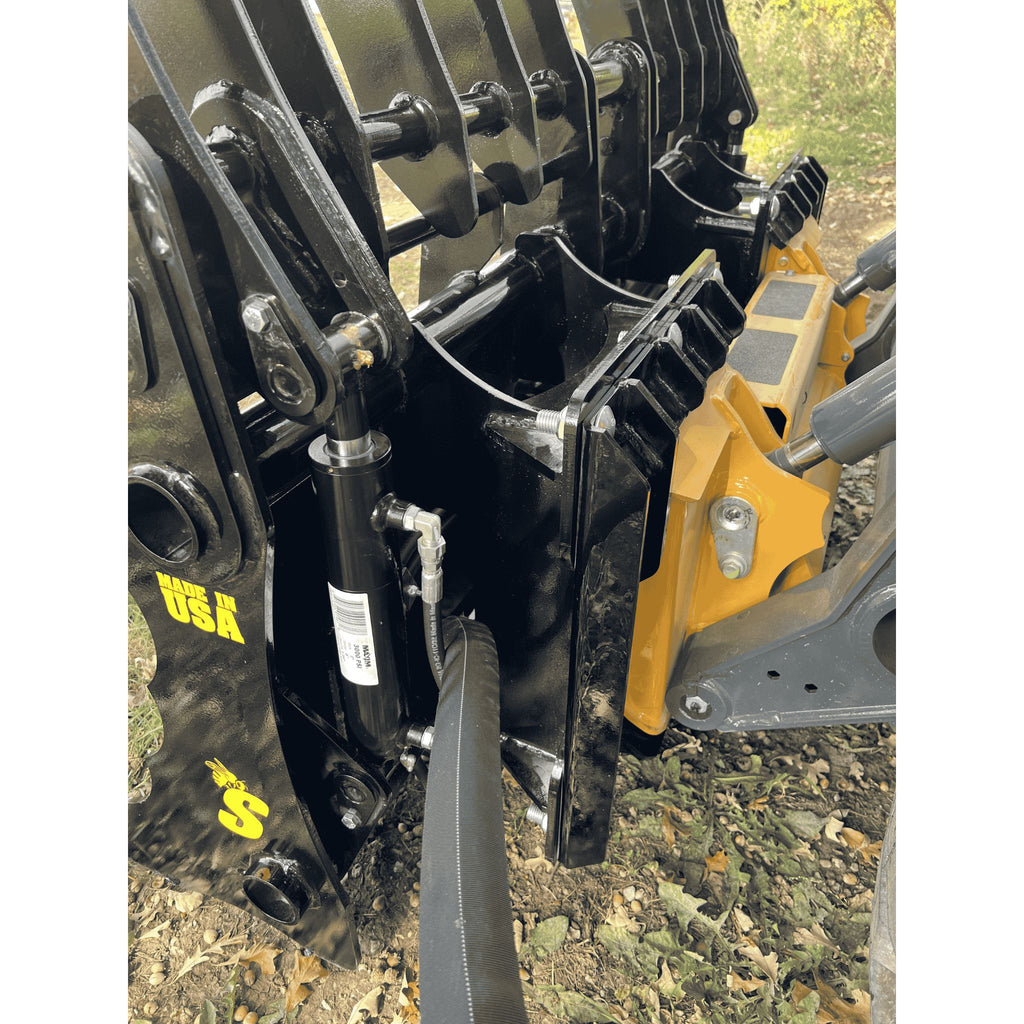

Cylinders: Twin 2" x 8" (3,000 PSI)
Mount Interface: Bolt-On (Interchangeable)
Warranty: 1-Year Structural
⚠️ Setup Requirement: Plug & Play
Hydraulics: Uses Standard Flow auxiliary hydraulics. Includes 1/2" Flat-Face Couplers (ISO 16028).
No Case Drain required.
Note: This attachment is rated for 50-100 HP. Using it on machines exceeding 100 HP may void the warranty.
✅ Machine Compatibility
1. Power Requirement:
Designed for machines with 50 – 100 HP.
2. Mount Options (Select One):
Universal Skid Steer (SSQA): Fits Bobcat, Kubota SVL, CAT D-Series.
John Deere Hook & Pin: Fits JD 400/500 Series Loaders.
3. Weight Check:
Unit weighs 870–1,050 lbs. Ensure your loader has a tipping load greater than 2,500 lbs for stability.
Additional Specifications
| Mount Interface | Universal Skid Steer |
| Warranty | 1-Year Structural |
| Max Operating Pressure | 3000 PSI |
| Shipping Dimensions (LxWxH) | 48x66x40 |
