Description

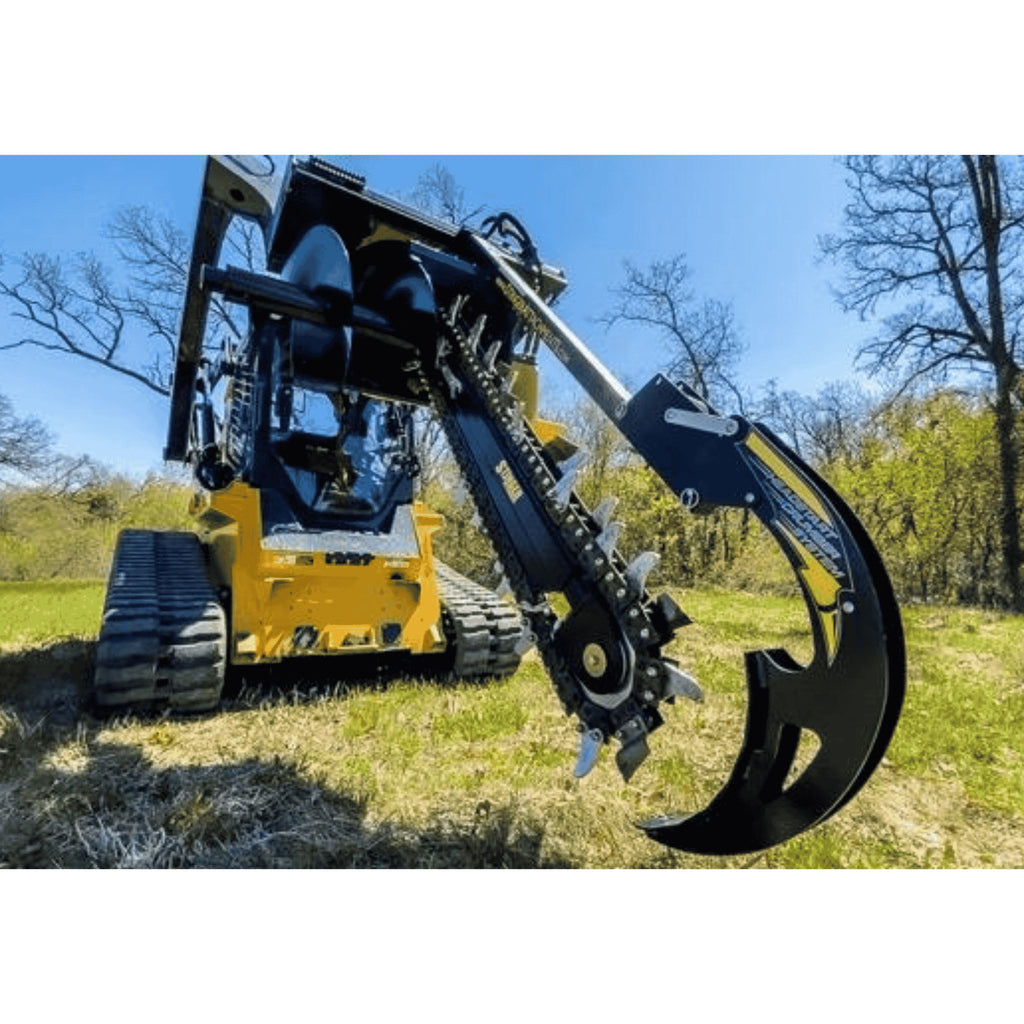

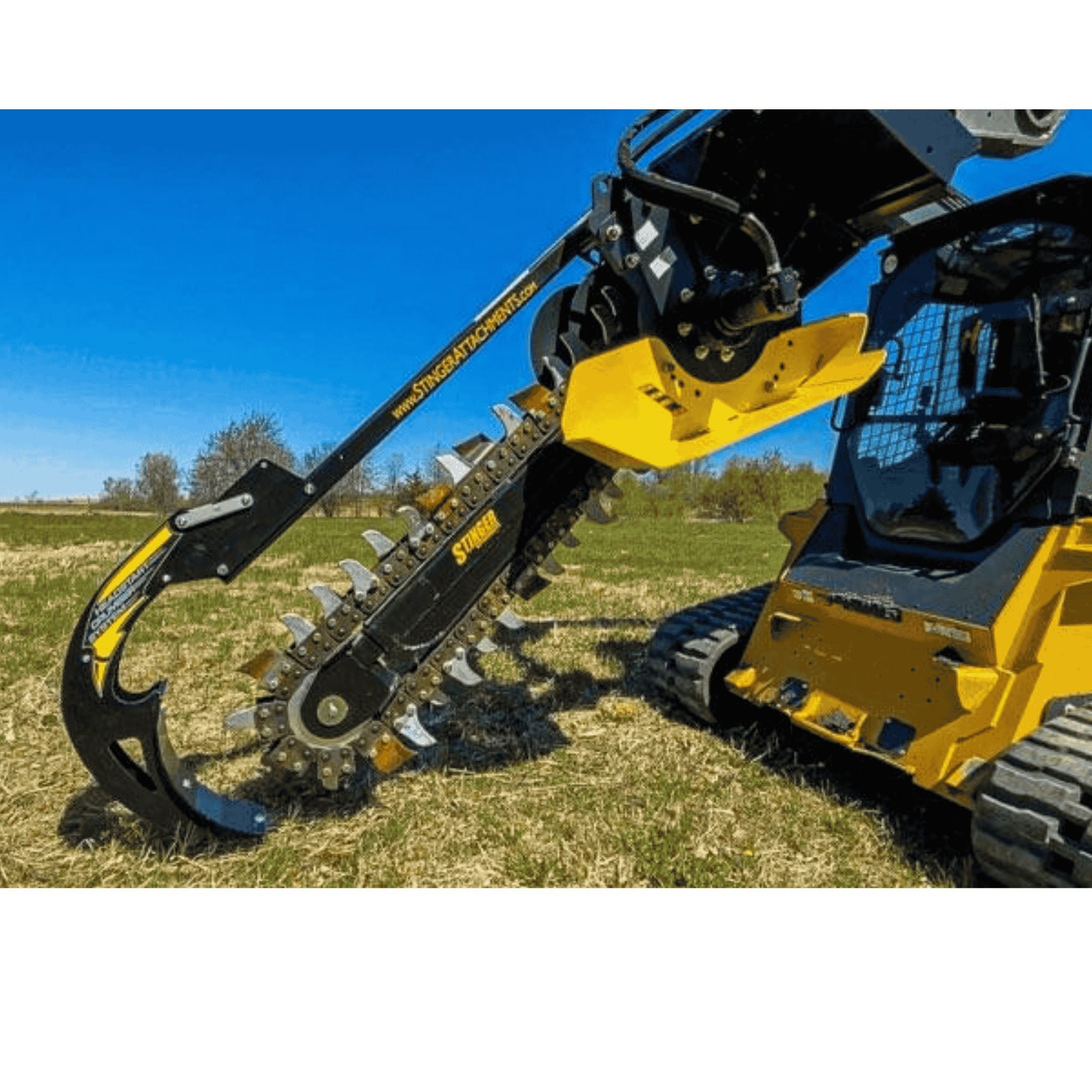

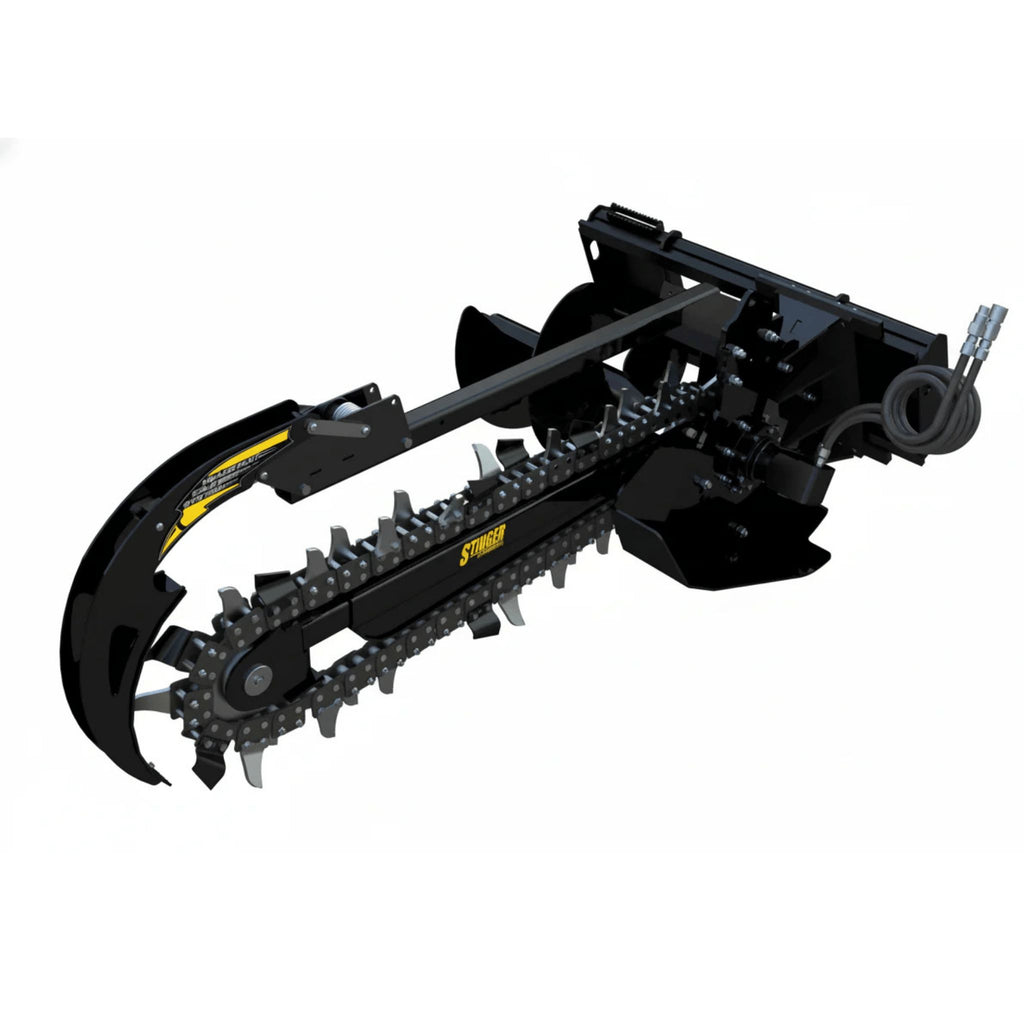

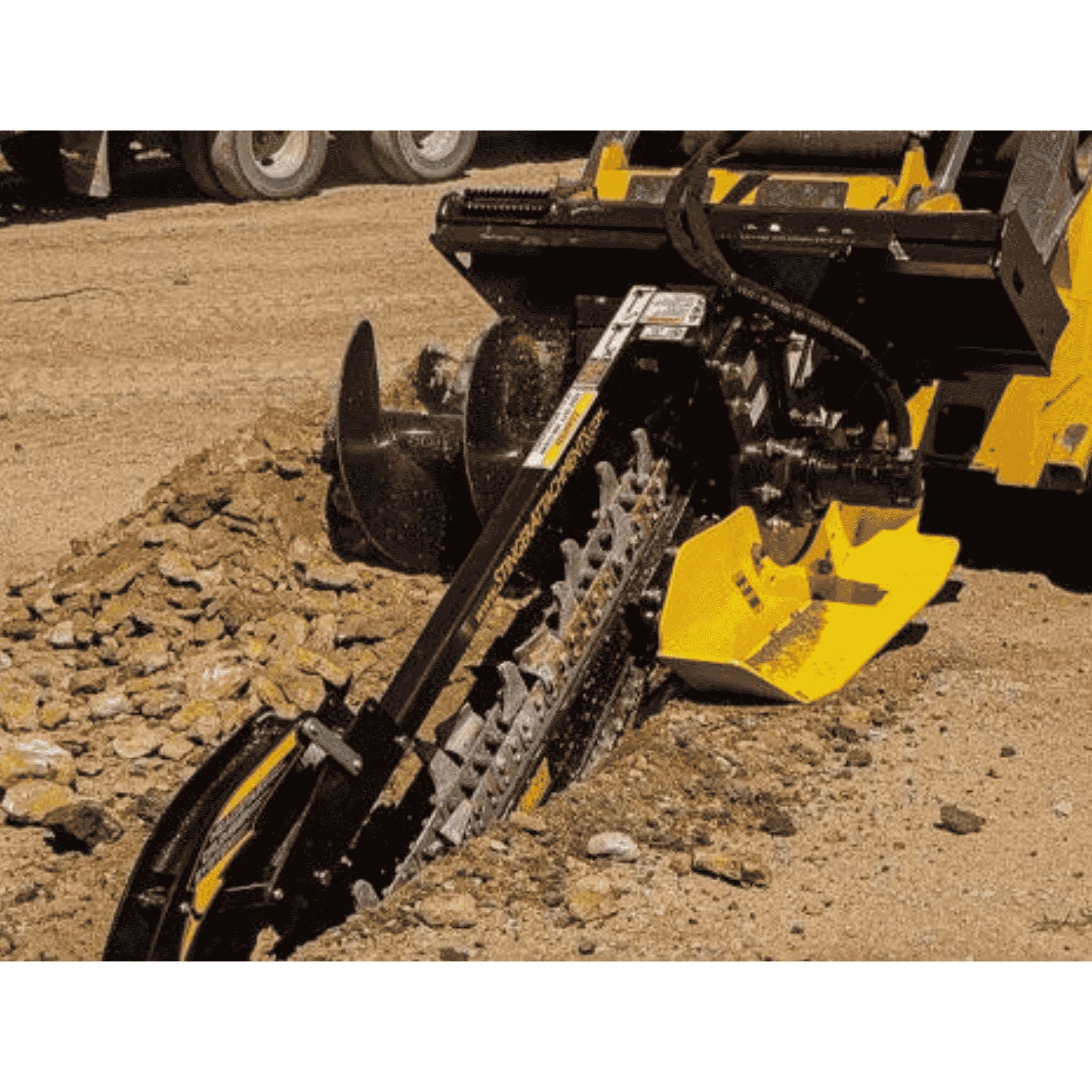

Commercial Grade Power: The Stinger Bigfoot XD High Flow Series is built for one thing: maximum production. Powered by a massive 6K Bell Series Eaton Motor, this trencher utilizes the full hydraulic potential of High Flow track loaders (28-45 GPM) to cut through rock, frost, and compacted clay up to 5 feet deep.
Operator Efficiency: Even at this size, Stinger prioritizes the operator. The Headstart Crumber System allows the trench cleaner to engage without you leaving the cab. The Visible Skid Foot ensures you are hitting your target depth—whether that's 48" for water mains or 60" for geothermal loops—without needing a spotter.
⚙️ Technical Specifications
Model Options: XD 1200 HF (4ft) or XD 1500 HF (5ft)
Required Flow: 28 - 45 GPM (High Flow)
Motor: Eaton 6K Bell Series (67 HP Continuous)
Max Pressure: 3500 PSI @ 34 GPM
Crumber: Headstart System (Automatic Start)
Warranty: 5-Year Gearbox / 3-Year Motor
⚠️ Critical: HIGH FLOW ONLY
Requirement: This attachment requires a machine with High Flow Hydraulics (28+ GPM).
Do not order this model for a Standard Flow machine. It will stall under load. If your machine flows under 28 GPM, please see the "Standard Flow" listing.
✅ High Output Chain Guide
1. Combo Chain (Cup + Tungsten):
The standard for High Flow. A mix of cup teeth for bulk removal and tungsten teeth for fracturing rocks and roots. (Recommended for 90% of jobs).
2. Diggatac Chain (Full Tungsten):
Aggressive rock teeth for hard-packed shale, asphalt, concrete, and deep frost.
Additional Specifications
| Mount Interface | Universal Skid Steer |
| Warranty | 5-Year Gearbox / 3-Year Motor |
| Required Flow Rate | 28 - 45 GPM |
| Max Operating Pressure | 3500 PSI |
| Shipping Dimensions (LxWxH) | 100x48x31 |
