Description
The "Down the Hole" Drive
Stinger Attachments redefines drilling with the DSS Series. Unlike bulky drives that hang up on the surface, Stinger’s Compact Planetary Gearbox is engineered to fit inside the auger hole. This allows you to drill deeper and cleaner without the housing binding against the sidewalls.
Bulletproof Internals
Powered by a premium Eaton Hydraulic Motor, these drives eliminate bulky valve blocks to reduce leak points. The 2-Piece Shaft Design offers massive side-load capacity, ensuring the shaft stays locked in place even when prying through rocks. This durability is backed by an industry-leading 5-Year Gearbox Warranty and a Lifetime Shaft Pull-Out Warranty.

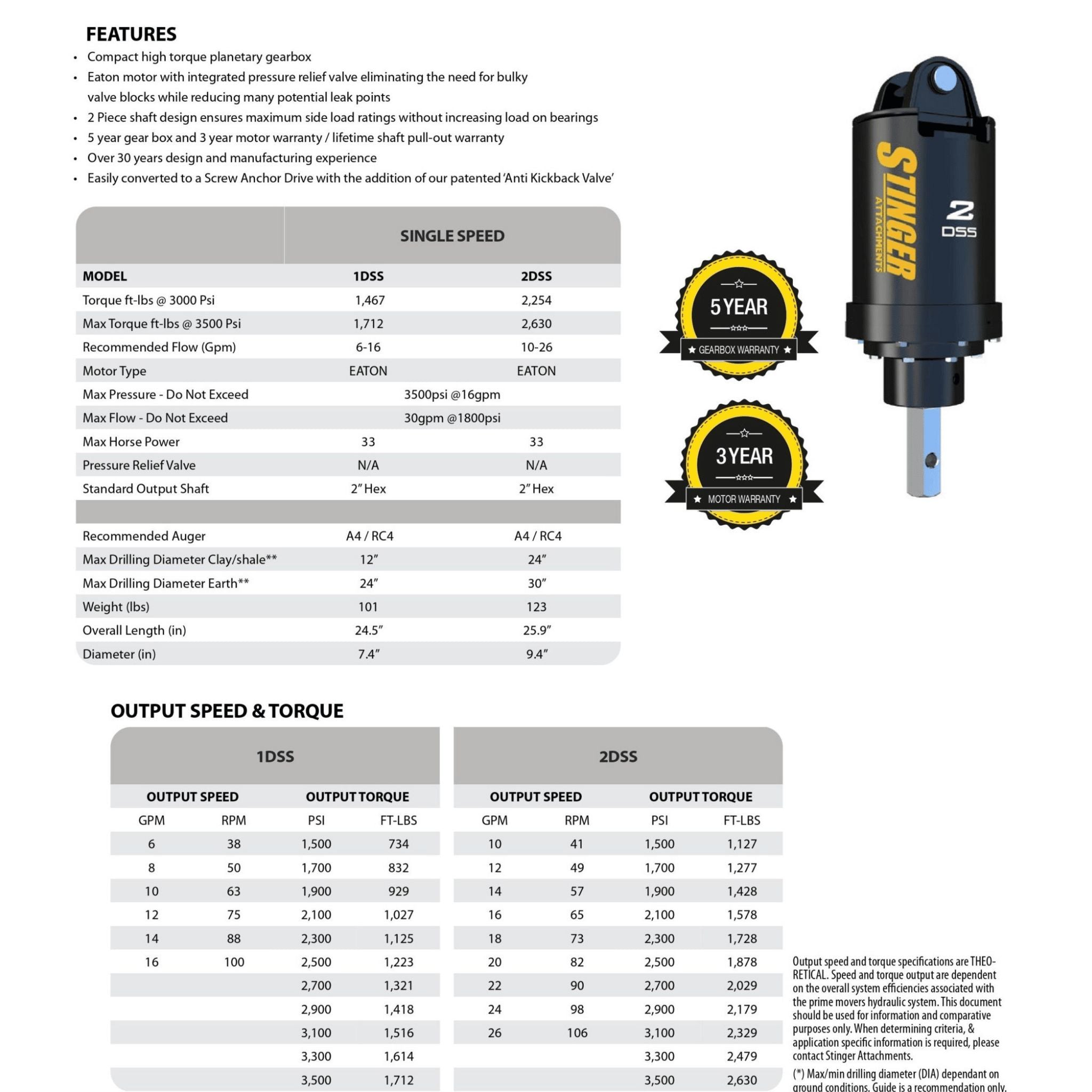

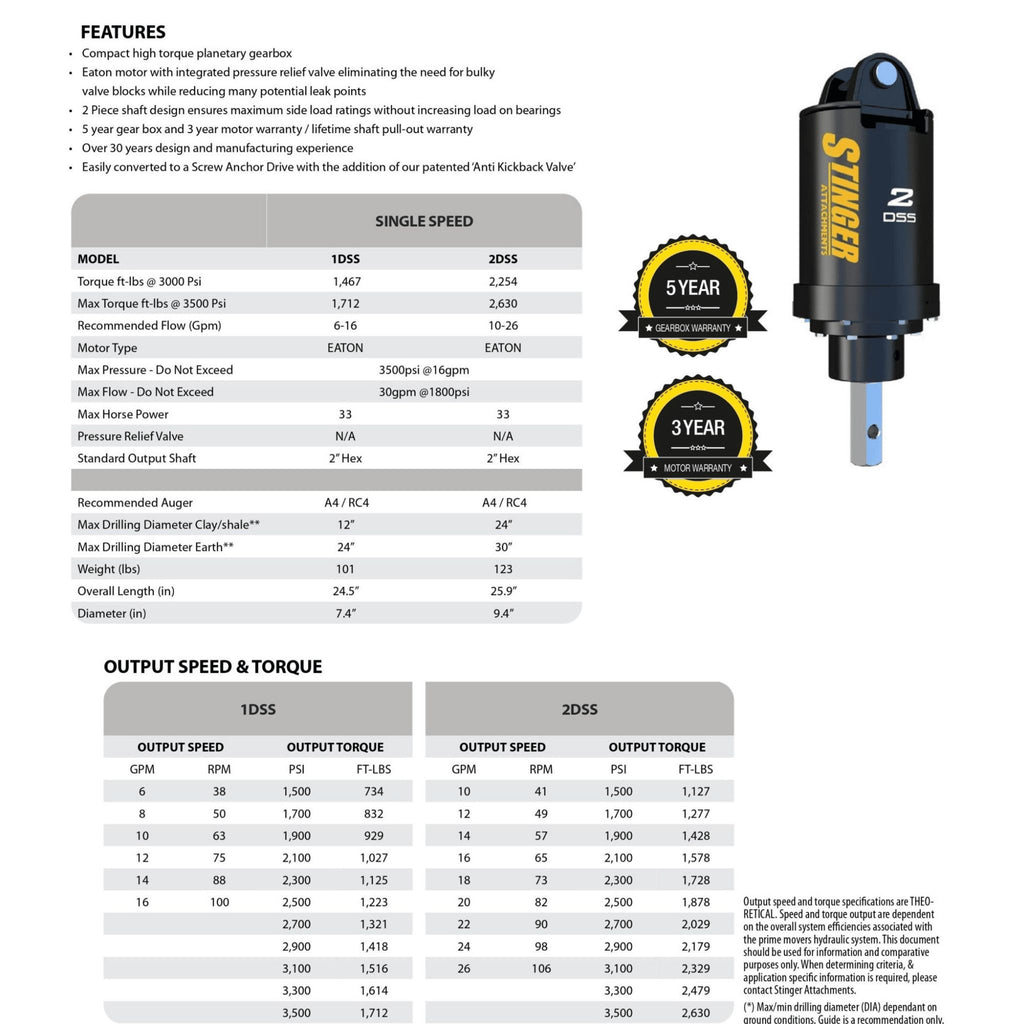

⚙️ Technical Specifications
Motor: Eaton Hydraulic Motor
Output Shaft: 2-Inch Hexagon (Standard)
Gearbox Design: Planetary (Down-the-Hole)
Warranty (Gearbox): 5 Years
Warranty (Motor): 3 Years
Warranty (Shaft): Lifetime against Pull-Out

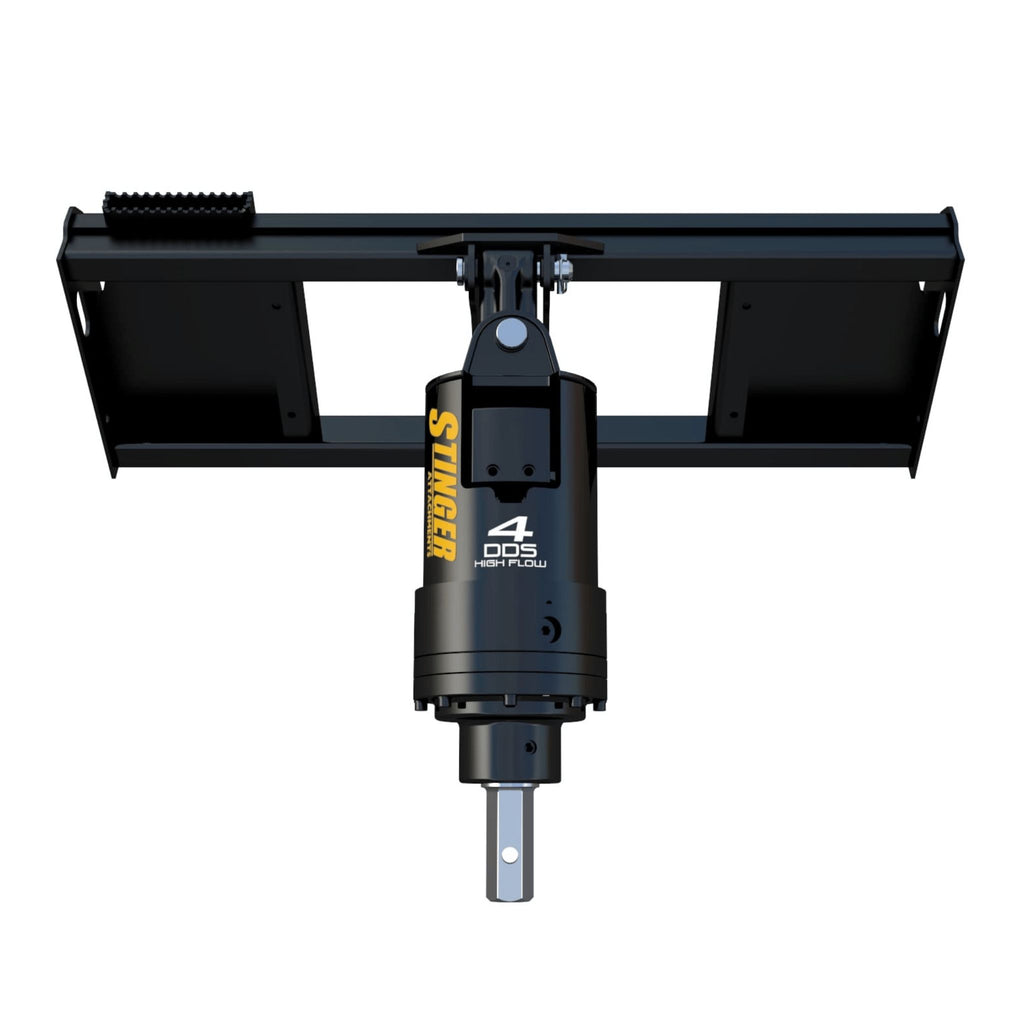

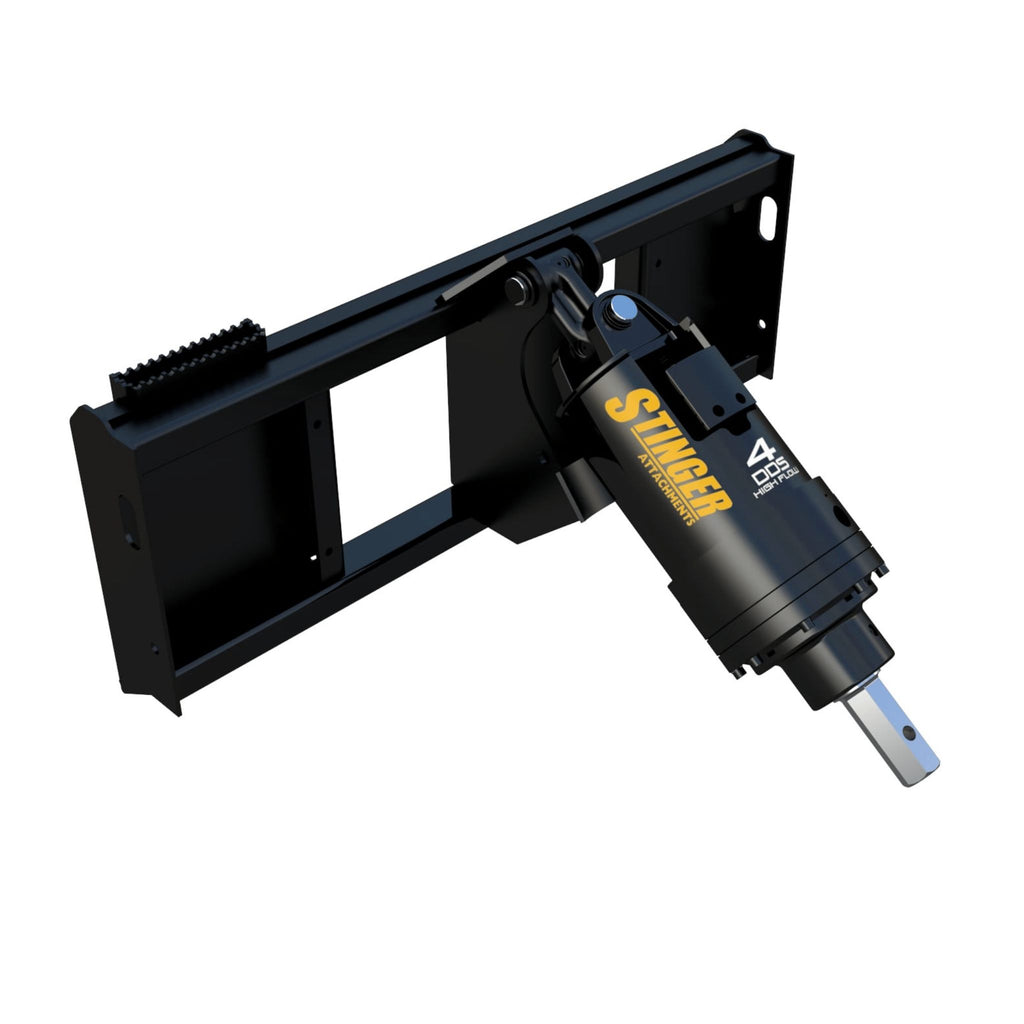

Mount Included: Universal Skid Steer Frame

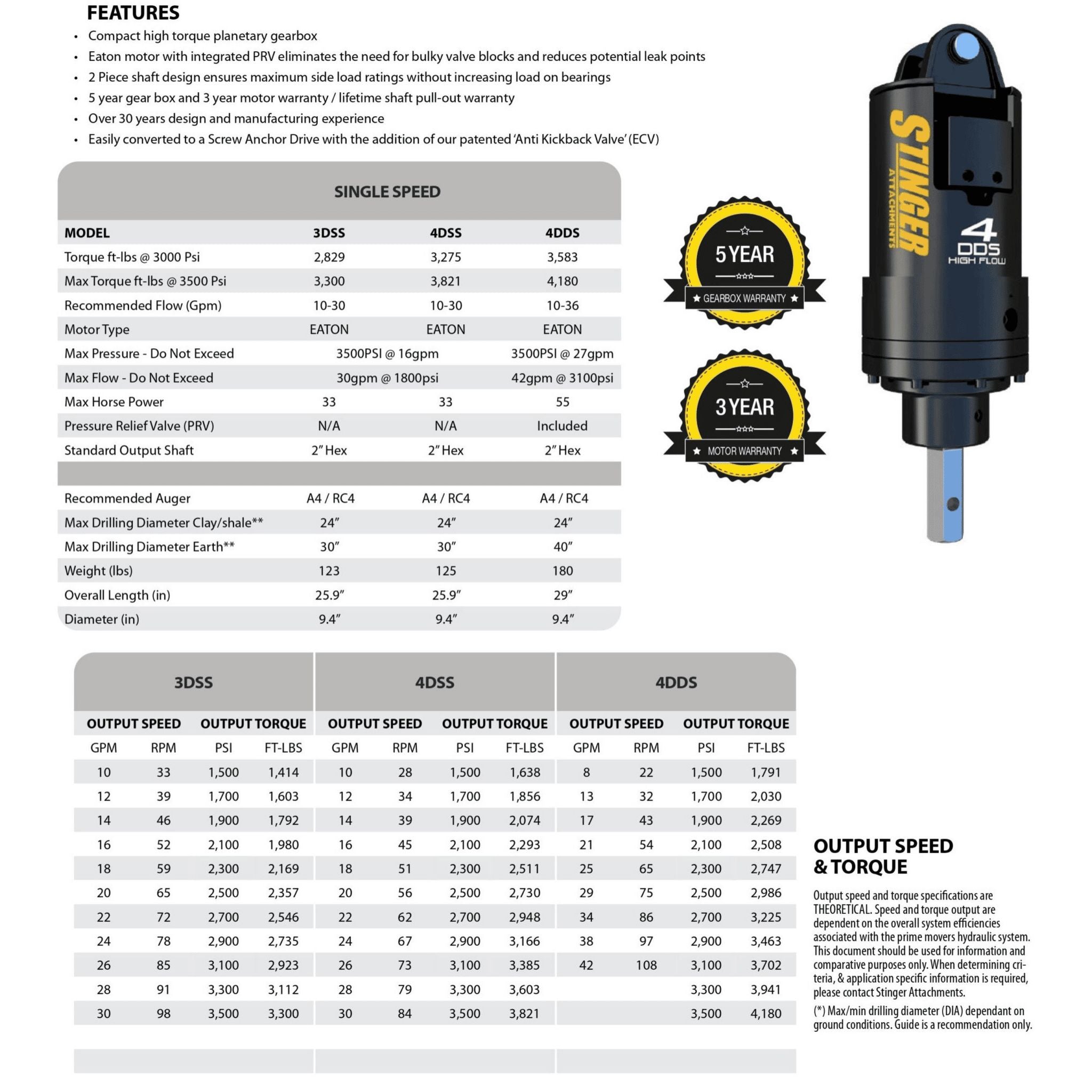

⚠️ Selection Guide: Flow Rate (GPM)
1DSS: 6-16 GPM (Mini Skids / Small Tractors)
2DSS: 10-26 GPM (Standard Skid Steers)
3DSS/4DSS: 10-30 GPM (Large Frame / High Torque)
4DDS: 10-36 GPM (Extreme Duty with Pressure Relief)
Check your machine's hydraulic flow rating before ordering to ensure maximum torque performance.
✅ Machine Compatibility
1. Mount Type:
Universal Quick Attach (SSQA). Fits standard skid steers.
2. Drilling Capacity (Earth):
1DSS: Up to 24" Diameter
2DSS - 4DSS: Up to 30" Diameter
4DDS: Up to 40" Diameter
Additional Specifications
| Mount Interface | Universal Skid Steer |
| Warranty | 5-Year Gearbox / 3-Year Motor |
| Required Flow Rate | 6 - 36 GPM |
| Max Operating Pressure | 3500 PSI |
| Shipping Dimensions (LxWxH) | 25x8x8 |
