Description
The Heavy-Duty Sweeper

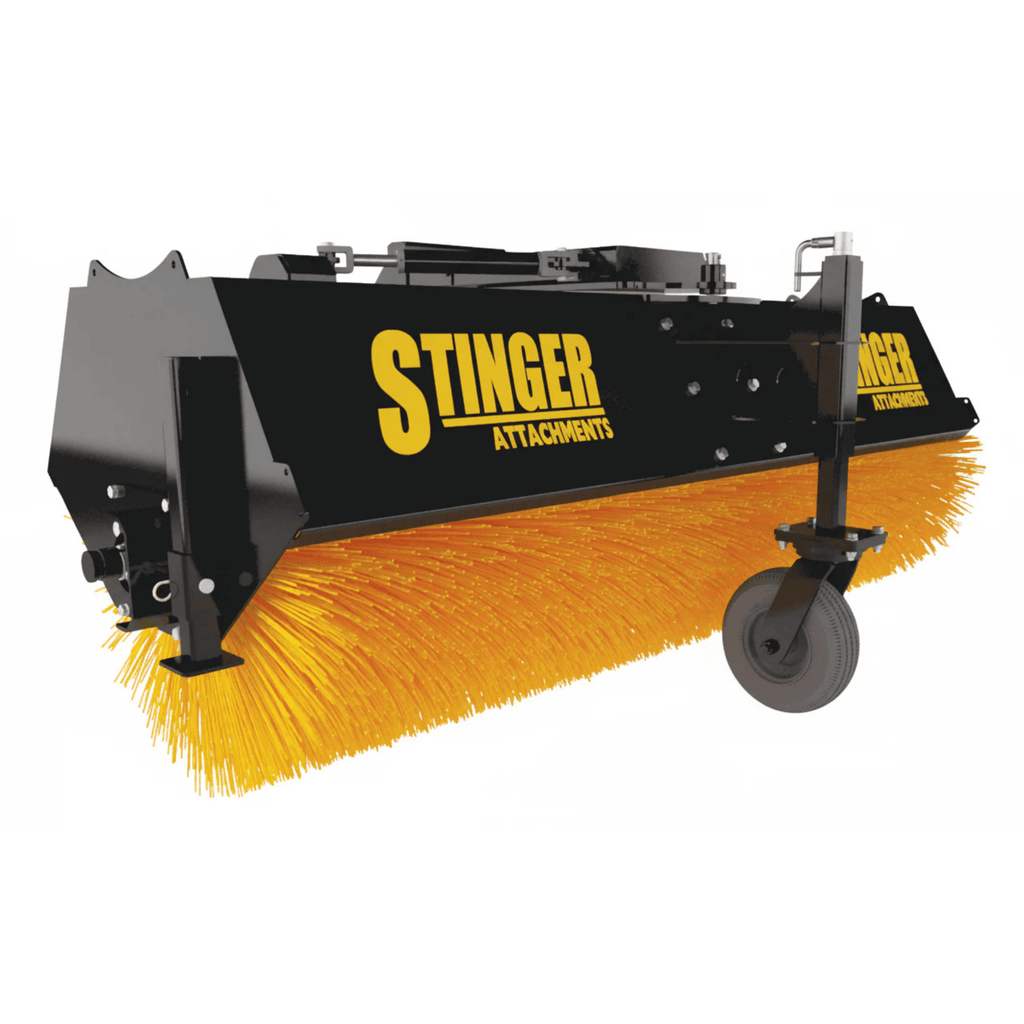

The Stinger Angle Broom is engineered for commercial cleanup, from construction sites to municipal streets. Unlike standard brooms that bounce over uneven terrain, the Stinger features a Floating Head Design that automatically contours to the ground, ensuring a clean sweep even on crowned roads or potholed driveways. Powered by a premium Eaton Hydraulic Motor, it delivers high-torque rotation to throw heavy debris.
Hybrid Bristle Advantage
Stop replacing bristles every season. Stinger equips every broom with a 50/50 Poly & Wire Wafer Mix. The wire bristles cut through packed mud and ice, while the poly bristles flick fine dust away. This combination lasts significantly longer than standard poly brooms.

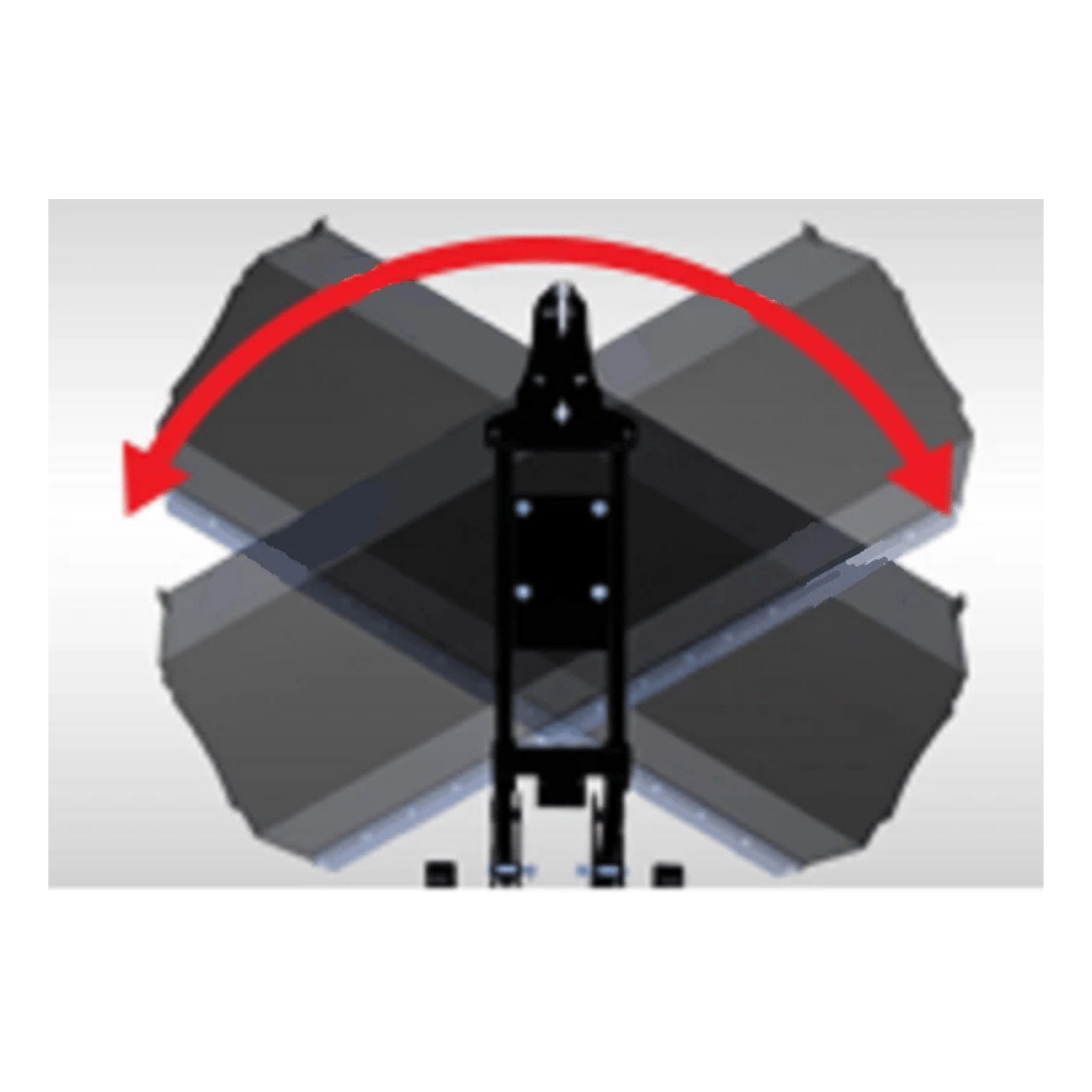

Available in Manual Angling (Pin Adjustment) or Hydraulic Angling (Cab Control).
⚙️ Technical Specifications
Bristle Type: 50/50 Poly & Wire Mix (Replaceable Wafers)
Hydraulic Motor: Eaton (High Torque)
Head Design: Floating Linkage
Parking: Fold-Away Storage Stands
Angling: Manual (Pin) or Hydraulic (Cylinder)
Optional Upgrade: Caster/Jockey Wheels (Turf Protection)
Warranty: 1-Year Structural
⚠️ Setup Requirement: Hydraulics
Standard Flow: Requires standard auxiliary flow. Includes 1/2" Flat-Face Couplers.
Hydraulic Angle Models: These require a way to divert flow to the angling cylinder. Ensure your machine has a 14-pin connector or secondary aux circuit, or select the manual angle version if you only have one aux circuit.
✅ Machine Compatibility
1. Mount Type:
Universal Quick Attach (SSQA). Fits standard skid steers and track loaders.
2. Size Recommendation:
72": Mid-Frame Skid Steers.
84": Large-Frame Track Loaders.
96": Large Hub Machines & Wheel Loaders.
Additional Specifications
| Mount Interface | Universal Skid Steer |
| Warranty | 1-Year Structural |
| Max Operating Pressure | 3000 PSI |
| Shipping Dimensions (LxWxH) | 77x82x47 |
