Sermac Cylinder Accessories Series

Sermac Cylinder Accessories Series

$0.00 CAD
$0.00 CAD
Sale Sold out

This Cylinder Accessories Series includes a comprehensive range of components designed specifically for the hydraulic cylinders in Sermac concrete pumps. These accessories support critical operations such as boom movement, piston control, and hydraulic sealing—ensuring smooth, efficient, and safe performance of Sermac’s pumping systems. Each accessory is engineered to meet the high demands of the concrete pumping environment, playing a vital role in maintaining operational integrity and ease of maintenance.

Key Features

  • Durable Materials: Made from high-strength steel, wear-resistant alloys, and robust polymers to withstand high pressures, mechanical loads, and harsh conditions.

  • Precision Fit: Machined to exact tolerances for seamless compatibility with Sermac’s hydraulic cylinder systems.

  • Advanced Sealing: Includes O-rings, U-cups, piston seals, rod seals, and wipers—engineered to retain hydraulic fluid, prevent contamination, and extend component life.

  • Secure Mounting: Accessories such as clevises, rod ends, and brackets ensure cylinders are firmly attached to boom structures or the main chassis.

  • Guiding Components: Includes bushings, wear rings, and guides to ensure proper alignment of moving parts and minimize wear.

  • Hydraulic Connectivity: Offers fittings, ports, and adapters for reliable connection to hydraulic lines.

Applications Within Sermac Concrete Pump Cylinders

  • Sealing pressurized hydraulic fluid within cylinder assemblies.

  • Guiding and supporting the movement of pistons and piston rods.

  • Providing mounting interfaces to chassis or boom assemblies.

  • Connecting hydraulic hoses or lines for fluid power transmission.

  • Enhancing protection and longevity of cylinder internals.

  • Enabling maintenance, servicing, or replacement of internal parts.

Representative Components (Visual Identification)

Component Description
Hydraulic Manifold Block A large silver block with multiple ports and mounting holes—used to control and distribute hydraulic fluid within the cylinder circuit.
Threaded Cylinder Rod End Silver cylindrical part with internal components—likely a piston rod assembly or rod end fitting with possible integrated valving.
Cylinder Sleeves Plain silver tubes of varying lengths—used as liners within the main barrel to provide a hardened wear surface.
Specialized Cylinder Head A complex silver component with internal bores—possibly an end cap or gland with built-in seals or ports.
Spherical Rod End Bearing Black component with a spherical center and mounting provisions—used to allow angular movement of the cylinder rod.
White and Silver Actuator A compact assembly featuring a rod and mounts—likely a small hydraulic cylinder or actuator for secondary boom or auxiliary function.

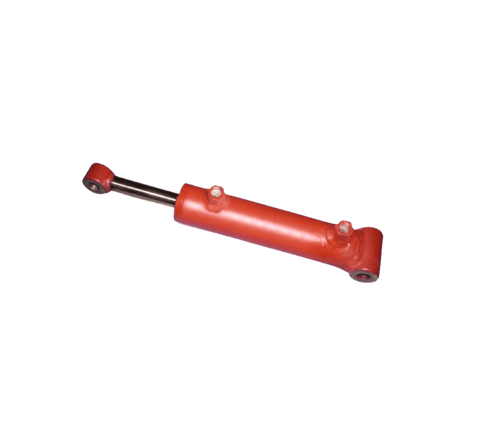

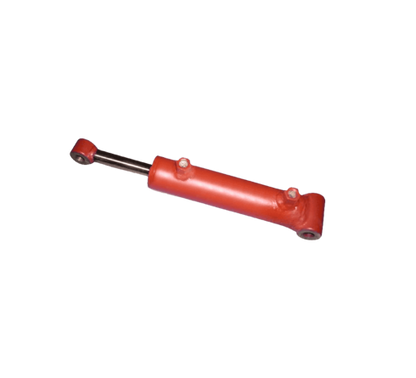

Red Hydraulic Cylinder A miniature hydraulic cylinder—could serve in locking mechanisms or smaller actuations within the pump system.

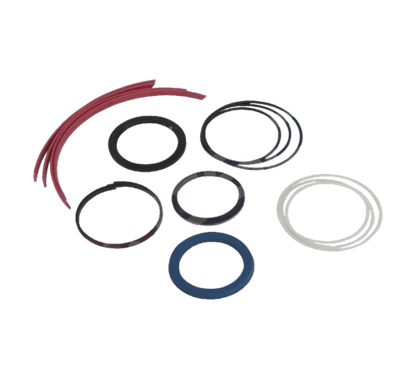

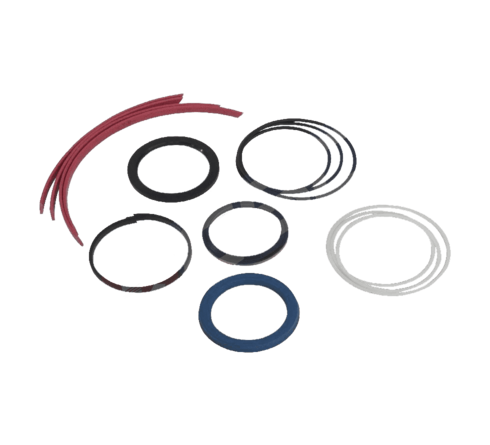

Seal Kit A collection of O-rings, U-cups, and wipers in various colors—designed for comprehensive servicing of Sermac hydraulic cylinders.

Identification & Selection Guidelines

To ensure proper selection of cylinder accessories for your Sermac concrete pump, follow these steps:

  1. Confirm the Sermac model and serial number of your pump.

  2. Refer to the official Sermac parts manual for exact part numbers and specifications.

  3. Inspect existing components for any stamped or printed part numbers.

  4. Identify the cylinder location (e.g., boom cylinder, hopper cylinder, main pump cylinder).

  5. Measure critical dimensions (e.g., bore size, rod diameter, seal groove sizes) or provide detailed photos when contacting a supplier.
