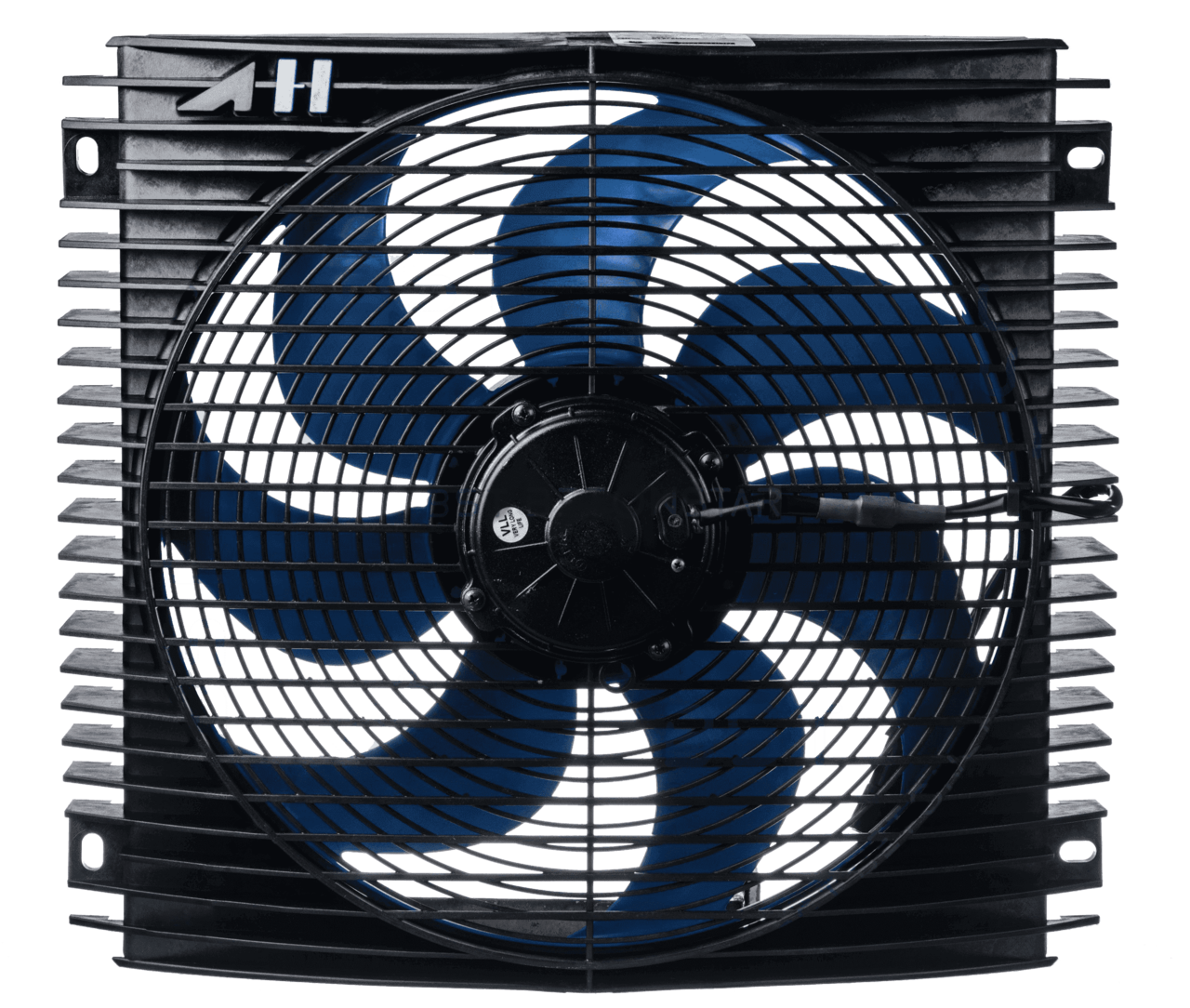

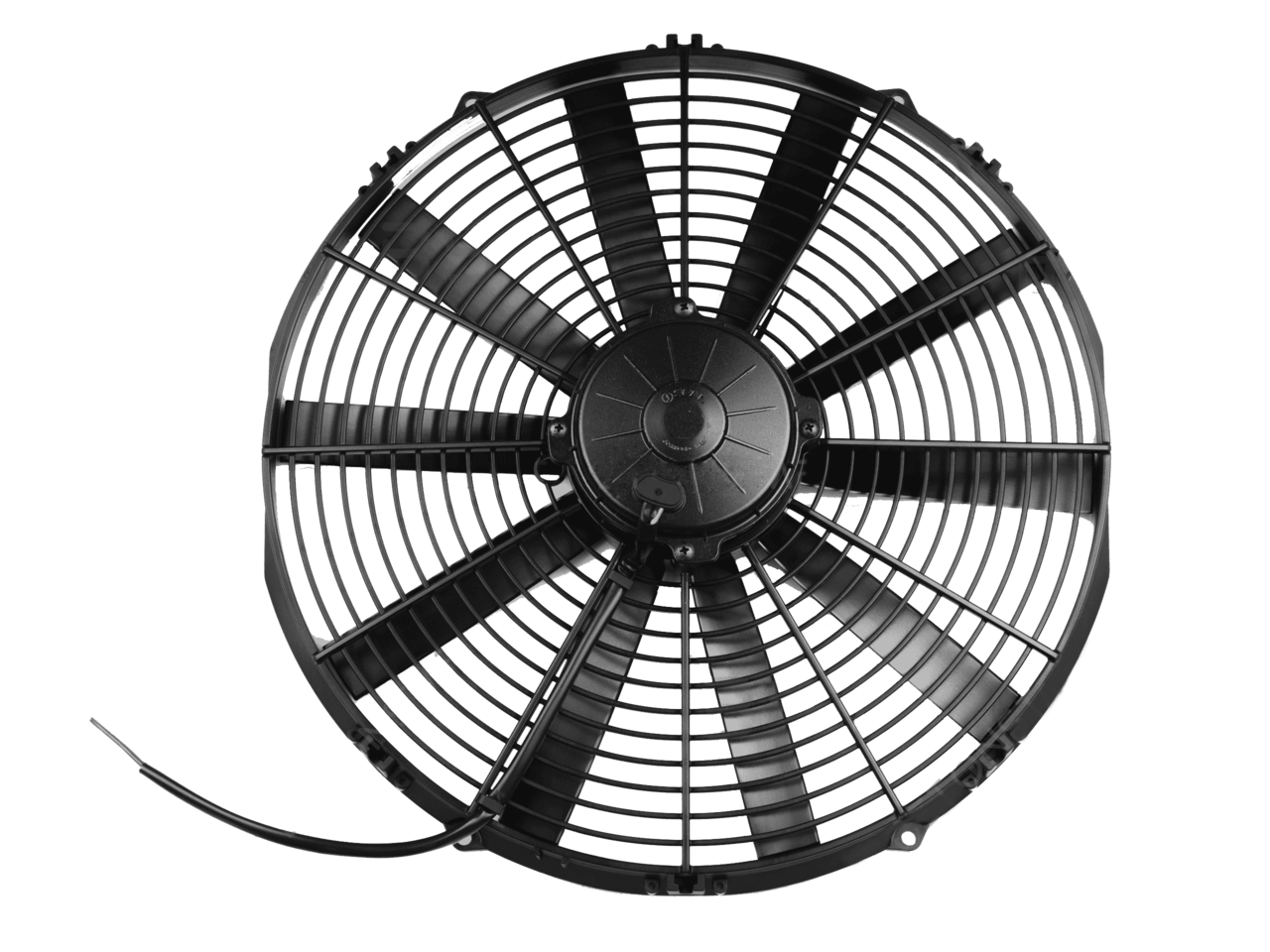

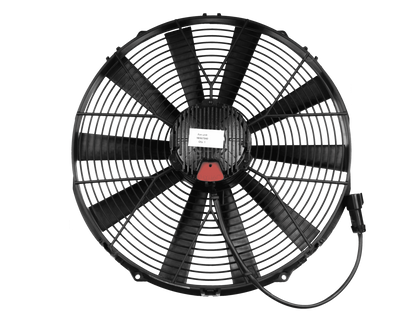

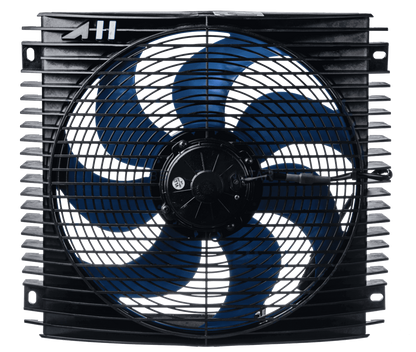

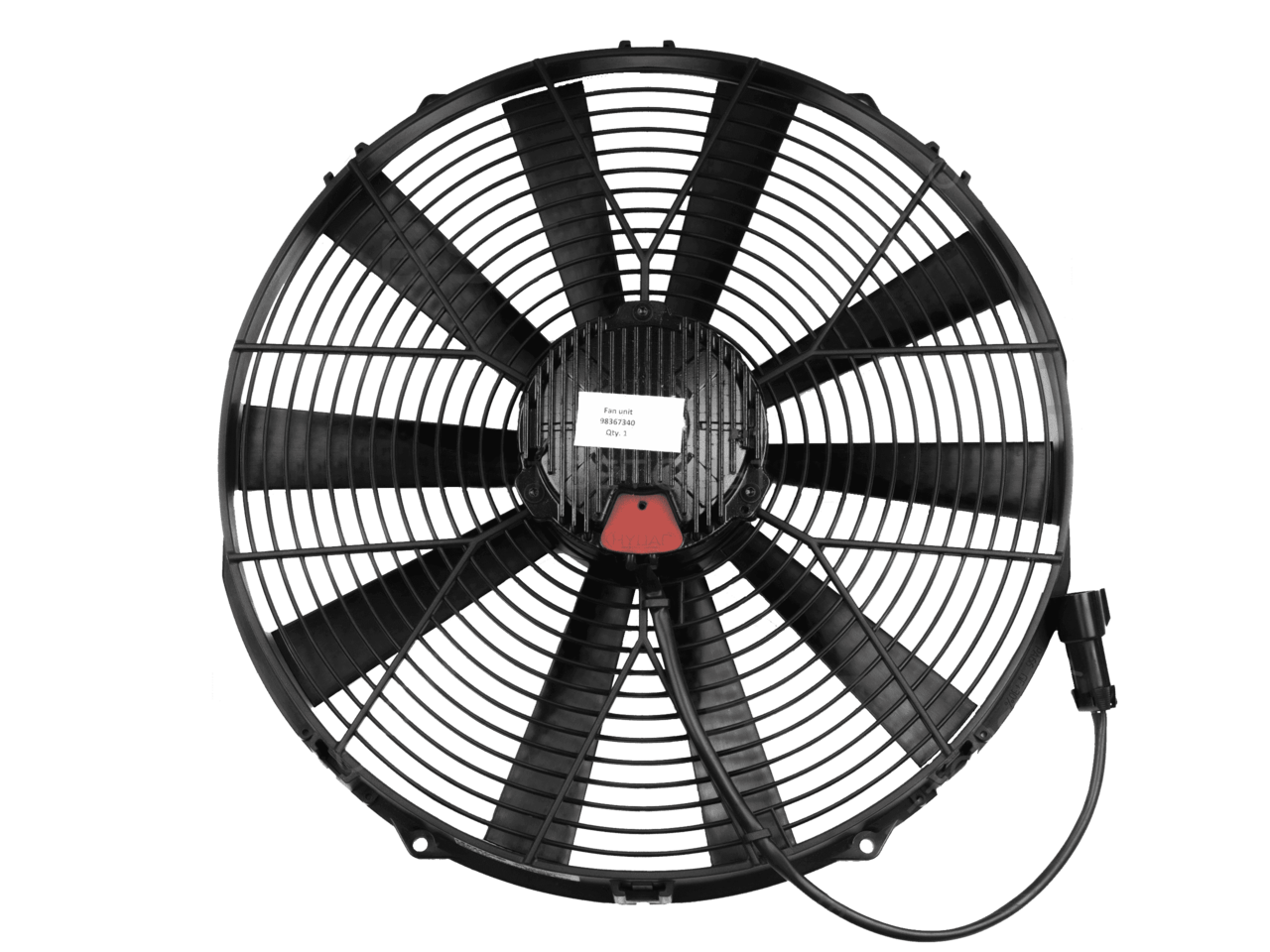

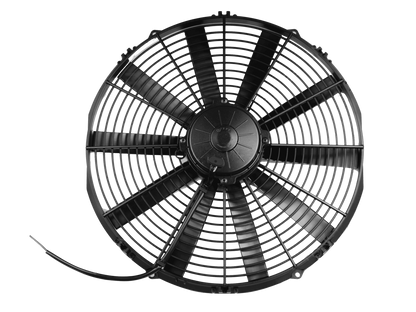

This high-performance electric thermo fan is engineered for use in Schwing concrete pumps mounted on trucks. Designed to enhance cooling efficiency for hydraulic oil coolers and radiators, it ensures consistent operating temperatures during continuous pumping and boom operation.
Its electric motor-driven design allows for independent operation from engine speed, providing optimal cooling only when needed. This reduces engine load, improves fuel efficiency, and extends system lifespan—especially during long idle or high-demand periods on the job site.
Key Features:
Heavy-Duty 16” Diameter Fan Suitable for high-demand cooling tasks in industrial and mobile applications.
High Airflow Capacity – 2160 CFM Delivers strong airflow to maintain proper cooling of hydraulic systems and engines during peak operation.
Puller Configuration Mounted behind the radiator or cooler, it pulls air through the core—offering more efficient airflow compared to pusher fans.
Electric Motor Powered (12V or 24V) Compatible with most Schwing truck electrical systems. Provides reliable performance with low power draw.
Thermostatically Controlled Operates only when required, based on coolant or hydraulic oil temperature. Ensures efficient temperature management.
Standard 93mm Thickness Compact enough for tight engine compartments and equipment enclosures.
Blade and Shroud Design Optimized fan blade geometry for maximum airflow; shroud integration improves cooling efficiency across the entire radiator core.
Durable Construction Built for rugged jobsite conditions with high-temp resistant components and sealed motor housings.
Typical Applications:
Primary Cooling Fan for Hydraulic Oil Coolers Critical for maintaining hydraulic system temperatures in Schwing pumps.
Supplemental Engine Radiator Fan Supports primary cooling, especially in hot climates or long-duration pumping operations.
Cooling for Auxiliary Heat Exchangers Suitable for use with transmission, gear oil, or intercooler systems where applicable.
Specifications:
Feature
Value
Fan Diameter
16 inches
Airflow (CFM)
2160 CFM
Configuration
Puller
Voltage
12V or 24V (model-dependent)
Thickness
93mm (Standard)
Mounting
Through-core or bracket mount
Compatibility
Suits PWR-style radiators / coolers
Control
Thermostatic (sensor-based)
Note:
Ensure compatibility with your specific Schwing pump model by checking cooler dimensions and electrical system voltage. For best results, consult your Schwing parts catalog or service manual, or contact your authorized dealer with the pump serial number.
