Schwing Main Pumping Cylinder Accessories

Product Category: Main Pumping Cylinder Accessories
Brand Compatibility: Schwing (OEM or equivalent-grade components)

Product Description:
Main pumping cylinder accessories are essential support components for the main pumping cylinders in Schwing concrete pumps. These cylinders are the core of the concrete pumping system, drawing and displacing concrete into the delivery line. The accessories ensure reliable operation, proper sealing, structural alignment, and long service life of these high-performance hydraulic and mechanical systems.

These parts include seals, guide rings, bushings, flanges, wear plates, rods, and more—each designed to support specific functions like sealing, guiding, or connecting the cylinder's hydraulic and concrete-handling components.

Key Features:

• Durable, Abrasion-Resistant Materials:
  Made from robust steel alloys, bronze, wear-resistant polymers (e.g., polyurethane), and elastomers to withstand the harsh concrete environment and high hydraulic pressures.

• Precision-Machined for Perfect Fit:
  Components are engineered to tight tolerances to ensure compatibility with Schwing cylinder assemblies.

• Sealing Efficiency:
  Includes wear rings, O-rings, and hydraulic seals to prevent leakage of both concrete slurry and hydraulic fluid.

• Wear and Impact Resistance:
  Critical components are designed or coated to resist abrasion, reduce downtime, and extend maintenance intervals.

• Smooth Piston Motion & Support:

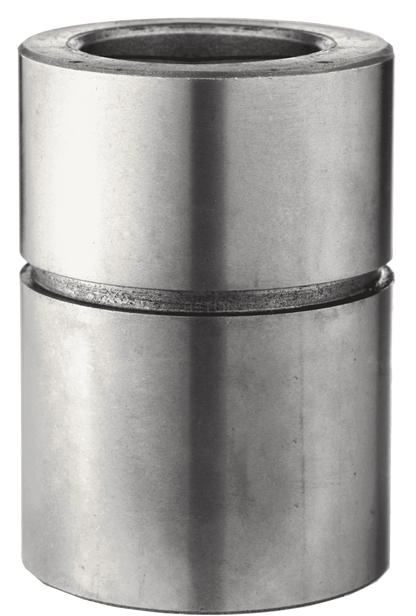

  Guide rings and bushings provide piston rod alignment and reduce friction during movement.

• Secure Hydraulic Connectivity:
  Flanges and fittings ensure secure attachment points for hydraulic hoses and connections.

Common Applications in Schwing Concrete Pumps:

• Sealing between piston and cylinder wall to prevent concrete or fluid backflow

• Guiding and aligning the piston rod within the cylinder

• Connecting hydraulic lines to drive piston motion

• Protecting the internal surfaces of the pumping cylinder

• Reducing mechanical wear and improving operational smoothness

• Facilitating lubrication or sensor integration where applicable

Typical Component Types (Identified from Visuals):

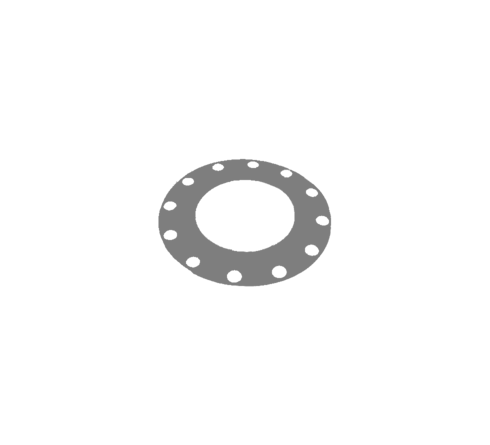

• Piston Head / Wear Plate: Large silver disc with bolt holes, used at the head of the piston for sealing or protection

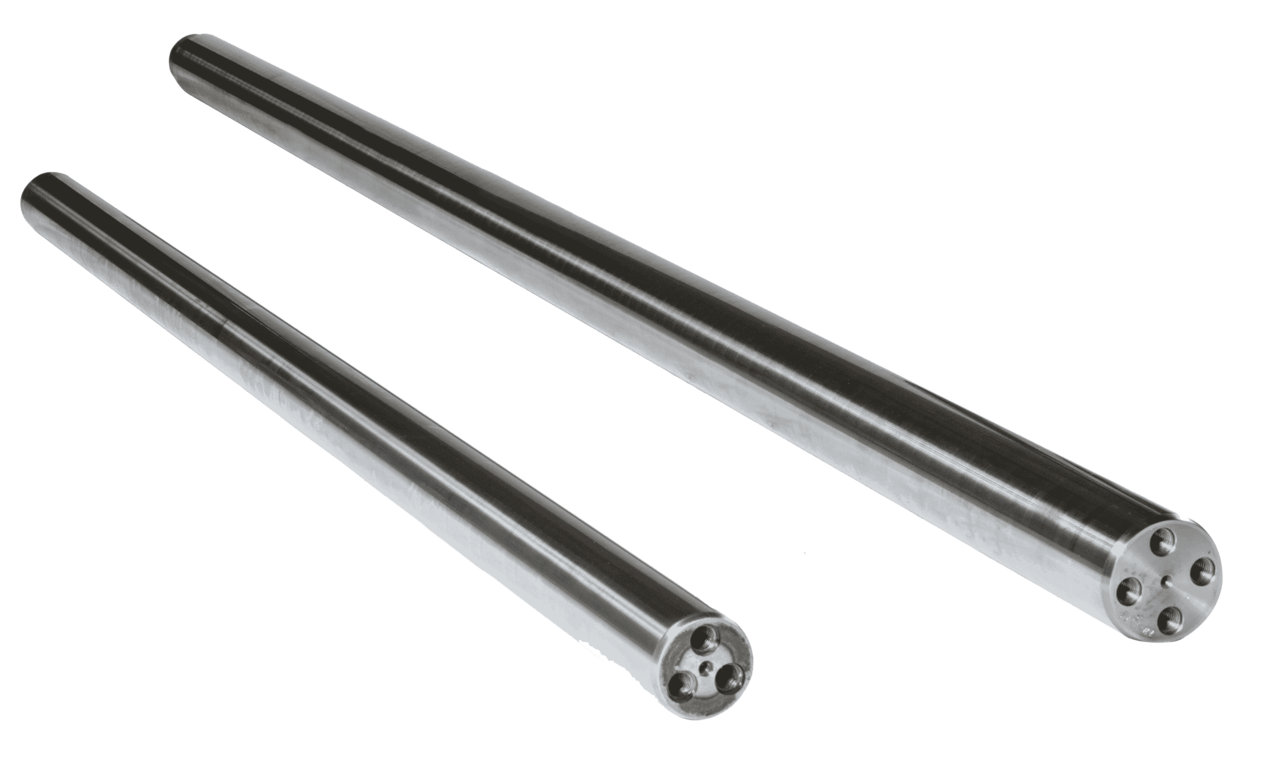

• Tie Rods / Connecting Rods: Long, threaded rods used to assemble or secure end caps and components

• Cylinder Liners / Sleeves: Stepped, internally machined components inserted inside the pumping cylinder

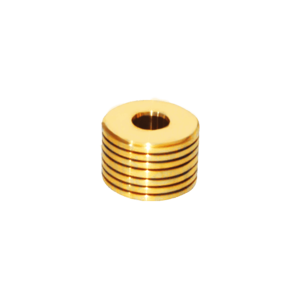

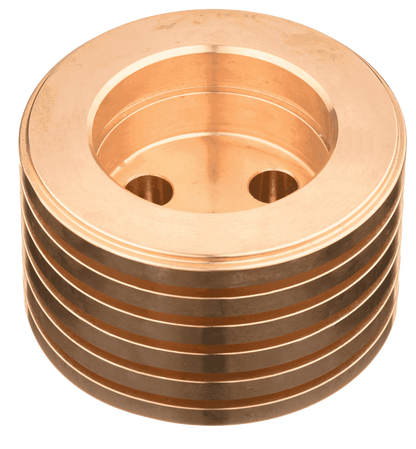

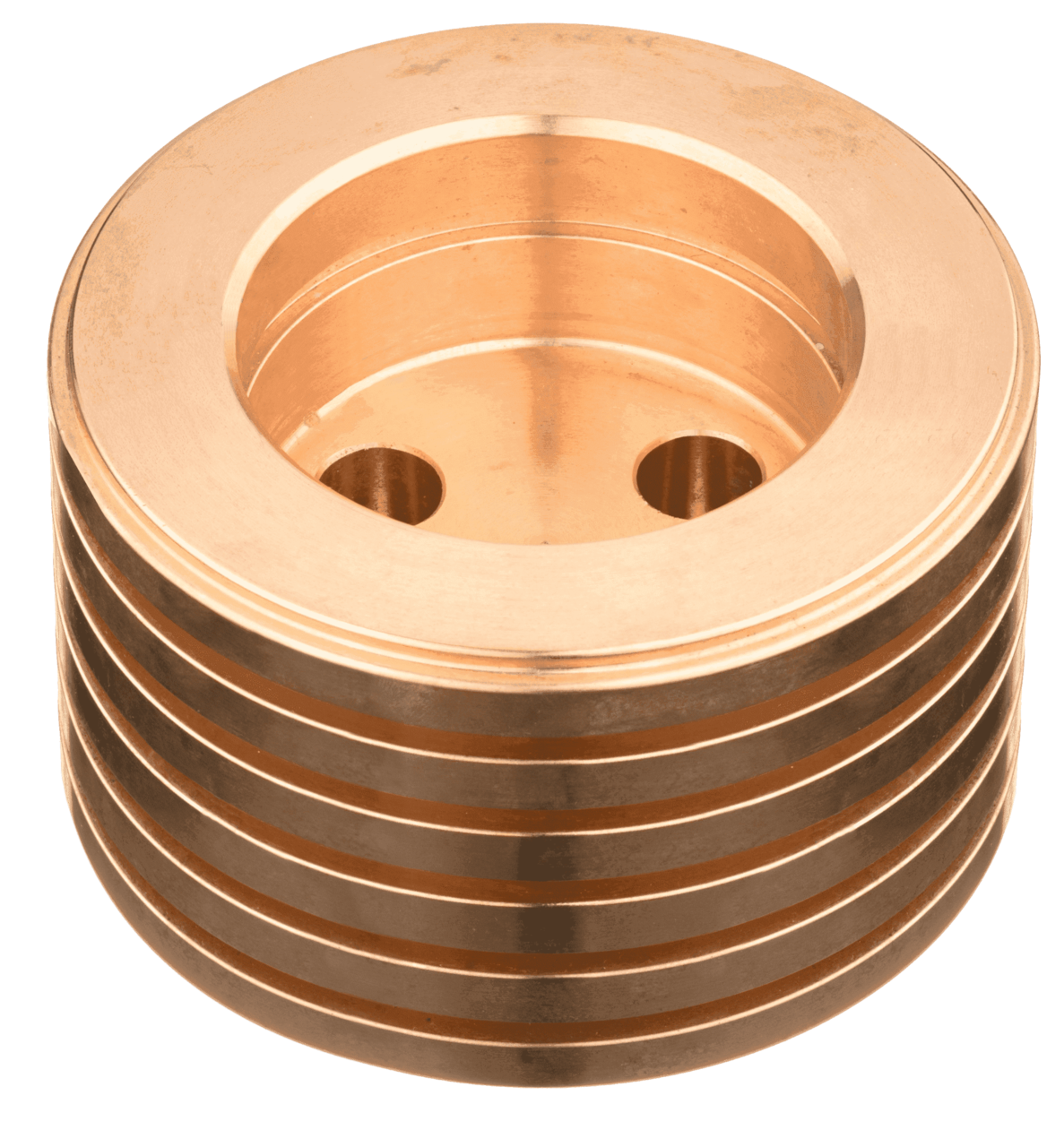

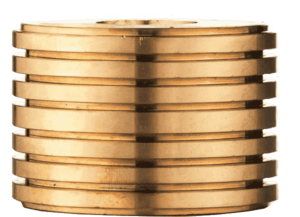

• Bronze Wear Rings: Stacked rings with guide function, providing wear surfaces to reduce metal-to-metal contact

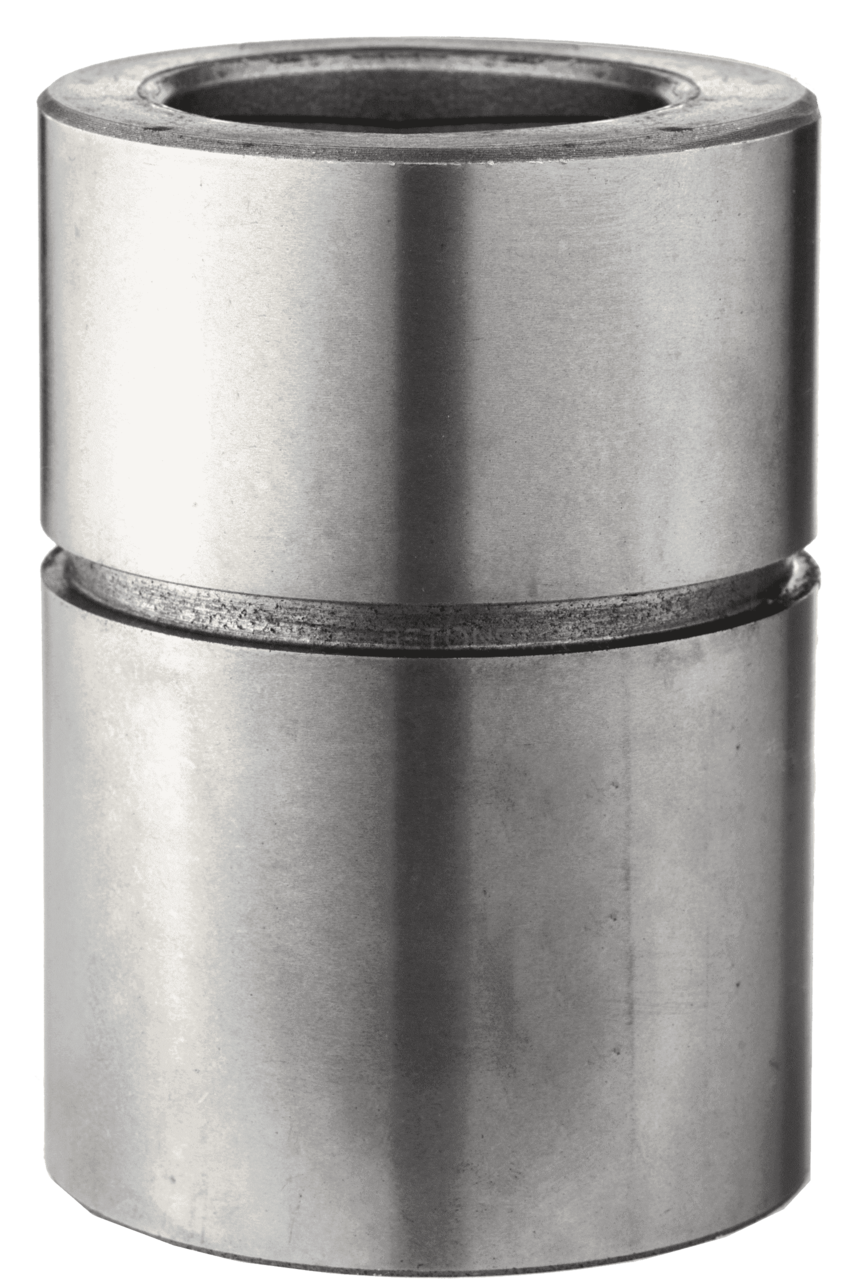

• Threaded Bushings / Connectors: Internally threaded parts for hydraulic lines or instrumentation ports

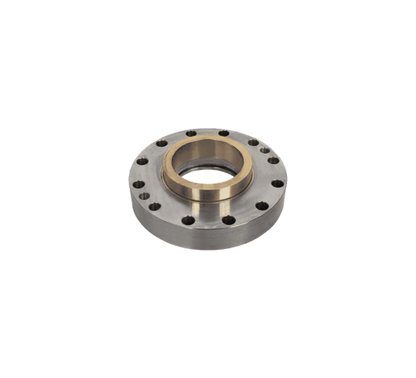

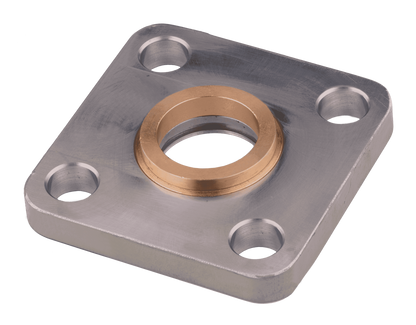

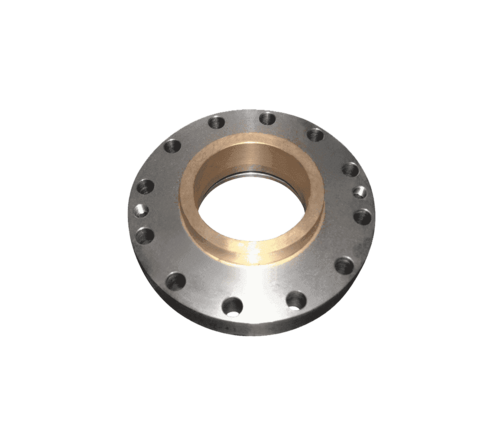

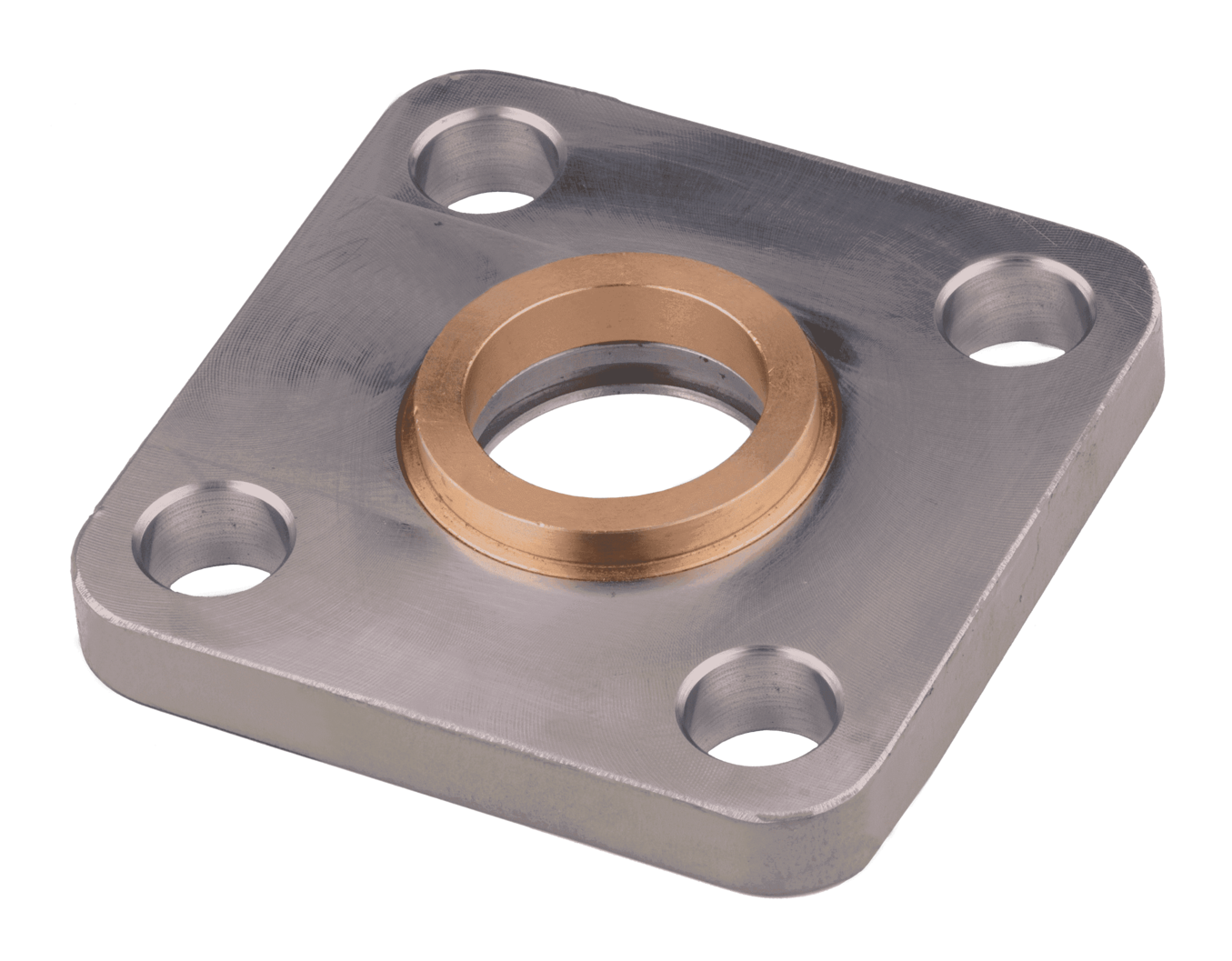

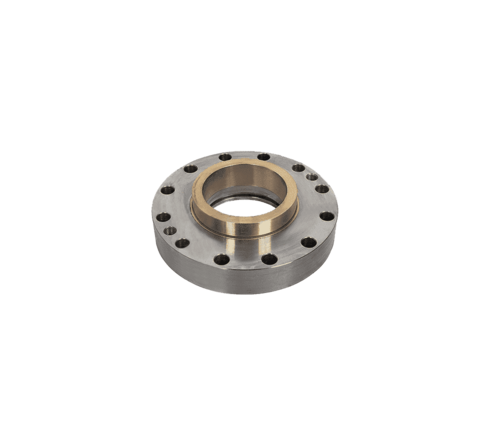

• Rod End Flange with Bushing: Combines mounting function with a wear-resistant insert for rod motion

• Locking Washers / Specialized Seals: Components for vibration-resistant securing or unique sealing tasks

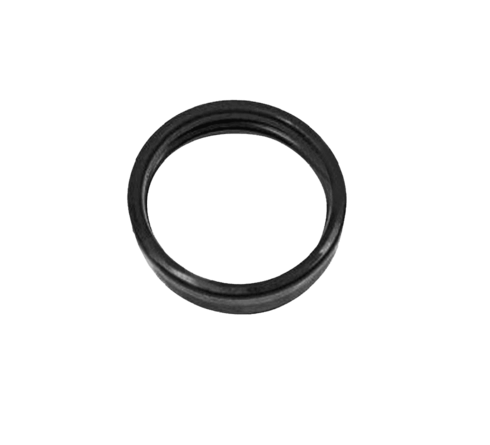

• O-Rings / Gaskets: Used at critical joints for reliable sealing of slurry or hydraulic fluid

• Hydraulic Flanges: Round, holed components for connecting lines or auxiliary components

Fitment & Ordering Guidance:
To ensure you select the correct parts for your Schwing pump:

• Identify your pump’s model and serial number

• Refer to your Schwing parts manual or consult with an authorized distributor

• Inspect your existing component for part numbers, stamps, or measurements

• Know the part’s location and function within the pumping cylinder assembly

Important Note:
Incorrect or mismatched components may lead to pump inefficiency, leaks, or premature wear. Always confirm compatibility before ordering. These accessories are critical for maintaining your concrete pump's performance, longevity, and safety.
