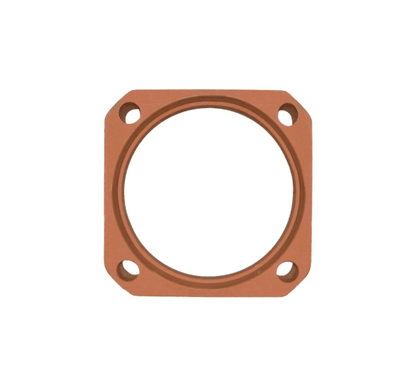

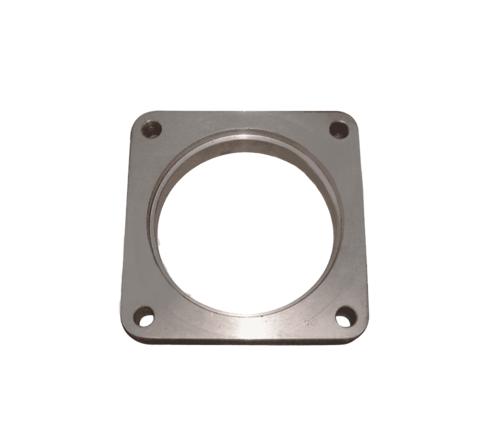

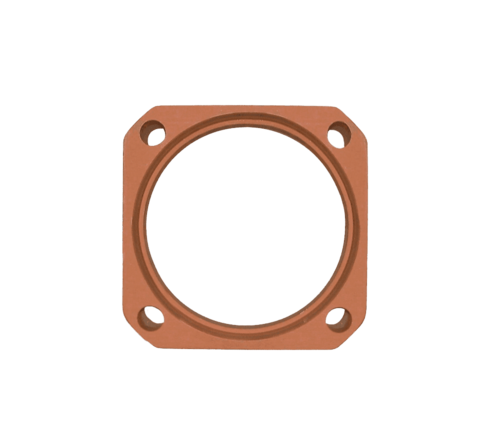

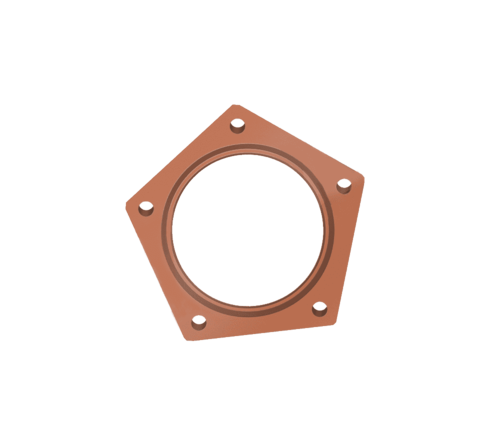

Schwing Delivery Material Cylinder Flanges

Schwing Delivery Material Cylinder Flanges are engineered specifically for use in Schwing concrete pumps. These essential components ensure secure, high-pressure connections within the concrete delivery system, helping maintain pump performance, efficiency, and safety. Designed with durability and precision in mind, these flanges are a key part of maintaining the integrity of your concrete pumping operations.

Key Features

• Durable Construction
  Manufactured from high-strength steel or alloys to withstand the intense pressures and wear typical of concrete pumping systems.

• Precision Fit
  Machined to tight tolerances for a leak-proof seal and reliable connection to mating parts.

• Corrosion & Abrasion Resistance
  Designed to resist the harsh, abrasive nature of concrete. Some models may include specialized coatings or be made from corrosion-resistant materials.

• Engineered Compatibility
  Tailored to fit Schwing concrete pump delivery cylinders and associated components such as pipes, elbows, and valves.

• Secure Mounting
  Features bolt holes and precision-milled faces for strong, vibration-resistant connections that maintain integrity under load.

• Available Variants

  • By Size: Available in nominal diameters such as 3", 4", and 3/4" to match system requirements.

  • By Pressure Rating: Options available for different operational pressure ranges.

  • By Standard: Some flanges comply with API (American Petroleum Institute) standards, often used in high-performance valve applications.

  • By Material: Selection based on concrete type and environmental demands.

Applications

• Connecting concrete delivery lines in Schwing pumps

• Attaching valves or accessories to the delivery cylinder

• Creating high-pressure, leak-proof joints in concrete pumping systems

Important Note:

To ensure you select the correct flange for your system, please:

• Refer to your Schwing concrete pump’s model and part number

• Consult the Schwing parts catalog or your authorized dealer

• Verify compatibility with your existing system (size, connection type, pressure rating, etc.)

If you have an image or part number available, we can help confirm the exact fit.
