Schwing Delivery Elbows are essential components of concrete pump pipeline systems. Engineered for durability and performance, these elbows facilitate smooth directional changes in the concrete delivery line while withstanding the high pressure and abrasive nature of pumped concrete. Whether you’re navigating complex site layouts or connecting key pipeline segments, Schwing elbows ensure reliability and efficiency.
Key Features
Heavy-Duty Construction Built from high-strength steel or specialty alloys to endure extreme pumping pressures and harsh jobsite conditions.
Enhanced Wear Resistance Many models are internally lined with wear-resistant materials such as hardened steel or ceramics, offering extended service life even in high-friction zones.
Optimized Flow Design Precision-engineered bends with smooth internal radii minimize flow resistance and reduce the risk of clogs, helping maintain continuous concrete delivery.
Angle Variety Available in multiple standard and specialized angles including 14°, 30°, 45°, and 90° to support a wide range of pipeline layouts.
Versatile Connections Offered with different connection types such as flanged ends (with bolt holes), couplings, or weldable ends to integrate easily with Schwing systems.
Precision Fitment Designed specifically for compatibility with Schwing concrete pumps, delivery pipelines, and system pressure requirements.
Applications
Redirecting the concrete flow in delivery pipelines
Navigating structural or jobsite obstacles
Joining pipeline segments at various directional angles
Reducing system stress from directional transitions
Product Variants

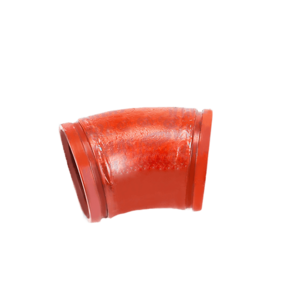

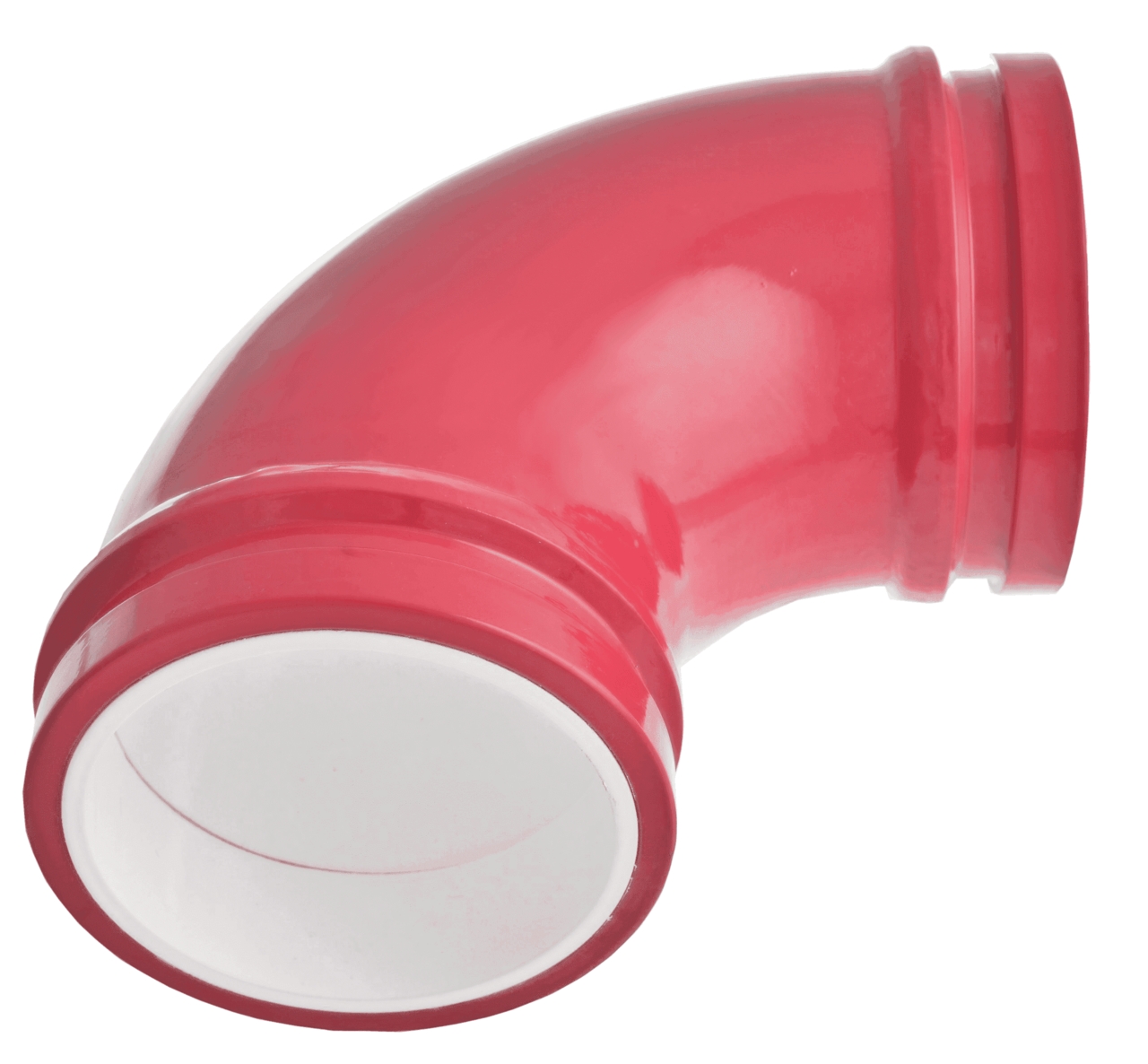

Flanged Elbows As seen in product imagery, available with bolted flanges featuring various bolt patterns and dimensions to match system specifications.
Custom Angles Specialized options such as the 14° Boiler Outlet Elbow (Part No. 10026159) with a 4-bolt connection are available for precise system customization.
Multiple Diameters & Pressure Ratings Available in standard pipe sizes and pressure classes suitable for light to heavy-duty pumping applications.
Material & Liner Options Depending on the application, select elbows may feature different internal liner materials for enhanced resistance to abrasion and chemical wear.
Important Note
For accurate selection, please:
Confirm your Schwing pump model and system specifications
Refer to the Schwing parts catalog or consult an authorized Schwing dealer
Provide the part number (e.g., 10026159) when replacing existing elbows
Specify the desired elbow angle, nominal size, and connection type
Color variations in product photos may indicate differences in size, pressure rating, or internal lining.
