Secure Connections for Safe and Reliable Concrete Delivery
The Clamps Series by Schwing® delivers robust, high-pressure-rated connection solutions designed specifically for the demanding needs of concrete pumping systems. Whether connecting delivery lines, securing hydraulic hoses, or mounting key assemblies, these clamps ensure safety, leak prevention, and system integrity across your pump fleet.
🛠️ Key Features & Benefits
Leak-Proof Connections Ensures a tight and durable seal between delivery pipes and hydraulic lines to prevent slurry or fluid leakage.
Withstands High Pressure Built to handle the extreme pressure levels found in concrete delivery lines and hydraulic systems.
Quick Assembly/Disassembly Quick-release clamps significantly reduce job site setup and breakdown times, enhancing crew efficiency.
Long-Lasting Durability Crafted from high-grade steel and corrosion-resistant finishes for maximum longevity.
Flexible Design Options Available in multiple formats and sizes: quick-release, bolt-type, hose clamps, U-bolts, reducers, and more.
OEM Fit for Schwing® Pumps Perfectly tailored to fit Schwing® concrete pump systems, ensuring seamless compatibility and optimal performance.
🔍 Component Breakdown (Based on Images Provided)
🖼️ Component Type
🔧 Description

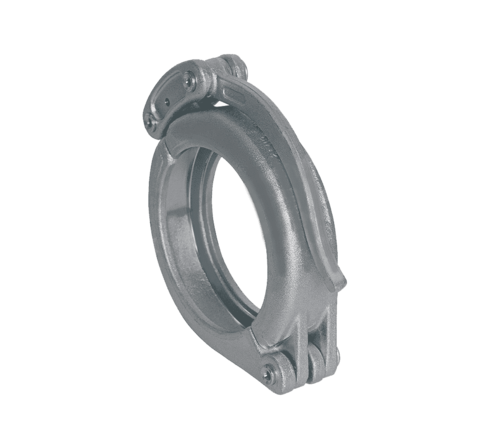

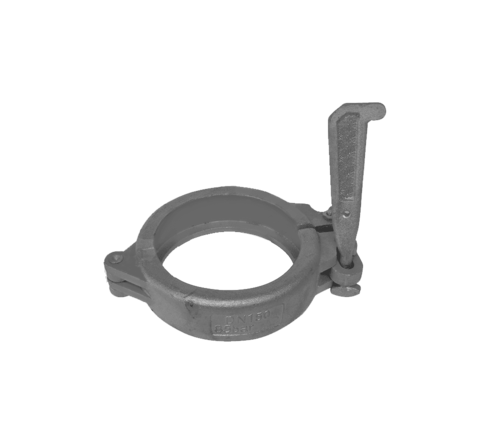

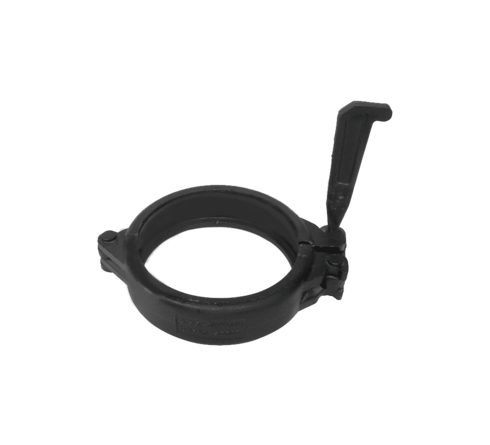

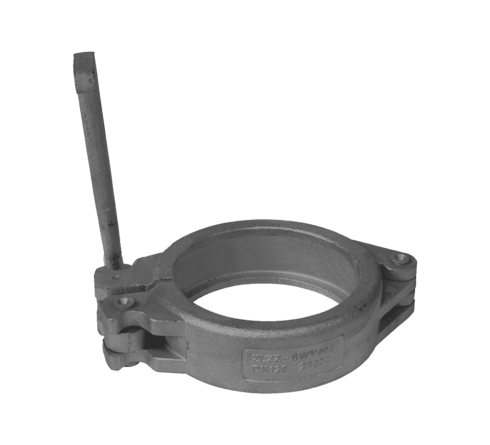

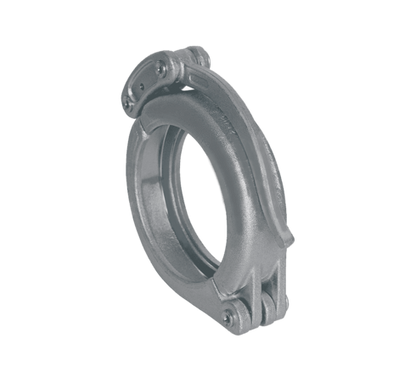

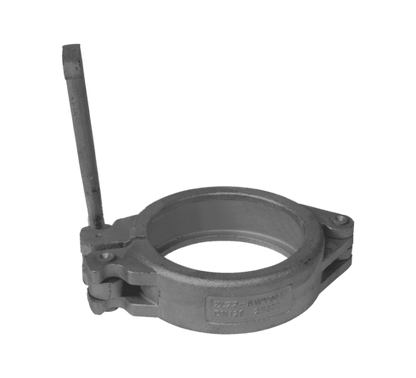

Quick-Release Clamp Coupling
Heavy-duty, hinged clamp used to rapidly connect and disconnect delivery pipe sections. Includes a locking lever or pin mechanism.

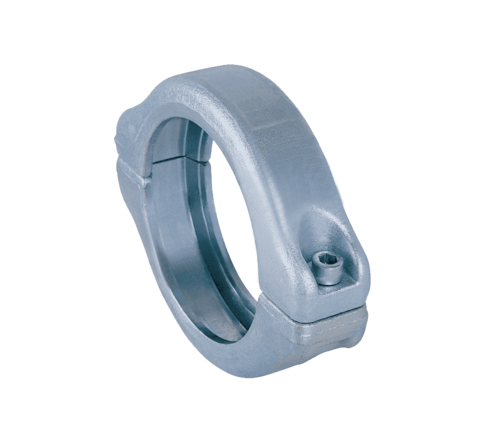

Bolt Clamps

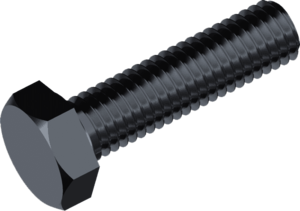

High-strength steel clamps secured with bolts for a rigid and reliable hold. Compatible with fasteners like "6KT-SKR. 4017 10.9 6x10."
Hydraulic Hose Clamps
Designed for high-pressure hose lines, these clamps create leak-proof hydraulic fittings.

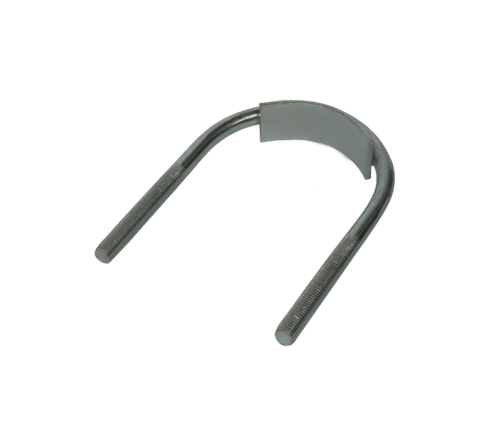

U-Bolts & Pipe Mounting Clamps
Used to secure pipelines or hydraulic lines to the pump’s frame or base structure.

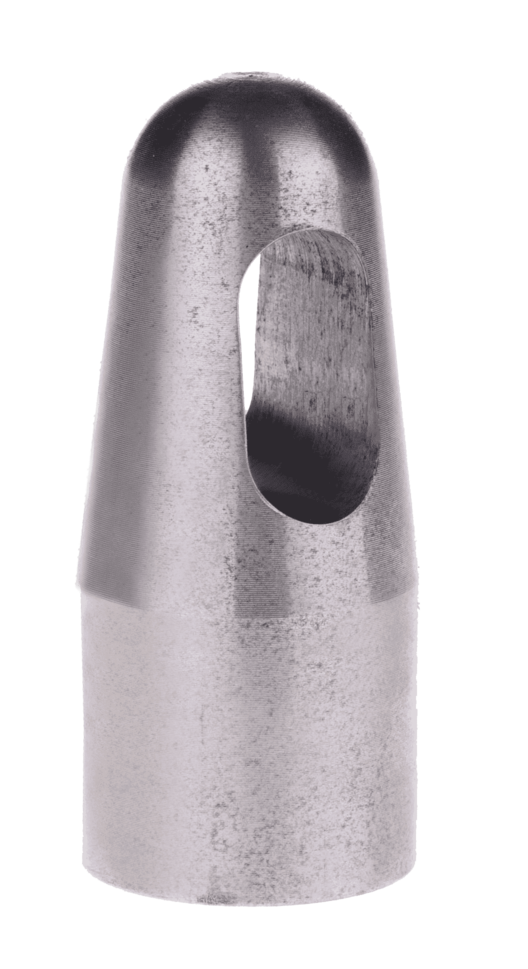

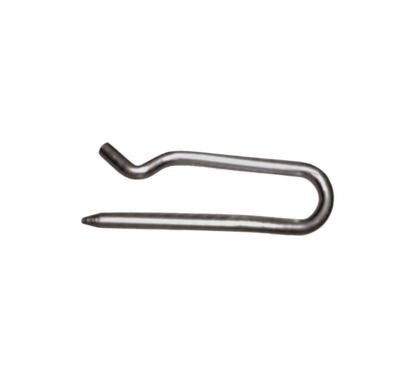

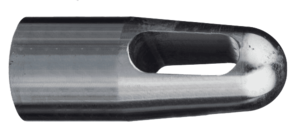

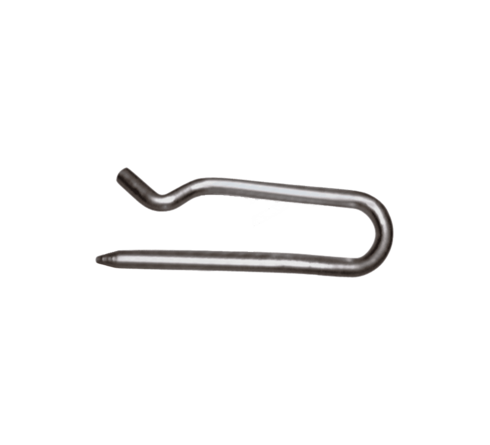

Pin-Type Fasteners
Provides quick locking for movable or modular components within the pump system.
Reducer Clamps
Connects pipes of differing diameters to ensure proper flow and pressure transition.

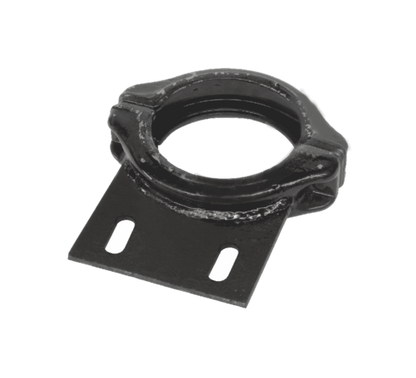

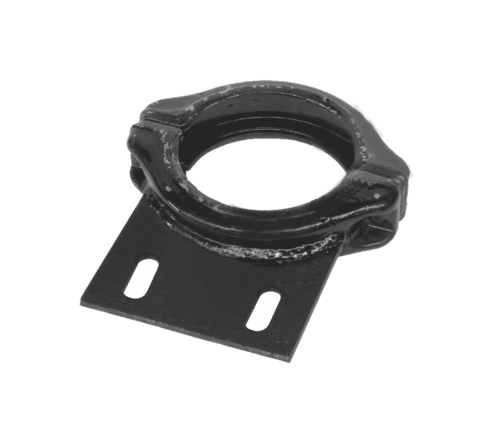

Mounting Brackets w/ Clamp Ports
Dual-purpose: secures components while providing clamping capability for attached lines.
⚙️ Operational Roles within a Schwing® Concrete Pump
Clamps are used across various subsystems in the pump:
🔗 Delivery Line Connection Secures steel or rubber pipe sections that transport concrete from the hopper to the pour location.
🔧 Hydraulic System Sealing Hose clamps maintain tight hydraulic fittings critical for pump actuation and control systems.
🏗️ Component Mounting U-bolts and brackets affix pipes and components firmly to the chassis for safe, vibration-resistant operation.
🧩 Why Clamps Matter in Concrete Pumping
✅ Prevents Costly Leaks Ensures no slurry or hydraulic fluid is lost during operation—keeping your site clean and your pump efficient.
🛡️ Ensures Operational Safety Secure pipe joints prevent dangerous blowouts caused by pressure surges or pipe separation.
⏱️ Improves On-Site Efficiency Quick-release mechanisms speed up assembly and dismantling—saving time on every project.
🔩 Reduces Downtime Durable, correctly installed clamps lower the risk of breakdowns caused by loose or leaking connections.
📘 Product Specs & Fitment
For detailed specifications of the Schwing Clamps Series, refer to the official Schwing parts catalogs, where you’ll find:
