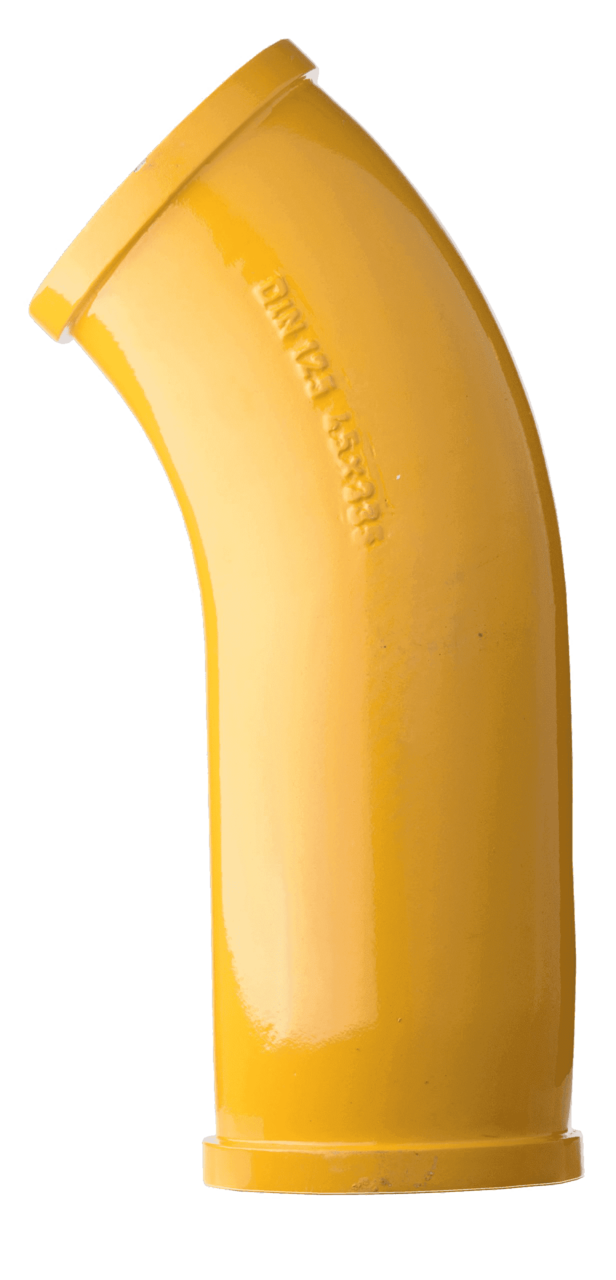

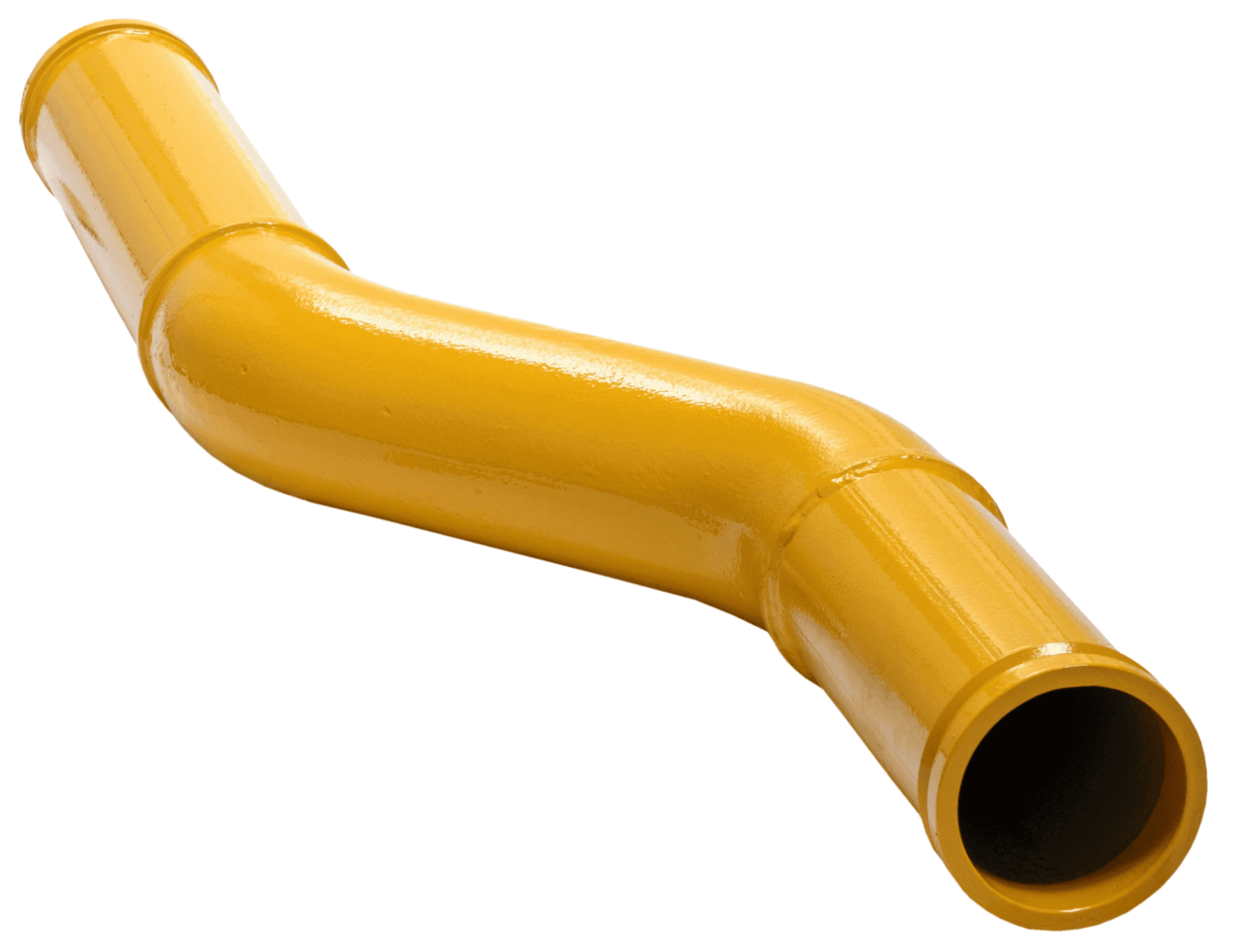

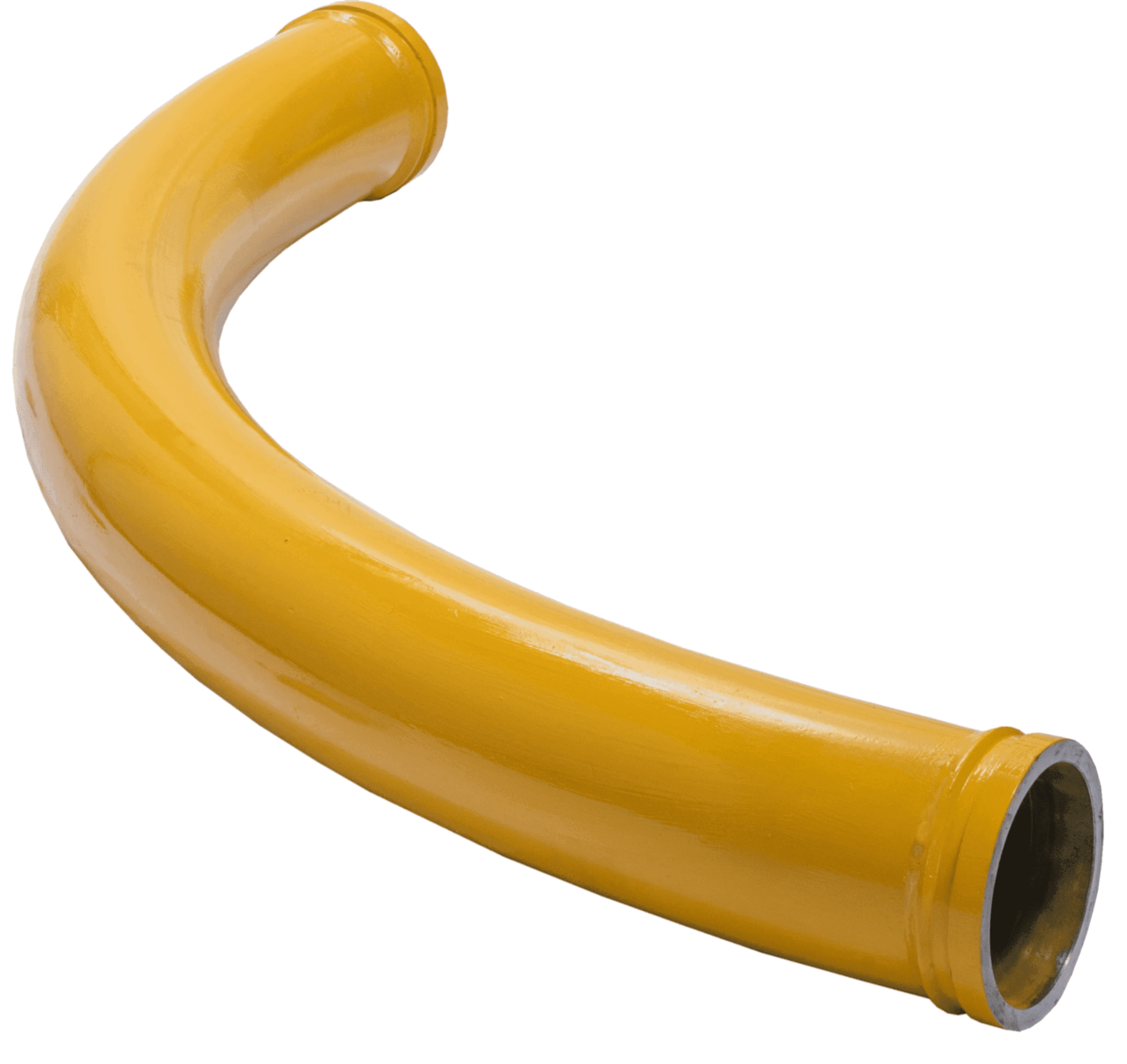

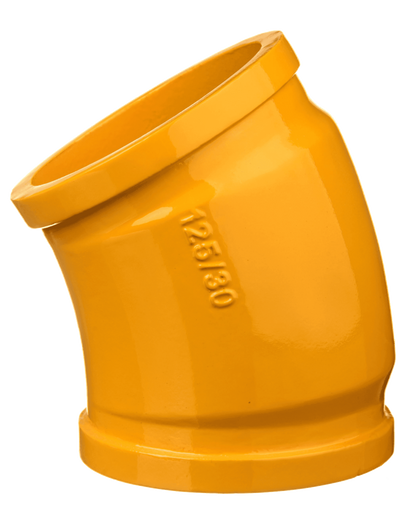

The Delivery Line Bends and Elbows Series, designed for compatibility with Putzmeister® concrete pumps, includes a robust selection of curved pipe segments engineered to navigate directional changes in the delivery line. These components are critical for ensuring smooth, safe, and efficient concrete transport on the job site—minimizing flow resistance and extending system life.
🔧 Key Features & Benefits:
Heavy-Duty Construction Fabricated from high-grade, wear-resistant steel with hardened inner linings to withstand the abrasiveness of pumped concrete.
Optimized Flow Design Precision-formed internal curves ensure minimal turbulence, reduced friction, and consistent pressure throughout the delivery line.

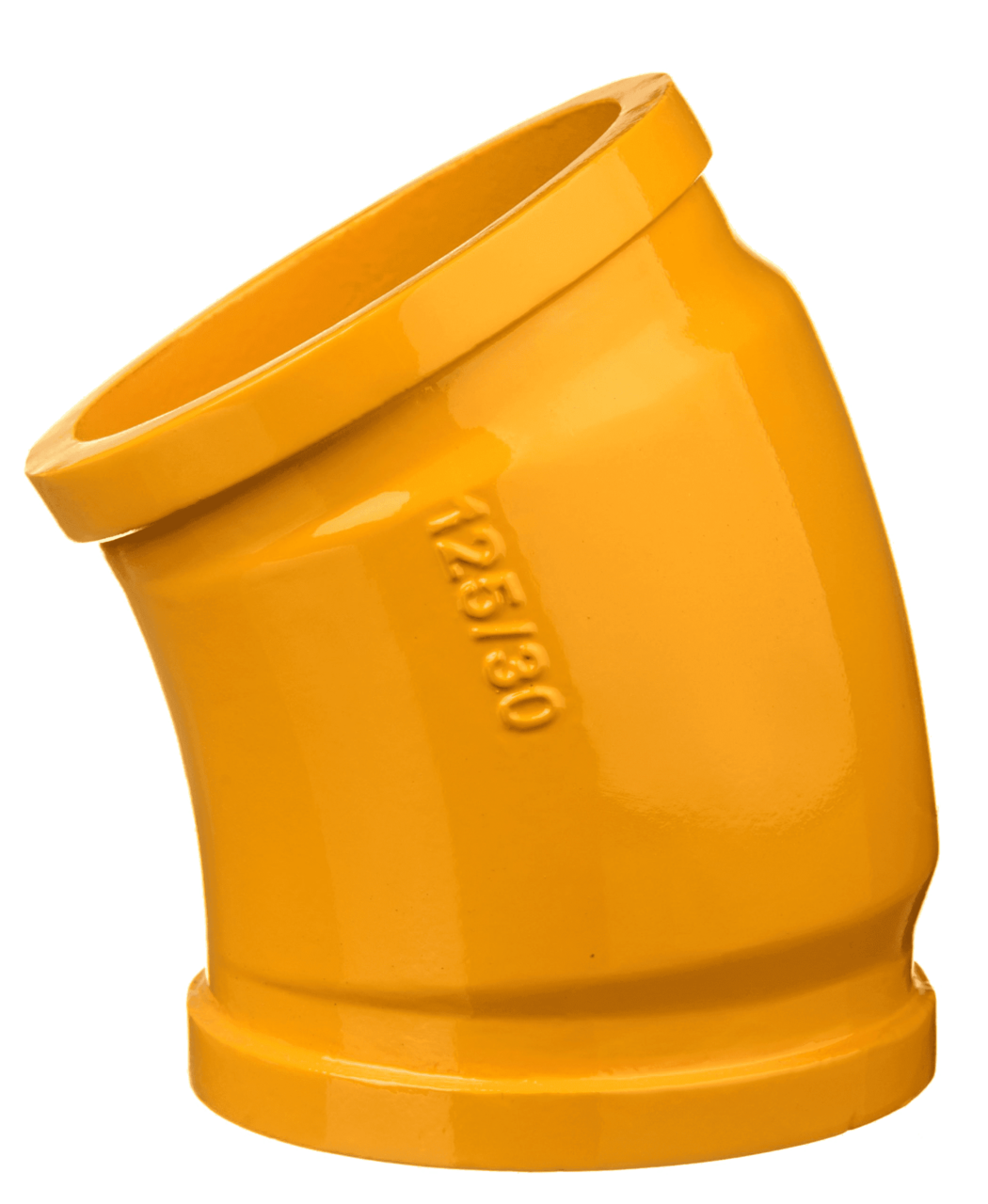

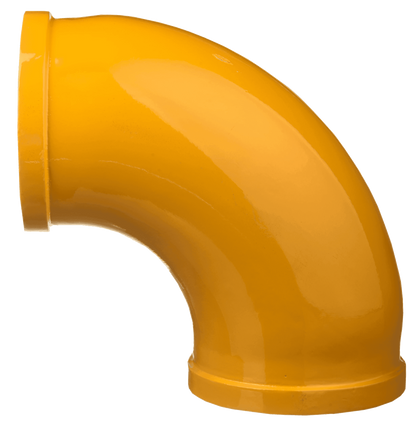

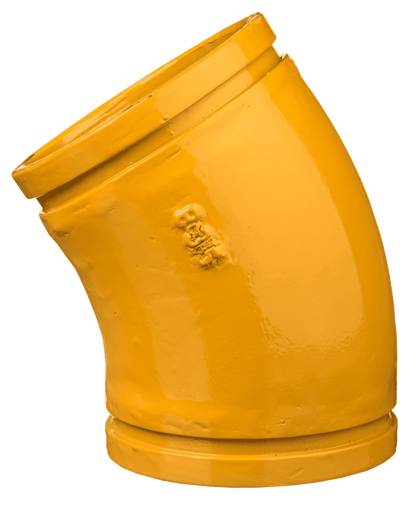

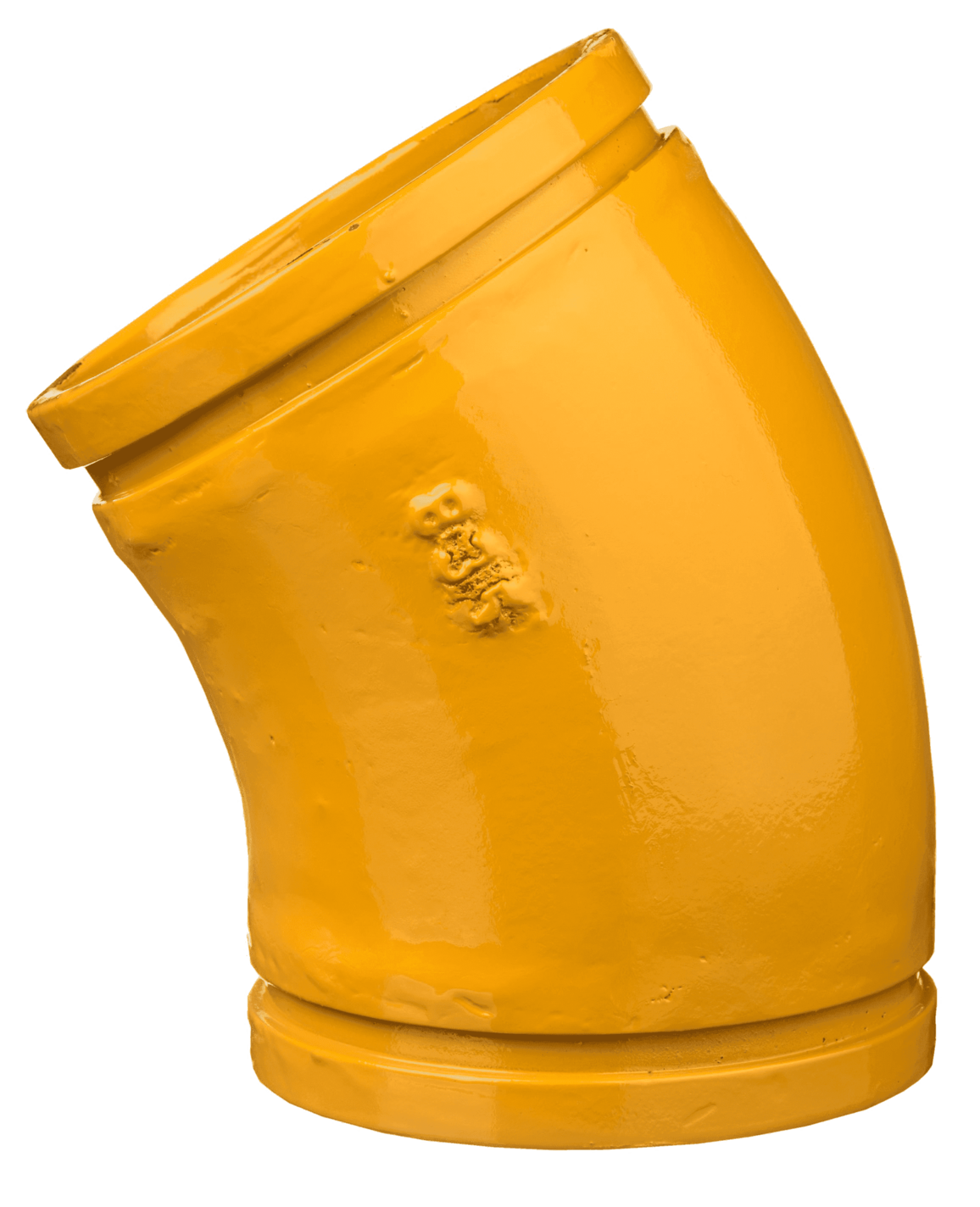

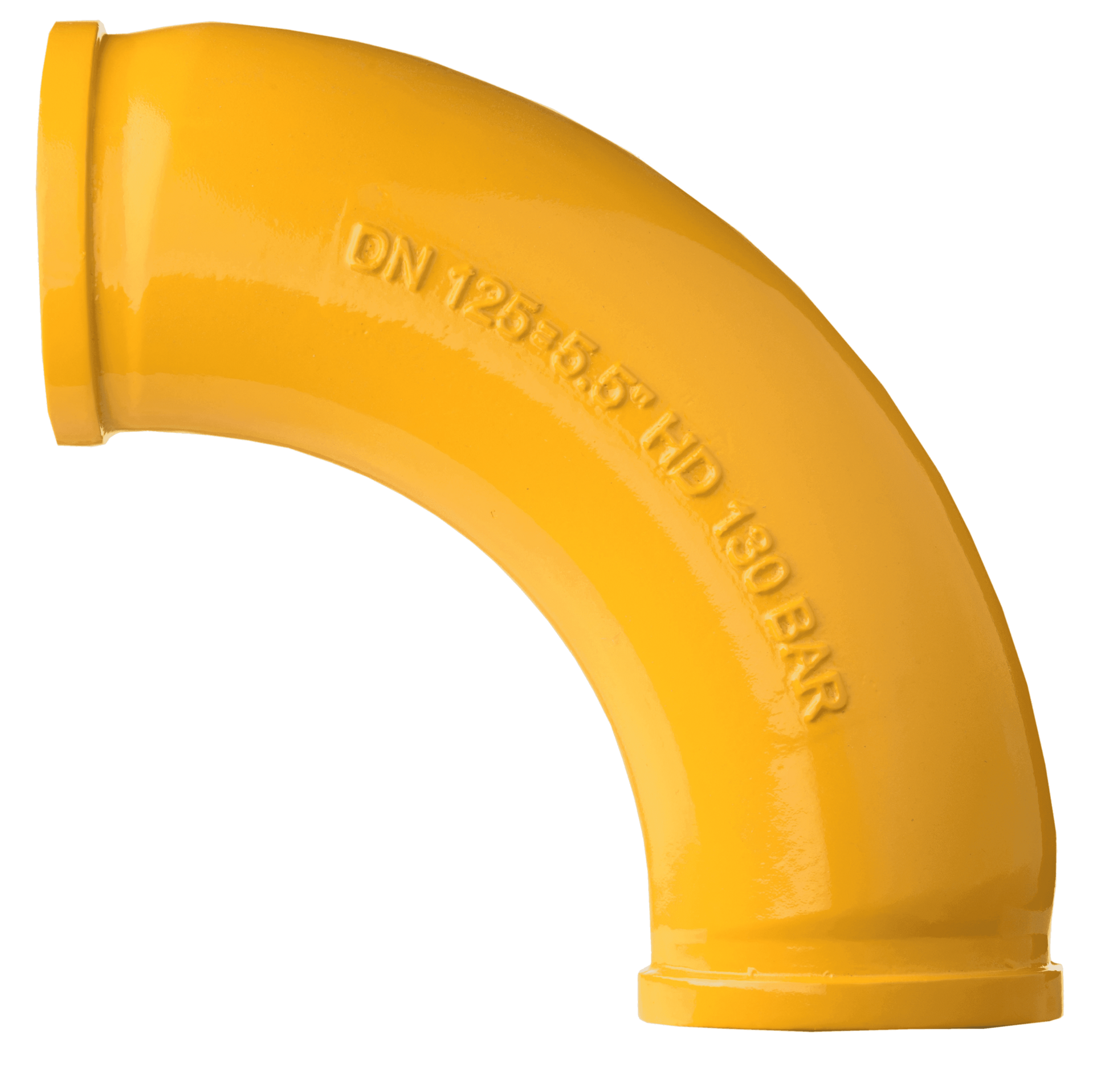

Versatile Angles & Radii Offered in multiple standard configurations—30°, 45°, 60°, 90°—to suit various site layouts, elevation changes, and space constraints.
Secure & Standardized End Connections Compatible with quick-release couplings, flanged joints, or HD clamps for safe, tight, and leak-proof integration into your existing system.
Putzmeister® System Compatibility Designed for seamless fit and function with Putzmeister® concrete pump delivery pipelines and accessories.
Long-Lasting Performance Built to endure high operating pressures and abrasive conditions—reducing the need for frequent replacements.
Enhanced Jobsite Safety Contributes to a stable and secure line layout, helping to prevent failure points and minimize hazards.
🌀 Component Overview:

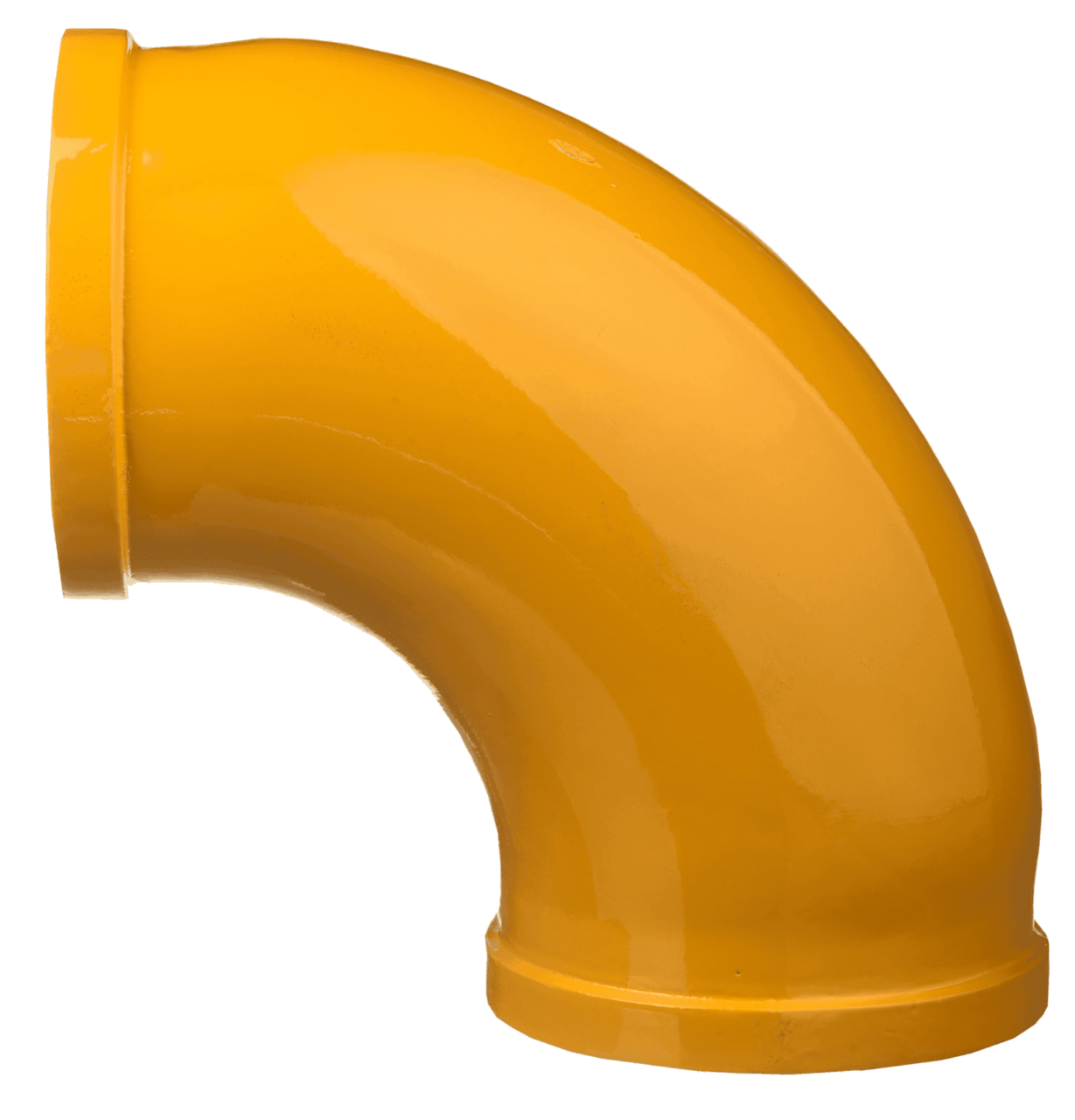

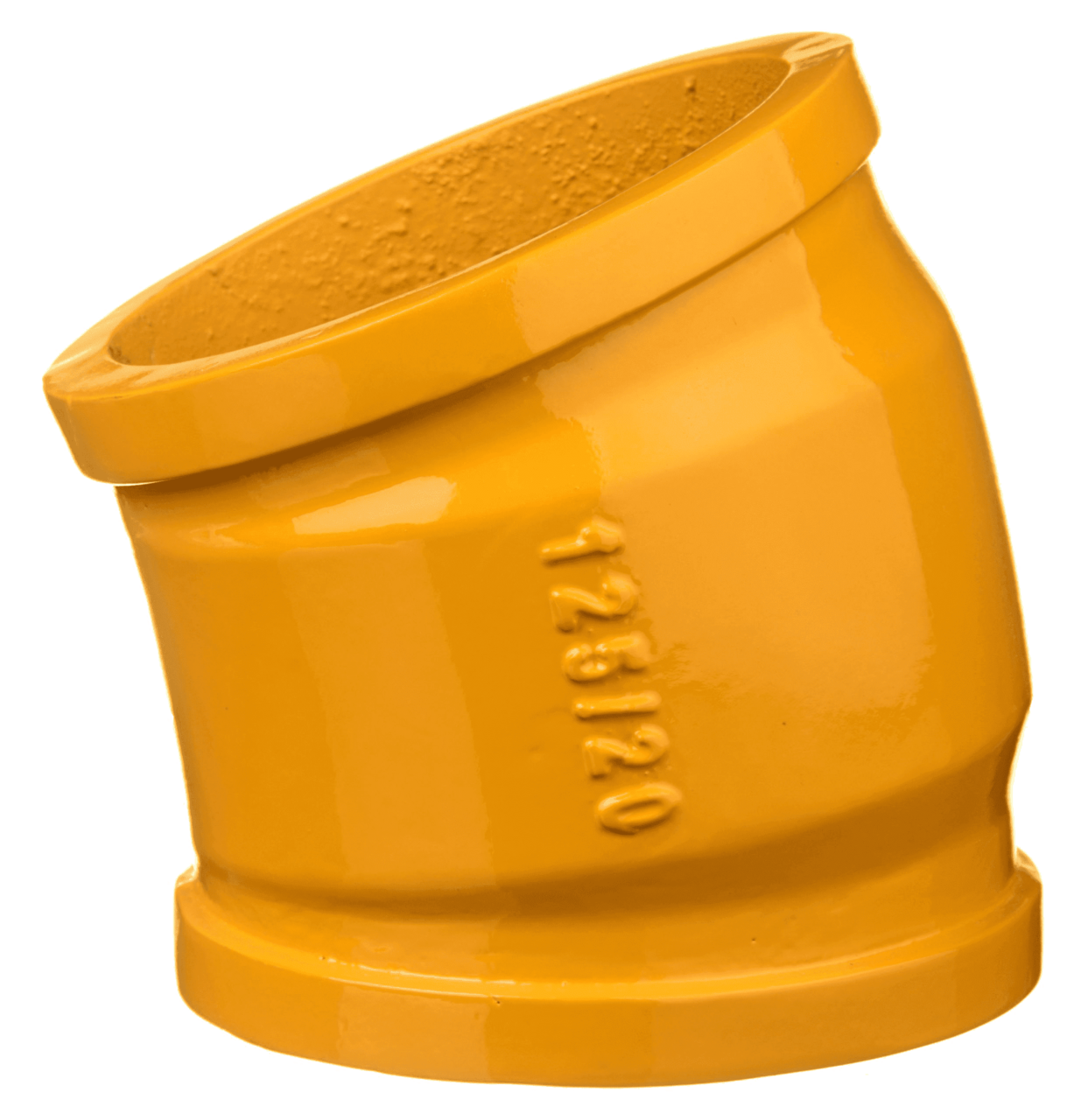

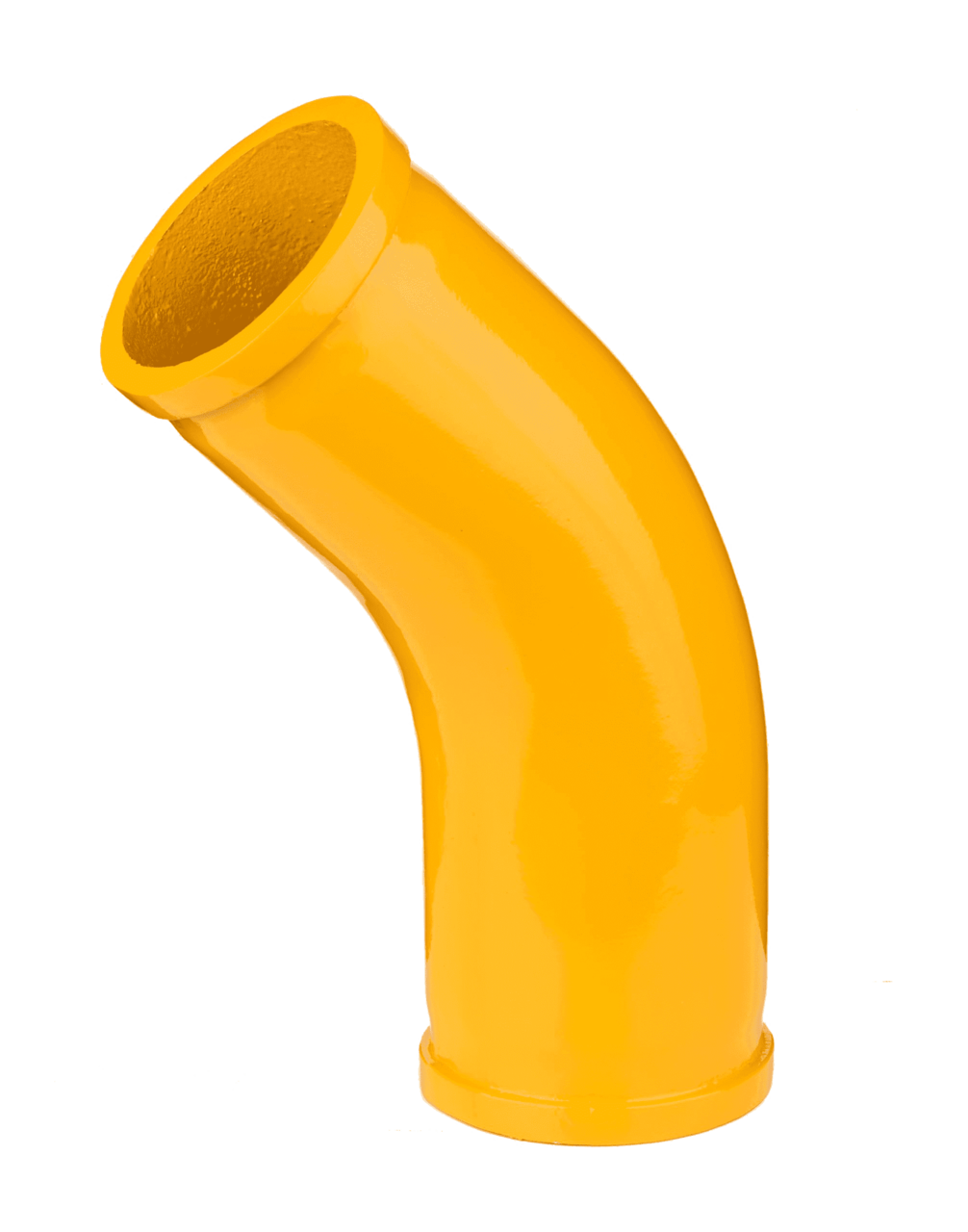

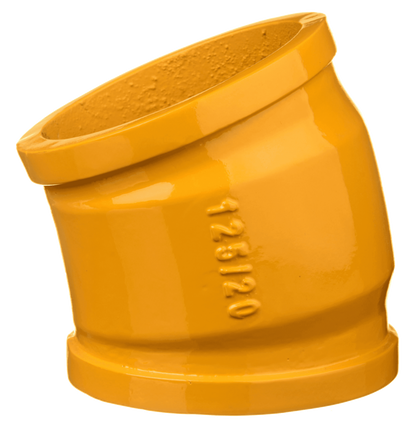

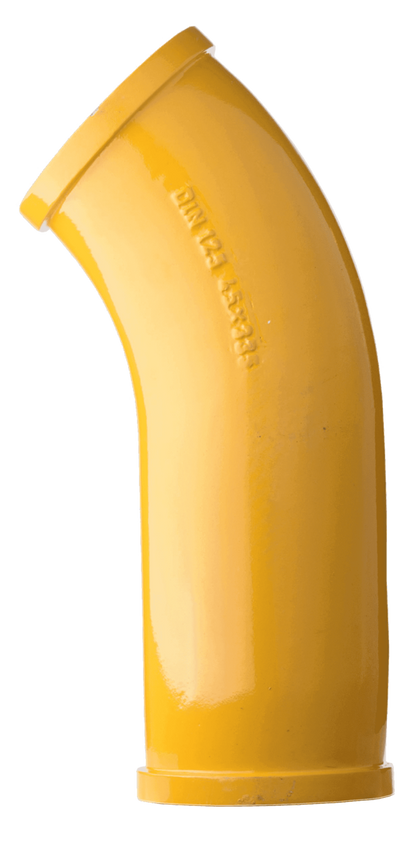

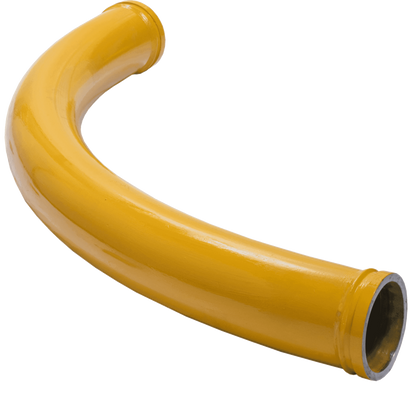

Steel Pipe Bends & Elbows High-tensile steel with smooth radii and hardened interiors (optional) to resist internal scouring and premature wear.
Protective Coatings Available with powder-coated or heat-treated finishes in standard yellow (Putzmeister® color) or red for wear-specific zones.
Assorted End Fittings Available with coupling grooves, flanges, or weld ends to suit different system configurations.
🔄 Function in Concrete Pumping Systems:
Directional Changes Navigate tight job sites or complex pours by routing the concrete delivery line around corners or over obstacles.
Line Transitions Connect straight pipe sections, reducers, or hose adaptors for smooth concrete movement between components.
Vertical & Horizontal Adjustments Enable both upward and downward runs while maintaining internal flow efficiency.
📘 Applications & Technical Support:
Delivery line bends and elbows are indispensable for ensuring efficient, blockage-free pumping on complex or large-scale pours. For accurate specifications—such as diameter (e.g., DN125), angle, bend radius, wall thickness, and connection type—please refer to your official Putzmeister® parts catalog or contact us for expert cross-reference and fitment support.
