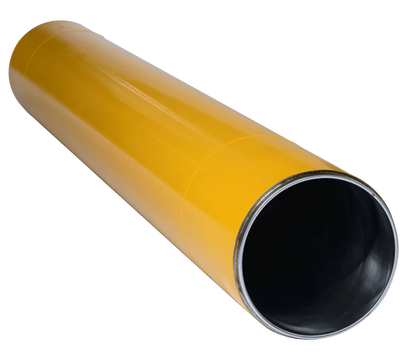

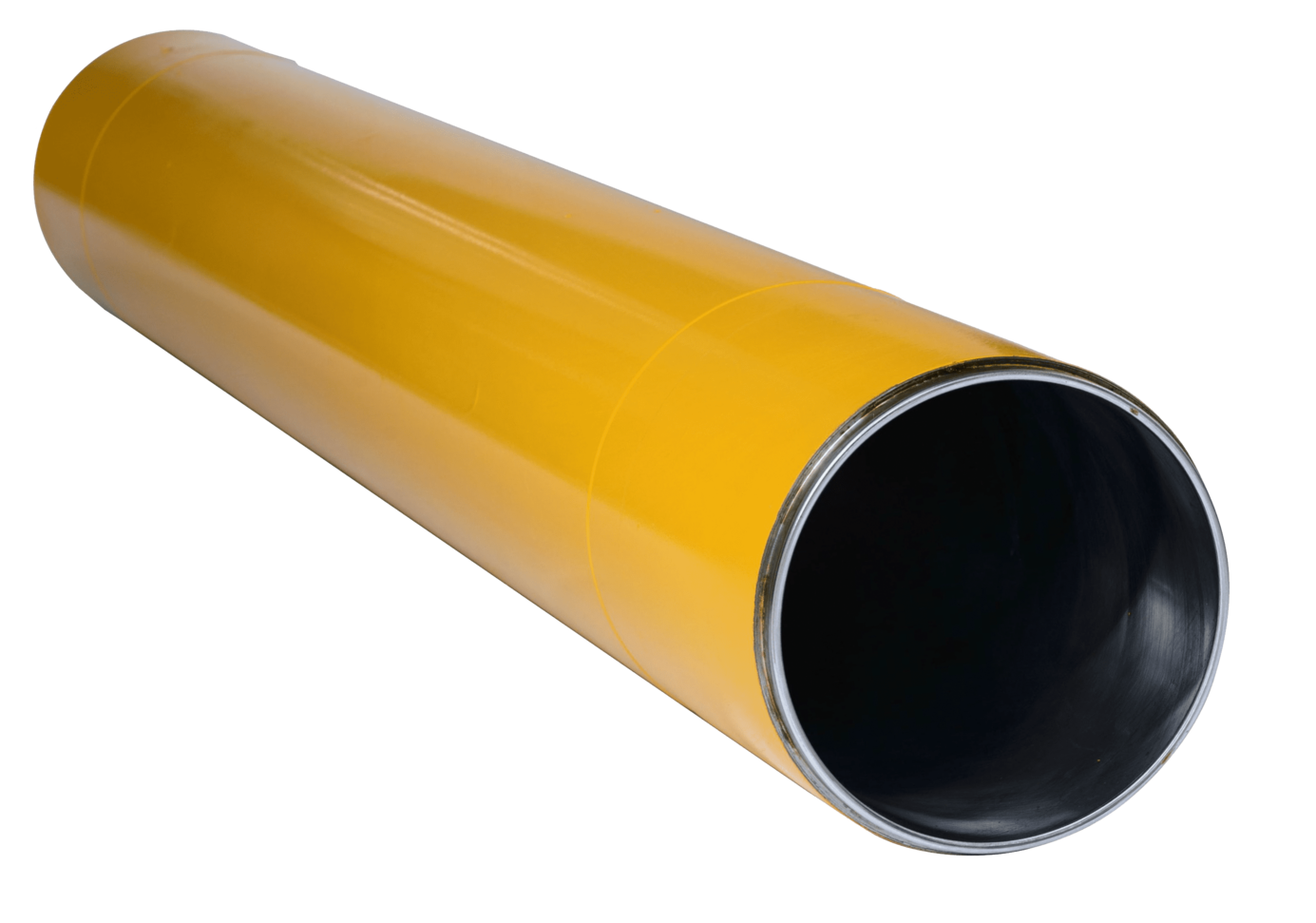

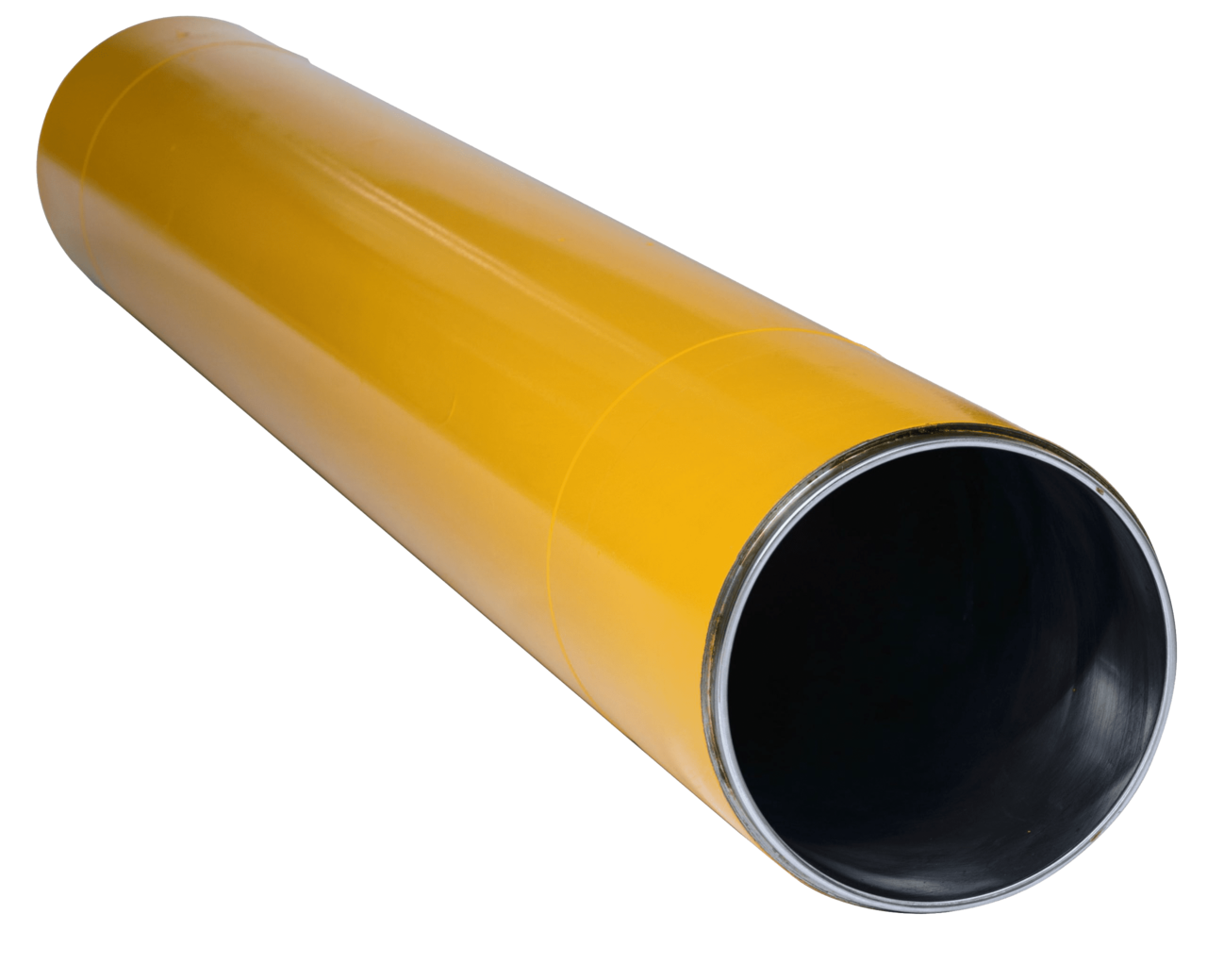

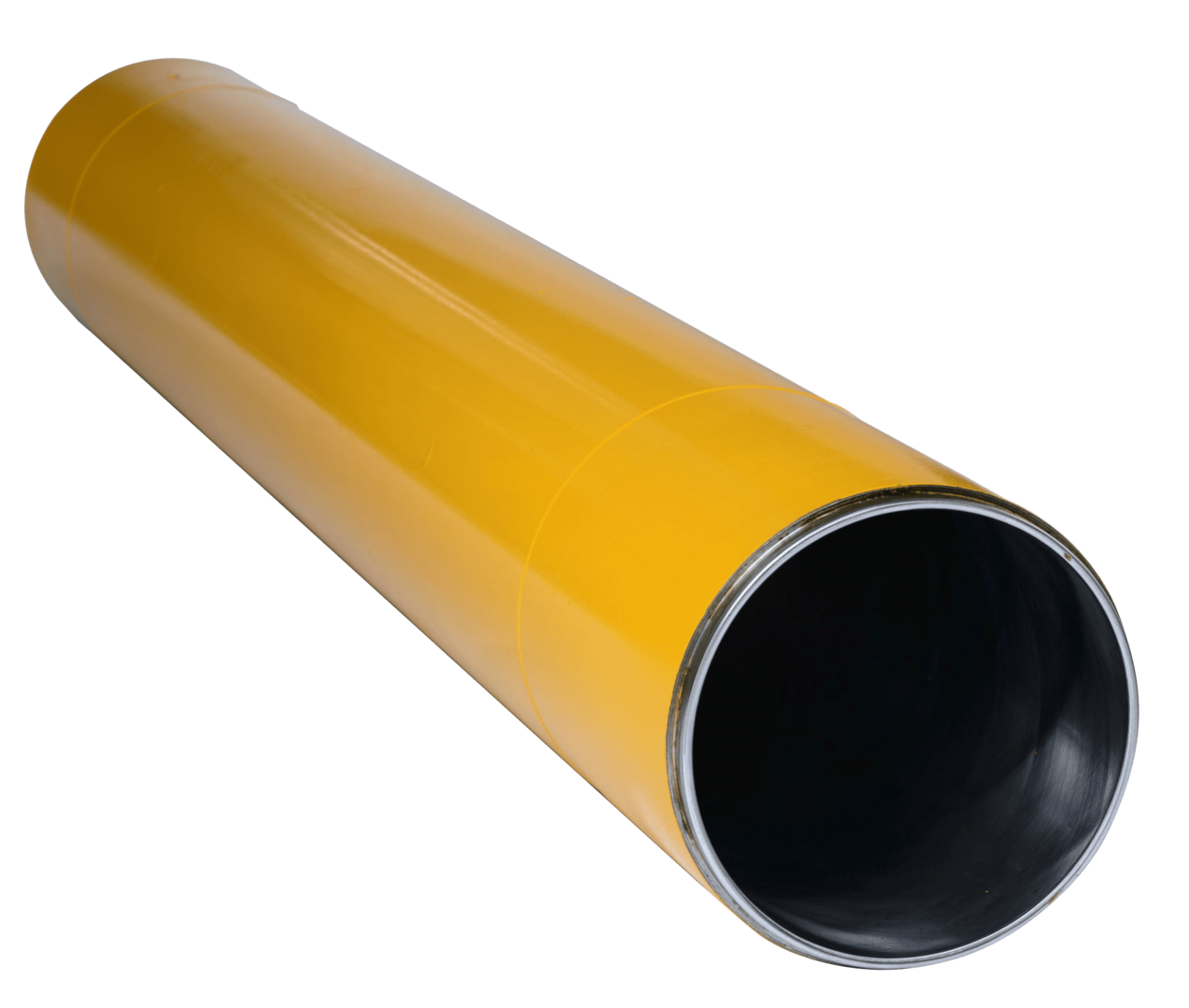

The Delivery Material Cylinder Series is engineered for durability, efficiency, and compatibility with Putzmeister® concrete pumps. These high-strength steel cylinders form the heart of the concrete pumping mechanism—delivering the pressure and flow required to transport concrete to the job site.
🏗️ Key Features & Benefits:
Extreme Pressure Resistance Built from premium-grade, seamless steel to handle the high internal pressures of modern concrete pumping systems.
Advanced Wear Protection Inner surfaces are heat-treated or specially coated to withstand abrasion from harsh concrete mixtures, significantly extending service life.
Precision Fit & Functionality Engineered to meet Putzmeister® dimensional standards for optimal sealing with delivery pistons, ensuring efficient suction and discharge cycles.
Seamless Construction Eliminates weld seams and structural weak points, enhancing durability under continuous cyclic loads.
Available in Multiple Sizes Offered in a range of diameters and lengths to suit different pump models and output specifications.
Enhanced Pumping Efficiency High-precision inner bore finish minimizes energy loss, maximizes pressure output, and reduces mechanical strain.
Long Service Life Designed for rugged performance in challenging conditions—reducing maintenance frequency and operational downtime.
🔧 Component Overview:
Cylindrical Construction: Heavy-wall seamless steel tubes with precision inner bores, designed to house the delivery piston during suction and push strokes.
Protective Coatings (optional): Many models are available with hardened or chrome-plated interiors for increased longevity in high-wear applications.
Open-End Configuration: Designed to integrate seamlessly with Putzmeister® pumping mechanisms and hydraulic systems.
🔄 Function in Concrete Pumping Systems:
Each pump typically uses a pair of delivery cylinders that work in alternating cycles:
Suction Stroke: One cylinder retracts its piston to draw concrete from the hopper.
Delivery Stroke: The other cylinder pushes concrete into the delivery line toward the placement area.
This continuous reciprocating action ensures uninterrupted concrete flow and maintains consistent pressure throughout the pipeline.
📘 Applications & Technical Guidance:
These delivery cylinders are critical to the performance of your concrete pump. For precise fitment, material specifications, and model compatibility, consult your official Putzmeister® parts manual or reach out to our team for expert assistance. We’re here to help match you with the correct component for your specific model and operational needs.
