Putzmeister® Hydraulic Valves and Accessories Series for Concrete Pumps

Ensure precision, performance, and safety in your concrete pumping operations with the Hydraulic Valves & Accessories Series for Putzmeister® pumps. Engineered for reliability and designed specifically for seamless integration with Putzmeister® systems, this product line includes a variety of control valves and components vital to the pump's hydraulic circuit.

Key Features & Benefits:

• Precise Flow Control
  Regulate hydraulic fluid volume to control actuator speed and improve pump responsiveness.

• Directional Control
  Accurately route hydraulic fluid to control the direction of cylinders and motors, essential for functions like boom movement and outrigger deployment.

• Pressure Regulation
  Prevent overloads and system damage with pressure control valves that maintain optimal pressure levels throughout the system.

• Versatile Range
  Includes directional control valves (manual and solenoid-operated), pressure relief valves, reducing valves, flow control valves, and more—each engineered for a specific role in hydraulic management.

• Durable, High-Pressure Design
  Built to withstand demanding environments and pressures typical of concrete pump operations.

• Consistent & Safe Operation
  Delivers stable performance and incorporates safety features like pressure relief mechanisms for equipment protection.

• OEM Compatibility
  Fully compatible with Putzmeister® hydraulic circuits and components, ensuring a perfect fit and smooth operation.

Common Components in the Series:

• Manual Directional Valves
  Lever-operated to direct hydraulic flow manually—ideal for simpler systems or as backups.

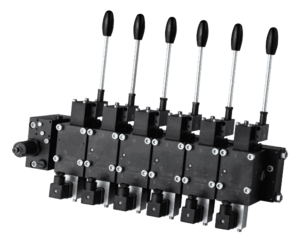

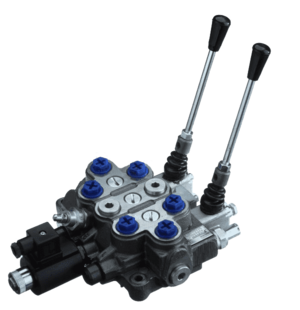

• Multi-Section Directional Valve Assemblies
  Control multiple hydraulic functions (e.g., boom arms) with a single compact unit.

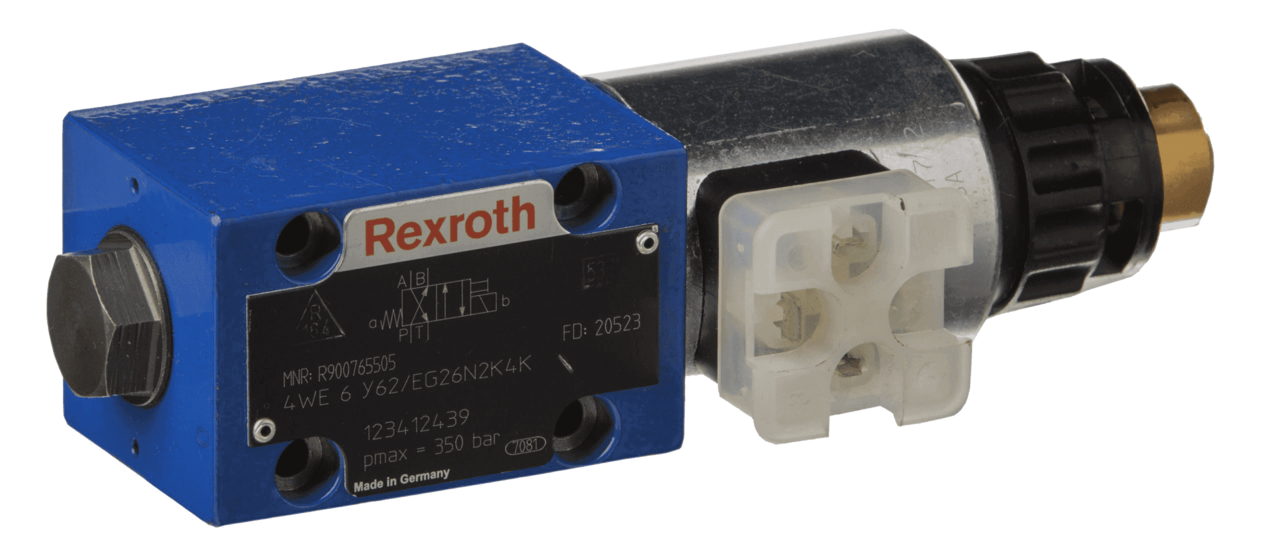

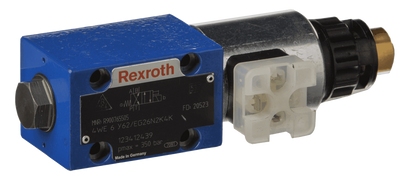

• Solenoid-Operated Valves
  Electric actuation enables integration with automated controls for improved operational efficiency.

• Pressure Relief Valves
  Protect the system from over-pressurization by releasing excess fluid pressure automatically.

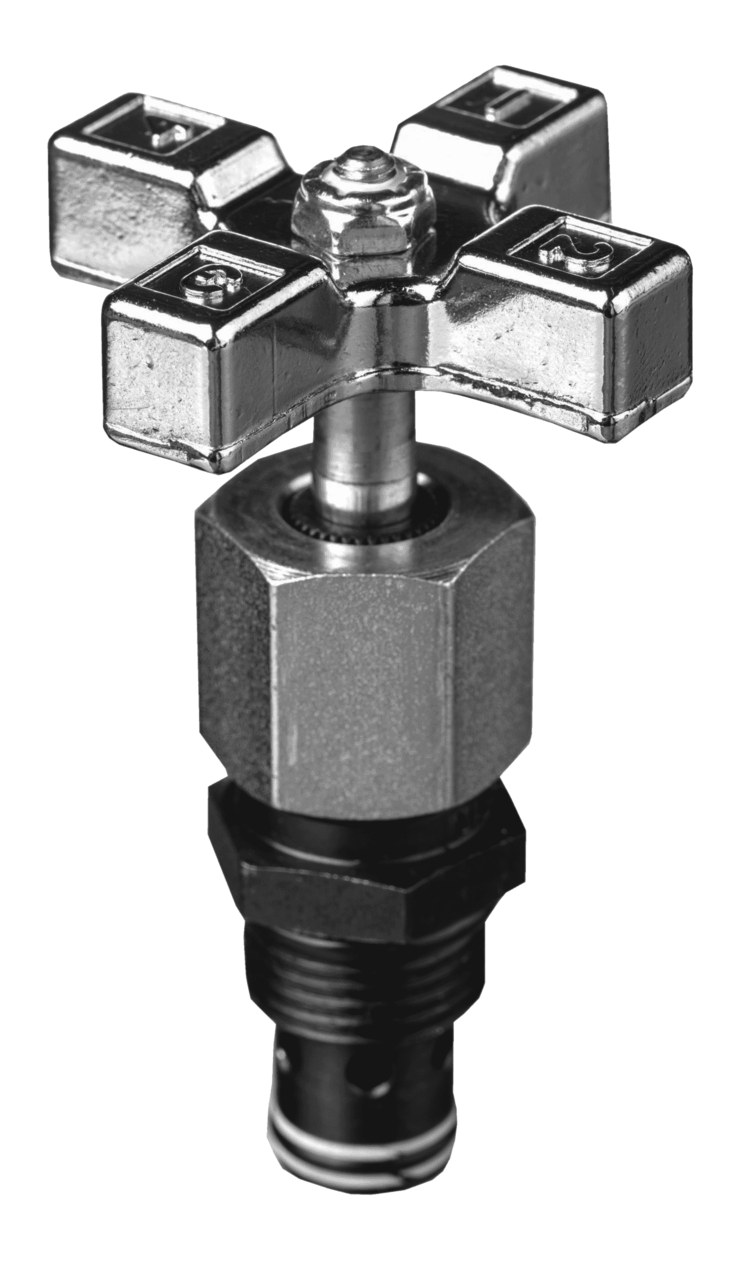

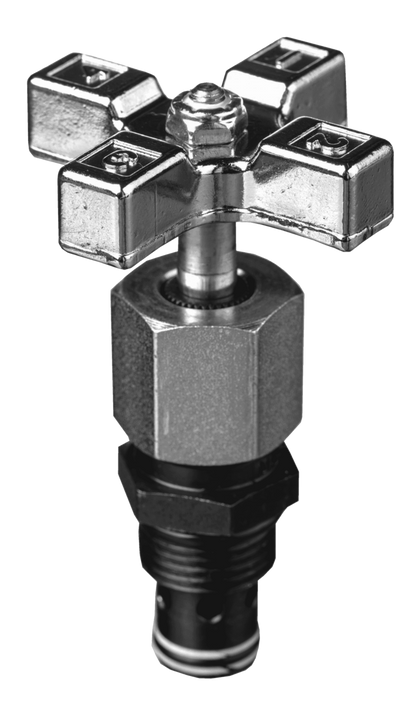

• Pressure Reducing & Flow Control Valves
  Fine-tune pressure and flow rate for subsystem optimization and actuator speed control.

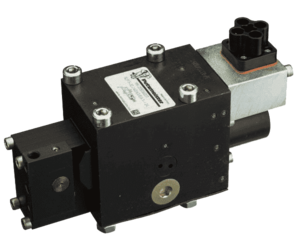

• Proportional Valves (optional)
  Allow variable control of flow and pressure based on electrical input—ideal for precision tasks.

• Hydraulic Accessories

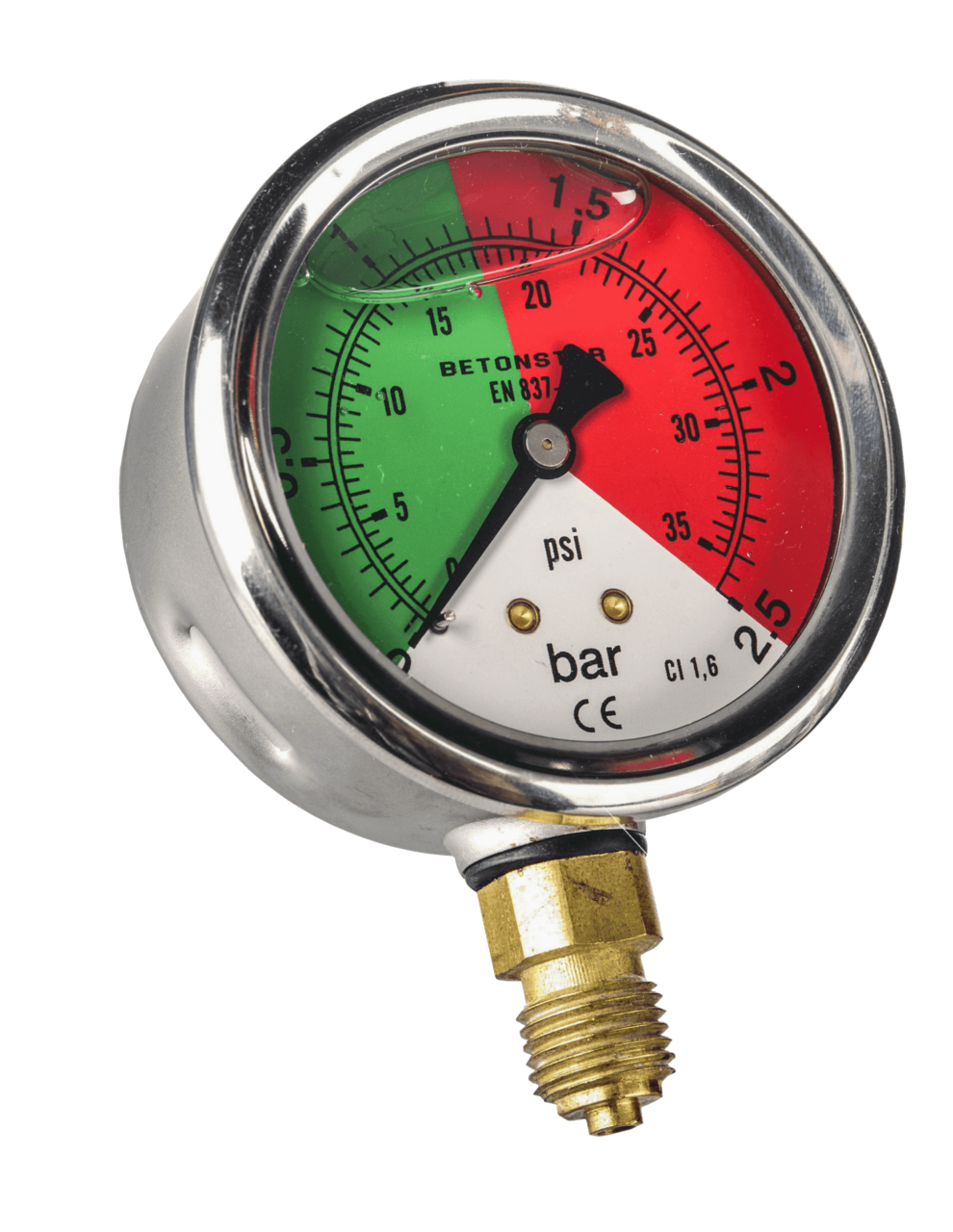

  Includes pressure gauges, fittings, mounting hardware, and connectors to complete hydraulic installations.

System Applications in Putzmeister® Pumps:

• Main Pumping Cylinders
  Direct control over concrete delivery through reciprocating hydraulic cylinders.

• Boom System
  Enable accurate positioning and movement of the concrete placing boom.

• Agitator Drive
  Power the hopper mixer for continuous and uniform concrete flow.

• Outrigger Control
  Stabilize the pump during operation through hydraulic extension and retraction.

• Water Pump Circuit
  Manage the hydraulic motor that powers the integrated water pump for cleaning.

Why It Matters:

• Efficient Pumping Performance

• Precision Concrete Placement

• Reliable System Safety

• Extended Equipment Lifespan
